Old 10-28-2016, 12:43 PM   -   Wikipost
R/C Tech Forums Thread Wiki: 1/12 forum
Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: fenton06
This is a place to share knowledge related to 1/12th scale racing. It is not to be used for conversations.

KITS:
Click links to go to manufacturer product page. If any are missing please add them!

TIRES:
Pre-mounted tires readily available in the US:
Pre-mounted tires readily available in the Europe:
  • Hot Race ??

Gluing your own donuts:
https://www.youtube.com/watch?v=hm7z1rz-74s - Special thanks to Edward Pickering!
Truing tires:
https://www.youtube.com/watch?v=8wqHOLWq6Uc - Special thanks to Edward Pickering!

The following information came from HERE, with some editing and information added. Thanks Christian!

THIS MAY NEED UPDATING FOR THE NEW BLACK CRC CARPET

Brands:
BSR, CRC, Jaco:
Pro One is no longer selling to the public, but it and the brands above are all mounted by BSR and use the same foam. The nomenclature of the BSR vs Jaco/CRC is a little different in a few instances but is otherwise the same. The BSR foam consists of three families, and can be identifed as synthetics, naturals, and blends.

Synthetics - The old school, light weight, easy to true "dry feeling" tires. These include tires like CRC/Jaco Yellow (BSR White), Black, Gray, etc. These tires offer the highest wear rate and lowest grip. Many racers continue to use these nder high bite conditions.

Naturals - These tires are usually the best alternative for low bite and asphalt. They include Pink, Magenta, Double Pink, Lilac (BSR Team Purple), Purple, and other tires. These tires provide a ton of grip, but tend to get sticky in high bite conditions. This rubber does not wear as easily, and the cars will pick up gunk and fibers from the carpet under most high bite conditions. This is especially bad if the humidity is high.

Blends - These are the tires most people run today. They were initially called "JFT foam" by some, as it was believed that the tires were the same as the JFT tires. We can divide the blends further into two groups: high rubber and low rubber content. The high rubber would be the new rear Orange and Red from the BSR family, and the low rubber would be the Green and Blue varieties. When, asked about the difference, John Foister from BSR Tires said they came from the same "family" of foam, but they offered different grip. According to John, the Green/Blue has more bite than Orange/Red, but from track testing Oranges offer more bite than Green (being equivalent to in hardness) when the grip is high and absolutely no grip when it is lower. The Orange foam has a denser pore structure and the tire is not as prone to chunking. It is also important to note is that BSR Blue rears are not the same as the BSR Blue fronts!

JFT:
JFT stands for Japan Foam Tire. They started the new wave of foam tires we are all using now (Blue/Blu, Green/Greene, Dbl Blue, etc). These tires are a little different than the BSR tire family, but work in very similar conditions. They offers four varieties A (asphalt), C (carpet), S (???), and R (???). This does not mean that those types only work on that surface, but this is what they recommend.

JFT uses the same foam for fronts and rears if the color is the same.

A: Used on asphalt, considered close to the natural rubber variety and are named consistently with other natural tires.
C: Used on carpet, considered a blend.
S: Used on carpet?, tires are ???
R: Used on carpet?, tires are ???

For setup, the JFT foam seem to generate more bite than the BSR, therefore the car tends to be a little more aggressive.

Ulti:
Ulti is another Japanese brand that offers an array of compounds. They have their own way of rating tires, and are difficult to equate to other brands. They have 4 different varieties, each in varying degrees of hardness.

J: High rubber content tire, similar to Pink/ Magenta. Soft would be close to a pink. These offer the most bite and are great for asphalt/carpet front tire. (J hard being very popular)
X: "Balanced" blend, similar to JFT Blue/ Green. Soft is equivalent to Green, medium to Blue in hardness. Great for carpet!
Y: High synthetic blend with lower grip, and is not a very popular variety.
Z: A very expensive "special" foam that is supposed to be magic on asphalt. Only make it in soft shore.
European tires:
There are many great European foam tire brands that use their own types of foam, as well as traditional foams. SOmeone with more knowledge about them will need to fill this in!

Tire Diameter:
If you are racing on carpet, you have to evaluate how much grip your track has. If your track is low to medium grip, you can run bigger tires. If you are on higher bite you have to cut them smaller, there is simply no way around it. Bigger tires are needed for asphalt, especially in the rear. The larger tires provide much needed lateral bite.

Carpet (mm):
Low - Medium Bite
Front: 42.0 - 42.5
Rear: 42.5 - 43.00
Medium - High Bite
Front: 40.5 - 41.0
Rear: 41.5 - 42.0
Big Race
Front: 39.5 - 40.0
Rear: 40.5 - 41.0
Asphalt (mm):
Parking Lot
Front: 43.0 - 44.0
Rear: 44.0 - 45.0
Prepped High Bite
Front: 42.0 - 43.0
Rear: 43.0 - 44.0

Tire Saucing:
Most facilities have moved towards odorless traction additives such as SXT. Some of additives evaporate very quickly and some do not. This seems to be something that is also dependent on tire compound and ambient temperature. For example, saucing a Green compound seems like it never dries, especially when tjhe temperature is lower. We have found that wiping the tires off 15 minutes before we go run allows the sauce to cure, which makes the car come in much quicker with Green rears. Blue compounds on the other hand, do fine when wiped off right before hitting the track.

Saucing half front and full rear is a good initial starting point. If the front of the car is too agressive you can sauce les than half, or for a shorter amount of time.
Tire Fuzzing:
In conditions of increasing grip, foam tires will somewtimes get sticky and pick up fuzz and debris from the track. This is highly dependent on the rubber sedan tire that is being run at your local track and the compound/ type of foam you are running on you car. The softer the sedan tire and the harder/higher rubber content in your foam tire, trouble with fuzzing seems more likely to occur.

There are ways to get around fuzzing under most conditions, and usually involves the selection of the correct foam compound. The more fuzz you get, the softer/lower rubber content you want to run.

Examples:
Problem: Car fuzzes with Lilac/Team Purple fronts and car starts pushing.
Solution: Use a softer front tire and or different family of foam. Replace it with Blue or Double Blue front.

Problem: Car loses rear bite 6 minutes into the run. Blue rear tires look almost clean but have small carpet hairs.
Solution: Use Green rear tires. The softer compound wears instead of getting sticky, minimizing fuzz.

Tire Selection:
Starting out, pick 2 tire compounds for the front and rear. The following should have you covered 99% of the time.

Front - Green and Blue (BSR) or Green and Light Blue (JFT)
Rear - Blue and Double Blue (BSR) or Blue and Dark Blue (JFT)

You may wonder about other compounds out there and if they might be better, trust me, they probably won't be. Even if there are other tires that can be as fast, the synthetic family wears out really fast and the high natural rubber will probably fuzz on you over an 8 minute run. The blends family seems to be the most versatile foam type available today. They last awhile, and sticking to them will make your process of tire selection simpler.
Tire Charts:
BSR/CRC/Jaco



Contact



Corally



JFT (Japan Foam Tire)



Ulti



Enneti (Xceed)



ELECTRONICS:
ESC:
As of now, ROAR is staying 1S (3.7V nominal; 4.2V fully charged) for 1/12. There are many 1S ESC's with a built in BEC so nothing else is required to power the receiver and servo.

If you don't want to lock yourself into a 1S specific ESC, you do have other options! It is possible to use your 2S ESC without a booster or receiver pack, and the ESC simply supplies the lower voltage. If that does not appeal to you, you will need to use an Rx pack or booster. The Rx pack and booster will both supply the receiver with a higher voltage than the 1S pack.

If you decide to use an Rx pack, MAKE SURE TO REMOVE THE RED WIRE FROM THE ESC PLUG THAT GOES INTO THE RECEIVER!!!

If you choose to use a voltage booster, it works exactly how it sounds. Instead of plugging the ESC into the receiver, it plugs into the booster, and the booster plug goes to the ESC, supplying the higher voltage.

1S ESC:
If there are any missing please add them!!

If anyone would like a need for a chart comparing the ESC's specs PM fenton06 and I'll get one made and put in here!
Voltage Boosters:
If there are any missing please add them!
Servos:
BODIES:
Black Art (CRC - US Dist):
  • Audi R8C - BA002 - .020 Thick



  • Black Market (Mohawk 12) - BA005 - .020



  • Lola B10 - BA006 - .020 thick
  • Toyota TS030 - BA008 - .020 thick

    Lola - black/red, TS030 - green/pink


PROTOForm:

Reflex Racing/RSD:

SUSPENSION ADJUSTMENTS:

Print Wikipost

Reply

Thread Tools Search this Thread
Old 03-08-2010, 01:31 PM   #33721
Tech Champion

Join Date: Nov 2001
Location: Hawaii, USA
Posts: 7,157
Default

Looks really nice! Wish we had something like that out here! We do have a nice outdoor track but I'd love a nice indoor carpet track.
InspGadgt is offline   Reply With Quote
Old 03-08-2010, 08:01 PM   #33722
Tech Addict

Join Date: Oct 2007
Location: San Dimas, CA
Posts: 598
Trader Rating: 29 (100%+)
Default

Quote:
Originally Posted by spring71 View Post
Hi 12 racers..

I just opened the new indoor carpet rc track in Chino, CA.

It's perfect for 1/12 racing, also F1, 1/10 sedan and mini.

90'X45' CRC Carpet and barrier, super flat and smooth

Please check out at www.tqrcracing.com

I can vouch for this track, it IS AWESOME!!!!!!!! Sweet carpet surface, great amenities and the BEST pit chairs you will find at any track! Plus the track owner is a really cool guy!
JustMe2 is offline   Reply With Quote
Old 03-08-2010, 08:12 PM   #33723
Tech Elite

chris moore's Avatar

Join Date: Mar 2004
Location: Phx AZ
Posts: 3,658
Trader Rating: 85 (99%+)
Default

Quote:
Originally Posted by spring71 View Post
Hi 12 racers..

I just opened the new indoor carpet rc track in Chino, CA.

Your facility looks real nice, best of luck on your venture.
__________________
Sponsered by:

CMDezigns Paint Works
https://www.facebook.com/pages/CM-Dezigns/259989190822177?ref=hl
chris moore is offline   Reply With Quote
Old 03-08-2010, 10:40 PM   #33724
Tech Elite

spring71's Avatar

Join Date: Oct 2008
Location: Chino, CA
Posts: 3,694
Trader Rating: 3 (100%+)
Smile TQ Grand Opening Race on April 3rd

We will have a TQ Grand Opening Race on April 3rd.

Track open at 8am, race start at 3pm.

Class: TRUSPEC, 1/10 Sedan, RCGT,1/12 scale, 1/18 scale, Mini 4wd, Mini 2wd, F1

There will be raffles and prizes for 1st,2nd and 3rd of each Main.

Lunch will be provided and Free T-Shirts for the racers.

Please be prepared for the Big Race !!!

Any questions, please leave a post.

More detail information to be announced soon.

Please check out www.tqrcracing.com and sign up for email updates.

Thanks.
__________________
TQ RC RACING
Indoor RC Race Track & Hobby Shop in Chino, CA
Online Shop
http://www.tqrcracing.com
tq@tqrcracing.com

Last edited by spring71; 03-09-2010 at 12:35 AM.
spring71 is offline   Reply With Quote
Old 03-10-2010, 02:26 PM   #33725
Tech Master

Mark506's Avatar

Join Date: Nov 2008
Location: Latrobe, PA
Posts: 1,085
Trader Rating: 41 (100%+)
Default

A flat servo over a angled servo will produce what....? A little more Camber gain, and a bit of a different ackerman feel?
__________________
Mark Ament

l MOMO USA l OZ Racing l Willwood Brakes | Dunlop Tires |

The Raceway at Beaver: Forever In Blue Jeans
Mark506 is offline   Reply With Quote
Old 03-10-2010, 05:18 PM   #33726
Tech Adept

Join Date: Dec 2005
Location: nor cal
Posts: 143
Trader Rating: 29 (100%+)
Default gen 12xl ?

i have gen xl i ran on carpet. how will it work on asphalt or do i need a Tbar car and witch one?
thnaks ronzo
ronzo is online now   Reply With Quote
Old 03-10-2010, 06:24 PM   #33727
Tech Elite

CypressMidWest's Avatar

Join Date: May 2003
Location: Central Ohio
Posts: 4,603
Trader Rating: 1 (100%+)
Default

Quote:
Originally Posted by Mark506 View Post
A flat servo over a angled servo will produce what....? A little more Camber gain, and a bit of a different ackerman feel?
Mark, Generally the steering feel is more immediate off-center with a flat servo. Servo flat set-ups also have a lot more bump-steer than angled set-ups. The bump-steer actually adds mid-corner steering, but can make the car a little inconsistent on bumpy tracks. Pulfer has been running servo flat, I've been running angled. It's a personal preference thing. Try it and see what you think.
__________________
Team CRC, Access Race Place, US Indoor Champs, CD SUPERPRO, RK Designs, Cypress, Founder and lead instructor of the Ian Ruggles Negative Reinforcement Driver Training Program, enroll now.....
CypressMidWest is offline   Reply With Quote
Old 03-10-2010, 06:45 PM   #33728
Tech Fanatic

Join Date: Nov 2003
Location: CRC Raceway
Posts: 951
Default

Quote:
Originally Posted by ronzo View Post
i have gen xl i ran on carpet. how will it work on asphalt or do i need a Tbar car and witch one?
thnaks ronzo

The Gen XL will work great on asphalt. Depending on how well prepped the track is, you might need to go one step stiffer on front spring, and step softer on the side springs and the center spring.
__________________
www.teamcrc.com, www.teamscreamracing.com, Outlaw RC Motorsports, KO Propo USA, www.crcraceway.com, Dumper's Speedshop, FB/FX Paint. 38.4mm>38mm, 9 degrees does not = Zero end of story. Vice-President of the F1 Pink Flame Posse
dumper is offline   Reply With Quote
Old 03-10-2010, 08:39 PM   #33729
avs
Tech Master

avs's Avatar

Join Date: Jul 2006
Posts: 1,144
Trader Rating: 2 (100%+)
Default

Quote:
Originally Posted by dumper View Post
The Gen XL will work great on asphalt. Depending on how well prepped the track is, you might need to go one step stiffer on front spring, and step softer on the side springs and the center spring.
that's interesting, i have been struggling with a very high bite indoor asphalt track. is this the situation you meant would benefit from stiffer front and softer rear?

i was going stiffer and stiffer front and rear to get more linear grip. what would you suggest with the gen XL layout?
__________________
Tony Shimko
avs is offline   Reply With Quote
Old 03-11-2010, 08:17 PM   #33730
Tech Elite

Join Date: Oct 2001
Location: Kissimmee,Fl.
Posts: 4,855
Trader Rating: 15 (94%+)
Send a message via AIM to W.E.D.Jim
Default

In case any of you are interested in a custom painted 1/12th scale body, this one just came available today.







...Jim
W.E.D.
Get Faster Gear
www.wedjim.com
__________________
www.wedjim.com ...Closed down due to heavy gov't regulation? Or something like that.

www.prolineracing.com

"Nothing but the best!"
W.E.D.Jim is offline   Reply With Quote
Old 03-12-2010, 12:31 AM   #33731
Tech Initiate

Join Date: Nov 2009
Location: Antwerp, Belgium (Europe)
Posts: 45
Trader Rating: 1 (100%+)
Default

Quote:
Originally Posted by W.E.D.Jim View Post
In case any of you are interested in a custom painted 1/12th scale body, this one just came available today.







...Jim
W.E.D.
Get Faster Gear
www.wedjim.com
PM sent
stical is offline   Reply With Quote
Old 03-12-2010, 09:57 AM   #33732
Tech Adept

Join Date: Dec 2005
Location: nor cal
Posts: 143
Trader Rating: 29 (100%+)
Default

Quote:
Originally Posted by dumper View Post
The Gen XL will work great on asphalt. Depending on how well prepped the track is, you might need to go one step stiffer on front spring, and step softer on the side springs and the center spring.
dumper do you have a starting set up for asphalt?
ronzo is online now   Reply With Quote
Old 03-12-2010, 01:33 PM   #33733
Tech Addict

Join Date: Dec 2008
Posts: 569
Trader Rating: 33 (100%+)
Default

.

Last edited by Josh Keller; 03-13-2010 at 06:49 PM.
Josh Keller is offline   Reply With Quote
Old 03-12-2010, 04:00 PM   #33734
Tech Elite

spring71's Avatar

Join Date: Oct 2008
Location: Chino, CA
Posts: 3,694
Trader Rating: 3 (100%+)
Smile

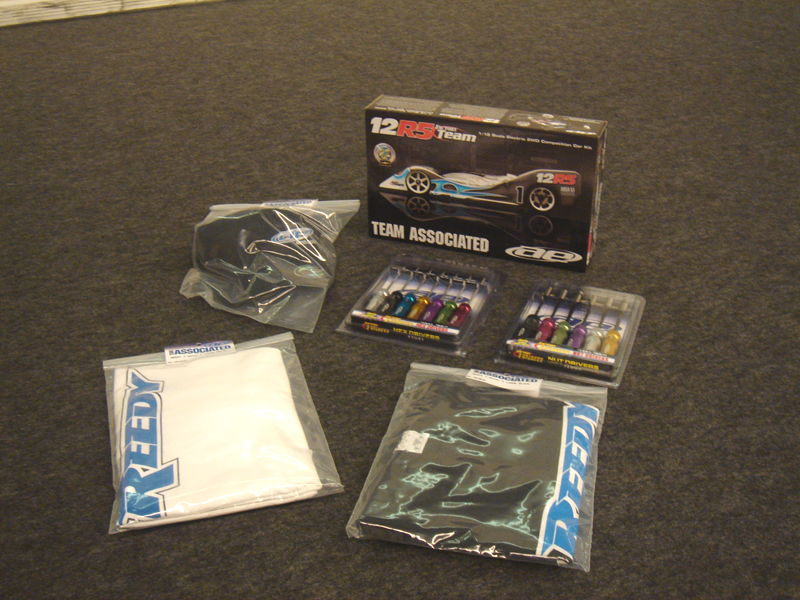

First prizes for TQ Grand Opening Race arrived from Team Associated.

Please Pre Sign up before the race, it will help me and racers for the best race event.

We will have a race on Saturday, tomorrow open at 10am, race at 3pm

Come on bring your 1/12s and let's race ...

Thanks Team Associated for supporting TQ RC RACING.

__________________
TQ RC RACING
Indoor RC Race Track & Hobby Shop in Chino, CA
Online Shop
http://www.tqrcracing.com
tq@tqrcracing.com
spring71 is offline   Reply With Quote
Old 03-12-2010, 04:11 PM   #33735
Tech Champion

YR4Dude's Avatar

Join Date: Sep 2004
Location: So Cal
Posts: 5,625
Trader Rating: 44 (100%+)
Default

Quote:
Originally Posted by spring71 View Post
First prizes for TQ Grand Opening Race arrived from Team Associated.

Please Pre Sign up before the race, it will help me and racers for the best race event.

We will have a race on Saturday, tomorrow open at 10am, race at 3pm

Come on bring your 1/12s and let's race ...

Thanks Team Associated for supporting TQ RC RACING.
Who will be doing the annoucing at the Grand Opening Race?
YR4Dude is offline   Reply With Quote
Reply

Similar Threads
Thread Thread Starter Forum Replies Last Post
New to the forum mig rod Electric Off-Road 1 01-05-2008 05:23 PM
hi i need help and im new to the forum racer4 Rookie Zone 4 01-21-2007 02:37 PM
Why is this forum listed under the On Road Forum? sport10 Onroad Nitro Engine Zone 0 01-11-2007 08:06 AM
Forum Changes... futureal Wisconsin & Illinois Racing 3 10-28-2002 09:26 PM



Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are Off



All times are GMT -7. It is currently 05:27 PM.


Powered By: vBulletin v3.9.2.1
Privacy Policy | Terms of Use | Advertise Content © 2001-2011 RCTech.net

SEO by vBSEO 3.5.0
