Sept/Oct 2021 Layout
Hello All,

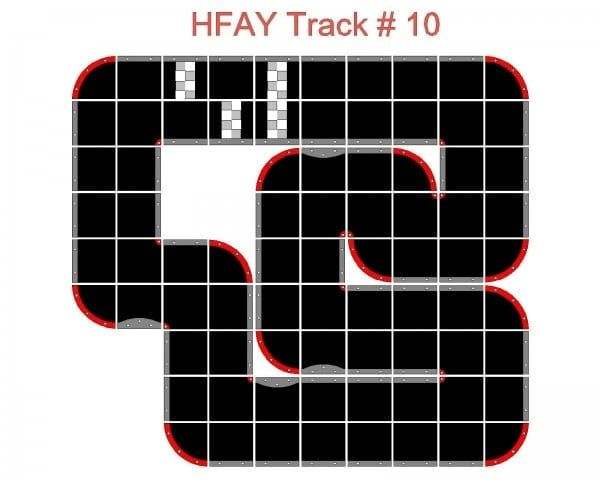

Happy September M96WC racers! Here is the layout for the next two months. We will run CLOCKWISE in September and counter clockwise in October. This layout is 9 x 10 tiles, so a little shorter and wider (more squarish) and I hope everyone can make it work in their space. Ignore the straight tiles with bump outs, as this layout was "borrowed" from HFAY which uses 50cm tiles. We use the 30cm tiles in the M96WC. Drive fast! https://cimg0.ibsrv.net/gimg/www.rct...ed4cc50544.jpg |
2021-Aug Stock Class
Class- Stock

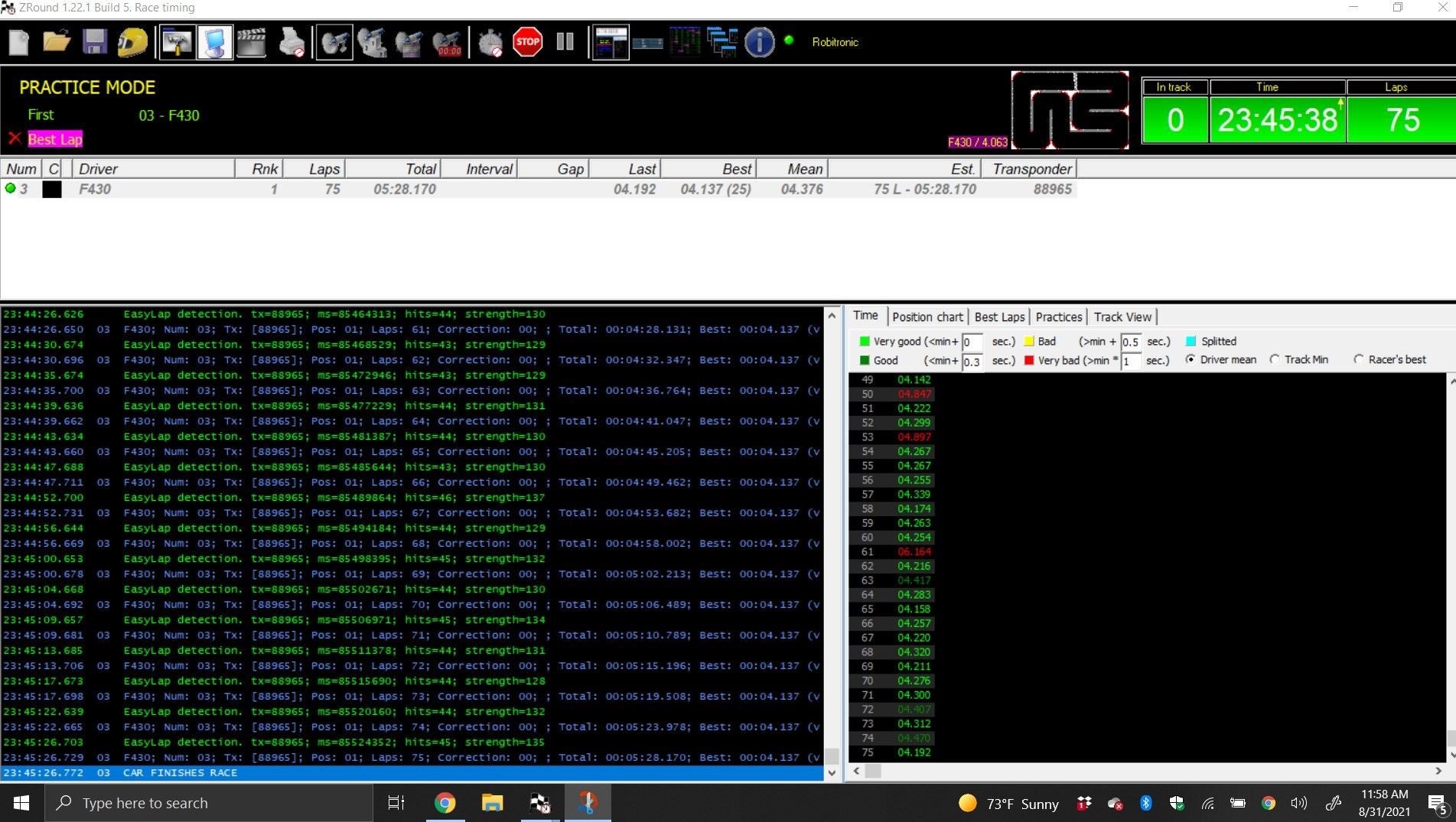

Date- 31-Aug-2021 Location- Redondo Beach, CA USA Race Time- 328.170 Fastest Lap- 4.192 Chassis- PN 2.5 EVO Body- Kyosho Ferrari F430 (Lexan window & wing) Wheelbase- 94mm Tires- (F) Kyosho 30 Deg Slick, (R) PN KS Super Soft Radial Motor- PN 3500kv Batteries- PN 750 mah Front Springs- PN AA green T-Plate- PN G10 2 Motor Mount- Stock PN v4 94/98 Dampener (If applicable)- PN DSD Dampener Fluid (If applicable)- N/A Gearing- PN 64P LSD 53/12 Notes: New car. still developing. Lots of potential. https://cimg5.ibsrv.net/gimg/www.rct...bc55fb0cc3.jpg https://cimg9.ibsrv.net/gimg/www.rct...2637190475.jpg |
August Box Stock
Class- Box Stock

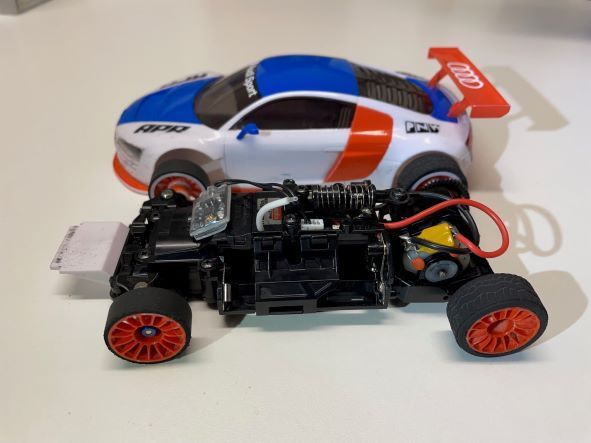

Date- 8/31/2021 Location- Denton, TX Race Time- 368.2 Fastest Lap- 4.49 Chassis- MR03 Body- Mercedes AUDI LMS Wheelbase- 98mm Tires- Rear PN S(R), Front PN M(S) Motor- Stock Batteries- PN 750 Front Springs- Stock T-Plate- PN #4 Black Fiberglass Motor Mount- MM Dampener (If applicable)- Stock Dampener Fluid (If applicable)- N/A Gearing- 7T Pinion Notes- Oops, little late... https://cimg3.ibsrv.net/gimg/www.rct...f2d446e174.jpg |
I didn't realize it was a more square layout, have to see how it fits in my basement.
Sorry didn't have time to setup the track this month. Lots of stuff going on right now and I've been busy with the new mini RC club. Hopefully I can get it setup at some point again. It's a cool competition and it's definitely made me a better RC driver. |
Sept 2021 Box Stock
Class-Box Stock
Date-9/8/21 Location-Winston-Salem, NC Race Time-259.8 Fastest Lap-3.19 Chassis-MR-03 ASF Body-McLaren F1 LM Wheelbase-98mm Tires-K30LH fronts, Marka V1R10 rears Motor-Stock Batteries-TRP 747s Front Springs-Kyosho Orange T-Plate-Kyosho Carbon Med Motor Mount-Stock MM Dampener (If applicable)-None Dampener Fluid (If applicable)-K 15k grease on top shock Gearing-Stock Gear Diff/7T pinion Notes-No changes this month. https://cimg9.ibsrv.net/gimg/www.rct...c33a3e855b.png https://cimg2.ibsrv.net/gimg/www.rct...57f69d435.jpeg |
Sept 2021 Stock
Class-Stock PNR 3500kv
Date-9/8/2021 Location-Winston-Salem, NC Race Time-249.6 Fastest Lap-3.05 Chassis-PNR2.5W Body-Ferrari 458 Italia Wheelbase-98mm Tires-K30 slick fronts, Marka V1R10 rears Motor-Rocket 3500vk Batteries-Kyosho 800 Front Springs-PN AA Blue T-Plate-PN G10 #3 Motor Mount-PN 98mm v5 Dampener (If applicable)-PN DDS Dampener Fluid (If applicable)-None Gearing-PN 64p 11/53 Ball diff Notes-Car was always very stable and easy to drive, but with the brushless motor I have difficulty recovering from a mistake and it costs me a lot of time. I'm now running the PN v4 A-Arm (thanks to LuckyLou) and I'm finally faster than my PN 70T car, by less than 3 seconds in total time. https://cimg5.ibsrv.net/gimg/www.rct...1d7f27f22f.png https://cimg6.ibsrv.net/gimg/www.rct...0dfd30b63.jpeg |
September Class-box Stock

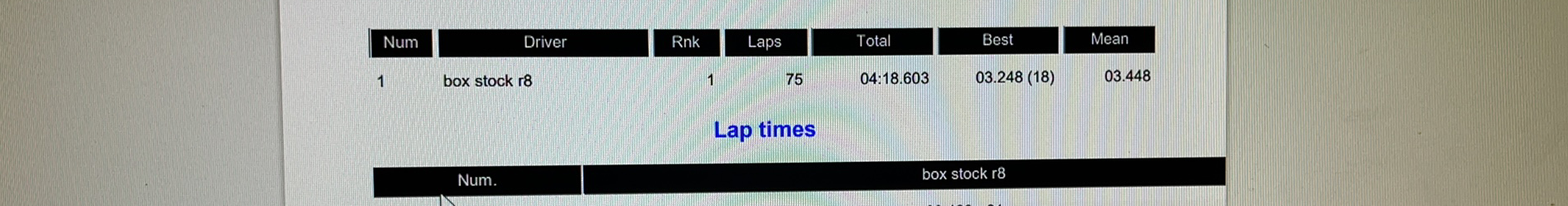

Date-09/12/2021 Location- Elkton MD Race Time- 258.603s Fastest Lap - 3.248 Chassis-MR-03 Body- Audi R8 Tires- PN KS firm front (22.4 mm), Marka V1R10 rears Motor- box stock Batteries- Orion 900HV Front Springs- kyosho red T-Plate- silver PN #4 Motor Mount- MM. Dampener Box stock with Gearing- 7t Notes: I removed all rear shims and set the front ride height to ~1.8mm (one thin spacer above and below knuckle) and rear to stock height. I focused on smooth driving to keep from traction rolling. https://cimg6.ibsrv.net/gimg/www.rct...fde1273267.png Pictures pending |
1 Attachment(s)
August Class-Stock

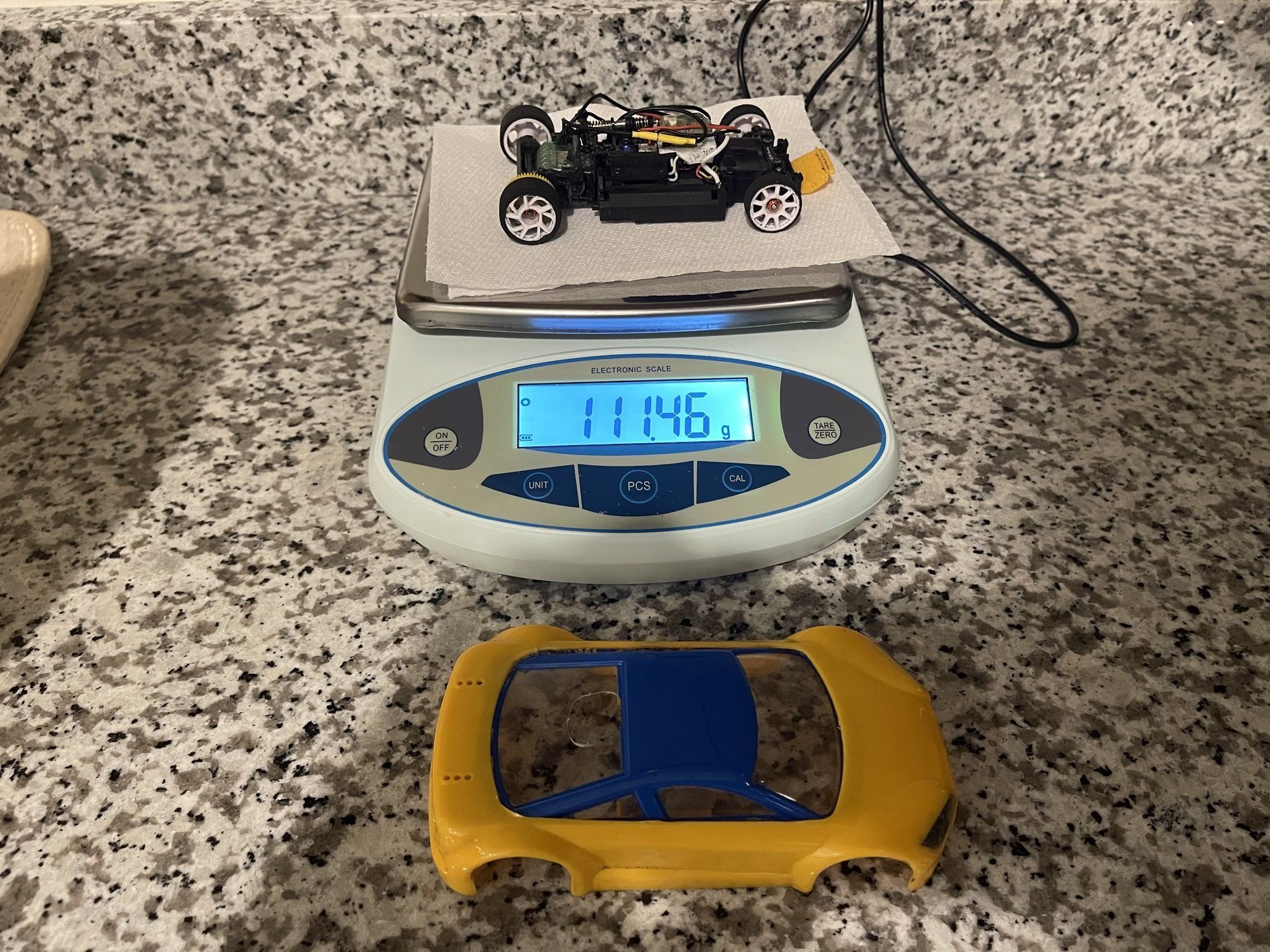

Date-09/17/2021 Location- Elkton MD Race Time- 238.725s Fastest Lap- 2.957 Chassis-PNR 2.5, EVO board Body- Jomurema with lexan roof Wheelbase-98mm Tires- PN KS firm trimmed to 22.5 mm front, Marka V1R10 rears Motor- kyosho speed 4100kv BL Batteries- Orion 900HV Front Springs- PN Green (PN front end) T-Plate- wolfram CF #5 Motor Mount- Kyosho MML Dampener Kyosho CF disk damper. Dampener Fluid N/A - Gearing- 44/7 PN stock kyosho gear diff. Notes: No changes from last month https://cimg6.ibsrv.net/gimg/www.rct...c3b4360da.jpeg |
1 Attachment(s)
Class-Pro Stock
Date-09/18/2021 Location- Elkton MD Race Time- 231.996 Fastest Lap- 2.853 Chassis-PNR 2.5, EVO board Body- Jomurema with lexan roof Wheelbase-98mm Tires- MZW2-30 , Marka V1R5 rears Motor- kyosho speed 5600kv BL Batteries- Orion 900HV Front Springs- PN Green (PN front end) T-Plate- wolfram CF #3 no side springs Motor Mount- MZW309 Dampener MZW310 Dampener Fluid N/A - Gearing- 7/44 (stock gear diff and gearing) video link to example run. This run was 6-7 seconds slower though... Notes: This car was really hard to handle. I took a video of a similar run as above (it was about 6-7 seconds slower, see link). I had to switch to marka 5's to keep the back end in line. Chassis pics pending: See attachment for lap record. |
Class- August Porsche Cup
Date-09/21/2021 Location- Elkton MD Race Time-274.664 Fastest Lap-3.255 Chassis-MR-03 Body- Porsche 911 GT1 Wheelbase-90mm, wide front Tires- PN KS firm front (22.6mm), 0 offset, Marka v1 10 degree rear 0 offset Motor- PN70T BB Batteries- Orion 900HV Front Springs- kyosho purple T-Plate- PN CF #3 Motor Mount- PN reconfigurable mount. Dampener PN disk damper Fluid - N/A Gearing- 8/44 - stock gear diff. This car has more potential than what is represented in this run. I need to spend more time with it next month. I expect something in the 240's - 250's to be possible for this setup. I just need to put in the time to drive it right. Pictures pending |
Class- Stock

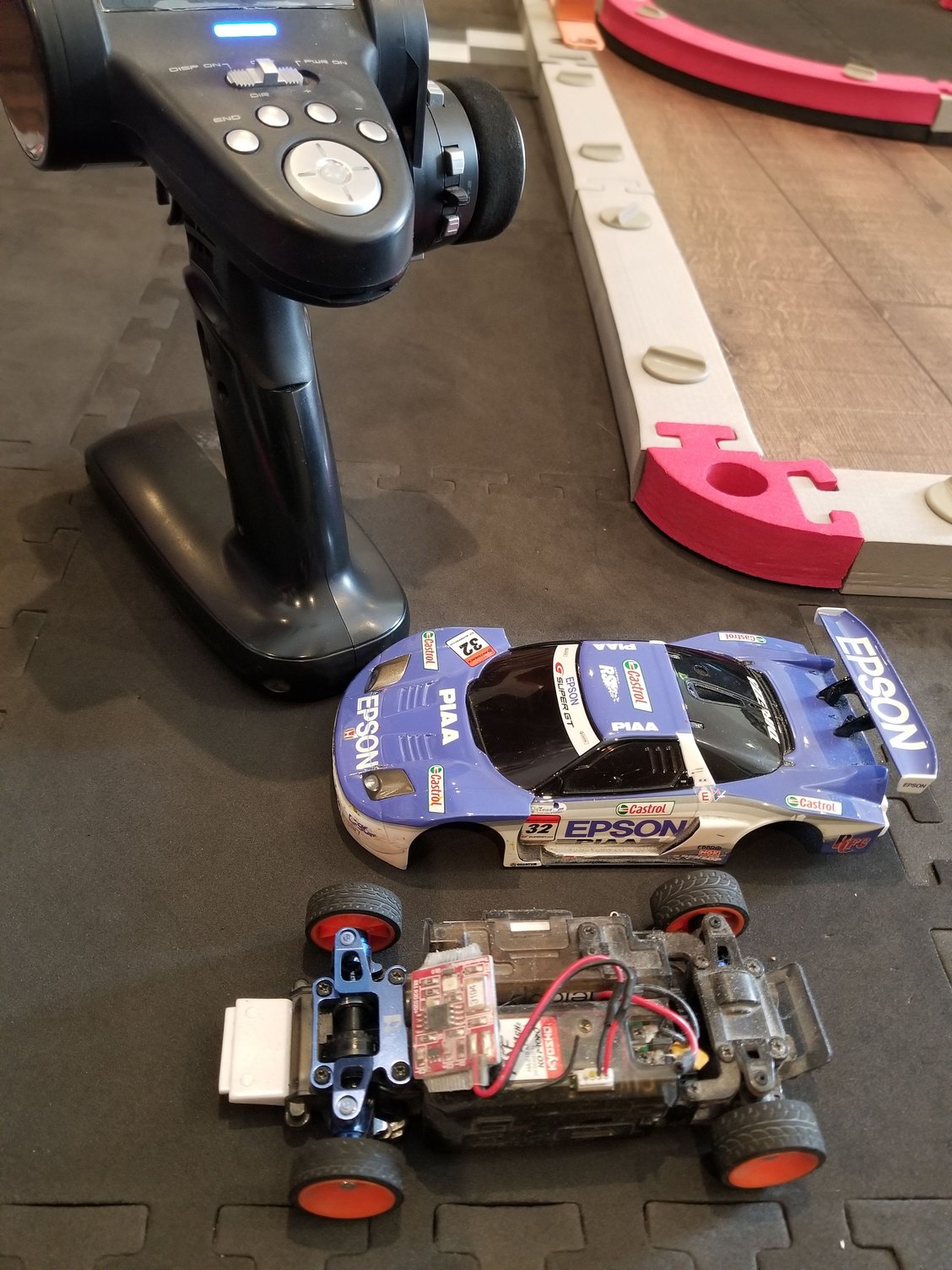

Date- 9/30/2021 Location- Seattle, WA Race Time- 406.5 Fastest Lap- 4.38 Chassis- MR010 27am -> ASF Body- Honda NSX Epson 2005 Wheelbase- 94mm Tires- Kyosho Radials 30 front, Kyosho Radials 20 rear Motor- Stock Batteries- eneloops Front Springs- stock T-Plate- N/A Motor Mount- N/A Dampener (If applicable)- N/A Dampener Fluid (If applicable)- N/A Gearing- Stock Barely made it this month, put up the track last night (technically after midnight), ran a few practice laps and then the race. Hopefully October will have more time for practice. https://cimg9.ibsrv.net/gimg/www.rct...9590e5c3fc.png https://cimg2.ibsrv.net/gimg/www.rct...1c1cb78811.jpg |
Class- Box Stock

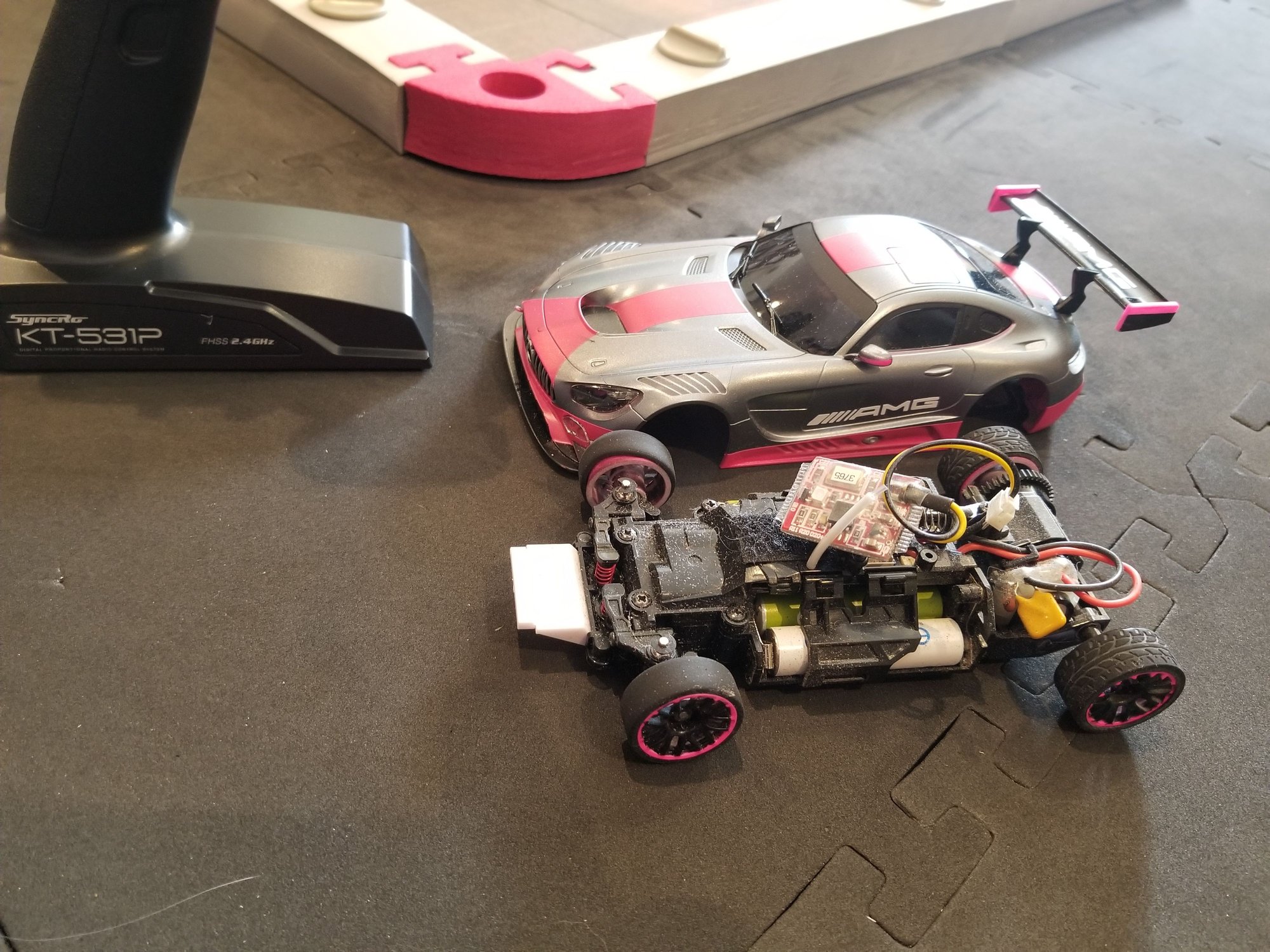

Date- 9/30/2021 Location- Seattle, WA Race Time- 425.4 Fastest Lap- 4.37Chassis- MR03 Body- Mercedes AMG GT3 Wheelbase- 98mm Tires- Kyosho 30 front, Kyosho 20 rear Motor- stock Batteries- eneloops Front Springs- Kyosho red T-Plate- stock Motor Mount- stock Dampener (If applicable)- N/A Dampener Fluid (If applicable)- N/A Gearing- Stock Same as above, barely made it. Still need to tape the tires and try out the kingpin flip mod https://cimg6.ibsrv.net/gimg/www.rct...78d286bb52.png https://cimg9.ibsrv.net/gimg/www.rct...d5ec92a869.jpg |
September 2021 Results
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
Hello All, We only had three racers this month. Box Stock 1st - ChemNut - 258.6/3.25s 2nd - Traveler - 259.8/3.19s 3rd - Cdog4w - 425.4/4.37s Porsche Cup 1st - ChemNut - 274.7/3.26s Stock Class 1st - ChemNut - 238.7/2.96s 2nd - Traveler - 249.6/3.05s 3rd - Cdog4w - 406.5/4.38s Pro Stock Class 1st - ChemNut - 232.0/2.85s FTM goes to ChemNut and his Pro Stock car with a smoking 2.85 fast lap. Please check my tabulations and let me know if I made any mistakes. Same layout for October, but Counter Clockwise. Drive fast! Cheers, Traveler2 |
Originally Posted by tomthegeek
(Post 15828894)
I didn't realize it was a more square layout, have to see how it fits in my basement.
|
October 2021 Layout
Remember that we will run COUNTER CLOCKWISE in October.
Drive fast! https://cimg0.ibsrv.net/gimg/www.rct...ed4cc50544.jpg |
