CloudLaps, A decoderless solution for laptiming
Dear All,
Allow me to introduce you this new Lap timing solution. Designed, manufactured tested and supported in Europe. The basic idea was to create a transponder ,that require no expensive decoders, thus bringing the lap timing as an opportunity to a lot broader audience,either as a backyard bashing, or as a pro racer's accessory. Also capable of hosting complete races with sector times, and printouts.
It works with magnetic field detection, and there are 2 variants currently. One, the basic model is capable of reading lap times, the Pro variant can read up to 9 sector times as well. Works though Wifi, so the "decoder" is your smartphone, or your wifi router, depends on the transmission's range that is required. The software is cloud based, so you can access it anywhere with a solid internet connection, may that be out in the field, or in town.
For more information, check out our website, or ask any question, that you might have here.
Norbert from CloudLaps.
Allow me to introduce you this new Lap timing solution. Designed, manufactured tested and supported in Europe. The basic idea was to create a transponder ,that require no expensive decoders, thus bringing the lap timing as an opportunity to a lot broader audience,either as a backyard bashing, or as a pro racer's accessory. Also capable of hosting complete races with sector times, and printouts.
It works with magnetic field detection, and there are 2 variants currently. One, the basic model is capable of reading lap times, the Pro variant can read up to 9 sector times as well. Works though Wifi, so the "decoder" is your smartphone, or your wifi router, depends on the transmission's range that is required. The software is cloud based, so you can access it anywhere with a solid internet connection, may that be out in the field, or in town.
For more information, check out our website, or ask any question, that you might have here.
Norbert from CloudLaps.
Last edited by mikeylama; 02-11-2020 at 07:55 AM.
02-10-2020, 01:56 PM
#2
Not to tear you down but...
1) Most tracks have an AMB system and most racers have a personal transponder which is worldwide accepted.
2) Mabe something for personal training for those who have no 24/7 AMB system online
3) I read of the thickness of the magnetical tape, that could be dangerous with onroad racing, when hitting the tape and so launched in he air.
4) the tape is 3 meter long, most onroad tracks are 4 to 6 meter wide....
5) Nice to have sector times, how does it see the sectors and how does it know where to start? What happens when it misses a tape?
1) Most tracks have an AMB system and most racers have a personal transponder which is worldwide accepted.
2) Mabe something for personal training for those who have no 24/7 AMB system online
3) I read of the thickness of the magnetical tape, that could be dangerous with onroad racing, when hitting the tape and so launched in he air.
4) the tape is 3 meter long, most onroad tracks are 4 to 6 meter wide....
5) Nice to have sector times, how does it see the sectors and how does it know where to start? What happens when it misses a tape?
02-10-2020, 02:09 PM
#3
This looks cool especially the idea of being able to cheaply and easily add sector split times. For indoor tracks it could be possible to build a strip into the the underside of a jump takeoff or other track features too. From the look of this system it would be no problem to just run more tape if needed to cover the track width.
For me personally, many of the situations where I'd want to use this for practice would be without internet access on outdoor tracks. Would be great to have a way to use this without an internet connection.
For me personally, many of the situations where I'd want to use this for practice would be without internet access on outdoor tracks. Would be great to have a way to use this without an internet connection.
02-10-2020, 08:18 PM
#4
Originally Posted by mushroomed
This looks cool especially the idea of being able to cheaply and easily add sector split times. For indoor tracks it could be possible to build a strip into the the underside of a jump takeoff or other track features too. From the look of this system it would be no problem to just run more tape if needed to cover the track width.
For me personally, many of the situations where I'd want to use this for practice would be without internet access on outdoor tracks. Would be great to have a way to use this without an internet connection.
For me personally, many of the situations where I'd want to use this for practice would be without internet access on outdoor tracks. Would be great to have a way to use this without an internet connection.
02-10-2020, 09:40 PM
#5
Tech Master
That’s pretty interesting. I assume the magnet excites some coils and depending on the sequence they are excited determines the zones.
Something like a magnet with 3 polarities and 3 coils. 1 bit for direction. I know the math isnt perfect but I’ll bet it something like that.
Something like a magnet with 3 polarities and 3 coils. 1 bit for direction. I know the math isnt perfect but I’ll bet it something like that.
02-10-2020, 09:56 PM
#6
Tech Prophet
iTrader: (9)
Join Date: Nov 2014
Location: Far south suburbs of Chicago area
Posts: 16,915
Trader Rating: 9 (100%+)
Originally Posted by rrb1399
i think he was saying you could use your phone maybe using the WiFi tether ? It’s definitely interesting for the practice aspect or maybe for mini z ?
02-11-2020, 12:19 AM
#7
Originally Posted by Billy Kelly
I can’t figure out the size of the transponder looks bit large for MiniZ.
02-11-2020, 01:03 AM
#8
Dear All,
Allow me to address all the questions, one by one:
Roelof :
I'm especially happy, that you answered, you seems like to have a nice reputation across here. so:
1: Yes, you are correct. We are racers ourselves, have multiple AMB transponders ourselves. What we don't have, is a 3000 euro decoder, and a 600 euro software, with what I can go to my local track, and do a practice session, and measure, what driving technique, and what setup change can give me more tenth on the track. Furthermore, there are lots of smaller club, or community tracks, that simply can not afford to buy a decoder and software package for their track, as it is the case over here, in Hungary as well. Also, if you are a basher, and say, you buy a UDR, or a Revo, or any other car, those cost substantial amount of money. If you're interested in, that which of your buddies doing your backyard lap faster,then this is a cheap way to measure accurate time. Our real world testing revealed, that the transponder's accuracy are within 1ms, so in that perspective, this system is on par with the top dogs.
2: Yes, this is one of our main area, to reach out to those racers, who have no access to an AMB system, like I wrote above. Additionally, this software can run full and complete races as well, with audio, sector times, and printouts alike, so it is also capable of doing complete race days.
3: The thickness of the tape is 1.5mm, that is suitable for onroad racing. we made extensive testing over here in Hungary, on both tarmac tracks, and carpet alike. On Carpet, you just simply have to lay the strips under the carpet, and the biggest challenge is to remember, where you put them, because they are so thin, they absolutely vanish under the carpet . On tarmac, if you following our suggestion to duct ape the strip, then there is absolutely no drawback, no car bounce nothing that we could notice during the testing phase of the system.
4: The tape can be cut to any size, if you have a huge 1/5 track with a 10m corner, that also can be accommodated.
5: The detection of sector vs finish line is actually one of the few proprietary information, that I'm not allowed to disclose at this time
If you miss a sector time, because let's say, you get out of the track at the tape, then at the next sector time, your time will be added. If you get out of shape at the finish line, then it is Business as usual, because no lap timing device would get your time anyways.
mushroomed :
Yes, you get the picture fairly accurate.
On the internet thing: the web app can run on a smartphone, these days everyone has them, and the internet coverage is fairly universal throughout the developed countries. If you don't have a smartphone, or wifi at the track, a 20 usd GSM extender can be used. It is one of the particularities, that this system needs to have internet connection to the cloud, in order to register the lap times.
rrb1399 Billy Kelly
The size of the unit is 24x16x3mm to what I'd say, can be accommodate in a mini-Z as well, but if you give us a chassis type, we'll see if we can find it, and try to fit it in.
Allow me to address all the questions, one by one:
Roelof :
I'm especially happy, that you answered, you seems like to have a nice reputation across here. so:
1: Yes, you are correct. We are racers ourselves, have multiple AMB transponders ourselves. What we don't have, is a 3000 euro decoder, and a 600 euro software, with what I can go to my local track, and do a practice session, and measure, what driving technique, and what setup change can give me more tenth on the track. Furthermore, there are lots of smaller club, or community tracks, that simply can not afford to buy a decoder and software package for their track, as it is the case over here, in Hungary as well. Also, if you are a basher, and say, you buy a UDR, or a Revo, or any other car, those cost substantial amount of money. If you're interested in, that which of your buddies doing your backyard lap faster,then this is a cheap way to measure accurate time. Our real world testing revealed, that the transponder's accuracy are within 1ms, so in that perspective, this system is on par with the top dogs.
2: Yes, this is one of our main area, to reach out to those racers, who have no access to an AMB system, like I wrote above. Additionally, this software can run full and complete races as well, with audio, sector times, and printouts alike, so it is also capable of doing complete race days.
3: The thickness of the tape is 1.5mm, that is suitable for onroad racing. we made extensive testing over here in Hungary, on both tarmac tracks, and carpet alike. On Carpet, you just simply have to lay the strips under the carpet, and the biggest challenge is to remember, where you put them, because they are so thin, they absolutely vanish under the carpet . On tarmac, if you following our suggestion to duct ape the strip, then there is absolutely no drawback, no car bounce nothing that we could notice during the testing phase of the system.
4: The tape can be cut to any size, if you have a huge 1/5 track with a 10m corner, that also can be accommodated.
5: The detection of sector vs finish line is actually one of the few proprietary information, that I'm not allowed to disclose at this time
If you miss a sector time, because let's say, you get out of the track at the tape, then at the next sector time, your time will be added. If you get out of shape at the finish line, then it is Business as usual, because no lap timing device would get your time anyways.mushroomed :
Yes, you get the picture fairly accurate
.On the internet thing: the web app can run on a smartphone, these days everyone has them, and the internet coverage is fairly universal throughout the developed countries. If you don't have a smartphone, or wifi at the track, a 20 usd GSM extender can be used. It is one of the particularities, that this system needs to have internet connection to the cloud, in order to register the lap times.
rrb1399 Billy Kelly
The size of the unit is 24x16x3mm to what I'd say, can be accommodate in a mini-Z as well, but if you give us a chassis type, we'll see if we can find it, and try to fit it in.
02-11-2020, 02:30 AM
#9
Originally Posted by mikeylama
Dear All,
Allow me to address all the questions, one by one:
Roelof :
I'm especially happy, that you answered, you seems like to have a nice reputation across here. so:
1: Yes, you are correct. We are racers ourselves, have multiple AMB transponders ourselves. What we don't have, is a 3000 euro decoder, and a 600 euro software, with what I can go to my local track, and do a practice session, and measure, what driving technique, and what setup change can give me more tenth on the track. Furthermore, there are lots of smaller club, or community tracks, that simply can not afford to buy a decoder and software package for their track, as it is the case over here, in Hungary as well. Also, if you are a basher, and say, you buy a UDR, or a Revo, or any other car, those cost substantial amount of money. If you're interested in, that which of your buddies doing your backyard lap faster,then this is a cheap way to measure accurate time. Our real world testing revealed, that the transponder's accuracy are within 1ms, so in that perspective, this system is on par with the top dogs.
2: Yes, this is one of our main area, to reach out to those racers, who have no access to an AMB system, like I wrote above. Additionally, this software can run full and complete races as well, with audio, sector times, and printouts alike, so it is also capable of doing complete race days.
3: The thickness of the tape is 1.5mm, that is suitable for onroad racing. we made extensive testing over here in Hungary, on both tarmac tracks, and carpet alike. On Carpet, you just simply have to lay the strips under the carpet, and the biggest challenge is to remember, where you put them, because they are so thin, they absolutely vanish under the carpet . On tarmac, if you following our suggestion to duct ape the strip, then there is absolutely no drawback, no car bounce nothing that we could notice during the testing phase of the system.
4: The tape can be cut to any size, if you have a huge 1/5 track with a 10m corner, that also can be accommodated.
5: The detection of sector vs finish line is actually one of the few proprietary information, that I'm not allowed to disclose at this time If you miss a sector time, because let's say, you get out of the track at the tape, then at the next sector time, your time will be added. If you get out of shape at the finish line, then it is Business as usual, because no lap timing device would get your time anyways.
mushroomed :
Yes, you get the picture fairly accurate.
On the internet thing: the web app can run on a smartphone, these days everyone has them, and the internet coverage is fairly universal throughout the developed countries. If you don't have a smartphone, or wifi at the track, a 20 usd GSM extender can be used. It is one of the particularities, that this system needs to have internet connection to the cloud, in order to register the lap times.
rrb1399 Billy Kelly
The size of the unit is 24x16x3mm to what I'd say, can be accommodate in a mini-Z as well, but if you give us a chassis type, we'll see if we can find it, and try to fit it in.
Allow me to address all the questions, one by one:
Roelof :
I'm especially happy, that you answered, you seems like to have a nice reputation across here. so:
1: Yes, you are correct. We are racers ourselves, have multiple AMB transponders ourselves. What we don't have, is a 3000 euro decoder, and a 600 euro software, with what I can go to my local track, and do a practice session, and measure, what driving technique, and what setup change can give me more tenth on the track. Furthermore, there are lots of smaller club, or community tracks, that simply can not afford to buy a decoder and software package for their track, as it is the case over here, in Hungary as well. Also, if you are a basher, and say, you buy a UDR, or a Revo, or any other car, those cost substantial amount of money. If you're interested in, that which of your buddies doing your backyard lap faster,then this is a cheap way to measure accurate time. Our real world testing revealed, that the transponder's accuracy are within 1ms, so in that perspective, this system is on par with the top dogs.
2: Yes, this is one of our main area, to reach out to those racers, who have no access to an AMB system, like I wrote above. Additionally, this software can run full and complete races as well, with audio, sector times, and printouts alike, so it is also capable of doing complete race days.
3: The thickness of the tape is 1.5mm, that is suitable for onroad racing. we made extensive testing over here in Hungary, on both tarmac tracks, and carpet alike. On Carpet, you just simply have to lay the strips under the carpet, and the biggest challenge is to remember, where you put them, because they are so thin, they absolutely vanish under the carpet . On tarmac, if you following our suggestion to duct ape the strip, then there is absolutely no drawback, no car bounce nothing that we could notice during the testing phase of the system.
4: The tape can be cut to any size, if you have a huge 1/5 track with a 10m corner, that also can be accommodated.
5: The detection of sector vs finish line is actually one of the few proprietary information, that I'm not allowed to disclose at this time
If you miss a sector time, because let's say, you get out of the track at the tape, then at the next sector time, your time will be added. If you get out of shape at the finish line, then it is Business as usual, because no lap timing device would get your time anyways.mushroomed :
Yes, you get the picture fairly accurate
.On the internet thing: the web app can run on a smartphone, these days everyone has them, and the internet coverage is fairly universal throughout the developed countries. If you don't have a smartphone, or wifi at the track, a 20 usd GSM extender can be used. It is one of the particularities, that this system needs to have internet connection to the cloud, in order to register the lap times.
rrb1399 Billy Kelly
The size of the unit is 24x16x3mm to what I'd say, can be accommodate in a mini-Z as well, but if you give us a chassis type, we'll see if we can find it, and try to fit it in.
02-11-2020, 02:46 AM
#10
Originally Posted by gigaplex
So the target audience is for practice timing? How will this help clubs that can't afford race timing software?
What we don't want, and frankly, can't do, is to compete with the large, already established lap timing systems, because realistically those, who has that system, will never replace it. We are looking to fulfill those needs, who'd like to have a cheap lap timing system outside the organized races, may that be a backyard basher, or a full on racer.
All in all, either one racer, or a complete club can use this system without entry restrictions, providing that everyone has one of these transponders.
Hope that helped
Norbert.
02-11-2020, 04:46 AM
#12
Originally Posted by mikeylama
5: The detection of sector vs finish line is actually one of the few proprietary information, that I'm not allowed to disclose at this time If you miss a sector time, because let's say, you get out of the track at the tape, then at the next sector time, your time will be added. If you get out of shape at the finish line, then it is Business as usual, because no lap timing device would get your time anyways.
If you miss a sector time, because let's say, you get out of the track at the tape, then at the next sector time, your time will be added. If you get out of shape at the finish line, then it is Business as usual, because no lap timing device would get your time anyways.Regarding the tape the website says 3 meter, that is confusing, maybe a price per meter and/or a complete roll of x meters is a better choice to show.
02-11-2020, 07:45 AM
#13
You are right about the tape, we will adjust the website, because it could be misleading.
About the GPS signal, the current available GPS units have the accuracy of roughly 1m, proving absolutely unusable for drawing your lines on the track, especially, if 10 cm in a curve can mean a good lap time at the front of the heat, or a bad lap at the back.
About the GPS signal, the current available GPS units have the accuracy of roughly 1m, proving absolutely unusable for drawing your lines on the track, especially, if 10 cm in a curve can mean a good lap time at the front of the heat, or a bad lap at the back.
02-11-2020, 09:15 AM
#14
Originally Posted by gigaplex
I've just checked the website, there's a 60 euro fee per device per year. If a club has 10 transponders, that's 600 euro per year right there, there's no savings over something like Livetime.
Roelof
After some clarification, I can actually tell you the technology, and I personally find it genius.
Finish and sector times are distinguished by flipping the magnetic tape From negative, to positive side
. No extra tape needed for different tasks, however this requires some attention to detail, because if you lay down 2 finish side, and 2 sector tape side, that would cause some issues.
02-11-2020, 09:52 AM
#15
Tech Prophet
iTrader: (9)
Join Date: Nov 2014
Location: Far south suburbs of Chicago area
Posts: 16,915
Trader Rating: 9 (100%+)

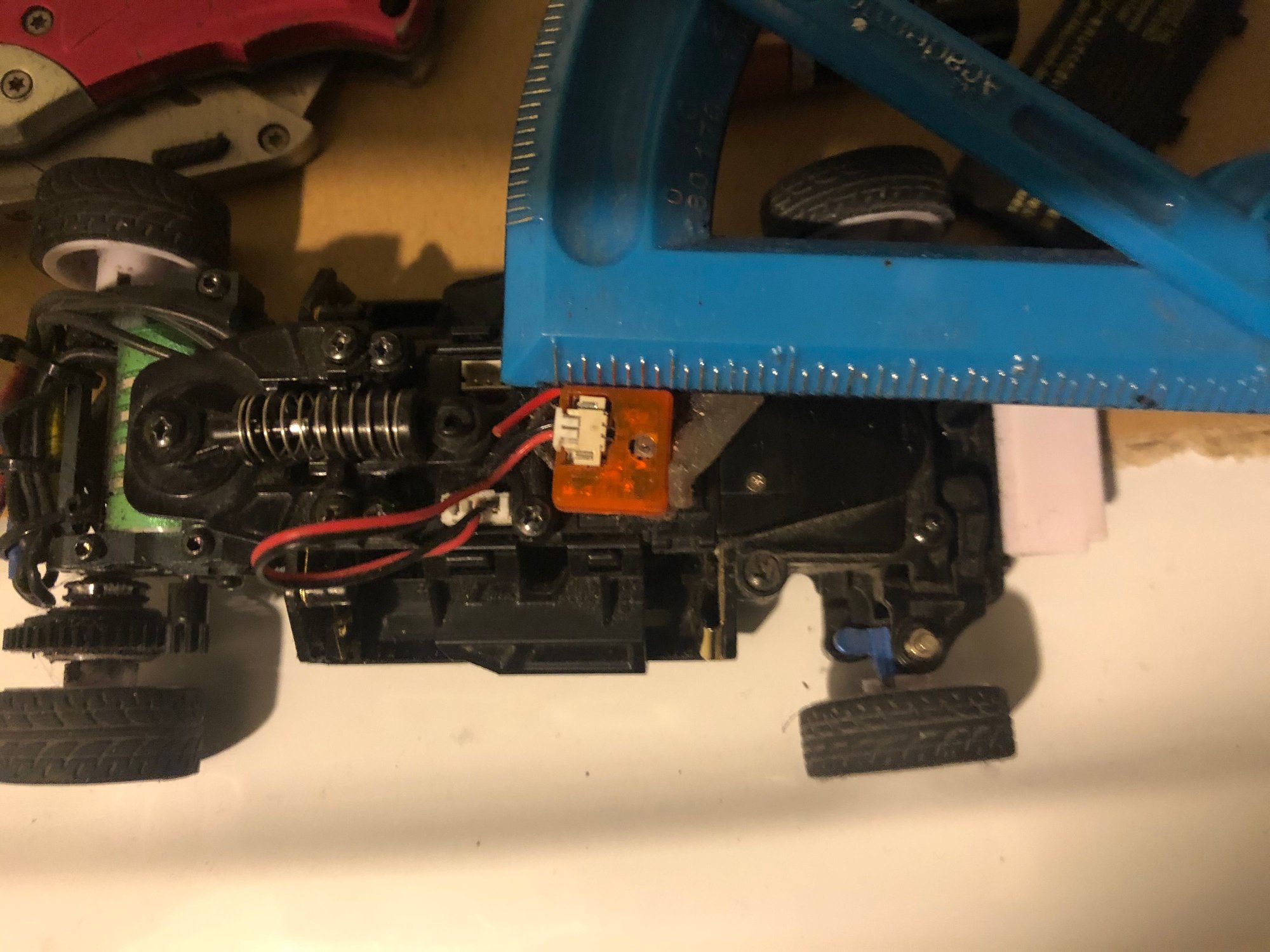

I’ve already got a timing system for MiniZ. But if interested this is the size of a standard MiniZ transponder
