Working an a new engine head

Old 07-23-2020, 04:20 PM
  #46
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

Originally Posted by R3VoLuTiOn View Post
Perhaps you could consider trying the concept with a mid range PC CPU heatsink and machine the appropriate dimensions and fit for the engine?

Save on materials cost, and would resolve my curiosity.
Just plain straight up fins is a bit old fasion but it works. You can take an old Pentium heatsink as a base and shape it as a cooling head but I think when you want to mill the fins in shape you have to fill up the space between the fins to support the fins when the mill is touching them. They could bend.

But there is no need to save money, it is just a personal hobby project with as result to run something different with my own modified engines. There are no plans for a mass production although people do contact me how to get one.

I have 2 of these, they were saved from the bin,



Can take out plenty of heads, and maybe I try one..
Roelof is offline
Old 08-07-2020, 04:11 PM
  #47
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

Ready from the anodizer, soon we will work on a laser engrave design...



Roelof is offline
Old 09-27-2020, 01:11 AM
  #48
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

A few days ago a friend who provided the anodizing had the time to draw a designe to be laser engraved.

He made a base which did I like. With a chat over MS-Teams we discussed and made the changes and filled up all blank spots and on my screen I could follow his drawings.

We ended up with this:

shiston, jtrmx250 and Jcharger13 like this.
Roelof is offline
Old 11-09-2020, 02:03 PM
  #49
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

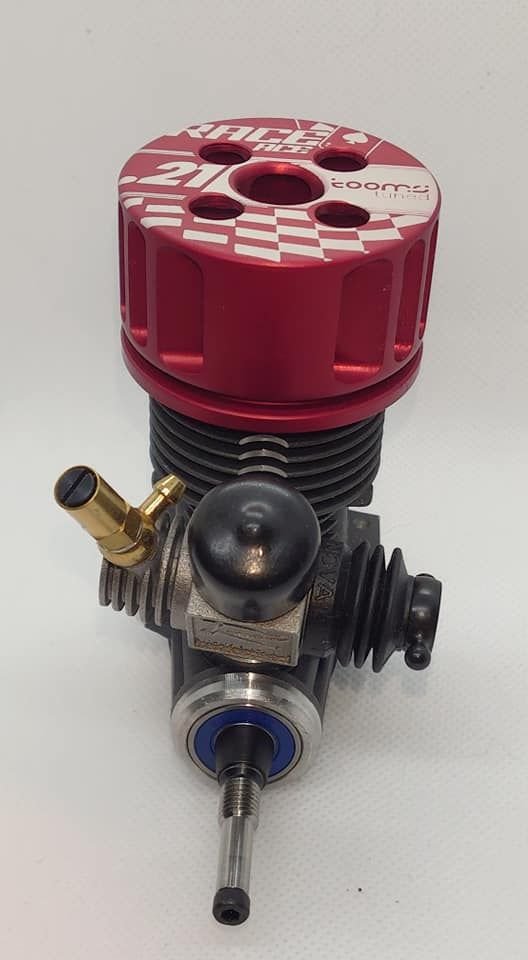

The only difference between Novarossi and me?
I make their engines look good!






savage24x likes this.
Roelof is offline
Old 11-10-2020, 12:34 AM
  #50
Tech Champion
iTrader: (1)

fyrstormer's Avatar

Join Date: Mar 2014
Location: Virginia, Near DC, USA
Posts: 7,845
Trader Rating: 1 (100%+)
Default

It looks well made,, and the vertical fins should do a good job of extracting heat directly from the cylinder head, but I question other parts of the design. The directional fins require airflow to be precisely front-to-rear for proper cooling, which cannot be guaranteed if the engine is shrouded by a body shell; airflow within the body shell is turbulent, even with ventilation ports cut into the shell. Also, the solid top plate will restrict airflow a little bit as compared to having an open top, for no obvious gain.
fyrstormer is offline
Old 11-10-2020, 02:09 AM
  #51
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

The head sticks out the body, no issues there. Even when the glowplug is leveled below the body linethere will be enough space for the flow to bend off or vortexes to reach the glowplug where with normall horizontal fins and a small tree trunk in the middle it will be much harder to get enough flow to the glowplug.
I left the upper part closed to keap the head more solid but flowing air picked up by the head is now forced to flow through the head and can not bend up. And it gives space for some graphics




Offcource I have no simulation software to get proof of my thinking but when you look at some heads like the MAX engines you can see the fins are with a small angle facing down to the center of the head so airflow is forced down to the glowplug
Roelof is offline
Old 11-11-2020, 08:38 PM
  #52
Tech Champion
iTrader: (1)

fyrstormer's Avatar

Join Date: Mar 2014
Location: Virginia, Near DC, USA
Posts: 7,845
Trader Rating: 1 (100%+)
Default

Ah, I didn't know the heatsink was entirely above the body. Should be no airflow problems then.

You might want to acid-etch the heatsink before anodizing it. A rough textured surface can increase the effective surface area by as much as 50% because of all the tiny bumps and pits. Even though the air passing across those tiny bumps and pits will be moving (relatively) slowly due to boundary layer adhesion, that slow movement will actually give the air more time to absorb heat before exiting the rear of the heatsink. Air is a poor conductor of heat, so every little improvement is worthwhile.
fyrstormer is offline
Old 11-12-2020, 03:10 AM
  #53
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

I run my bodies on the rear mount in the lower position, most run it on the higher position which I believe will raise the body by 10mm. Then for shure the glowplug is placed below the body line.

About rough surfaces making vortexes slownig down air you are probably right bur fast flowing air will bring more fresh cool air. Also rough survaces wil hold dirt much easy blocking a heat transfer to the airflow. And yes, a normal start of anodizing is an acid bath to clean the surface, when doing at home we use car battery acid from the car parts shop.

I am busy making a vibrating machine with stones or I will get cracked nut shells to polish the parts I make.
Roelof is offline
Old 11-12-2020, 02:54 PM
  #54
Tech Champion
iTrader: (1)

fyrstormer's Avatar

Join Date: Mar 2014
Location: Virginia, Near DC, USA
Posts: 7,845
Trader Rating: 1 (100%+)
Default

There would still be fast-moving air in the middle of each pair of fins. Only the air touching the surface of the fins that would slow down, and I think that would be beneficial because it would allow the air touching the fins more time to actually absorb heat. You have a point about dirt reducing heat conductivity, but anodized aluminum has a microscopic honeycomb texture anyway (that's what the colored dye soaks into), so I think some dirt adhesion will be unavoidable; the heatsink will have to be cleaned regularly for best performance, no matter what.

Ultimately the only way to know exactly how those factors would affect this specific design would be to make multiple heatsinks with slightly different surfaces and test each one in identical conditions. Whether it's worth doing all that work for a hobby, I don't know.
fyrstormer is offline
Old 11-15-2020, 04:03 PM
  #55
Tech Champion
iTrader: (2)

Join Date: Feb 2011
Posts: 7,497
Trader Rating: 2 (100%+)
Default

Are the fins acting like an extra wing ?
bertrandsv87 is online now
Old 11-16-2020, 02:14 AM
  #56
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

Originally Posted by bertrandsv87 View Post
Are the fins acting like an extra wing ?
Good question
I think not. Due the 13mm center hole and the 4x 8mm screw holes most of the fins are no one piece long fin on the inside.
Maybe a top level driver can notice a difference?
Roelof is offline
Old 03-12-2022, 12:03 PM
  #57
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

Before you know it it has been a rabit, producing more.



petersen114 and outcast32 like this.
Roelof is offline
Old 03-14-2022, 03:33 AM
  #58
Tech Elite
iTrader: (5)

ralphierace13's Avatar

Join Date: Apr 2007
Posts: 2,565
Trader Rating: 5 (100%+)
Default

Originally Posted by Roelof View Post
Before you know it it has been a rabit, producing more.


did u test these? how much cooler? and did it do anything to the handling of the car?
ralphierace13 is offline
Old 03-14-2022, 07:23 AM
  #59
Tech Lord
Thread Starter

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 11,203
Default

My 1st ever head was 5mm higher and could notice just a few degrees lower temp, that is why I made these 5mm lower.
I have runned last season with the 1st lower version and so far no issues at al. Do they run better? I do not know. If they do provide a tiny bit more cooling you can go a tiny bit leaner on the tuning.....
Do the fins help as a kind of tail fin? maybe.... I am not of that caliber to notice, for me it is more a personality thing with the tiny advantages on the background. Also the straight up fins will give all the room for the airflow to bend off to the glowplug while with the normal fins and the higher placed bodies it is a bit difficult.

Soon one of the heads go to a guy who is able to notice the difference.
Roelof is offline
