Quote:
Originally Posted by Skiddins View Post
Got the software earlier and tried setting up a T4.

Done something to the front outer camber link settings and now it won't let me edit them or correct them.
Also doesn't properly explain what was wrong with what I did?

Just tried to add the vertical offset's for the outer link ranging from 0 through to 2mm in 0.5mm increments.

Skiddins
Email me the model and I will have a look.
__________________
Bob Wright
http://rccrewchief.wrightdesign.ca
BobW is offline   Reply With Quote
Old 06-05-2013, 08:23 PM   #272
Tech Addict

BobW's Avatar

Join Date: Mar 2004
Location: Kingston, Ontario
Posts: 600
Trader Rating: 1 (100%+)
Default

Quote:
Originally Posted by TT_Vert View Post
The thing that worries me about a user created file is the possible error tolerances. .1 mm at a hinge pin mount can throw everything else off a tad. Bob, do you plan to ever take the measurements? Are you using precision equipment to do this or are you just using a caliper?

Dave
I just use digital calipers. I would say accuracy would be +/- .1mm if you are very careful with the measurements. Give the same car to two different people and you will definitely end up with slightly different models.

What I always do when I finish a model is do a side by side visual comparison between the real thing and the graphic image displayed in the chassis manager. Placing the chassis on setup wheels or a stand helps with this. Notice any differences and check your numbers.

The important thing to remember is we are looking for the relative effect a specific change will have whether it's a gear ratio change or a shock spring. Does that change move the performance in the direction I want and what is the magnitude of the change big or small.
__________________
Bob Wright
http://rccrewchief.wrightdesign.ca
BobW is offline   Reply With Quote
Old 06-06-2013, 05:07 PM   #273
Tech Elite

TT_Vert's Avatar

Join Date: Dec 2003
Location: Streamwood, IL.
Posts: 3,992
Trader Rating: 70 (100%+)
Default

Quote:
Originally Posted by BobW View Post
I just use digital calipers. I would say accuracy would be +/- .1mm if you are very careful with the measurements. Give the same car to two different people and you will definitely end up with slightly different models.

What I always do when I finish a model is do a side by side visual comparison between the real thing and the graphic image displayed in the chassis manager. Placing the chassis on setup wheels or a stand helps with this. Notice any differences and check your numbers.

The important thing to remember is we are looking for the relative effect a specific change will have whether it's a gear ratio change or a shock spring. Does that change move the performance in the direction I want and what is the magnitude of the change big or small.
Bob to you plan to model the T4? A bit over a month you said you were going to be working on it didn't you?

Dave
TT_Vert is offline   Reply With Quote
Old 06-06-2013, 06:44 PM   #274
Tech Addict

BobW's Avatar

Join Date: Mar 2004
Location: Kingston, Ontario
Posts: 600
Trader Rating: 1 (100%+)
Default

Someone else had said they would create a T4 model and send it to me. Unfortunately that hasn't happened yet. If it shows up I'll post it as soon as I have it.
__________________
Bob Wright
http://rccrewchief.wrightdesign.ca
BobW is offline   Reply With Quote
Old 06-06-2013, 06:45 PM   #275
Tech Elite

TT_Vert's Avatar

Join Date: Dec 2003
Location: Streamwood, IL.
Posts: 3,992
Trader Rating: 70 (100%+)
Default

That sucks. Really hoped you were creating these models.
TT_Vert is offline   Reply With Quote
Old 06-06-2013, 06:52 PM   #276
Tech Champion

hanulec's Avatar
R/C Tech Elite Subscriber

Join Date: Sep 2007
Location: @ the post office
Posts: 8,563
Trader Rating: 27 (100%+)
Default

Quote:
Originally Posted by TT_Vert View Post
That sucks. Really hoped you were creating these models.
Maybe you can help??
__________________
FJ / ROAR #2-122945 / MaxRotation FPV Drone Racing / [email protected] Awesomatix USA / Wild Turbo Fan / Mon-Tech Racing / RocheRC USA / Side Piece /
LRP / John's BSR Tires / TeamEAM / TQ Wire / R1 / Team Scream / PCR / MIX
RacerLog wiki Awesomatix A700 / 2wd offroad 4 life
hanulec is offline   Reply With Quote
Old 06-06-2013, 07:05 PM   #277
Tech Elite

TT_Vert's Avatar

Join Date: Dec 2003
Location: Streamwood, IL.
Posts: 3,992
Trader Rating: 70 (100%+)
Default

I tried before and every time I'd measure I'd get a different reading which is why I hoped he'd do it. I have no confidence in my ability to produce a reliable set of data. Those .1 mm,s add up quickly when measure pin height, etc.

Dave
TT_Vert is offline   Reply With Quote
Old 06-06-2013, 07:43 PM   #278
Tech Addict

BobW's Avatar

Join Date: Mar 2004
Location: Kingston, Ontario
Posts: 600
Trader Rating: 1 (100%+)
Default

I don't expect any better than .1 mm (.004 in.)when taking measurements. That's the width if a human hair. I can offer assistance on techniques I use for specific components if that would help you.
__________________
Bob Wright
http://rccrewchief.wrightdesign.ca
BobW is offline   Reply With Quote
Old 06-07-2013, 02:29 AM   #279
Tech Elite

Skiddins's Avatar

Join Date: Feb 2006
Location: Windsor, UK
Posts: 4,763
Default

Quote:
Originally Posted by BobW View Post
I don't expect any better than .1 mm (.004 in.)when taking measurements. That's the width if a human hair. I can offer assistance on techniques I use for specific components if that would help you.
Perhaps you could mention the techniques anyway, so if anyone wants to sort out the model for any new car they'll have the basics of what to do.

Skiddins
__________________
Xray T4'18, T4'14 (Wet Car)
Xray X12 2018
Xray X1'16
wlrc.co.uk (West London Racing Centre)
RCDisco.co.uk
Skiddins is offline   Reply With Quote
Old 06-07-2013, 05:12 AM   #280
Tech Addict

BobW's Avatar

Join Date: Mar 2004
Location: Kingston, Ontario
Posts: 600
Trader Rating: 1 (100%+)
Default

Next model I create I'll work on recording a youtube video.
__________________
Bob Wright
http://rccrewchief.wrightdesign.ca
BobW is offline   Reply With Quote
Old 06-07-2013, 05:55 AM   #281
Tech Regular

masterhit's Avatar

Join Date: Jun 2006
Location: Michigan
Posts: 475
Trader Rating: 15 (100%+)
Default

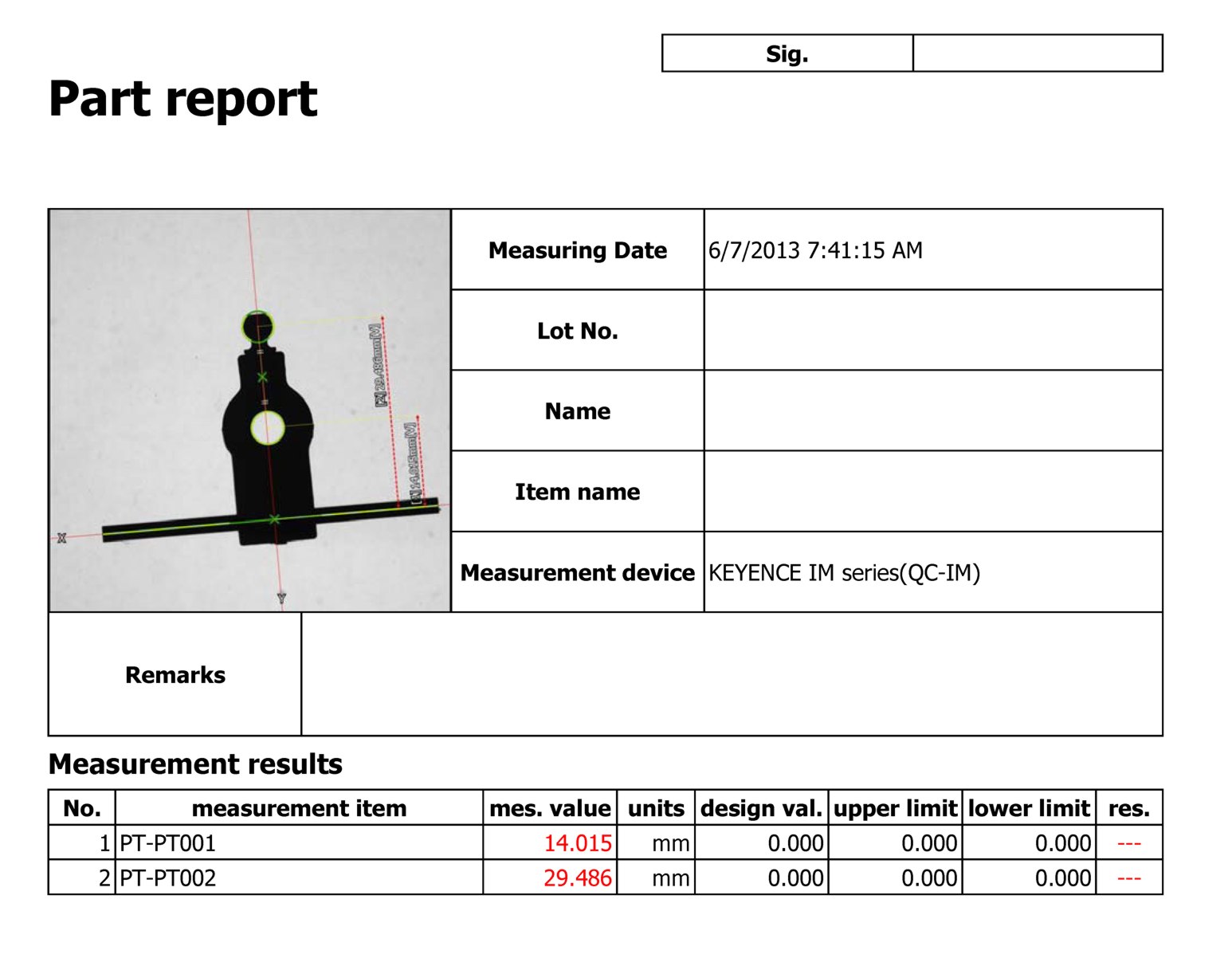

I wish there was one locally I could borrow. In a hour or so I could have measurements with 5 μm accuracy!

Mike Slaughter
Attached Thumbnails
RC Crew Chief Software-tamiya-rear-hub.jpg
masterhit is offline   Reply With Quote
Old 06-07-2013, 06:06 AM   #282
Tech Addict

BobW's Avatar

Join Date: Mar 2004
Location: Kingston, Ontario
Posts: 600
Trader Rating: 1 (100%+)
Default

Would be nice to have a coordinate measuring machine. Sure would make life easier, and more accurate.
__________________
Bob Wright
http://rccrewchief.wrightdesign.ca
BobW is offline   Reply With Quote
Old 06-07-2013, 06:19 AM   #283
Tech Adept

Join Date: Feb 2007
Location: OK
Posts: 100
Default

Quote:
Originally Posted by BobW View Post
The important thing to remember is we are looking for the relative effect a specific change will have whether it's a gear ratio change or a shock spring. Does that change move the performance in the direction I want and what is the magnitude of the change big or small.

I think some people may be getting wound a little too tight for accuracy of measurements for a car setup program. Sure if your software is designing a car to go into production, all those .1mm stacking up can cause problems, but again we are talking about a software program that allows use to sit in our underwear on a rainy day and analyze the effects adjustments might have on our race car without wearing out tires, burning fuel or charging batteries. I think the above quote is important to keep in mind in regards to what the software was intended to do.
JVStrat is offline   Reply With Quote
Old 06-07-2013, 10:42 AM   #284
Tech Elite

bkspeedo's Avatar
R/C Tech Elite Subscriber

Join Date: Nov 2007
Location: Fort Fun, CO
Posts: 3,139
Trader Rating: 5 (100%+)
Default

The ultimate would be a partnership with RC Crew Chef and the car manufactures. They have the CAD data. They could easily extract all the measurements for a base setup that could be imported to Crew Chief and than users could adjust as needed. Can't get much more accurate than that.

We can all dream
__________________
Brent Klingforth
Sponsors: Awesomatix USA ~ Roche USA ~ ORCA ~ AVID Bearings ~ R1 Wurks
TQ Wire ~ Montech ~ WTF ~ BSR Racing Tires ~ 2mm Design ~ Helix Designs
5280 Raceway
MILE HIGH INDOOR CHAMPS April 19-22nd 2018 @ www.milehighindoorchamps.com
bkspeedo is offline   Reply With Quote
Old 06-07-2013, 12:05 PM   #285
Tech Addict

BobW's Avatar

Join Date: Mar 2004
Location: Kingston, Ontario
Posts: 600
Trader Rating: 1 (100%+)
Default

Quote:
Originally Posted by bkspeedo View Post
The ultimate would be a partnership with RC Crew Chef and the car manufactures. They have the CAD data. They could easily extract all the measurements for a base setup that could be imported to Crew Chief and than users could adjust as needed. Can't get much more accurate than that.

We can all dream
In a perfect world. To bad we don't live in one.
__________________
Bob Wright
http://rccrewchief.wrightdesign.ca
BobW is offline   Reply With Quote
