Welcome to the ET410 Wiki page.

  • 95% parts compatibility with the EB410 4WD 1/10th scale buggy.
  • Updated 3mm 7075 CNC chassis and revised A and B hinge pin braces.
  • 13mm hard anodized threaded shocks with locking spring perches.
  • New 32 pitch spur gear for ultimate durability
  • 3.5mm shock shafts with revised dual guide x-ring cartridge.
  • 7075 CNC machined adjustable hinge pin brace system.
  • Three high volume fluid-filled adjustable differentials.
  • Lightweight 7075 tapered center driveshafts.
  • Quick access to differentials and maintenance friendly layout.
  • Captured CVA front and rear driveshafts with heavy duty 6mm stub axles.
  • Fully ball raced reverse bellcrank steering system.
  • Uses 1/10th AE Offset Stadium Truck or Traxxas Slash Short Course offset wheels.
For you guys all discussing what power plant to run, I would take note of the following statement from Matt W.

Matt - Probably would recommend a 10.5 for something similar to 13.5 in a buggy. I personally run a 6.5 in it and itís pretty fast. Pro4 4600 will run in it but it has a lot of power and will need to be turned down in the esc.

Parts Needed to convert from EB410 to ET410

Pin Replacement Tool options

Inner Hinge Pin Inserts- Degrees of Adjustment

Aftermarket Upgrades:

Print Wikipost

Reply

Old 06-20-2018, 11:57 AM
  #46
Tech Champion
iTrader: (154)

Krio's Avatar

Join Date: Mar 2008
Location: At dirt tracks in Michigan!
Posts: 5,602
Trader Rating: 154 (99%+)
Default

I think RC*PHREAK is talking about a 2 pole motor being able to power the truck to its full potential, not that you couldn't run a 2 pole motor at all. You'd just have to settle for a slower vehicle to not overheat the motor. Driving a vehicle on the edge of it's capabilities produces the most fun is for many people, so the power plant has to provide the kick to get there.

Personally, I don't think a 2 pole motor will be popular in this vehicle for modified racing and especially for bashing. It would work, but you'd be at the edge of it's capabilities. Opting for a 540 4 pole motor will give you a cool running system with all the power a 4wd vehicle can handle on a medium to large track. 10.5 might make a pretty sweet spec class, though.

Think of it this way: For fast drivers, 2wd mod buggies run a 6.5 to 8.5 turn motor in mod. When you jump to 4wd, they drop 2-3 turns and run as low as a 5.5. 2wd trucks usually end up with similar motors as a 4wd buggy due to their extra weight and larger tire contact patch. Making that same truck 4wd would probably be capable of putting down the power from a 3.5 or 4.5 turn motor. Those motors are a handful to keep cool and are pretty brutal on the other electronics.
Krio is offline
Reply With Quote
Old 06-20-2018, 01:12 PM
  #47
Tech Adept
iTrader: (7)

Join Date: May 2014
Posts: 102
Trader Rating: 7 (100%+)
Default

Originally Posted by Krio View Post
Think of it this way: For fast drivers, 2wd mod buggies run a 6.5 to 8.5 turn motor in mod. When you jump to 4wd, they drop 2-3 turns and run as low as a 5.5. 2wd trucks usually end up with similar motors as a 4wd buggy due to their extra weight and larger tire contact patch. Making that same truck 4wd would probably be capable of putting down the power from a 3.5 or 4.5 turn motor. Those motors are a handful to keep cool and are pretty brutal on the other electronics.
Also depends on the track. There are fast guys with a 13.5 that are putting pretty close to the same numbers as a driver with a mod 5.5-6.5 motor. The biggest difference is that those people that have the 13.5 motors also have to worry about weight where the mod drivers it doesn't matter.

Smaller tracks mod doesn't really mean quicker.
BaggedRanger is offline
Reply With Quote
Old 06-20-2018, 02:59 PM
  #48
Tech Elite
iTrader: (20)

Join Date: Dec 2011
Location: Texas
Posts: 3,504
Trader Rating: 20 (100%+)
Default

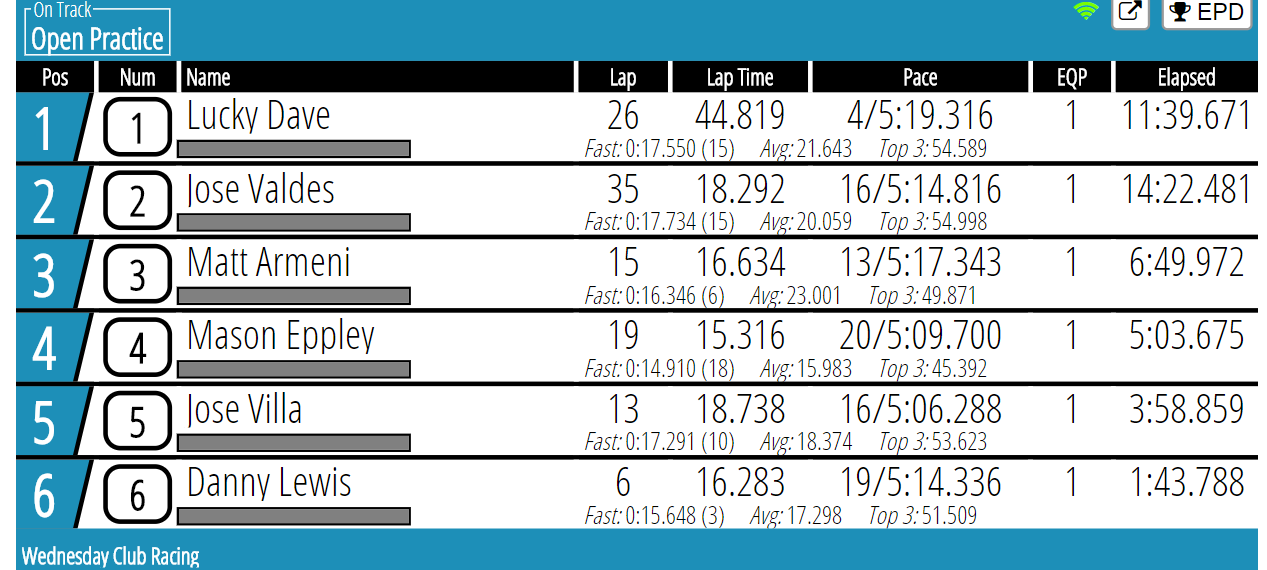

They are testing the ET410 at SDRC today. Might catch a glimpse of it on LiverRC.
Cain, rvrslt1 and Talon4U2NV like this.
MX304 is offline
Reply With Quote
Old 06-20-2018, 03:32 PM
  #49
Tech Adept

Join Date: Feb 2010
Posts: 179
Default

Originally Posted by MX304 View Post
They are testing the ET410 at SDRC today. Might catch a glimpse of it on LiverRC.
orange bodies on a couple of them..

Last edited by snowninja; 06-20-2018 at 03:34 PM. Reason: add pic
snowninja is offline
Reply With Quote
Old 06-20-2018, 03:33 PM
  #50
Tech Fanatic
iTrader: (35)

rvrslt1's Avatar

Join Date: Jan 2015
Location: Torrance CA
Posts: 968
Trader Rating: 35 (100%+)
Default

You can see a white truck on the track at SDRC. It looks fast and seems to handle real well. It could be it.
rvrslt1 is offline
Reply With Quote
Old 06-20-2018, 03:34 PM
  #51
Tech Adept

Join Date: Feb 2010
Posts: 179
Default

snowninja is offline
Reply With Quote
Old 06-20-2018, 03:44 PM
  #52
Tech Elite
iTrader: (20)

Join Date: Dec 2011
Location: Texas
Posts: 3,504
Trader Rating: 20 (100%+)
Default

Originally Posted by rvrslt1 View Post
You can see a white truck on the track at SDRC. It looks fast and seems to handle real well. It could be it.
I think they have two there. The white one, and a solid orange body with yellow wheels.
MX304 is offline
Reply With Quote
Old 06-20-2018, 04:22 PM
  #53
Tech Regular
iTrader: (5)

RCSteveH's Avatar

Join Date: Apr 2018
Location: Anywhere thereís a track
Posts: 324
Trader Rating: 5 (100%+)
Default

Originally Posted by snowninja View Post
which ones are the MT410ís?
RCSteveH is offline
Reply With Quote
Old 06-20-2018, 04:25 PM
  #54
Tech Elite
iTrader: (20)

Join Date: Dec 2011
Location: Texas
Posts: 3,504
Trader Rating: 20 (100%+)
Default

Originally Posted by RCSteveH View Post

which ones are the MT410ís?
Matt and Danny for sure. Mason is a Tekno driver so he's probably getting some wheel time too.
MX304 is offline
Reply With Quote
Old 06-20-2018, 05:56 PM
  #55
Tech Fanatic
iTrader: (18)

Join Date: Jan 2017
Location: Seattle
Posts: 777
Trader Rating: 18 (95%+)
Default

Here you go;
Tbuggy is offline
Reply With Quote
Old 06-20-2018, 06:07 PM
  #56
Tech Fanatic
iTrader: (35)

rvrslt1's Avatar

Join Date: Jan 2015
Location: Torrance CA
Posts: 968
Trader Rating: 35 (100%+)
Default

Iím sold. How soon???
rvrslt1 is offline
Reply With Quote
Old 06-20-2018, 06:45 PM
  #57
Tech Regular
iTrader: (5)

RCSteveH's Avatar

Join Date: Apr 2018
Location: Anywhere thereís a track
Posts: 324
Trader Rating: 5 (100%+)
Default

Originally Posted by MX304 View Post
Matt and Danny for sure. Mason is a Tekno driver so he's probably getting some wheel time too.
Originally Posted by Tbuggy View Post
My prayers have been answered!! Always wanted a 1/10th scale version of the ET48.3.

Will it run 1/8th Scale Buggy Wheels andTiires? Or SCT Wheels and Tires? Gotta start stocking up on supply 🗄
RCSteveH is offline
Reply With Quote
Old 06-20-2018, 06:56 PM
  #58
Tech Elite
iTrader: (130)

RC*PHREAK's Avatar

Join Date: Dec 2010
Posts: 4,863
Trader Rating: 130 (100%+)
Default

Originally Posted by Waflet View Post
Hideeho

Setting up a motor is all about the gearing & the expectations. You can push a 1/8 ebug with a 380 motor & not over heat. It wonít accelerate quickly at all & wonít be fast at all, but it will work.
no kidding. not sure what at all this has to do with what i said.

Originally Posted by Waflet View Post
The same applies to a 1/10 truggy. If you want it to be the fastest thing on the track go ahead & put a 2600kv 1/8 motor in it & run it on an SMC 4300 4s with a tekin rx8. Will that be fast enough for you?
who said anything about wanting it to be the fastest thing on the track? or 1/8 motors? i said that from my experience in this class, a 2 pole 540 is not the best option. granted, like i said, the et410 will probably be a bit lighter than older iterations (hyper TT, ten-t). people who attempted to use them quickly found that they heated up to unacceptable levels. here is a video from that time. ten-t's (with 1/8 buggy wheels/tires) and hyper tt's. all using 550's. do they look ridiculously overpowered?


Originally Posted by Waflet View Post
My personal expectation is a 10.5 with some timing & boost, & geared properly, will be fast enough to clear any big triples & not have any heat issues on 2s.
i want to see the tiny track with the tiny triples that this thing will clear consistently for 6-8 minutes with a 10.5. i run 13.5 wheeler and most tracks that have triples i cannot consistently clear for 6-8 minutes (and neither can anyone else in the class). i would imagine that best case, this et410 with a 10.5 would be comparable power to the 13.5 wheeler class. just saw that you mentioned boost. perhaps that could be doable as my 13.5 wheeler with boost is a totally different animal than blinky. unless 10.5 would be the spec motor for this class, why would you want to motor down with boost? only reason i've run my wheeler boosted is that i mainly run 13.5 but if the class isn't offered, i'll just boost it.
RC*PHREAK is offline
Reply With Quote
Old 06-20-2018, 07:04 PM
  #59
Tech Elite
iTrader: (20)

Join Date: Dec 2011
Location: Texas
Posts: 3,504
Trader Rating: 20 (100%+)
Default

Originally Posted by Tbuggy View Post
That's an ET48
MX304 is offline
Reply With Quote
Old 06-20-2018, 07:05 PM
  #60
Tech Elite
iTrader: (20)

Join Date: Dec 2011
Location: Texas
Posts: 3,504
Trader Rating: 20 (100%+)
Default

Originally Posted by RCSteveH View Post




My prayers have been answered!! Always wanted a 1/10th scale version of the ET48.3.

Will it run 1/8th Scale Buggy Wheels andTiires? Or SCT Wheels and Tires? Gotta start stocking up on supply 🗄
1/10 Stadium truck tires.
MX304 is offline
Reply With Quote
