Balancing charge lead help!

Like Tree1Likes
  • 1 Post By big ted

Balancing charge lead help!

Old 01-13-2022, 06:19 PM
  #1
Tech Regular
Thread Starter
iTrader: (23)

mocrawlin's Avatar

Join Date: Feb 2014
Location: Goodson, Mo
Posts: 497
Trader Rating: 23 (100%+)
Default Balancing charge lead help!

I have a track power VR-1 charger. Ought from friend, didnít have any balance boards or leads. I have leads made up for 2S balance charging from my Orion charger and hitech that I no longer have, but I believe the pin orientation is different maybe? Cause with no battery connected and the balance plug in its reading almost 6 volts on cell one.

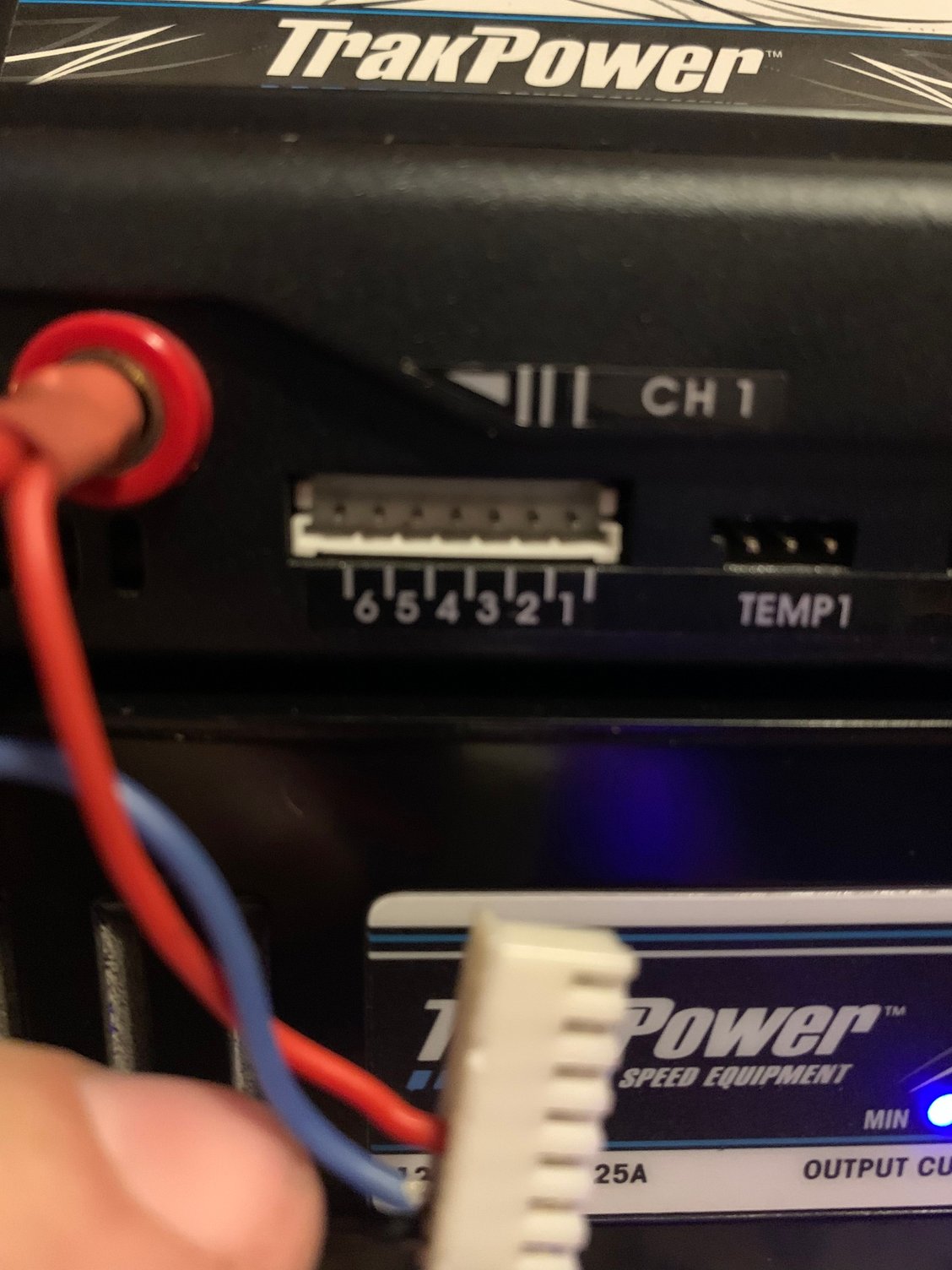

here is a pic of port. Should the negative wire be far left, and then cell 1 far right and then cell 2 the next and so on and so on?
mocrawlin is offline
Old 01-13-2022, 06:44 PM
  #2
Tech Regular
Thread Starter
iTrader: (23)

mocrawlin's Avatar

Join Date: Feb 2014
Location: Goodson, Mo
Posts: 497
Trader Rating: 23 (100%+)
Default

I figured it out. Far right is negative, then each cell after that. Thatís how itís working right now anyway. LoL
mocrawlin is offline
Old 01-14-2022, 09:28 AM
  #3
Tech Regular
iTrader: (2)

Join Date: Dec 2017
Posts: 254
Trader Rating: 2 (100%+)
Default

Originally Posted by mocrawlin View Post
I figured it out. Far right is negative, then each cell after that. Thatís how itís working right now anyway. LoL
This is correct. Pins 1-6 are in order of increasing voltage. Ie:

pin 1 = 0V (or negative)
Pin 2 = +1s vs pin 1,
Pin 3 = +1s vs pin 2,
Pin 4 = +1s vs pin 3
Etc
Obviously, for a 2s pack you only use 3 pins.
hunterdawg likes this.
big ted is offline
Old 01-14-2022, 01:12 PM
  #4
Tech Elite

the rc guy's Avatar

Join Date: Aug 2016
Location: Detroit
Posts: 2,981
Default

pin 1 neg-
pin 2 + and neg
pin3 +- so on t
pin 6 that's +
any

JST-XH board with 6 cell will do


Last edited by the rc guy; 01-14-2022 at 01:44 PM.
the rc guy is offline
