Default Made a shock/diff vacuum pump

Also fun and easy to make (if you have the tools).

I found a cheap 12v vacuum pump and some silicone O-rings on a chineese shopping site and managed to get a piece of 60mm acrylic tube, many other stuff I have in the house.

The base with 2 O-rings as a sealing and the pump next to it



The tube fits perfectly



On the center of the base a small 10mm pole with an M6 thread tip, this will fit a diff.



On the pole a stand for 4 shocks can be mounted



Glued a cap on the tube

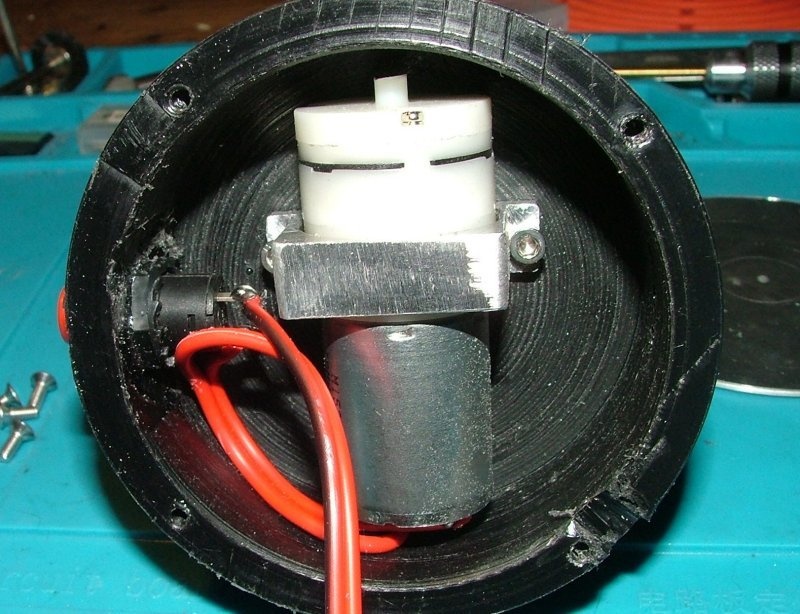

Made a mount for the motor. At the side of the motor there is a small tube (see 1st pics) which is fitted in an hole through the base, The motor is switched on/of by a small switch.

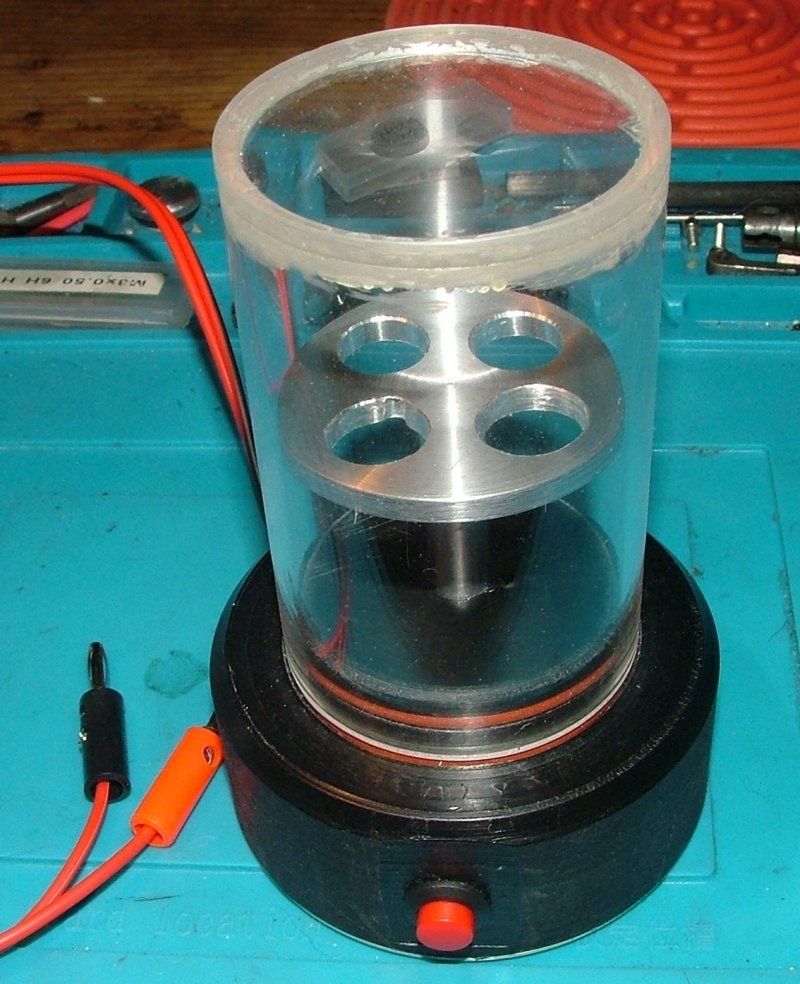

Finished




On a meter the pump can go as low as 0.3 bar and will hold its vacuum pressure for a few minutes after switching off. After some minutes you can pull off the tube again.

Next time I should buy some lathe toolbits for soft materials for a better finish......
