Default what engine is this?

I reckon its a .21 of some kind. It came out of a serpent, but could it be a heli or plane engine? Ive never seen on like it.







it has a short threaded crankshaft.

thanks
Turbo9000 is offline   Reply With Quote
Old 06-15-2010, 06:19 PM   #2
Tech Master

helivaguy's Avatar

Join Date: Jul 2008
Location: NYC
Posts: 1,220
Trader Rating: 42 (100%+)
Default

looks like a old pan car engine,maybe a rossi and they pretty much all had threaded crankshafts.
helivaguy is offline   Reply With Quote
Old 06-16-2010, 12:27 AM   #3
Tech Champion

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 6,269
Send a message via ICQ to Roelof
Default

Looks like a Rossi. I have here a Serpent P6 engine based on a Rossi with a same kind of exhaust connection and cooling fins on the crankcase.

The clutch seems a Serpent Quatro.
__________________
The quality of an answer comes with the quality of the question.
Roelof is offline   Reply With Quote
Old 06-16-2010, 01:34 AM   #4
Tech Elite

Wanabrc's Avatar

Join Date: May 2006
Location: Bay area, California
Posts: 4,828
Trader Rating: 70 (100%+)
Default

Judging by the "R" on the block, I would say it's a Rossi as well.
Wanabrc is offline   Reply With Quote
Old 06-16-2010, 11:12 AM   #5
Tech Fanatic

Turbo9000's Avatar

Join Date: Jul 2002
Location: Austin Texas
Posts: 783
Trader Rating: 5 (100%+)
Default

Thanks guys.
Roelof, you are right, its a quattro clutch.

The internals are primitive looking. However, i dont think its been run.

How old would you say this engine is?

my guess is about 25 to 30 years old
Turbo9000 is offline   Reply With Quote
Old 06-16-2010, 12:38 PM   #6
Tech Champion

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 6,269
Send a message via ICQ to Roelof
Default

I think arround 1989/1990

Attached a pic of my old P6 engine
Attached Thumbnails
what engine is this?-dscf1150.jpg
__________________
The quality of an answer comes with the quality of the question.
Roelof is offline   Reply With Quote
Old 06-17-2010, 10:04 PM   #7
Tech Fanatic

Turbo9000's Avatar

Join Date: Jul 2002
Location: Austin Texas
Posts: 783
Trader Rating: 5 (100%+)
Default

Quote:
Originally Posted by Roelof View Post
I think arround 1989/1990

Attached a pic of my old P6 engine
neat! there are some similarities for sure.

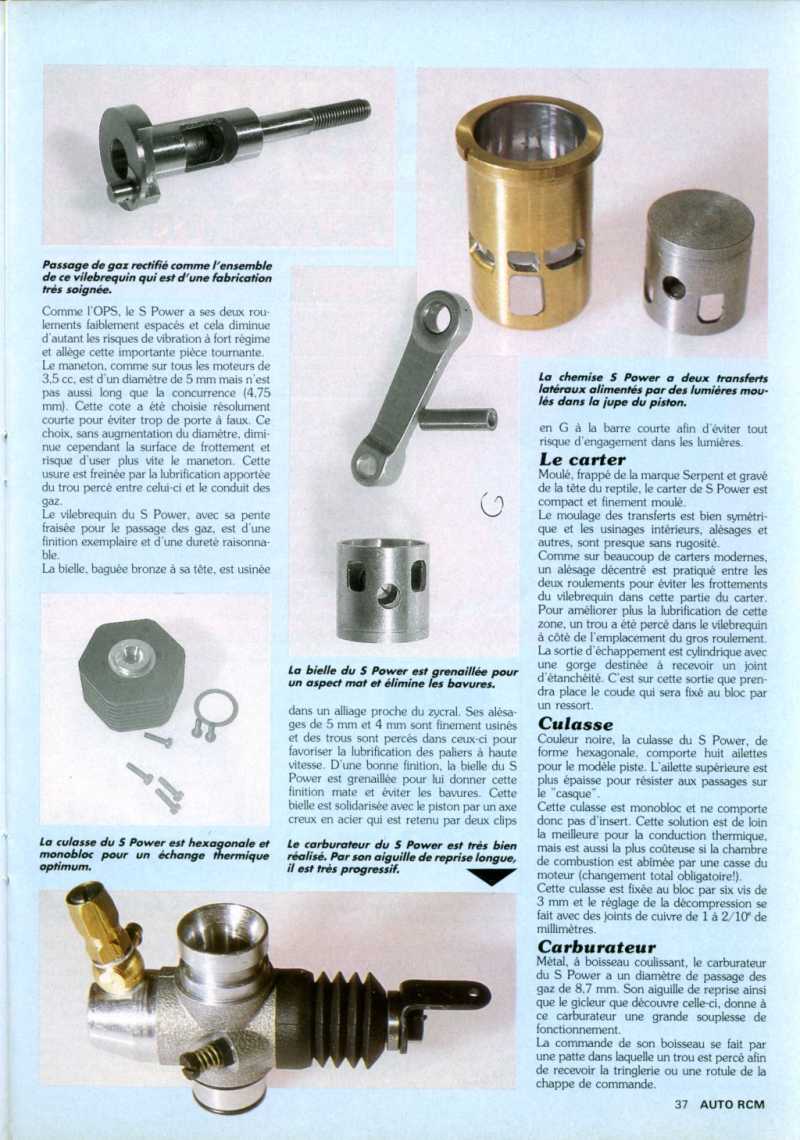

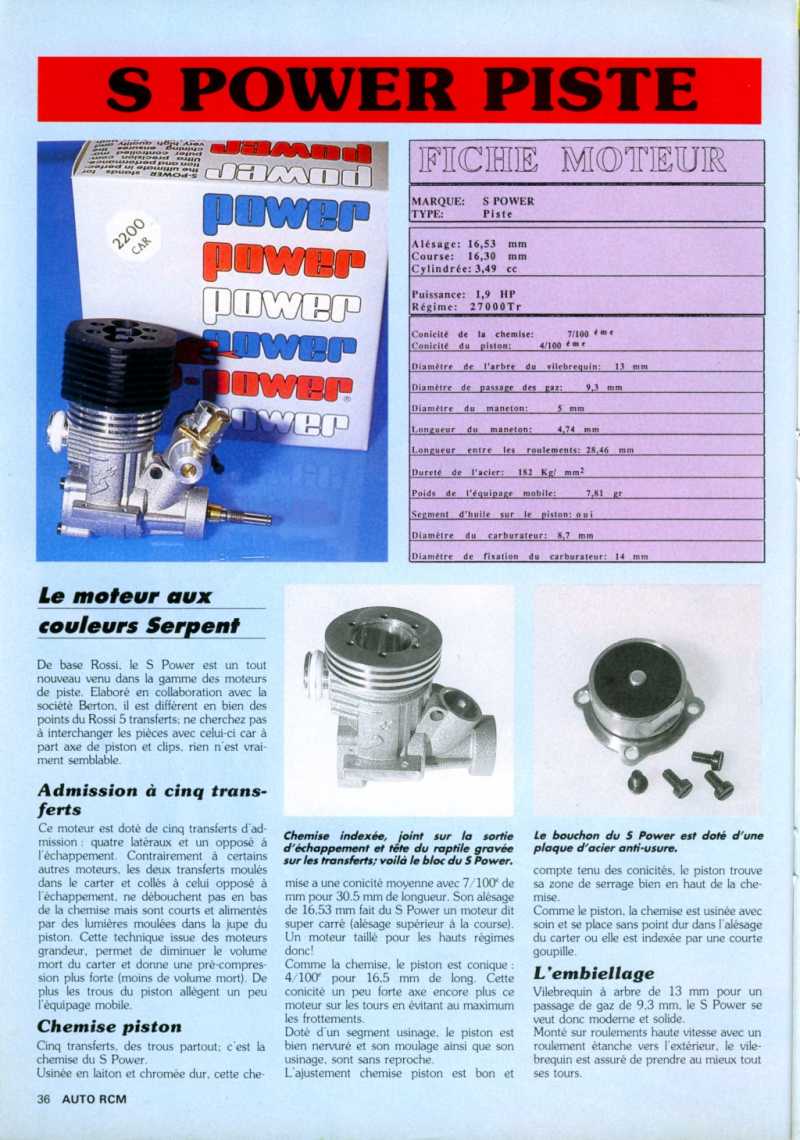

I have found specs for serpent "s-power" engine

The crank looks very similar, just shortened i believe.
Attached Thumbnails
what engine is this?-p_page_036.jpg   what engine is this?-p_page_037.jpg
Turbo9000 is offline   Reply With Quote
Old 06-18-2010, 12:56 AM   #8
Tech Champion

Roelof's Avatar

Join Date: Aug 2007
Location: Holland
Posts: 6,269
Send a message via ICQ to Roelof
Default

The blackhead was just a model before the purple head but nice to see such information on the net, brings good old memories
__________________
The quality of an answer comes with the quality of the question.
Roelof is offline   Reply With Quote
Old 06-19-2010, 02:37 AM   #9
Tech Initiate

Join Date: Nov 2009
Posts: 38
Default

That is a Rossi 3 port motor from 85/86, The S power was later 87/88 which had 7 ports. Both motors made by Rossi (now Axe Rossi). If you decide to sell the motor i would be interested, Please let me know. Martin.
martinh is offline   Reply With Quote
Old 06-19-2010, 02:44 PM   #10
Tech Fanatic

Turbo9000's Avatar

Join Date: Jul 2002
Location: Austin Texas
Posts: 783
Trader Rating: 5 (100%+)
Default

Quote:
Originally Posted by martinh View Post
That is a Rossi 3 port motor from 85/86, The S power was later 87/88 which had 7 ports. Both motors made by Rossi (now Axe Rossi). If you decide to sell the motor i would be interested, Please let me know. Martin.


Ok, yes, it is a 3-port engine.
Internally this engine looks new. would you happen to know, is the sleeve chromed or is it a nickel plate?


once again, thanks for the good info.
Turbo9000 is offline   Reply With Quote
Old 06-20-2010, 02:27 AM   #11
Tech Fanatic

Turbo9000's Avatar

Join Date: Jul 2002
Location: Austin Texas
Posts: 783
Trader Rating: 5 (100%+)
Default more pics

I have pics of the intenals & pipe and header now.











Turbo9000 is offline   Reply With Quote
Old 06-20-2010, 04:01 AM   #12
Tech Initiate

Join Date: Nov 2009
Posts: 38
Default

The liner is chromed, The engine has also deff been run.You can tell by the rub marks around the piston and rub marks around the crankshaft along the 13mm diameter part (between outer and inner ballraces). Regards Martin.
martinh is offline   Reply With Quote
Old 06-20-2010, 04:15 PM   #13
Tech Lord

wingracer's Avatar

Join Date: Nov 2007
Posts: 12,861
Trader Rating: 24 (100%+)
Default

Interesting that it has the oil whole in the crank pin. And here most of us thought OS was being innovative when they came out with that.
__________________
Sean. Certified speed crazed mowron.
Team Shepherd USA
www.ashfordhobby.com
wingracer is offline   Reply With Quote
Old 06-20-2010, 04:34 PM   #14
Tech Initiate

Join Date: Nov 2009
Posts: 38
Default

Rossi used the oil hole through the pin for about 3 years from around 83-86, Unlike OS which didnt have any oil holes in the rod on the VZB the Rossi rod had 3 oil holes as well as the diagonal hole in the pin. Their rod had one hole through the face of the rod above the big end as rods do today and they had two more holes through the side of the rods big end.Regards Martin.
martinh is offline   Reply With Quote
Old 06-22-2010, 01:25 AM   #15
Tech Elite

Wanabrc's Avatar

Join Date: May 2006
Location: Bay area, California
Posts: 4,828
Trader Rating: 70 (100%+)
Default

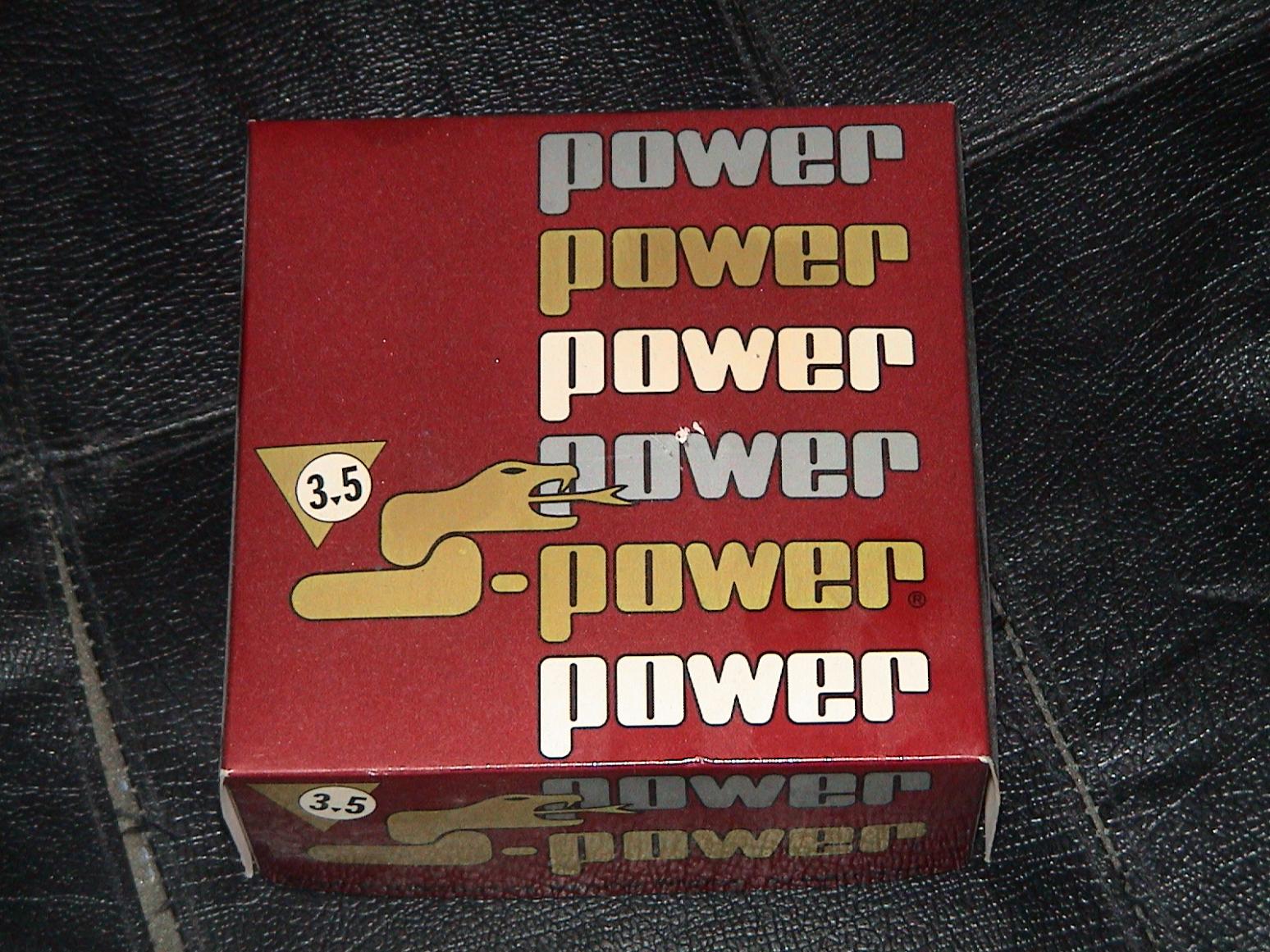

I had this ol' thing layin around...............
Attached Thumbnails
what engine is this?-s-power-ron-paris-mod-001.jpg   what engine is this?-s-power-ron-paris-mod-002.jpg   what engine is this?-s-power-ron-paris-mod-009.jpg
