Default Intrested in engine tuning!

Hello!

I am wondering if someone have any link or info about engine tuning. With pictures and explanations. Not engine adjustments.. i mean when you change port timings, some modifications to crankshaft etc..

i am really intrested how to do this.. whats is possible to do and not to do.
i have an old Mega SX-21 Evo1 engine that i think can be improved like 1-2% :P
the crankshaft have engraved M.D.S?? what does it stands for?

i attach some pictures with crankshaft and sleeve.
i dont know what angles of the parts that can help
Attached Thumbnails
Intrested in engine tuning!-1.jpg   Intrested in engine tuning!-2.jpg   Intrested in engine tuning!-3.jpg

Last edited by Orfeous; 03-24-2007 at 08:20 PM.
Orfeous is offline   Reply With Quote
Old 04-12-2007, 10:26 PM   #2
Tech Addict

jscamry's Avatar

Join Date: Oct 2001
Location: Oviedo,FL
Posts: 507
Trader Rating: 5 (100%+)
Send a message via AIM to jscamry Send a message via MSN to jscamry Send a message via Yahoo to jscamry Send a message via Skype™ to jscamry
Default

Very good question, I wonder the same!!
jscamry is offline   Reply With Quote
Old 04-13-2007, 03:29 AM   #3
M7H
Tech Elite

M7H's Avatar

Join Date: Dec 2004
Location: The Netherlands
Posts: 2,196
Default

read all info you can find here......

http://www.rctech.net/forum/showthread.php?t=30411
__________________
Serpent
M7H is offline   Reply With Quote
Old 04-13-2007, 06:53 AM   #4
Tech Regular

MRX4-R03's Avatar

Join Date: Oct 2005
Location: SA,TX
Posts: 318
Default

Quote:
Originally Posted by M7H
read all info you can find here......

http://www.rctech.net/forum/showthread.php?t=30411
MRX4-R03 is offline   Reply With Quote
Old 04-13-2007, 10:24 AM   #5
Tech Master

rcrevolution's Avatar

Join Date: Jul 2005
Location: Somewhere Delicious
Posts: 1,281
Trader Rating: 1 (100%+)
Send a message via AIM to rcrevolution
Default

it is real hard to do it yourself, the crankshafts have to be balanced, if not they don't run well after words
rcrevolution is offline   Reply With Quote
Old 04-13-2007, 01:51 PM   #6
Tech Addict

German Muscle's Avatar

Join Date: May 2006
Posts: 557
Trader Rating: 8 (100%+)
Default

Quote:
Originally Posted by rcrevolution
it is real hard to do it yourself, the crankshafts have to be balanced, if not they don't run well after words
Quote:
Originally Posted by the above thread
If you want to get fussy, and allow for the port being moved, balance on a "wheel" type balancer. This can even help on a stock type crank. (see some of the Russian engines, .15 size for examples). The amount of counterbalance needs to be in the 50~65% range of the weight of the piston,wrist-pin,(ring, if used) and 1/2 the weight of the rod. To test this, measure the weight of the reciprocating parts on a good gram scale, and make up bob-weights in this amount to add to the crankpin, before you put it on the balancer.The crankpin should "stop" at the 12 O'clock position. On a single cylinder engine: If you add weight to the counterbalance, or lighten the reciprocating weight. you DECREASE the PRIMARY shaking imbalance (vertical= Cyl. bore axis), and INCREASE the SECONDARY imbalance (crosswise= across the lugs).
For this reason, IT'S IMPOSSIBLE to balance a single Cylinder engine, without a secondary Balance shaft, as used in some auto engines. Adding weights (heavy slugs) to the counterbalance is done to change the resonant frequency at which you get a "Harmonic" or strong vibration level. You want this at a lower than full rpm number. Most of the ST X-40's used in Formula-1 Pylon and Fast Rat had cranks that needed this changed to resonate in the high-teens (RPM). Sometimes you could see the engine "shake" in this range, on the test stand. I never put a strobe light on one to see what one would look like while running. If the engine is balanced to "resonate" at full RPM, IT USUALLY COMES APART
.
German Muscle is offline   Reply With Quote
Old 04-13-2007, 03:21 PM   #7
Tech Elite

EdwardN's Avatar

Join Date: May 2003
Location: SoCal
Posts: 2,144
Trader Rating: 1 (100%+)
Default

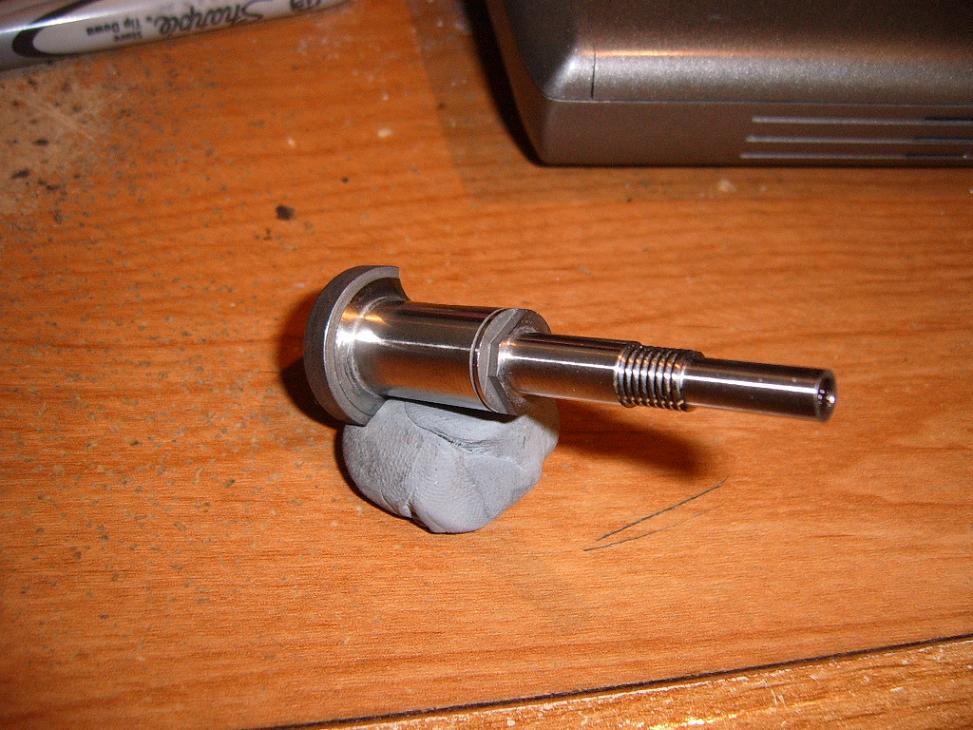

Here one of the "unusual" way to balance crank-may be will help to somebody. It is cut behind front bearing.
Attached Thumbnails
Intrested in engine tuning!-s3700103.jpg
__________________
DISCLAIMER: Since 90% of my posts may be BS, and since my posts may be either insanely idiotic, incoherent, and/or not even close to a rational thought, please accord my posts no more than 10% of credibility.
EdwardN is offline   Reply With Quote
Old 04-15-2007, 01:08 PM   #8
Tech Master

Join Date: Jan 2007
Location: Oklahoma City
Posts: 1,767
Trader Rating: 49 (95%+)
Send a message via Yahoo to loopedout
Default

Heres an engine tuner question. I have an Axial 28, what is the best pipe and clutch to run with it for use on a big dirt oval. Im using it in a 1/8 buggy single speed only?
