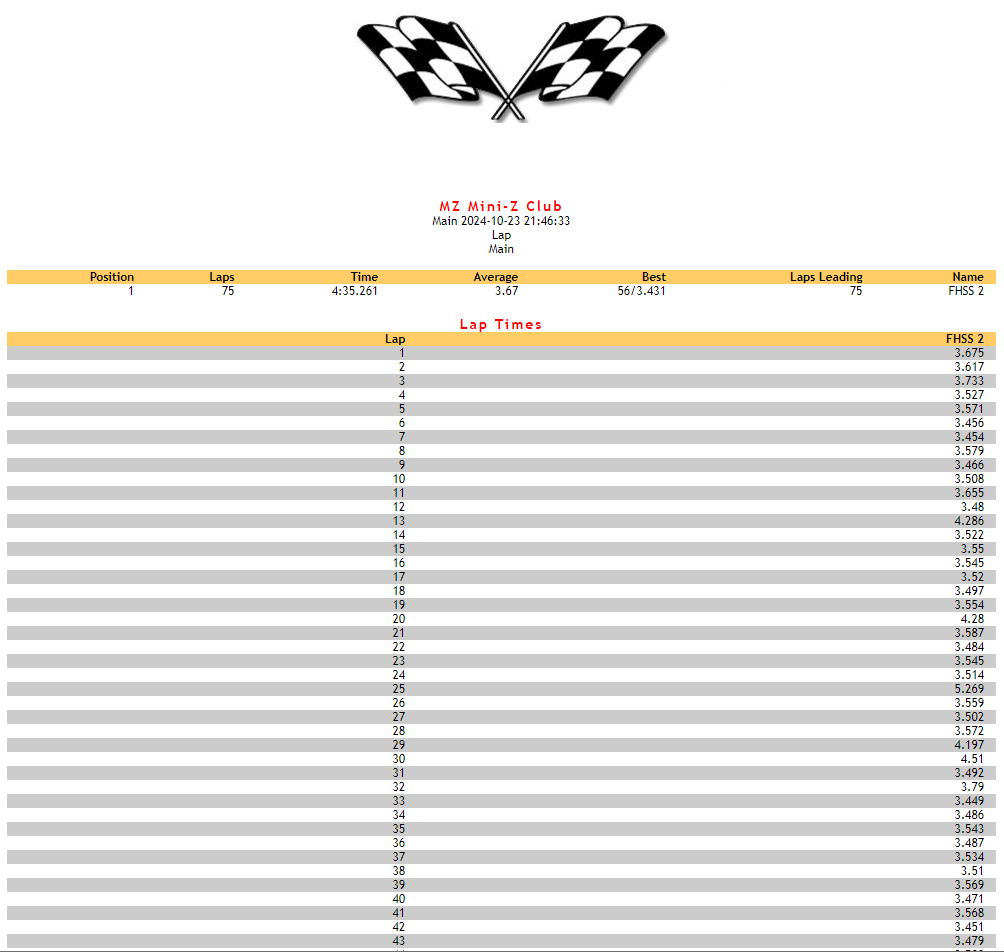

Class-Box Stock
Date-10/23/2024
Location-Winston-Salem, NC
Race Time-275.3
Fastest Lap-3.43
Chassis-MR-03 FHSS
Body-2012 NSX
Wheelbase-98mm
Tires-PN KSK 40 LH fronts, Marka V1R15 rears
Motor-Stock
Batteries-GensAce 750s
Front Springs-Kyosho Stock
T-Plate-Kyosho FRP 0.6H
Motor Mount-Stock MM
Dampener (If applicable)-None
Dampener Fluid (If applicable)-K 15k grease on top shock
Gearing-Stock Gear Diff/7T pinion
Notes-Came close, but could not beat my September time this month.

Class-90mm Narrow MX-5 Miata Unofficial Experimental Class
Date-10/3/2024
Location-Winston-Salem, NC
Race Time-287.9
Fastest Lap-3.60
Chassis-MR-03 FHSS
Body-Mazda MX-5
Wheelbase-90mm
Tires-PN KSK 40 LH fronts, PN KS Soft rears (20mm 0 offset flanged wheels all around)
Motor-Stock
Batteries-Gens Ace 750s
Front Springs-PN Super Soft Blue
T-Plate-Kyosho Soft Fiberglass RM
Motor Mount-Stock RM
Dampener (If applicable)-N/A
Dampener Fluid (If applicable)-None
Gearing-7/44 Gear diff
Notes-This car is super light, but very stable and quick and is one of the funest to drive and watch going around the track! It runs great on both Narrow and Wide rears with no setup changes. No changes, but was able to bear my September time by 1 second.

Class-90mm Narrow Stock
Date-10/2/2024
Location-Winston-Salem, NC
Race Time-281.3
Fastest Lap-3.53
Chassis-MR-03 ASF
Body-Toyota GRMN Yaris
Wheelbase-90mm
Tires-PN KSK 40 LH fronts, PN KS Soft rears (20mm 0 offset flanged wheels all around)
Motor-ATM 70T
Batteries-GensAce 750s
Front Springs-PN Green
T-Plate-PN #3 Spring Steel
Motor Mount-PN MR9094 90mm
Dampener (If applicable)-PN Integrated with dual spring center shock
Dampener Fluid (If applicable)-None
Gearing-9/44 Gear diff
Notes-It is a very stable body and fun to watch rip around the track. No changes, but couldn't beat best September time.

Class-Porsche Cup Class
Date-10/24/2024
Location-Winston-Salem, NC
Race Time-278.9
Fastest Lap-3.33
Chassis-MR-03 EVO
Body-911 GT3
Wheelbase-90mm
Tires-PN KS Soft on PN 19mm +0.5 fronts, Marka v1R10 on PN 19mm W0 rears (not pictured)
Motor-ATM 3500
Batteries-GensAce 750s
Front Springs-Kyosho Stock
T-Plate-GT55 +0.6 FRP #4
Motor Mount-Nexx Round RM
Dampener (If applicable)-PN G10 DDS and Kyosho Inner Tube Shock MZW442
Dampener Fluid (If applicable)-1300 Silicone Oil
Gearing-PN 64p 13/53 Ball diff
Notes-This car is super quick and fun, but a challenge to drive consistently. I only got one run in this month and was slower than last month.

Class-Stock PNR 3500kv
Date-10/11/2024
Location-Winston-Salem, NC
Race Time-250.0
Fastest Lap-3.07
Chassis-PNR2.5W
Body-Jomurema with PN Lexan Roof (Not pictured)
Wheelbase-98mm
Tires-PN KSK 40 LH fronts, Marka V1RR15 Radial rears
Motor-PN v4 3500vk
Batteries-Gens Ace 750s
Front Springs-PN AA Yellow
T-Plate-Kyosho FRP 0.5 Medium
Motor Mount-PN 98mm v5
Dampener (If applicable)-PN DDS
Dampener Fluid (If applicable)-None
Gearing-PN 64p 14/53 Ball diff
Notes-No changes. This was a great run and beat my September Stock and Pro Stock time and my only run under 250 seconds with any car...

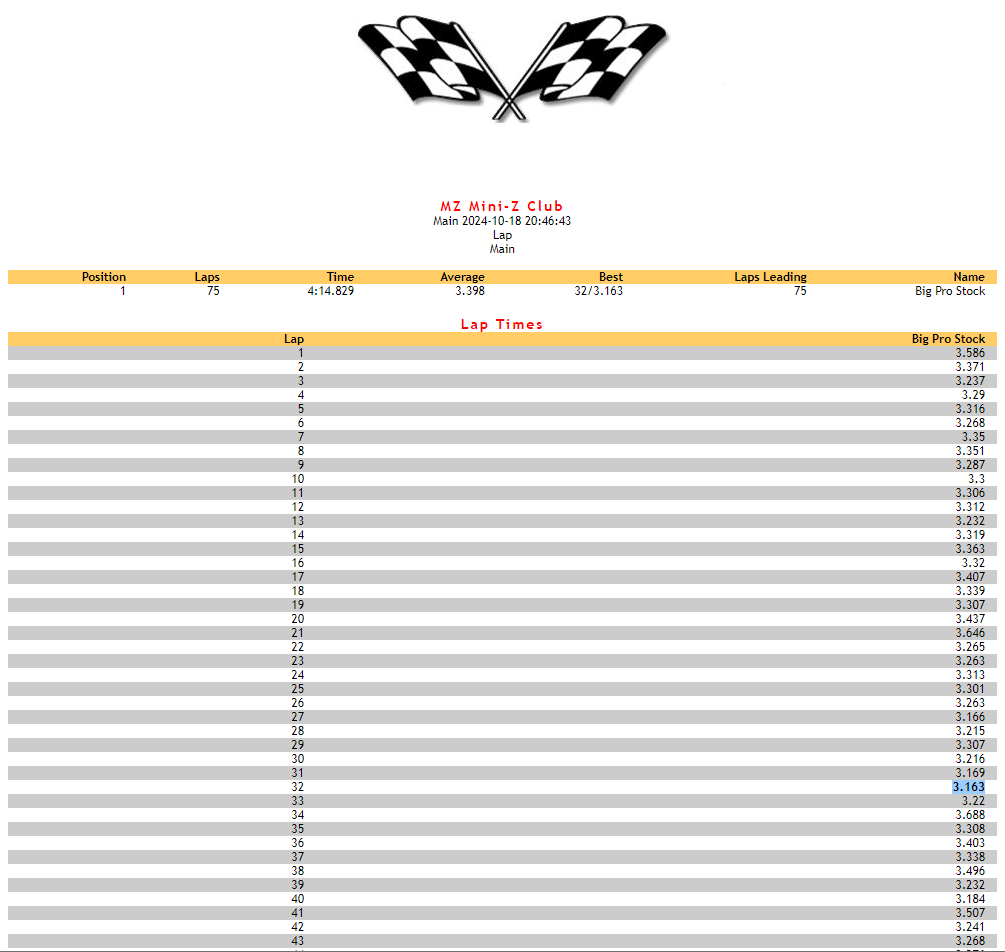

Class-Pro Stock GT
Date-10/18/2024
Location-Winston-Salem, NC
Race Time-254.8
Fastest Lap-3.16
Chassis-PNR2.5W with EVO Board
Body-Jomurema GT01 with Lexan Roof
Wheelbase-98mm
Tires-PN KS Medium on RTRC 20mm +1 fronts, Marka V1R15 rears
Motor-PN50T Bushing
Batteries-Gens Ace 750
Front Springs-PN Purple
T-Plate-Kyosho FRP 0.5 Soft
Motor Mount-PN 93-102 Multi Motor Mount
Dampener (If applicable)-PN TDS
Dampener Fluid (If applicable)-None
Gearing-64p Ball Diff 10/54
Notes-No changes, but couldn't get close to beating my September time and tried 4 different Pro Stock cars.

I knew when I saw this layout it seemed familiar, and when I started to set it up I remembered why. It is 1 tile too wide for my room how it is laid out, so I had to rearrange the room, but I got it done! Luckily there is laminate flooring in there so I could slide everything around.

On the down side my 04/2.5W is having servo gear problems. It had Kyosho gears in it and it didn't move very well, so I got some PN Delrin gears thinking it would fix it, but after installing them it still is tight. so looking closely it is great till you try to seat the gear pack the last .2mm then it gets TIGHT. So I am going to pull it back apart and try to figure out where it's tight and file it down to clearance it. I tried leaving the top cover slightly loose, but the tie bar will disengage with a full turn.

Anyone ever had this problem???

Newb question, but didn't you used to post what side of the tiles to run for the monthly layout?

We run smooth side.

Wellcome to the challenge please reach out if you have any other questions.

want to run stock and box stock. Can we use fiberglass of carbon tplates in stock? Also which track configuration we starting with? Looks like you want to start with rough side, so that is fine-prefer smooth forntiee wear, but fine either way.
Chip Puccio

Chip, we are on the SMOOTH side going Clock Wise (CW) this month, next month we will be on the same layout but going Counter Clock Wise (CCW). Then in January we will get a new layout from PoorBoy. Basically a new layout every 2 months, with a direction change every month, but we have been on the Smooth side for a while now.

The STOCK class is pretty open with what is allowed, mainly any Kyosho chassis or PN2.5W with a 3500kv brushless or 70T brushed. AAA powered.

BoxStock is the most limited in upgrades. A Kyosho NON EVO board chassis, with tires, t-plates, springs, front body mount, being open to change, and Kyo. 0* Alu knuckles are the ONLY allowed knuckles to change. 7T pinion mandatory.

WELCOME to the Challenge! It is tough at first, but practice, practice, practice, and speed will come! Once you get it down though, IT'S A BLAST!!! Holler with any questions!
Drew

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

We had a lower turn out than we have had in recent months. Hopefully numbers will be back up for November. Thanks to everyone who posted times.

Here are the October 2024 results:

Box Stock Sportsman
1st – BoxxerBoyDrew 332.4/3.17
2nd - danjoy25/Dan Dylen Garcia 350.4/4.37

Box Stock Expert
1st - Traveler2/Marwan Zabaneh 275.3/3.43
2nd – Chjosi 309.48/3.60

Narrow Class
1st - Traveler2/Marwan Zabaneh 281.3/3.53
2nd – BoxxerBoyDrew 324.5/3.70

Unofficial Open MX-5 Class
1st - Traveler2/Marwan Zabaneh 287.9/3.6
2nd – BoxxerBoyDrew 331.9/3.59
3rd – Chjosi 338.8/3.81

Porsche Cup Class
1st - Traveler2/Marwan Zabaneh – 278.9/3.33
2nd - BoxxerBoyDrew – 317.1/3.76

Stock Class
1st - Traveler2/Marwan Zabaneh – 250.0/3.07
2nd – Poor boy/David Krinard – 290.5/3.58
3rd – BoxxerBoyDrew –318.6/3.61
4th – danjoy25/Dan Dylen Garcia -331.2/4.09

Pro Stock
1st - Traveler2/Marwan Zabaneh – 254.8/3.16
2nd - Chjosi – 340.2/3.313rd - BoxxerBoyDrew – 343.1/3.72

Open 2WD
1st – danjoy25/Dan Dylen Garcia – 337.3
2nd - BoxxerBoyDrew – 343.1/4.05

Hey Guy’s, I’m planning on going to a rwd open class car with a OBRC printed chassis, just ordered a Surpass set with a 3500kv motor( they didn’t have a 2500kv set at AliExpress or I’d have went with that) still trying to get my mr03 stock class car to steer right ( one of the main reasons to go with a open class car; stand alone servo) we’ll be trying to post some times with the crew !!

oh it’s Whoop racing season too and most of the guys are hard into that, there’s a race on the 17th and we are taking the track along

I am looking forward to seeing your build Walt! I'll be putting my Open chassis back together next month when I get a new motor and Ball Diff. Went a little crazy last month on RC orders so I'm laying off ordering this month. I'll be going with a Sensored 3500Kv probably a PN Anima, though if someone has another suggestion I'd be glad to listen. I've only had 1 sensored motor, so I don't know if there is a better option out there.

I did get my BoxStock chassis up and running on the new layout. I put KSK Soft radials on the rear and KS Medium low height fronts +1 20mm under a 2015 R8 body. I had to Super glue the front sidewall and about 2mm of the edge of the tire face, along with the side wall of the rear tires to keep from Traction Rolling in the high speed 90*s.
I'm still trying to get Front Tires figured out on my 04. Kyo. Soft (20*)LH tires worked well, but didn't last 1,000 laps. Don't have any Kyo LH Mediums (30*)but I do have some Hard (40*) LH that I'm trying now, and while I don't have any TR problems, it does have a bit too much Push on power in the high speed 90*s. That was on +2mm and I mounted a set on +3mm to see if there's less push while not developing TR. Might try super gluing some KS-M Mediums if I can't get the Kyo's to work.

Well I couldn't sleep last night so I dug through my parts bin and found parts to put my Open chassis back together with the Kyo 8500kv, and I don't know what I did, but it runs much better! It actually is quite good with Marka Soft Radials and KS Medium LH on 19mm and a 12C with the Factory Gear Diff and a 8T pinion. I couldn't use a top shock as the mount plate didn't get countersunk at PN, but it runs great without it, so no worries. Also I had to Heli-Coil the top plate damper plate holes as they both stripped with just one use! It's holding so far.

Hey Derw, I’m trying the surpass 3500kv and a esc from them too( not the cheapest as it’s supposed to be dodo) it was a set on sale with a programmer too, don’t know yet what I’m going to use for a diff but I do tend towards gear diff‘s we‘ll see. Take care guy’s Berat and I are going to try out the new layout tomorrow!!
Later Walt

Here‘s the esc and motor.just got them today
