OpenStint laptiming decoder


I'm proud to announce OpenStint, an open-source, RC3-compatible laptiming decoder project. Instead of custom hardware builds, it relies on inexpensive, ready-made software-defined radios. The primairly audience are small clubs and friendly gatherings, who either like thinkering or have no budget for a ready-made solution. It is also useful for tracks where RC3 compatibility is required, but compatible decoders are not available any more.

PROJECT URL: github.com /zsellera/openstint

The project is accompanied by a reference design of a transponder, and a low-noise balun & preamplifier side-project, custom-designed for RC timing loops.

HIGHLIGHTS

• Off the shelf components only, no soldering is required. The heart of the decoder is a HackRF One, a software defined radio, available from $90 at opensourcesdrlab.com.
• Supports RC3 protocol, with error-check and a makeshift error correction (little-to-no "ghost"/"shadow" transponder ids).
• Defines (and decodes) an open transponder protocol. Known, easy-to-understand algorithms allowing 3 dB signal-to-noise ratio improvements (see docs/).
• Runs on a Raspberry Pi Model 3 B+ (sub-$40 single board computer). A sub-$200 permanent installation is possible.

To watch it in action, here is a quick video: youtube.com /watch?v=YDW0eA1Szk4

To start using it, the necessary steps are detailed in the project's README. In short, you'll need:

• HackRF One; RTL-SDR support is planned, but not available now.
• A 1:9 or 1:8 HF balun (search for "noelec 1:9 balun" it's a $3 stuff) or a magnetic field probe.
• Some 50-ohm coaxial cable (RG58 and RG316 are the inexpensive options)
• An optional (but highly recommended) termination resistor: 330 ohm for surface installations and 470 ohm for above-the-track installations (see TDR measurements)

Note however, the project is in-the-making. See project roadmap in the aforementioned README file.

PICKUP ANTENNA
The detector antenna uses a similar design as other commercial solutions: it is a parallel wire transmission line, with a balun on one end, and a 330/470 ohm termination on the other end. The wires should be ideally 2 mm^2, and separated by 25 cm from each other. Use the 330 ohm termination for in-the-ground installations, and the 470 ohm termination for overhead wires. The inexpensive NoElec 1:9 HF balun gives a very good impedance match for the overhead installations, and is also usable for in-the-ground setups.

Note: I use the term "antenna" and not "loop". From a geometrical standpoint, it is a loop for sure. From electrical perspective, this is a parallel-wire transmission line, an unshielded arrangement to pick up external disturbances. There is no need for "resonance matching" or other similar magic.

TRANSPONDERS
While the project can decode RC3-compatible transponders, the preferred protocol is the OpenStint transponder protocol. The protocol is well documented, it makes sense (no deliberate obfuscation) and has pretty good SNR characteristics. A reference implementation is available (schematics, pcb and firmware). At club level, one can manufacture 40 pcs of these transponders for $130 (a cost less than a single RC4 hybrid).

The reference design is available at:
github.com /zsellera/openstint-transponder/

The reference design produce comparable signal levels to the commercial offerings when running from 7.2 V (servo port of the receiver). It requires 4.5 V minimum to function properly, and testing was done up to 8.5 V (2s). The output level depends on the input voltage.
Note: this is a "v2" design shared, I just submitted an order at JLCPCB for it. I'll update this thread when I could properly test them.

PREAMPLIFIER
The project comes with an optional, low noise preamp + filter, that does the differential to single-ended conversion as well. It fits into a Hammond 1590L die-cast aluminium case. It is useful at overhead antenna installations and in noisy environments. The design offers a good +13 dB power gain. The onboard filters get rid of out-of-band interferring radio signals, which may get downconverted to baseband due to non-idealities in the inexpensive radio receivers.

Project url:
github.com /zsellera/openstint-preamp

WHAT'S NEXT?
On the short run, I'd like to focus on:

• lapcounter software: application for practice sessions, maybe clubraces later on.
• STL-SDR v4 support: the cost of a 3rd-party HackRF One is ca. ~$90, while the cost of an original RTL-SDR is ~$50. On the other hand, RTL-SDR implementation is likely consists of a fractional resampler, which is resource-intensive (might need Raspberry Pi 4 or even 5).
• sector timing: while this is primarily a lapcounter software feature, the clock-syncing required for it is a "first-class citizen" of the OpenStint project. See the "timesync messages" in the transponder protocol documentation.

I've spent about 2 months of a sabbatical on this project. While I think it was the best possible way to spend this time, I'd like to return to the world of 9-to-5 soon. As such, there are no promises on future features or project timelines.

HOW CAN YOU HELP OR CONTRIBUTE?
First off, this project converts a hardware problem into a software one, which is usually more likely to get solved.

• This project severely needs integration with laptiming software. If you develop one, and you're interested in an integration, check out the decoder protocol documentation.
• The project contain some basic integrations in the integrations folder, including a very basic laptiming software (for educational purposes). I'd like to work on a P3 bridge soon. If you have any documentation on the P3 protocol, please share it with me.
• While reading the specs of the reference transponder, one might notice the gap between this and the RC4 transponder. Someone shared an X-ray image of an RC4-hybrid on this forum, and a "V7" text is visible on the copper layer. The design I shared is "V2" as of now. On the other hand, I unfortunately out of ideas on how to push it any further.
• If you have developed your own transponder, let's talk. A reference implementation of the transponder protocol is available in github, and I can help making sense of it.
• Test it out, preferably at your local track. I'll do the same. Initial tests are promising btw.

Also, if you like this project, please star them on Github.

https://github.com/zsellera/openstint
https://github.com/zsellera/openstint-transponder
https://github.com/zsellera/openstint-preamp

Yesterday we could test the system at our club. It ran the whole day, and counted 3170 laps in total. Out of these, 801 were made with OpenStint transponders, and the rest with RC3/RC4Hybrid/clone ones. I received no complaints about missed laps from people participating in the test.

As it was an indoor event and the pickup antenna was placed under the carpet. I used a lightly coated 26 AWG (0.14 mm2) wire. The wire separation was 30 cm, and a 330 Ohm termination resistor was soldered onto the remote end. At the business end, I added an openstint-preamp (see github for shematics), which was connected to the HackRF One. The HackRF was connected to a raspberry pi, which streamed the laptimes to a makeshift dashboard people could access with their phone.

I set the amplifier gains of the HackRF with the help of SDRAngel. It's a great tool to do all sort of RF magic with SDRs. To figure out the gains, we only need its' spectroscope though. Open the HackRF device with it, tune to 5 MHZ, set sample rate to 5 MSPS and IF filter bandwidth to 1.75 MHz. Park a car with a well-placed, strong transponder over the loop. Then, start from low values, and increase the LNA gains until you see sidelobes on the spectroscope. It indicates clipping. If seen, back off by 8 dB. Then do the same with the VGA gains (2 dB steps). I ended up starting the decoder with the following parameters:

As such, gains are LNA=+24dB, VGA=+22dB, and enabled bias-tee for the optional openstint-preamp. With these settings, the highest signals used the full range of the 8-bit ADCs inside the radio, while weaker transponder placements utilized the lower ~4 bits only. The noise affected the ~1.5 least significant digits, yielding still a good SNR for less-than-ideal transponder placements as well.

The antenna was placed to a slow section of the track. During passings, a typical RC4-hybid registered 55-60 hits, while an OpenStint transponder did 170-180. This is in-line with the expectations, as the openstint transponders produce ~3x more decodable messages as an RC4-hybrid does.

Unfortunately, the decoder also reported (probably) RC3 status messages as passings. I added a patch, so next time (hopefully) this will be not a problem. Unfortunately I'm just guessing though. The real solution would be a monitor mode, similar to what RCHourGlass has, to aid solving these mysteries.

Hello,

your work is incredible.

I have a question, i want to detect when the car pass on the loop of our track (mylaps decoder) and send a telemetry signal to my radio (MT12 with elrs and csrf telemetry)
It seems i can do it with your transponder modifying the code to not emit and only a signal high on a pin when the car pass on the loop.

(now i use a gps inside the car to detect the pass of my car for my lap timing on the MT12)

By using your transponder as a a loop detector ?


Do you know how to do this ?

You can absolutely achieve this. Chatgpt can even produce simple integrations. This was my prompt:

Both the chatgpt prompt and the generated code (I added minor modifications only) are available here:
gist.github.com zsellera/5b5b2cb178dd1cdd0c35bc6f06a974b8

now I'm interested and getting this system going. seems like a fairly cheap way for a local low budget club to get lap counting going.

This is fantastic. I'm ordering some SDR tools and hopefully I can start working and contributing to this project. Thank you so much for all your hard work.

I have put in a few hours of getting a STL-SDR to work. I am detecting the R3/R4 Hybrid, the issue is that i am only getting it 1 out of 25 times. My issues now is that i just don't know enough about SDR in general so my learning curve is steep. I am relying on AI alot right now. fun project though. my family is very confused with all the wires on dinner table. :)

Lowered the threshold and now getting better detection, but the EVM is not good and not getting transponder code detection. YET. might be my antenna build

From AI:
You're getting excellent frame detection (EVM as low as 0.45-0.46) but the demodulation still needs the preamp to reliably decode transponder IDs. The software side is working well - it's purely a signal/noise ratio limitation now."

[DEBUG] Max correlation: 0.7760 (threshold: 0.67), DC offset: (-1, 0)
F OPN T:24743 RSSI:-4.41127 EVM:0.619048 [0, 223, 0, 0, 1, 255, 255, 255, 255, 64, 246, 3, 0, 222, 176, 82, 220, 0, 255, 0, 0, 22, 114, 182, 0, 0, 226, 0, 255, 0, 0, 0, 255, 6, 0, 255, 30, 0, 3, 95, 45, 36, 0, 20, 230, 94, 226, 97, 62, 151, 3, 0, 0, 210, 0, 166, 79, 250, 4, 0, 242, 106, 249, 0, 0, 255, 17, 0, 24, 255, 0, 0, 0, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 247, 104, 80, 119, 136, 133, 129, 128, 128, 128, 128, 128, 129, 129, 127, 128, 127, 129, 129, 127, ]

Nice, thanks for working on this. I tested your fork, and it works for me as well.

This is a typical passing:
As seen, out of 451 detected preambles, it was able to successfully decode 426. It's in-line with my experience of HackRF.

Detection threshold: the lower you set the correlation threshold, the more likely it recognises random noise as valid preamble. On very low settings, it will recognise practically anything as valid frame. On the other hand, I indeed see worse correlation with the rtl-sdr implementation. You can get it into shape by not tweaking the resampling's filter bandwidth (just use resamp_crcf_create_default).
EVM: yep, it's far from being nice, but for a different reason (it's bad with HackRF as well, I think the symbol synchronizer is used with an incorrect filter).
Amplifiers: The "RSSI:-4.41127" means you're using practically the full scale of the radio's input.

Hi,

There is a writeup with expected images in the repository on how to test a given setup with SDRAngel:
github.com/zsellera/openstint/blob/master/docs/setup-tutorial.md#testing-the-system-so-far

If you can receive signal using SDRAngel, you should be able to do so with the openstint software as well.

If there is no signal visible with sdrangel, try:

1. Can you receive any other signals with your hackrf, like fm-stations?

2. What balun/preamp do you use? It might need power from the built-in bias tee. Verify the voltage requirements, as the HackRF supplies 3.3 V 50 mA max.

3. Verify the transponders transmit. The transponders need 4.5 V minimum to transmit (this is a limitation of the mosfet driver used). The blinking is a good sign btw.

4. If you have access to rc3 or rc4 hybrids, you can give a try to those as well.

It's exciting to see this project coming along, thanks for all your effort. I see you have support for windows using Zround. Registered for it a few days ago but can't download the software until "an admin" approves my account. Next Level Timing also supports Zround protocol among several others. Also seems responsive to adding hardware to their compatibility list. https://nextleveltiming.com/

I'm getting ready to buy the parts for the decoder. Banggood has the Hack RFOne for under $100. I have a couple mrt and rc3 transponders to test it out with.

I'm unsure of some things. My plan is: antenna> active SDR loop amp or 1:9 balun (both similar priced ~$12)> RFOne> - from there could I use an HP thin client running linux (i have one already collecting dust) instead of a RPi? Keep this all in a pelican case and connected to wifi. I would then be able to run timing software on a windows PC connected to the same lan ?

Regarding the OpenStint transponders, I plan on ordering them once I get the decoder working. I'll gladly share any .stls I create for 3d printed cases. Do you have any recommendations for flashing them? I figure it wouldn't be too hard to make a jig with pogo pins.

HP thin client
I expect it to work; make sure you compile with optimalizations (-O2 or -O3), and it will perform nicely on older / less-capable CPUs (I'll update docs on how to do it).

Note: you can run the whole stack on a single windows laptop, the rbpi/minipc is a nice-to-have.

Active SDR loop amp or 1:9 balun
I'd prefer the active solution; the antenna *might* pick up disturbances (ie. sparking of motor commutation), and having an active device provides some additional safety. I haven't had issues with the 1:9 baluns neither so far (note though, I'm using the "clifford version" hackrfs, which have additional frontend protections).

Timing software
You can download ZRound Suite without admin approval or registration.
NextLevelTiming: unfortunately (last time I checked) it supports only serial port / usb based decoders, the TCP-based ZRound protocol is not supported.

Programming JIG for transponders:
Any contribution is welcome, and a programming JIG is a nice idea. If you share yours, I'll to link to it from project readme; or send a PR to the project having the files inside.

For now, I use pogo pins soldered to 2 mm pitch row header glued together.

I've tried, but the link at the top takes me to a login screen and when I try to log in, a popup with the message saying my "account hasn't been approved by an administrator" has prevented me downloading from the site. Aha, I just found the green download box at the bottom of the page.

It hadn't really occurred to me the difference in implementation of your decoder vs something like Hourglass until you spelled it out for me. I do ok following instructions but regarding hardware and software creation and implementation I'm fairly ignorant. Having now messed around with Zround, Next Level does seem rather simple in comparison. Still, I'll submit a request through their website and link your github. Maybe it'll encourage them to give your decoder a look.

I expect to have a Hackrf by mid February. I'm sure I'll have more questions. While I wait I'll try to get familiar with SDR. I'll probably order some OpenStint transponders in the next few days as well. I'm sure I'm not alone in appreciating how the affordability of this whole setup, especially sub $5 transponders, has the potential to benefit this expensive hobby.

Open practice lap counter application - FYI
https://github.com/zsellera/openstint-lapcounter/ | live cloud instance

Features:

• live laptime announcements, personal announcements
• runs locally and optionally in the cloud as well
• using a phone, listen to your personal laptimes live
• practice days only

We're using this application on the practice days the club organizes, and people generally like it. As you make laps, it opens a new stint for you. If you're idle for 2 minutes, it closes your current stint, and a next lap opens a new one. When you select a pilot, you can listen to live time announcements via the web. It works from mobile phones with internet connection.

On our last practice day, this was my transponder. I set up a demo track so you can see how it works live.

The source code is available, so you can set up your own local & cloud instances as well. Although it uses the "openstint" naming, I have no long-term plans with this project. I just wanted to share it, as an alternative to ZRound practice mode.

I have successfully installed OrangePI 3b+RTL_SDR V4, but I'm having trouble connecting to ZRount. When I connect to the ZRount device, I select ZRount and set the IP and PORT. Although the connection is established, no vehicles pass by (-ID), and the connection drops after a while.
root@orangepi3b:~/openstint/build/src# ./openstint -r -g 40 -t 0.67 -p 5556
Detection threshold: 0.67
Listening on tcp://*:5556
Found Rafael Micro R828D tuner
RTL-SDR Blog V4 Detected
Device: Generic RTL2832U OEM (SN: 00000001)
RTL-SDR Blog V4 detected: using upconverter for HF (direct sampling disabled)
[DEBUG] Offset tuning ENABLED. Hardware freq: 4750000 Hz (target: 5000000 Hz)
RTL-SDR optimization: Using 2.5 MSPS hardware rate with 2:1 upsampler to reach 5.0 MSPS
Exact sample rate is: 2500000.107620 Hz
[DEBUG] Software mixer ENABLED. Phase step: -0.628319 rad/sample
RTL-SDR gain set to 19.7 dB
RTL-SDR RX: freq=5000000 Hz, sample_rate=5000000 Hz
Streaming... stop with Ctrl-C
S 1080 -inf 0 115 101
[DEBUG] Max correlation: 0.9408 (threshold: 0.67), DC offset: (0, 0)
S 2082 -45.361607 0 433 399
[DEBUG] Max correlation: 0.9440 (threshold: 0.67), DC offset: (0, 0)
S 3084 -45.361607 0 411 373
[DEBUG] Max correlation: 0.9312 (threshold: 0.67), DC offset: (0, 0)
S 4086 -45.361607 0 402 370
P 3153 AMB 4747720 -4.34 1312 0.55
[DEBUG] Max correlation: 0.9272 (threshold: 0.67), DC offset: (0, 0)
S 5088 -46.39358 0 81 69
[DEBUG] Max correlation: 0.9299 (threshold: 0.67), DC offset: (0, 0)
S 6090 -45.639183 0 326 297
[DEBUG] Max correlation: 0.9264 (threshold: 0.67), DC offset: (0, 0)
S 7092 -45.639183 0 400 371
[DEBUG] Max correlation: 0.9269 (threshold: 0.67), DC offset: (0, 0)
S 8094 -45.639183 0 402 366
[DEBUG] Max correlation: 0.9273 (threshold: 0.67), DC offset: (0, 0)
S 9096 -45.639183 0 402 362
[DEBUG] Max correlation: 0.9334 (threshold: 0.67), DC offset: (0, 0)
S 10098 -45.639183 0 403 365
[DEBUG] Max correlation: 0.9361 (threshold: 0.67), DC offset: (0, 0)
S 11100 -45.639183 0 400 374
[DEBUG] Max correlation: 0.9369 (threshold: 0.67), DC offset: (0, 0)
S 12102 -45.639183 0 407 369

Do you run the `integrations/bridge-zround.py`?

The OpenStint project defines its own protocol, but it's currently not supported by any other laptimers. By default, it listens on port 5556.
The ZRound is compatible with many laptimer protocols, but also defines its' own. By default, it connects to port 5001.

There is a python-based integration to convert between the two. It has to run as well, meaning there are 3 things you have to start: openstint, zround-bridge and zround manager.
There is a setup tutorial which I think is applicable on OrangePi as well.

Once I - or someone else - manages to build a P3/MyLaps bridge, we can use this decoder with LiveTime/RC-timing as well.

I haven't run `integrations/bridge-zround.py` because my English is terrible, and I relied entirely on translation software, so I missed many important points.

It's already evening here, so I'll test it tomorrow.

I placed an order for the transponders this past weekend from JLC. The total for 5 boards came out to a bit over $210 USD ($60 in tariff+$50 in shipping) with a $10 new user coupon for five panels on github. It appears production won't be effected by the February holidays and they'll be finished and shipped out by the end of the week.

I did get a warning the 20mhz crystal used on the board was in low supply, preventing me from ordering 10 boards. The suggested alternatives use a different footprint, HC-49S-SMD. If you broaden the search there are SMD3225-4P alternatives but the capacitance is different from the 15pf in the bom.

Wow. I'm also paying 27% VAT on every order, and these are the prices I'm seeing historically (with cheapest shipping, taxes included):
2025 October (first design) - 5 panel, 40 pcs @ $130
2025 December - 5 panel, 40 pcs @ $160 (extra components were added though)
2026 February - 5 panel, 40 pcs @ $195
The price increase is quite visible. The MCU's price went up considerably for sure (~$.4x -> $.62), but I don't know what else...

I think C654980 (12pf) is a safe choice (actually better), but might have to decrease the shunt capacitors to 18pf from 20 pf (C4, C5). Do not go with 20 pf ones, the current design is a bit "living on the edge" already.

I'm pleased that the Windows version supports RTL-SDR V4, but during testing, I encountered a very low accuracy issue when using an RCHourglass transponder.
However, dpereda doesn't have this problem (https://github.com/dpereda/openstint...rtlsdr-support).
The following information suggests that heating the ceramic oscillating crystal with a soldering iron improves the accuracy after frequency shifting.
I also experienced very low accuracy with an RCHourglass transponder using a quartz oscillating crystal, but the frequency shift rate after heating was too low to cause any change.
P 245427 AMB 9054415 0.07 3 0
P 245987 AMB 6170831 0.36 3 0
P 246169 AMB 9054415 -0.33 2 0
S 248093 -13.887955 0.6209385 1619 13
P 249921 AMB 5122255 -0.41 2 0
S 253196 -15.625666 0.671906 1571 11
P 252910 AMB 5122255 -0.70 2 0
P 255110 AMB 6170831 -0.80 2 0
S 258264 -14.165384 1.0111554 1549 14
S 263317 -15.54817 0.9497359 1557 11
S 268373 -13.748856 1.1199342 1550 5
P 269396 AMB 6170831 -0.71 3 0
S 273436 -15.75556 1.2064183 1565 10
S 278498 -13.823208 1.0250344 1549 3
S 283561 -15.9267235 0.998238 1555 3
S 288621 -15.964384 0.8444875 1532 2
S 293671 -13.885162 0.93904746 1554 2
S 298726 -15.904615 0.88216096 1575 170
P 298683 AMB 6170831 0.56 305 0
S 303781 -14.011459 1.0007908 1788 139
S 308843 -15.81168 1.163349 1791 704
S 313904 -15.6712 0.694628 1742 1735
S 318978 -14.380028 1.0818797 1687 1682
P 316675 AMB 6170831 0.72 4096 0
S 324032 -15.515686 0.9550401 1673 1264
S 329115 -15.628176 1.1601095 1620 0
S 334154 -15.179371 0.8359169 1610 2
P 334046 AMB 9054415 -0.20 2 0
P 334478 AMB 9054415 0.35 3 0
S 339216 -15.827322 1.096461 1580 11
S 344285 -16.06084 0.9382957 1624 565
P 343604 AMB 6170831 0.67 676 0
S 349338 -15.746948 1.0568093 1733 1396
S 354397 -15.477932 0.5965904 1703 1699
S 359450 -15.817425 1.3155696 1699 1693
S 364531 -13.960957 0.39396092 1725 1720
P 359908 AMB 6170831 0.77 4096 0
S 369607 -13.999393 0.7691634 1669 431
S 374668 -15.633345 0.9228952 1613 4
P 375896 AMB 6170831 -0.04 2 0
P 376513 AMB 9054415 -0.39 3 0
P 378627 AMB 6170831 -0.54 2 0
P 378867 AMB 9054415 -0.28 2 0

I have multiple good news about this project.

RTL-SDR v4 SUPPORT
Our forum member, @danny325is, added support for RTL-SDR some weeks ago, and is now merged with the rest of the improvements. As RTL-SDR v4 is an inexpensive, ~$40 device, the barrier of entry was lowered significantly. For purchasing options, see their official site, there are multiple options (Amazon/Ebay/AliExpress). Make sure you buy the v4 version, as the decoder was not tested with earlier versions (I just ordered an older one, weeks to arrive).

WINDOWS BUILD
The project is built for Windows semi-automatically, meaning you can download a .zip, containing the whole project (no installer is needed). You no longer have to install python to use the core integrations, as the zround and p3 bridges are compiled to their own .exe files (each of such file contain the whole python runtime and dependencies, hence the 10 MB+ filesize). As such, once you have the SDR drivers installed:
1. plug in the radio to an USB port
2. double-click on openstint_hackrf.exe or openstint_rtlsdr.exe (and ignore the "untrusted code" warnings - it's not signed, hence the error)
3. double-click on bridge-zround.exe
4. start your ZRound, and set 127.0.0.1 as decoder ip address
You might have to allow the firewall exceptions meanwhile.

INCREASED RECEPTION QUALITY
Firstly, the symbol synchronizer was fixed. Previously about 8-10% of all frames were dropped. With the fixed version, I was able to lower the preamble-detection threshold while still maintaining a very high detection ratio. Long story short, we can detect and decode weaker signals more reliably now.

Secondly, a feature called "adaptive equalisation" was added. For super-nerds only: the transmit coils, the antenna and the whole transmit-receive chain has non-idealities, resulting in bit errors. An adaptive equaliser learns these errors and corrects for them. A few cars have to pass, and the system tunes itself.

The result of these two improvements, more frames are decoded even in non-ideal radio environments. In ideal ones, EVM figures lower that 0.05 are often observable (rssi > -10 dB; hackrf one).

RELIABLE PASSING TIME DETECTION
The "point of passing" was determined previously as "point of highest signal strength". Now there is a more sophisticated algorithm implemented.

I placed two transponders ~15 mm distance from each other. The new algorithm is reliably able to distinguish if the car passes the loop forward or reverse, based on which transponder passes first (tested at low speeds).

EDIT: the p3-bridge feature was removed; contact in private message if you really need it.

Firstly, something was indeed removed, thanks for pointing this out. I'll make the modification this weekend to fix it.

However, I'd look for the problem elsewhere in your case.

1. Too much noise or amplifications
The "-13.88 dBFS" noise floor measurement is really off. it should be lower than -39.0 ideally. It can be caused by too much gain. During testing, I settled around "-g 20" for rtl-sdr; "-g 30" max.
The "0.36 dBFS" and "-0.33 dBFS" indicates the signal you received is clipping. "0 dBFS" means the signal is using the full range of the ADC. As the signal is sinusoid, there is a difference between "peak" and "rms", this value can be over 0.0 - but it shouldn't. It should be max "-3.0" imho.

2. Crystal fails to start / MCU falls back to internal oscillator
The initial symbol sync happens on the first 12 bits of the preamble, and there are about 100 bits in total. For a 90* phase shift (so decoding fails), the frequency has to differ by more than 600 ppm. My first Casio hand watch - a used from the '80s - was advertised as "max 1 second per day", which is 12 ppm. While 40+ years passed, I'd expect this level accuracy from a cheap XO today. There are orders of magnitude in difference... I guess the MCU failed to start the crystal, and fall back to some internal oscillator: when you heat the crystal, the microcontroller's temperature is changing as well.

3. You are also right
I indeed did removed a makeshift costas loop when I fixed the symbol synchronizer. There is no good reason for the removal, I'll add it back in the coming weekend or so (I simply did not take into account the "failed crystal" case above). It can compensate for 1000+ ppm of clock differences.

Hi guys, I'm developing a timing software to learn Python. I have implemented the AMB Mylaps protocol, is it difficult to implement this protocol?

That's great. I have no answer for the difficulty of implementation but perhaps this link will be some help.
https://github.com/zsellera/openstin...er-protocol.md

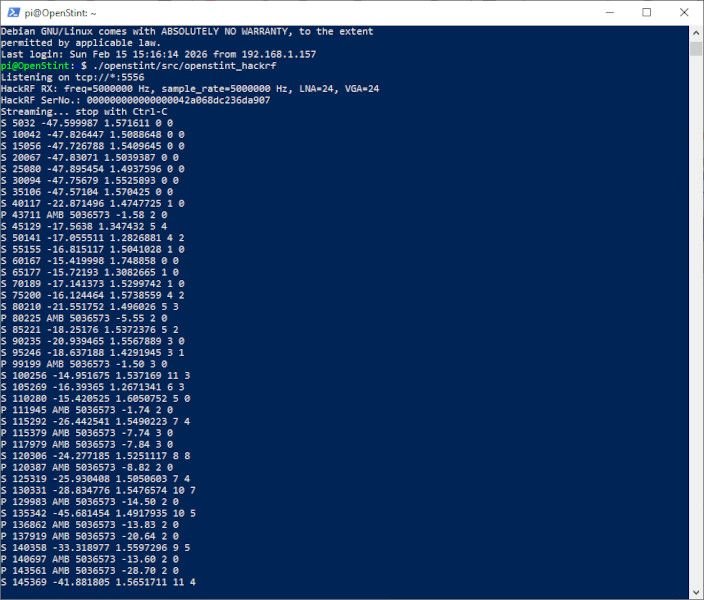

https://cimg2.ibsrv.net/gimg/www.rct...87dd5ca704.jpg
I've had success with the Thin client running OpenStint and detecting my MRT ptx with the Hackrf one and near field probe connected. I'm able to connect it to Zround on my win10 pc, still need to build a loop. Similar success with the windows executables. I got a bit distracted for the last couple weeks using the Hackrf on my windows PC to mess around with tuning into radio stations during my free time.

Unfortunately with linux and command line I'm way over my head. I did a new install of ubuntu. I was initially not able to get the openstint.service to work, after a few hours of shots in the dark, I finally used nano to view "openstint.service" and realized I needed to edit it to point to openstint_hackrf and got the service to start up on boot with the hackrf connected. I have bridge-zround.service starting on boot as well.

After looking through the process to flash the transponders, I'm lost. So far, I've copied the transponder git, and ran cmake in the firmware directory. I get some errors that will take me a while to figure out, if I'm even doing the right thing.

I installed st-flash and it seems to detect my stlink, but I haven't connected a transponder yet, hence the errors below (I think). I've not tried to flash one yet because I have no idea what I'm actually doing. When I ran make above, is that creating the firmware? If I had a transponder connected to the stlink would it have flashed it with firmware? Does it have to be connected to generate the unique ID from the serial number on the stm32? Did I get the error above because I didn't have a transponder connected to my STlink? I've looked around the directories but haven't actually found a file called transponder.hex. Like I say, lost. I'm not sure what to even ask. If you have time to write up some details with creating the hex to flash on the transponder, I'd certainly appreciate it. Especially if you could word it for someone who's last time using command line was msdos in the 90's, aka old and feeble minded, and doesn't really understand any of this. Apologies for asking so much.

This is the DIY programming header I use, and the reason there is no "programming JIG" yet:
https://cimg9.ibsrv.net/gimg/www.rct...6c8fec09c5.jpg

Aliexpress links:
pogo pins: [1] [2] [3]
pin header: [4] (2 mm pitch is a less common item, but I had no space on board for 2.54 mm spacing)
UV curable resin: local model shop, beauty shop or [5]
cables: [6] (female-female both ends; remove plastic socket on one end to fit the pogo pins inside)

An en-mass programming requires the pogo pins. The rest is optional.
I use the UV-curable resin to secure the cables to the transponder as well (put some over the solder joints).

PROGRAMMING
Try tools with GUI, like Stm32CubeProg. Here is a precompiled hex, so you don't have to compile it.
The programming points are labeled on the silkscreen, note "CLK" is "SWCLK" and "DIO" is "SWDIO".

SIMPLEST DECODER SETUP
You can use everything from a single Windows machine (decoder + bridge + zround), no need for Raspberry or thin-client:
https://github.com/zsellera/openstin...ial-windows.md

CLOSING THOUGHTS
I know you have more questions than answers here; I'll answer them later when I have more time. I hope this helps already.

With your help I was able to narrow down the CC error. I had to install the Arm embedded toolchain.I then had to edit the CMakeCache.txt to point to the correct compiler directory.

Fortunately I now have this when I run make.
This has been a great motivation to spend more time with linux. I got a pair of thin clients from my work for free and use one to run firefox on linux mint connected to my TV to watch streaming sites with uBlock origin adb. The specific one I'm using is an HP T530, 1.5ghz amd processor, 4gb ram and a tiny 8gb ssd. They can be found on ebay for ~35 USD, just be sure it has a wifi card installed.

Here's a 3d printable jig to hold your transponder securely while programming it. I've got enough spare pogo pins to mail a few out for anyone whose thinking of getting some transponders. If you don't have access to a 3d printer, I'll be happy to send a print as well to those who have bought transponders.

https://cimg0.ibsrv.net/gimg/www.rct...bcb4677340.jpg
Available at https://www.thingiverse.com/thing:7310937

..
I got a pair of OS transponders showing up in OpenStint with the firmware you provided. I initially flashed the hex I created but despite getting flashing light when powering it up, don't get any hits with the hackrf. I'll need to spend some time to figure out my mistake, but I have an idea.

Thanks, it looks cool!



It's a known phenomena. The transmission is timing-critical, and the firmware is using the SPI bus to do it. The next bit has to be available right when the transmit buffer goes empty. You have to compile with optimalization, otherwise the compiler keeps extra operations in the loop (to help debugging).

RC4 support, help needed


RC4 SUPPORT - HELP NEEDED
@Oldfan suggested and implemented a scheme to learn RC4 messages, similarly to how RCHourGlass does this. Before committing to further work, I'd like to verify that the scheme indeed works.

First off, RC4 was designed to make reverse-engineering hard, and we do not pursue it neither. It sends many different unique messages, probably sending a random sequence (IV) in each message, then obfuscated with a block-cipher (I would have implemented it in a similar way myself).

I have access to a single RC4-hybrid transponder. Based on that, the RC4 messages are 3-modal (3 distinct types and repetition rates):

• The most frequent messages contain (?) voltage and temperature information. There is exactly 80 different unique messages of them at a time, and they keep changing as voltage and temperature fluctuates. A power-cycle clears them, and a new set of 80 messages is sent. As such, it makes no sense to build a memory based on these.
• There is a long-tail of messages that do not repeat within a reasonable timeframe. One can listen for hours to detect a repetition. Again, building a memory on these is not practical.
• There are 160 pcs of unique messages, accounting for ~25% of all messages detected, which do not change and do survive power-cycles. It makes sense to build a memory on these.

The problem is I do not really believe these messages are indeed unique. I makes no sense to me, and if I were designing such a protocol, these messages would not exists. I have a feeling these serve a different purpose than transmitting transponder ids.

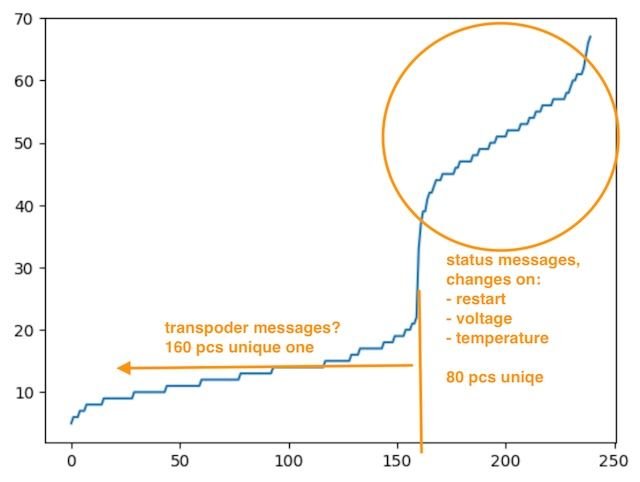

Histogram:
https://cimg6.ibsrv.net/gimg/www.rct...a395c91a37.jpg


HELP VERIFY THE UNIQENESS OF THESE MESSAGES

The best doing it on a Windows laptop, there is a special build for it.

1. Place the transponder near the loop, and keep it stable (simulate a car parked on the loop). The decoder switches into "Learning mode", and is indicated by a message "L 9042 START". If you change the position of the transponder, the learning mode is interruped ("L 13984 INTERRUPTED"), so keep it stable.
2. After a while (RC4Hybrid: 20-25 sec, RC4 probably half the time) the decoder reads enough messages to finish learning ("L 70192 DONE 1001 320"). A "<transponder_id>.rc4" file is placed into the directory you started the program from. RC4Hybrids can read the transponder id, while regular RC4 follow a scheme of "1001.rc4", "1002.rc4", etc. You can rename these files to the actual transponder id, the program automatically reloads the changed files.

You can keep the measurement setup actually very simple:
https://cimg8.ibsrv.net/gimg/www.rct...5c117c9b56.jpg

PLEASE COLLECT DATA FROM AS MANY TRANSPONDERS AS YOU CAN, AND EMAIL THE FILES TO ME

My email address: [email protected]
The files are a few kB in size, and contain the repeating messages of a 8196 sample, in a human-readable way.

This experiment is important, as it dictates how future support around this feature is done. I'd like to collect data from at least 30 transponders.

• If there is no repetition (the messages are unique), I'll call it a day and ship the feature.
• If there is repetition, I'll do some math. If there is a chance larger than 50% of having a "collision" in a random set of 8, I simply do not want to waste time on this (put what we have now behind an option flag).
• Otherwise something inbetween.

Thanks in advance :tire:

Great project, thank you for sharing it!

I have two questions regarding an indoor carpet track setup, where I plan to use MyLaps Hybrid transponders.
Is the preamplifier necessary for an indoor carpet track, or is the balun alone sufficient?
Is the preamplifier a replacement for the HF balun, or do they serve different purposes and should be used together?

Yes, it does work (as well as with other cloned, RC3 compatible clones, like MRT).

This call-for-help is about RC4 support. The next time I have a chance to visit a local club will be mid-April, and I expect to collect data from max. ~10 pcs. RC4 transponders, which is not enough to draw significant conclusions.



A balun is sufficient, I tried with this one:
https://www.aliexpress.com/item/1005006281437909.html
https://www.aliexpress.com/item/1005006243992995.html
You might find even cheaper alternatives if you look hard enough.

There is an important trick: make sure both ends of the wire sit perfectly in the connector (especially with thicker cables). If one end is not connected properly, you get a different type of antenna, which is more sensitive to external radio signals and less sensitive to the transponders. The band the transponders use is full of other both legit and non-intentional signals. Not connecting one end result in at least +10 dB higher noise floor, and -10 dB lower signal level.

The openstint-preamp project contains (in this particular order):
1. esd protection
2. 1:8 balun (better fit than 1:9, but much more expensive than the Chinese part)
3. impedance matching circuit
4. low-noise preamplifier
5. band-pass filter

None of them is strictly needed, but the balun.

As written somewhere in the thread, RCHourglass will keep the top 12 packets received from a RC4 transponder and use that to match the ID. I ran with ESC powered transponder, so probably voltage is quite stable. But those packet seem to repeat always. One packet every 4 is totally 'random', the other seem to repeat with a non uniform distribution. 12 is of course a tradeoff between reception vs number of max learnt transponders (given the memory constraint in the PSOC EEPROM).

Openstint decoder + RC4 transponder testing.
This is how to use the RCHourglass decoder to complete the number mapping for the RC4 transponder.Since there is no memory limit, each RC4 transponder records the top 30 numbers with the highest repetition rate.

Adding an RC4 transponder will generate a corresponding number starting with 1000000 if the transponder is placed in the loop for more than ten seconds.

RC4 native packets use a [65,77] linear block code over GF(2). Each 96-bit payload contains 18 forced-transition bits for RF clock recovery (one per 5-bit group), leaving 77 information bits. Of those, bits 0–64 are data and bits 65–76 are 12 parity check bits — each is a XOR of a specific subset of the data bits. The parity equations have been verified against 22K+ packets from three different transponders (two pure RC4, one RC4 Hybrid) with zero failures. This makes a solid packet validator for catching demodulation errors.

Wow, that's awesome!

TOPIC 1:
I'm somewhat able to verify your results. When using a 20-bit preamble (0x54066 non-differential-encoded), I see 111 active symbols.
- the last 7 symbols are always 0 (possibly there to feed digital filters)
- after differential-decoding the remaining 104 symbols, the last 4 bits are always 0
- in the remaining 100 symbols, I recognise the pattern you describe, but I see (4+1)*20, total 80 information bits.
If I'm correct, you're might missing the last 3 bits.

Would you share the 12 generator polynoms known to you?

TOPIC 2:
Your results beg the question even louder: why do we see repeating messages?!? The transponder id fits into 24 bits; if I generously allocate 2x12 bits for BEC voltage and bumper temperature, there are still 16 bits left to randomise things. Yet, we're seeing repeating messages, likely encoding something else than the than just the transponder id. While I'm suspecting these are transponderId-dependent anti-counterfeit messages, I'd like to be certain that these are unique enough to a transponder.

To verify, I'd still like to collect the repeating messages from at least 30 RC4 transponders to draw a meaningful conclusion. My personal reach is about 10 transponders, so community help is needed. So far I received only a single transponder file, so I might close the experiment and take a different route though.

Good catch on the 3 missing bits, that lines up. The decoder extracts 96 bits (12 bytes) after a 24-bit preamble, giving 19 groups. If the real payload is 20 groups (100 bits after DBPSK) with 4 trailing zeros, that accounts for the difference. Will look into extending the extraction.

Here are the 12 parity equations over the 77-bit reduced codeword c[0..76]. Each equation specifies which c indices to XOR, plus a constant term (0 or 1). Parity bit c[N] should equal the XOR of the listed indices ⊕ constant:

​​​​​​The reduced codeword c[0..76] is extracted as: c[0] = payload bit 0 (always 1), c[1..3] = group 0 data bits (b2,b3,b4), then for groups 1–18: 4 bits each (b0,b2,b3,b4), and c[76] = payload bit 95. Again, this was verified on 22K+ packets from three transponders (two pure RC4, one RC4 Hybrid) with zero failures.

It's a deliberate code table system, not a one-shot ID broadcast. From 1-hour captures of two pure RC4 transponders, each transponder has a set of ~28 fixed "core" codes that never change and are unique to that transponder. On top of those, there are rotating cohorts of ~33 codes that cycle in and out over 8-33 minute lifetimes, plus a stream of ephemeral one-off codes (likely PRNG-generated chaff). Each burst (~500ms) contains about 6 packets sampling from this pool, roughly 5 unique codes per burst, drawn statistically.
The codes are completely transponder-unique: Zero overlap between two transponders' code tables was observed across 40K+ packets each. The crypto analysis shows full GF(2) rank, no LFSR structure, and no derivable relationship between the codes and the printed transponder ID. The transponder ID is NOT embedded in the payload in any obvious way, the decoder needs a per-transponder key/lookup to map codes back to an ID.

So yes, they are transponder-dependent anti-counterfeit codes, but it's more of a challenge-response lookup table than a simple encrypted ID broadcast.

But I'm still working on it, need some new hardware which is on the way. The v4.5/v4.7 decoder firmware updates are distributed as per-unit overlay files (one per decoder MAC address). Each overlay contains three packets: the ARM9 MCU firmware (encrypted), a second data blob (encrypted, could be uBlox related, or FPGA init tables, or both), and the FPGA bitstream. The FPGA bitstream is in plaintext, which means the full transponder cipher/decode logic implemented in the Spartan-3 can be extracted and analyzed, which led to some findings... I was able to get 100% of LUT truth tables and routing mux decoded, but still need more data (such as initial values/data tables and so on).

I couldn't get the `openstint_rtlsdr` to give me meaningful output (Rafael Micro R820T - RTL2832U) but I'm also missing the balun and a proper MCX connector, and it's a fairly old device (my last contribution about rtlsdr was to the dump1090 project in 2013) so I'll get a modern RTLSDR v4 soon.

(edit didn't work, new message)

UPDATE: Extended the extraction to 104 bits (13 bytes). The full frame is confirmed at 104 bits- tried 108 and 112 but got zero valid packets, so 104 is the end.

Bits 96-101 are 6 additional GF(2) parity bits over the raw 96 input bits. Bits 102-103 are always zero (frame tail). These 6 equations operate on raw bit positions (0-95), not the reduced codeword:
All constants are 0. Verified on all three transponders with 0 errors. So the total error detection is 18 parity bits (12 original + 6 extended), and the complete frame is 65 data + 18 parity + 19 derived framing + 2 tail zeros = 104 bits. The "framing" bits (1 per group) are also deterministic from the data bits. Same data always produces same framing, verified on 39K packets. No independent information beyond the 65 data bits.

Not sure if this will help but github.com/datagutten/amb-p3-parser - decodes mylaps signals. I thru it at claude to convert to a python script and it decodes fairly well.
