Old 01-21-2008, 07:55 PM   #1
Tech Master

Verndog's Avatar
R/C Tech Elite Subscriber

Join Date: Jun 2007
Location: PPDBillet.com USA
Posts: 1,845
Trader Rating: 16 (100%+)
Thumbs up PPD EZ-LiPo --TC5 and beyond LiPo mounting Solution.

I've been considering LiPo for some time, and have been talking to many people and watching the various fabing, taping, pounding and cutting of lead weights for batteries going on and just got discouraged and held off. So...I'm done waiting and have designed a new mounting and balancing system that is going production this week.

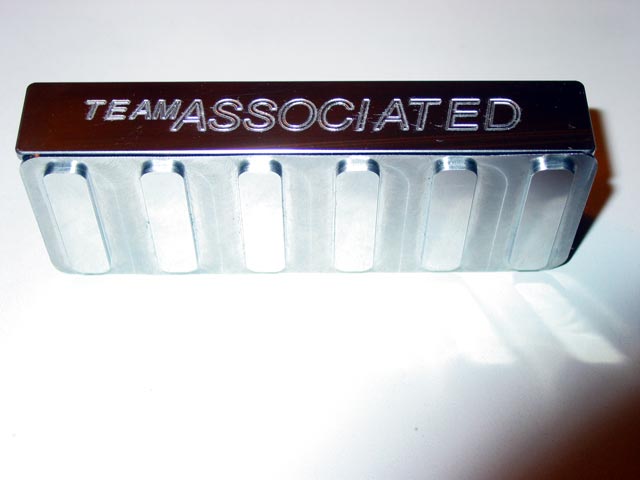

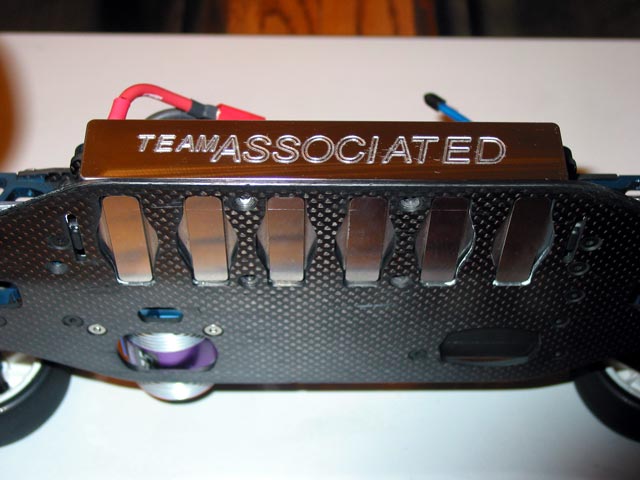

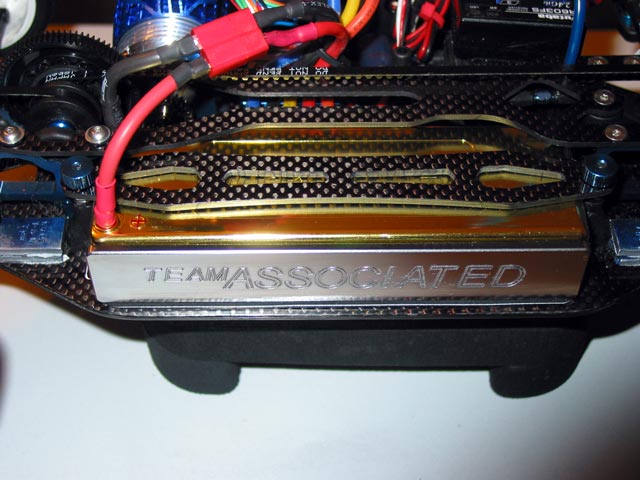

This is a 2 piece system that uses high bond adheasive tape to mount to battery (and chassis if ROAR asks). It's made of polished 303 stainless steel, and is precision CNC machined (prototype pic is not polished yet ). It will lock into all 6 chassis slots, and you can use the stock battery strap. The weight goes right where it's best placed, low to chassis and toward outer edge. This will be a near exact match to your NiMh weight (in terms of balance), so if you were balanced with IB / EP4200 you'll be balanced with this conversion on a 9.5 oz Trackpower / Core / Kokam type cell. Battery is now protected, and bullet proof for high speed T-bone jobs is your unfortunate enough to run with me.

Also, I have a phase 2 edition that will weight the other cars...XRay, Schumacher, ect that have low top deck clearance. I expect the prototypes will be completed within 2 weeks, they will have a concealed and adjustable weight system that will look almost as nice .

Going Lipo just went from a pain to purdy

...enough ramble...here's the goods.


__________________
--->Dial-a-Grip for TC6
Kevin -- PPDBillet---TC6---Exoray 008
---Team Hoarders---

Last edited by Verndog; 01-21-2008 at 09:04 PM.
Verndog is offline   Reply With Quote
Old 01-21-2008, 08:20 PM   #2
Tech Elite

BlackedOutREVO's Avatar
R/C Tech Elite Subscriber

Join Date: Mar 2007
Location: CA
Posts: 3,791
Trader Rating: 67 (100%+)
Default

Thats awesome man!

Looks very nice

How much, and which one fits the cyclone?
__________________
R1 Wurks/Awesomatix USA/Roche USA/Protoform/Solaris/Mo Speed/Speedworld Raceway
BlackedOutREVO is offline   Reply With Quote
Old 01-21-2008, 08:21 PM   #3
Tech Master
R/C Tech Elite Subscriber

Join Date: Aug 2007
Posts: 1,533
Trader Rating: 139 (97%+)
Send a message via AIM to twistedone
Default

that is sweet
how much?
twistedone is offline   Reply With Quote
Old 01-21-2008, 08:24 PM   #4
Tech Master

PitNamedGordie's Avatar

Join Date: Nov 2003
Location: Highwood, IL
Posts: 1,789
Trader Rating: 8 (100%+)
Send a message via AIM to PitNamedGordie Send a message via Yahoo to PitNamedGordie
Default

WOW!

That looks better than I imagined! NICE work!!!
__________________
☆ The Track @ Harbor Hobbies ☆ www.harbor-hobby.net ☆
PitNamedGordie is offline   Reply With Quote
Old 01-21-2008, 08:32 PM   #5
Tech Master

Verndog's Avatar
R/C Tech Elite Subscriber

Join Date: Jun 2007
Location: PPDBillet.com USA
Posts: 1,845
Trader Rating: 16 (100%+)
Default

Quote:
Originally Posted by twistedone View Post
that is sweet
how much?
I'm hoping to get down in the low to mid 30's for both pieces...say $34.00 ish This is stainless steel though (no corrosion--high strength--good weight properties) but... machine cycle time and tool wear will ultimately dictate...definately under 40 though.
__________________
--->Dial-a-Grip for TC6
Kevin -- PPDBillet---TC6---Exoray 008
---Team Hoarders---
Verndog is offline   Reply With Quote
Old 01-21-2008, 08:36 PM   #6
Tech Master
R/C Tech Elite Subscriber

Join Date: Aug 2007
Posts: 1,533
Trader Rating: 139 (97%+)
Send a message via AIM to twistedone
Default

I run the alum diffs front alum c-hubs
max amp 6000 battery and only need to add 21 grams to my car how much does this weigh
twistedone is offline   Reply With Quote
Old 01-21-2008, 08:37 PM   #7
Tech Lord

UN4RACING's Avatar

Join Date: Oct 2006
Location: MODIFIED!
Posts: 13,140
Trader Rating: 22 (100%+)
Default

Very nice. Can you have any name engraved on it?
UN4RACING is offline   Reply With Quote
Old 01-21-2008, 08:45 PM   #8
Tech Master

Verndog's Avatar
R/C Tech Elite Subscriber

Join Date: Jun 2007
Location: PPDBillet.com USA
Posts: 1,845
Trader Rating: 16 (100%+)
Default

Quote:
Originally Posted by UN4RACING View Post
Very nice. Can you have any name engraved on it?
I may get around to that, but it creates production issues and a custom program....possible a 2 part minimum on custom. I will produce blanks also that people can have done, add carbon fiber, or emblem of their choice to also. It will be nice to get this sweet looking "big boy toys" looking sharp again.
__________________
--->Dial-a-Grip for TC6
Kevin -- PPDBillet---TC6---Exoray 008
---Team Hoarders---
Verndog is offline   Reply With Quote
Old 01-21-2008, 08:46 PM   #9
Tech Master

PitNamedGordie's Avatar

Join Date: Nov 2003
Location: Highwood, IL
Posts: 1,789
Trader Rating: 8 (100%+)
Send a message via AIM to PitNamedGordie Send a message via Yahoo to PitNamedGordie
Default

Yeah I am interested in the bottom plate and side plate weights. You can be assured I will atleast buy one or two when they are ready
__________________
☆ The Track @ Harbor Hobbies ☆ www.harbor-hobby.net ☆
PitNamedGordie is offline   Reply With Quote
Old 01-21-2008, 08:52 PM   #10
Tech Master

Verndog's Avatar
R/C Tech Elite Subscriber

Join Date: Jun 2007
Location: PPDBillet.com USA
Posts: 1,845
Trader Rating: 16 (100%+)
Default

Quote:
Originally Posted by twistedone View Post
I run the alum diffs front alum c-hubs
max amp 6000 battery and only need to add 21 grams to my car how much does this weigh
Wow...how heavy is that battery??
You dont have a weight problem with that. This adds 5.5 oz as the 4900, and 5000's are near 9.5 oz. and the 3600's are 7.7 as opposed to 16oz for a wired 4200 NiMh pack. For the 3600 I will have an optional weight that can add more to in a concealed channel cut.
__________________
--->Dial-a-Grip for TC6
Kevin -- PPDBillet---TC6---Exoray 008
---Team Hoarders---

Last edited by Verndog; 01-21-2008 at 09:40 PM.
Verndog is offline   Reply With Quote
Old 01-21-2008, 08:56 PM   #11
Tech Elite

Maybell's Avatar

Join Date: Jun 2007
Location: Seattle
Posts: 2,109
Trader Rating: 2 (100%+)
Default

Verndog has been busy while Ive been gone...
__________________
Sean Maybell - Team Associated Region 11 Administrator

AE - Reedy - LRP - Hobby Velocity - XP Digital - JConcepts
Maybell is offline   Reply With Quote
Old 01-21-2008, 08:58 PM   #12
Tech Master

Verndog's Avatar
R/C Tech Elite Subscriber

Join Date: Jun 2007
Location: PPDBillet.com USA
Posts: 1,845
Trader Rating: 16 (100%+)
Default

Quote:
Originally Posted by Maybell View Post
Verndog has been busy while Ive been gone...
Yep...got some nice goods for you when "Racer X" decides to go LiPo like his buddy Chim Chim.
__________________
--->Dial-a-Grip for TC6
Kevin -- PPDBillet---TC6---Exoray 008
---Team Hoarders---
Verndog is offline   Reply With Quote
Old 01-21-2008, 09:00 PM   #13
Tech Master

Join Date: Nov 2006
Posts: 1,038
Trader Rating: 27 (100%+)
Default

start making a tray for the Type R and the $$$ will roll your way. Seeing how losi thought it was a good idea to stop making them
__________________
"I can't be any clearer, on how crystal clear I am being"
convikt is offline   Reply With Quote
Old 01-21-2008, 09:05 PM   #14
PW
Tech Elite

PW's Avatar

Join Date: Sep 2001
Location: Groveland, FL
Posts: 4,394
Send a message via AIM to PW
Default

Very nice verndog!
__________________
Paul Wynn

JConcepts - Team Associated - Reedy - XP - TSR Products - MIP - Stickit1
P1 Brand - "If it's only for fun; then take out the transponder?!"
PW is offline   Reply With Quote
Old 01-21-2008, 09:06 PM   #15
Tech Elite

DaveW's Avatar

Join Date: Mar 2003
Location: Mobile, AL
Posts: 2,964
Trader Rating: 1 (100%+)
Default

Neccessity is the mother of invention. Looks hot Vern!
