Coelacanth May 8, 2012

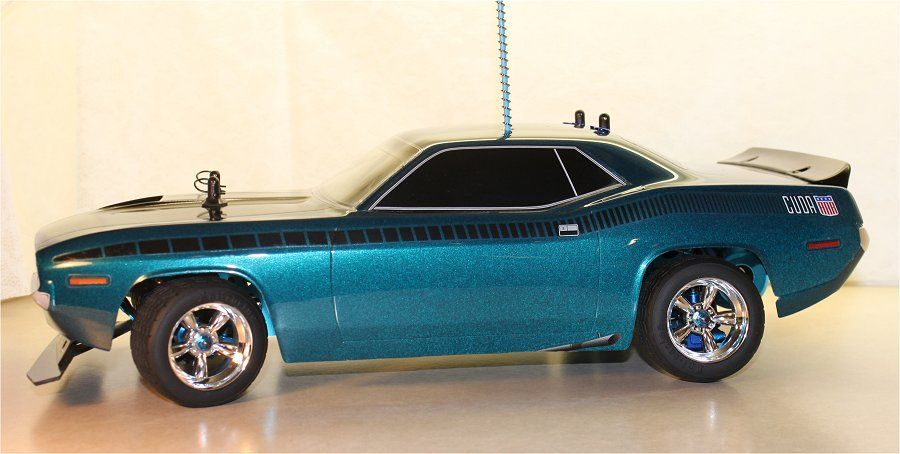

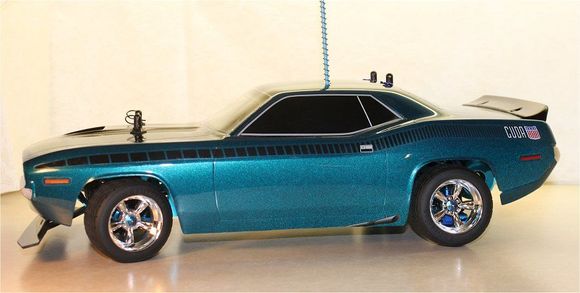

Kyosho Turbo Optima Onroad Build: Re-engineered as a narrowed-track onroad 4WD car with HPI 1970 'Cuda body & vintage series wheels; Pactra CheZoom Teal paint. Details: -Kyosho Turbo Optima w/belt drive conversion -Aluminum parts polished & anodized -Alloy top deck from pargu2000 -Hobbywing 35A ESC; Futaba S3003 servo (swapped out Castle Sidewinder ESC for another car) -SpeedPassion Sport-Tuned v2.0 17.5T 2500 kV motor -HPI VTA wheels & tires, 1970 AAR 'Cuda body -1488 grams w/body, clips; no battery Mods & hop-ups: -Alloy turnbuckles, 4.8mm ball studs & ball cups throughout -Kyosho TF-3 billet front control arms; Spider front CVD's -GPM DF02 rear control arms #2056 -MIP HPI RS4 Shiny CVD bones #1182 mated to Lazer LA245 CVD axles -Duratrax Maximum steering knuckles #DTXC9953 -Duratrax DTXC8100 chrome outdrives -3Racing Lazer ZX-5 rear hub/carriers #ZX5-18/V2/BU -3Racing Lazer ZX-5 shock set #ZX5-01/BU -Associated MMGT blue shock springs #25544 -Tamiya blue alloy stabilizer balls #53644 w/4.8mm Delrin ball-ends -Custom-made graphite front shock tower -Custom-made Kydex front bumper -Kyosho 3mm thin hexes (front) -Golden Hobbies 1/16 E-Revo hexes (rear) customized for 2mm thick cross-pins -RCScrewz stainless steel screw set
