I.D. for Al-endbell Trinity Monster HP? >

I.D. for Al-endbell Trinity Monster HP?

I.D. for Al-endbell Trinity Monster HP?

Old 05-12-2022, 10:28 AM
  #1
Tech Initiate
Thread Starter

Join Date: Mar 2021
Posts: 20
Default I.D. for Al-endbell Trinity Monster HP?

I was going through some of my old parts and found my Trinity Monster Horsepower aluminum-endbell motor. 1987 World Champion decal. I believe I got this in 1990. Problem is, I don't recall what the windings are. It doesn't look like there could be more than 9 or 10 (double) winds. 9 double sounds right, but I'm not sure. It doesn't have any letter or number markings on the rotor, but there is that dab of white paint on the bottom of one pole.

I was never good enough to run a low-wind motor...

Does anyone know, or can you refer me to the info I need? My searches were unsuccessful. Thank you!

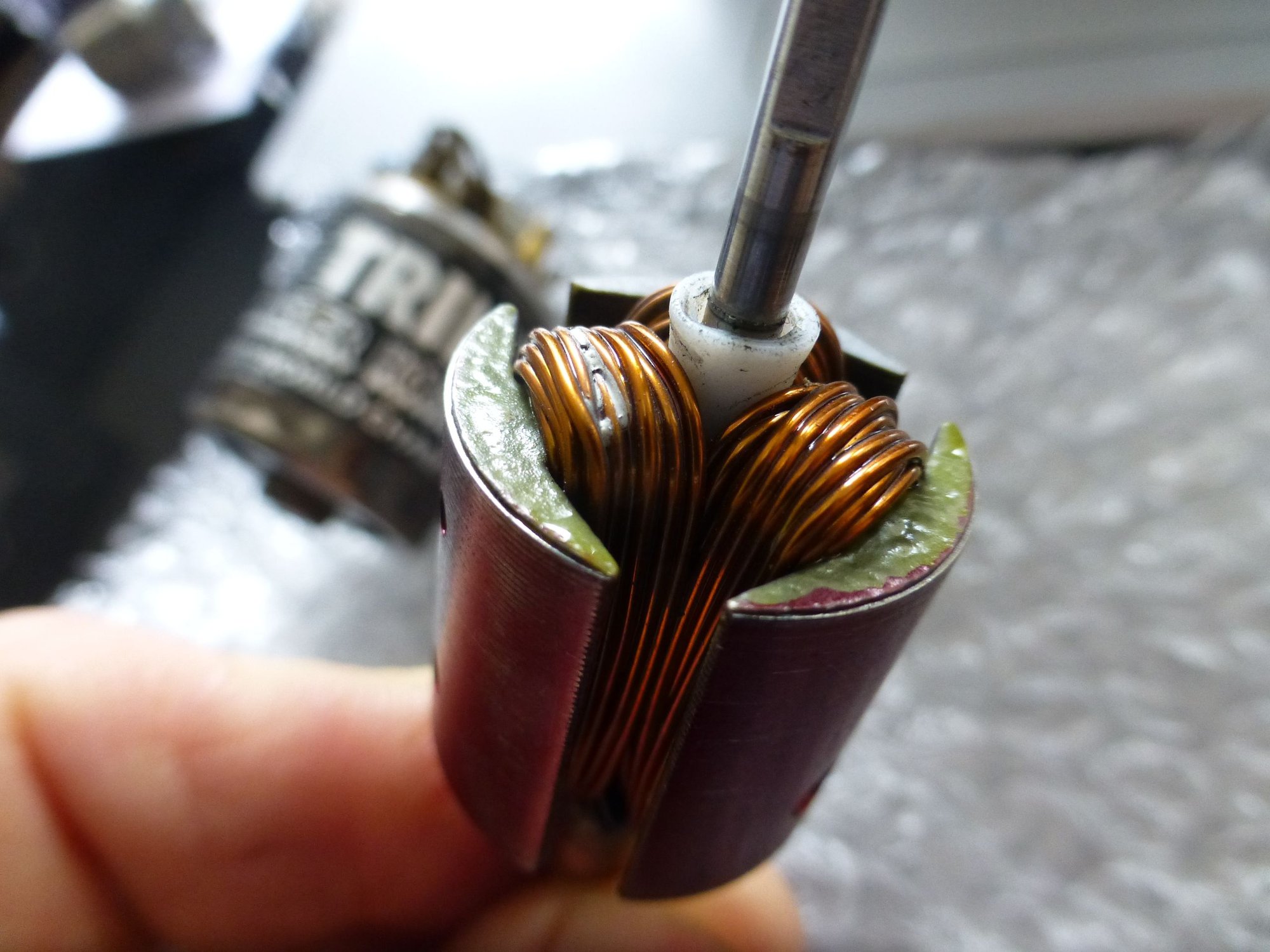

White paint on winding.

Masami Halsey is offline
Old 05-13-2022, 01:36 PM
  #2
Tech Elite

the rc guy's Avatar

Join Date: Aug 2016
Location: Detroit
Posts: 3,161
Default

I can count 10 winds on com without removing any . are you sure its 9/10? got a blacklight that might help you see a marking on 1 com arm.
the rc guy is online now
Old 05-13-2022, 05:45 PM
  #3
Tech Initiate
Thread Starter

Join Date: Mar 2021
Posts: 20
Default

You see 10 DOUBLE winds? I'm counting every 2 wires as a turn. Is that correct? I'm guessing at how many wires aren't visible.
Masami Halsey is offline
