Excellent. Thank you for the notes!
JeffofSpace is offline
Reply With Quote
Old 09-19-2018, 11:14 AM
  #2297
sg1
Tech Elite
Thread Starter
iTrader: (79)

sg1's Avatar

Join Date: Aug 2004
Location: Ohio
Posts: 3,172
Trader Rating: 79 (100%+)
Default

I'm headed off to the USVTA Sounthern nats in a few hours.
I'll do my best to keep up with posts and questions for the nest few days
hanulec and iTz Nicholas72 like this.
sg1 is offline
Reply With Quote
Old 09-23-2018, 06:33 PM
  #2298
ASM
Tech Master
iTrader: (23)

ASM's Avatar

Join Date: Sep 2001
Location: Palm Bay, FL
Posts: 1,699
Trader Rating: 23 (100%+)
Default

Wayne - congrats on the big win!!
sg1 likes this.
ASM is offline
Reply With Quote
Old 09-23-2018, 07:06 PM
  #2299
Tech Champion
iTrader: (27)

hanulec's Avatar

Join Date: Sep 2007
Location: @ the post office
Posts: 8,852
Trader Rating: 27 (100%+)
Default

+1
the Can-Am super stock 1/12 motor was great too
davidl, sg1 and iTz Nicholas72 like this.
hanulec is offline
Reply With Quote
Old 09-24-2018, 06:21 AM
  #2300
sg1
Tech Elite
Thread Starter
iTrader: (79)

sg1's Avatar

Join Date: Aug 2004
Location: Ohio
Posts: 3,172
Trader Rating: 79 (100%+)
Default Tq and win for TSR at the USVTA southern nats!



Last edited by sg1; 09-25-2018 at 05:52 AM.
sg1 is offline
Reply With Quote
Old 09-25-2018, 04:13 AM
  #2301
Tech Adept
iTrader: (2)

Join Date: Jun 2008
Location: Bethel, CT
Posts: 173
Trader Rating: 2 (100%+)
Default

What's a good starting point for timing and gearing for 17.5 the 1 in a 1/10 off road buggy on high grip astroturf, 120' straight with allot of tight corners? Indoor track.
I'm at 44 degs. & 69/30 now looking for more punch coming out of the turns. I started at 46, 69/29 and didn't seem to change much when I went to my current settings.
roysays is offline
Reply With Quote
Old 09-25-2018, 05:50 AM
  #2302
sg1
Tech Elite
Thread Starter
iTrader: (79)

sg1's Avatar

Join Date: Aug 2004
Location: Ohio
Posts: 3,172
Trader Rating: 79 (100%+)
Default

Originally Posted by roysays View Post
What's a good starting point for timing and gearing for 17.5 the 1 in a 1/10 off road buggy on high grip astroturf, 120' straight with allot of tight corners? Indoor track.
I'm at 44 degs. & 69/30 now looking for more punch coming out of the turns. I started at 46, 69/29 and didn't seem to change much when I went to my current settings.
Are you running the V2?
Try dropping the pinion (27 or 28) and raising the spur (72 or 75) .
If temps drop drastically in the motor, then try bringing the timing up a few degrees (48).
What ESC are you running with what settings?

Last edited by sg1; 09-25-2018 at 06:01 AM.
sg1 is offline
Reply With Quote
Old 09-25-2018, 06:23 AM
  #2303
Tech Adept
iTrader: (2)

Join Date: Jun 2008
Location: Bethel, CT
Posts: 173
Trader Rating: 2 (100%+)
Default

Originally Posted by sg1 View Post
Are you running the V2?
Try dropping the pinion (27 or 28) and raising the spur (72 or 75) .
If temps drop drastically in the motor, then try bringing the timing up a few degrees (48).
What ESC are you running with what settings?
yes V2
HW XR10 Pro Stock V4 ESC in blinky mode
roysays is offline
Reply With Quote
Old 09-25-2018, 09:55 AM
  #2304
sg1
Tech Elite
Thread Starter
iTrader: (79)

sg1's Avatar

Join Date: Aug 2004
Location: Ohio
Posts: 3,172
Trader Rating: 79 (100%+)
Default

Originally Posted by roysays View Post
yes V2
HW XR10 Pro Stock V4 ESC in blinky mode
What drive frequency do you run?
sg1 is offline
Reply With Quote
Old 09-25-2018, 01:57 PM
  #2305
Tech Adept
iTrader: (2)

Join Date: Jun 2008
Location: Bethel, CT
Posts: 173
Trader Rating: 2 (100%+)
Default

Originally Posted by sg1 View Post
What drive frequency do you run?
not sure I never changed the stock settings. What frequency do you recommend?
roysays is offline
Reply With Quote
Old 09-25-2018, 03:49 PM
  #2306
sg1
Tech Elite
Thread Starter
iTrader: (79)

sg1's Avatar

Join Date: Aug 2004
Location: Ohio
Posts: 3,172
Trader Rating: 79 (100%+)
Default

Low as possible, 1k
phatboislim likes this.
sg1 is offline
Reply With Quote
Old 10-01-2018, 01:09 PM
  #2307
sg1
Tech Elite
Thread Starter
iTrader: (79)

sg1's Avatar

Join Date: Aug 2004
Location: Ohio
Posts: 3,172
Trader Rating: 79 (100%+)
Default TSR Can Am Motors

I've been getting alot of PM's about the TSR Can Am motors. We are doing motors for 1/12 stock and 1/12 super stock.
They are based on different version motors we have had.
To assure the timing, RPM, KV, and Amp draw are very similar we opted to go with a can that does have adjustable timing so we can set each motor.
There's a tamper proof ID sticker along the can's seam. Then we fill in the timing screws and 3 long screws that hold the can together.
To help with spot checking motors, we have cut into the endbell and can to show a "line up" of where the endbell is set to.

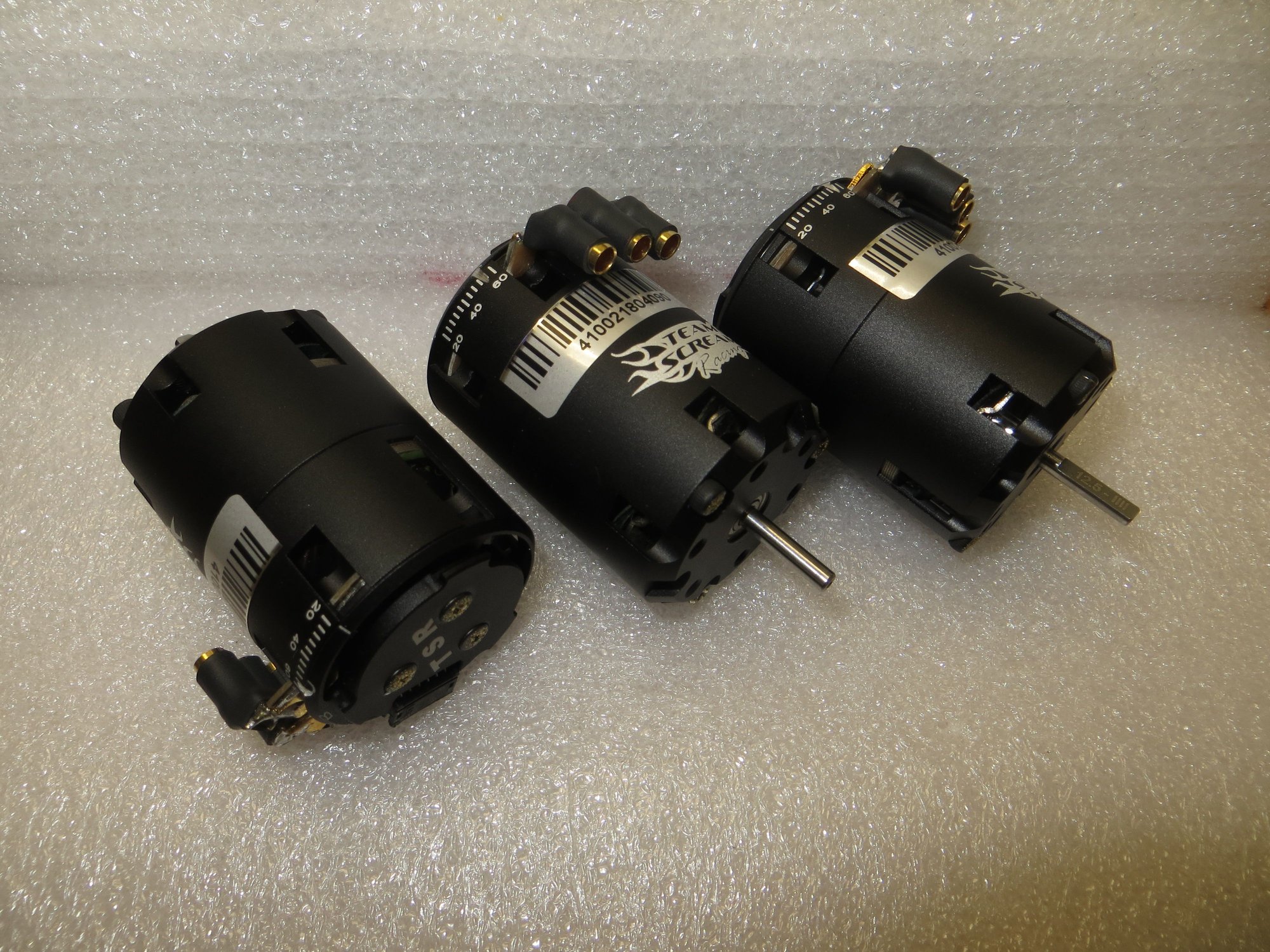

Here's a pic of how they look:


ASM, RacinJ and phatboislim like this.
sg1 is offline
Reply With Quote
Old 10-04-2018, 12:43 PM
  #2308
Tech Adept
iTrader: (3)

Join Date: Apr 2017
Location: Canada
Posts: 109
Trader Rating: 3 (100%+)
Default

Hi, I was wondering what kind of benefit I would get from buying a new rotor for my 17.5 V2 "the one"? Would there be a noticeable difference?
VanBee is offline
Reply With Quote
Old 10-04-2018, 12:55 PM
  #2309
sg1
Tech Elite
Thread Starter
iTrader: (79)

sg1's Avatar

Join Date: Aug 2004
Location: Ohio
Posts: 3,172
Trader Rating: 79 (100%+)
Default

Originally Posted by VanBee View Post
Hi, I was wondering what kind of benefit I would get from buying a new rotor for my 17.5 V2 "the one"? Would there be a noticeable difference?
Did you overheat the motor or run it multiple times a week?

Do you have a gauss meter that you can check it?

I've run the same rotor a year and it only dropped maybe 20 points.

The only time I see a drop in the rotors is when they consistently run 180*+ (on the can, not laminations) in a TC
sg1 is offline
Reply With Quote
Old 10-04-2018, 06:47 PM
  #2310
Tech Adept
iTrader: (3)

Join Date: Apr 2017
Location: Canada
Posts: 109
Trader Rating: 3 (100%+)
Default

Originally Posted by sg1 View Post
Did you overheat the motor or run it multiple times a week?

Do you have a gauss meter that you can check it?

I've run the same rotor a year and it only dropped maybe 20 points.

The only time I see a drop in the rotors is when they consistently run 180*+ (on the can, not laminations) in a TC
Only run every 2 weeks (3 Qualifiers and main)
No I don't have a gauss meter and don't know anyone with one.
Has never been above 140 degrees

I'm thinking the benefit would be minimal.

Thanks for the info.
