Check this out. I think the following information is not yet released until now.

Designed by Edoardo Picco and extensively track-tested, reliability and performance has been improved maintaining a good fuel efficiency.

The TORQUE Edo Modified is supplied with a 14mm “turbo” silicone-filled crankshaft to improve fuel flow and reduce weight, super aligned “knife edged” aerodynamic connecting rod, “hand fine finishing” hard chromed brass lapped liner with tear-drop workings on the ports, lightened piston CNC machined from high percentage silicone alloy billet, large size finned turbo combustion chamber insert for a better temperature dissipation, ultra light weight cooling head, 14mm Swiss quality main bearing, hand modified rear back plate to improve fuel flow and a composite slide carburetor with 7.0mm, 8.0mm and 9.0mm venturi inserts.

Highlights
• 7 Ports + 2 by pass hard chromed liner
• Piston CNC machined from billet
• 14mm turbo shaft
• Knife edged aerodynamic connecting rod
• Separate large size finned turbo combustion chamber insert
• 14mm Swiss quality main bearing
• Super lightweight cooling head
• Composite slide carburetor
• 7.0mm, 8.0mm and 9.0mm venturi inserts

Technical datas
• Displacement: 3,49cc
• Bore: 16,26mm
• Stroke: 16,80mm
• Output: 2,8hp @ 37,000rpm
• Weight: 335gr


Will be also available:
-REAR CERAMIC BALL BEARING
-ALUMINUM SLIDE CARBURETOR

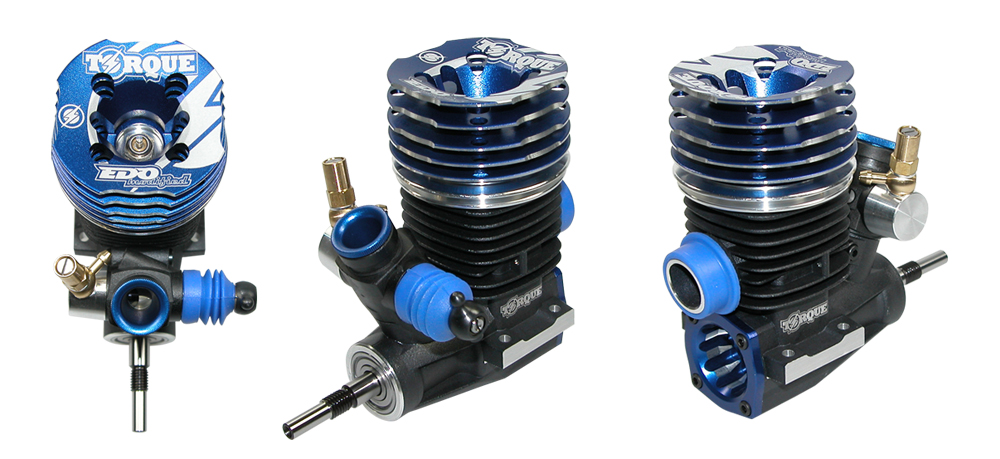

Attached Thumbnails Click image for larger version
