Default RC10B4.1 FT/WC

Placeholder for the tentative August 13 (B4.1) and August 16 (T4.1) release of the RC10B4.1 Factory Team and RC10T4.1 Factory Team. A-Main Hobbies has the most up-to-date picture/price on their site.



RC10B4.1 Factory Team Improvements
  • Factory Team .5° aluminum rear hubs with oversized outer bearing
  • Ball differential with lightweight outdrives
  • Factory Team V2 hard-anodized threaded shock bodies with bleed-screw caps
  • V2 slipper assembly with high-rate spring for more consistent slipper clutch adjustments
  • Pro-Line Vortex body and wing
  • Pro-Line M3 Holeshot 2.0 rear and M3 4-rib front tires
  • CVA drive shafts with pin retainer clips
  • Durable steel center-drilled front axles
  • Optimized suspension setup for use with LiPo batteries
  • Suspension mounts for 4°, 3.5°, 3°, and 2.5° rear toe included

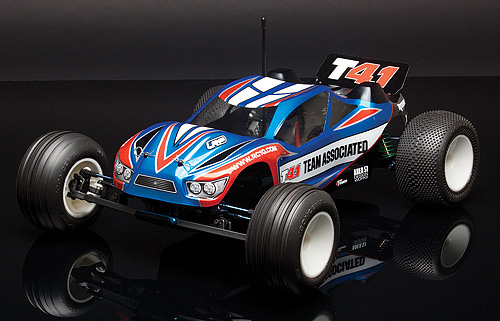

RC10T4.1 Factory Team Improvements
  • Factory Team 0.5 degree aluminum rear hubs with oversized outer bearing
  • Ball differential with light-weight outdrives
  • Factory Team V2 hard-anodized threaded shock bodies with bleed-screw caps
  • V2 slipper assembly with high-rate spring for more consistent slipper clutch adjustments
  • JConcepts Hi-Flow T4 body
  • JConcepts Double-Dees rear tires in green compound and Carvers front tires in blue compound
  • CVA joints with pin retainer clips
  • Optimized suspension setup for use with LiPo batteries
  • Suspension mounts for 4°, 3.5°, 3°, and 2.5° rear toe included

Note the V2 shocks, V2 slipper assembly and trick 2-piece hub carriers.
Attached Thumbnails Click image for larger version

Name:	rc10b4.1_factory_team.jpg
Views:	986
Size:	42.6 KB
ID:	619647   Click image for larger version

Name:	rc10t4.1_factory_team.jpg
Views:	991
Size:	41.3 KB
ID:	619648   Click image for larger version

Name:	7023.jpg
Views:	38823
Size:	72.0 KB
ID:	619649   Click image for larger version

Name:	9036.jpg
Views:	41562
Size:	77.0 KB
ID:	619652   Click image for larger version

Name:	rc10b4.1_factory_team.jpg
Views:	775
Size:	42.6 KB
ID:	619654

Click image for larger version

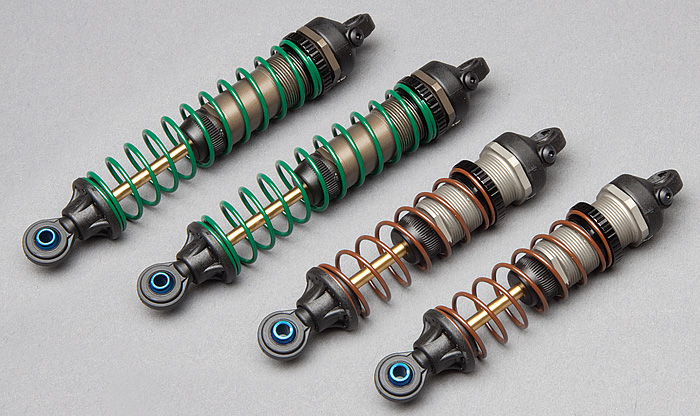

Name:	9036-shocks.700.jpg
Views:	2638
Size:	152.3 KB
ID:	619655   Click image for larger version

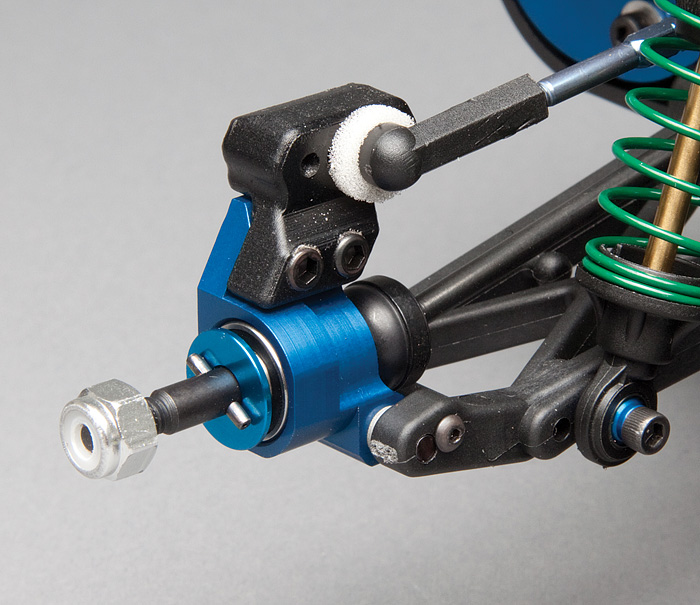

Name:	9036-rear-hub-carrier.700.jpg
Views:	3159
Size:	135.0 KB
ID:	619656   Click image for larger version

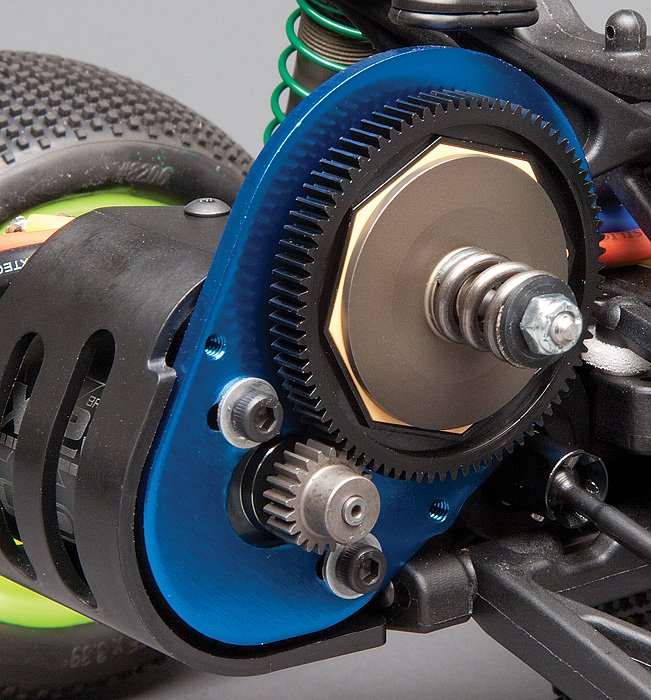

Name:	9036-rear-clutch.700.jpg
Views:	2830
Size:	236.6 KB
ID:	619657   Click image for larger version

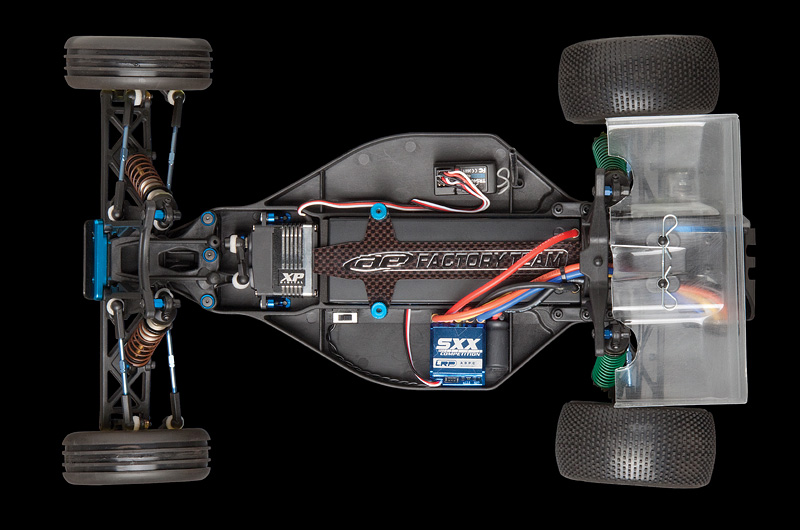

Name:	9036-Top-View.800.jpg
