Default Balancing tab configuration?
i bought a hyperion charger and want to put balancing tabs on my a123 packs...
i am not sure how they go on there?! can someone help me and show me how to wire them?

thanks,
G

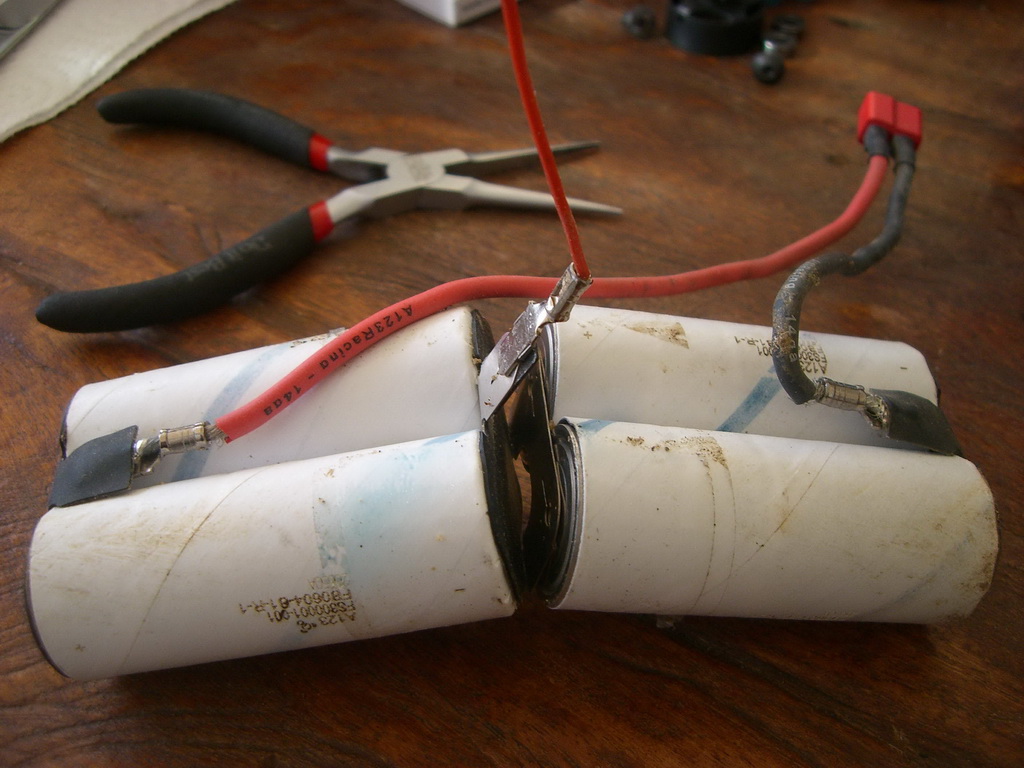

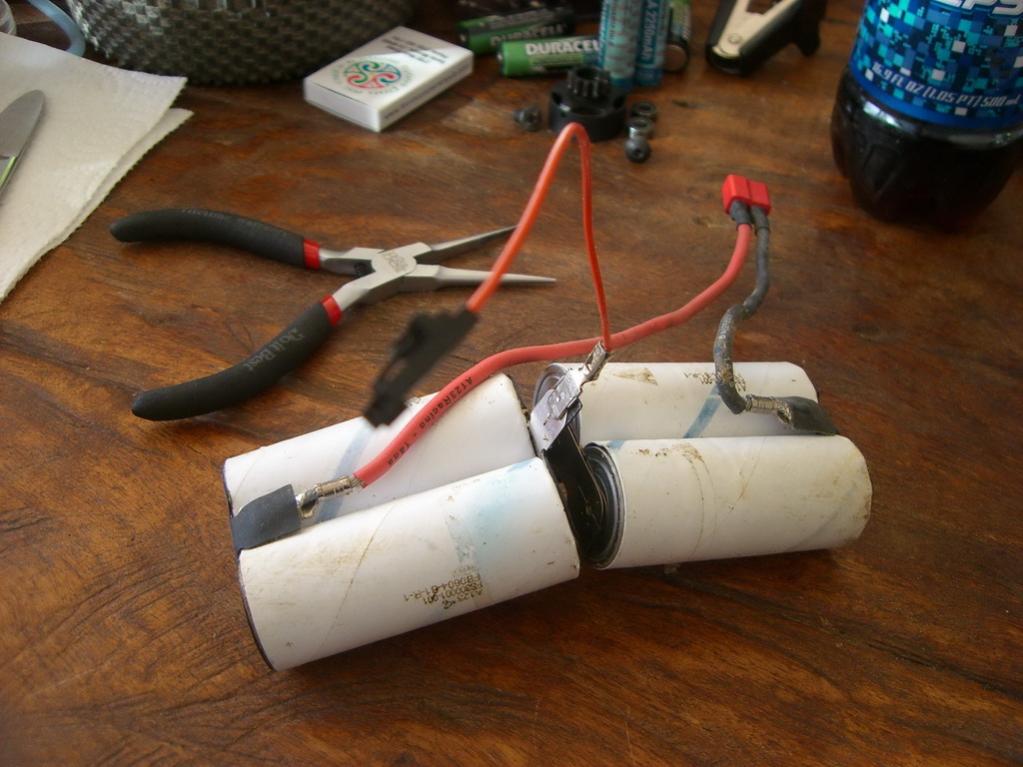

Attached Thumbnails Click image for larger version Name: lead1.JPG Views: 51 Size: 244.6 KB ID: 430360   Click image for larger version Name: lead2.jpg Views: 45 Size: 91.0 KB ID: 430361
