Below some pics from our 3,5cc prototype that got 2nd place on last regional championship.

It's the pre production model but it run already outstanding performance.

Picture show some P&L details.

Any comments are wellcome.

thank's

Capricorn RC

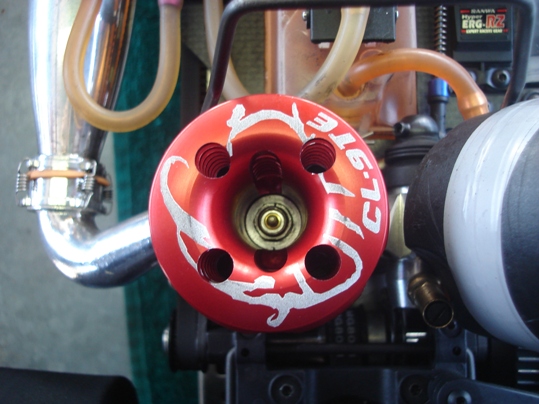

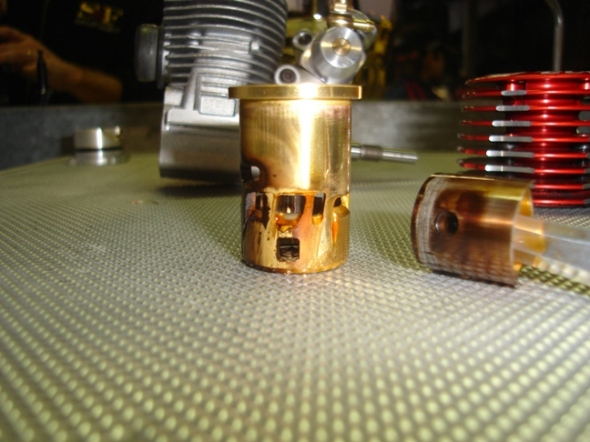

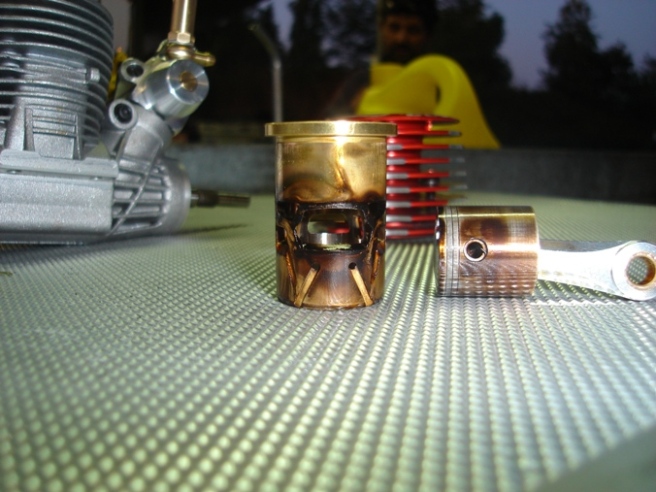

Attached Thumbnails Click image for larger version Name: testa_3_5_cl9.JPG Views: 528 Size: 117.7 KB ID: 381232   Click image for larger version Name: scarico_3_5.JPG Views: 705 Size: 139.6 KB ID: 381233   Click image for larger version Name: travasi_con_by_pass.JPG Views: 640 Size: 127.4 KB ID: 381234
