Default BMI Announces the BMI-12A

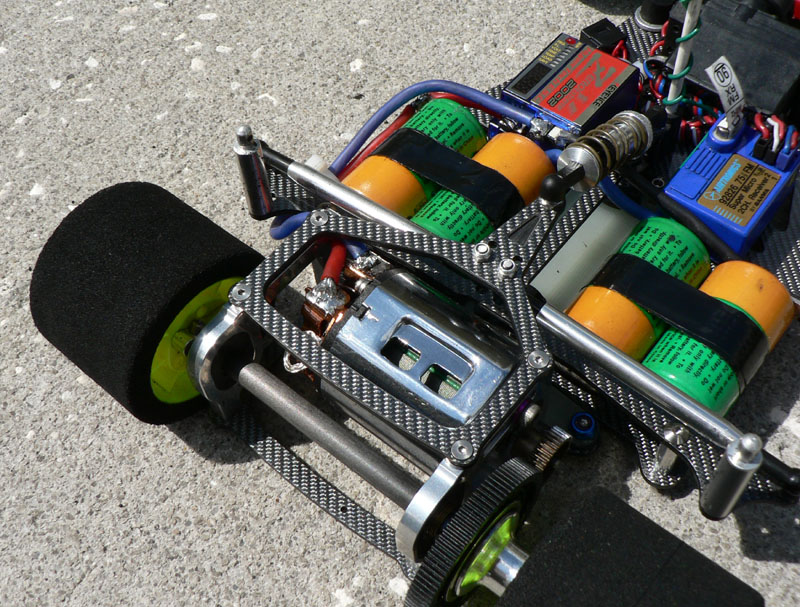

The BMI-12A is an asphalt optimized version of BMI's successful 1/12th carpet conversion.

Features:

.078" chassis with lightening holes to reduce stiffness for asphalt.
The narrowest possible chassis for fast transitions.
Long cell slots for weight distribution adjustments.
Pod Top plates for Damper Tubes or Damper Plates are both included
BMI Damper plate center tube and all standoff included.
Counter sunk 2-56 screws for the pod top plate to lighten it up and for lower body mounting.
New lowered axle pod side plates.
Motor wire port in the left pod plate.

It's light, its fast and it sticks to asphalt like a scared cat on shag carpet
Attached Thumbnails Click image for larger version

Name:	BMI-12A 1 sm.jpg
Views:	427
Size:	204.5 KB
ID:	90808   Click image for larger version

Name:	BMI-12A 2 sm.jpg
Views:	246
Size:	191.4 KB
ID:	90809   Click image for larger version

Name:	BMI-12A 3 sm.jpg
Views:	222
Size:	179.0 KB
ID:	90810   Click image for larger version

Name:	BMI-12A 5 sm.jpg
Views:	227
Size:	167.4 KB
ID:	90811   Click image for larger version

Name:	BMI-12A Pod sm.jpg
Views:	233
Size:	194.9 KB
ID:	90814
