My prototypes don't look as good/neat as yours

transponder_top:
I dont have a voltage reg on this one. I don't have a one with a low enough drop out voltage. I will order some next time i order some stuff from digikey. These close up pictures show some ugly solder joints.

transponder_bottom:
I 3D printed an antenna holder/short circuit protector

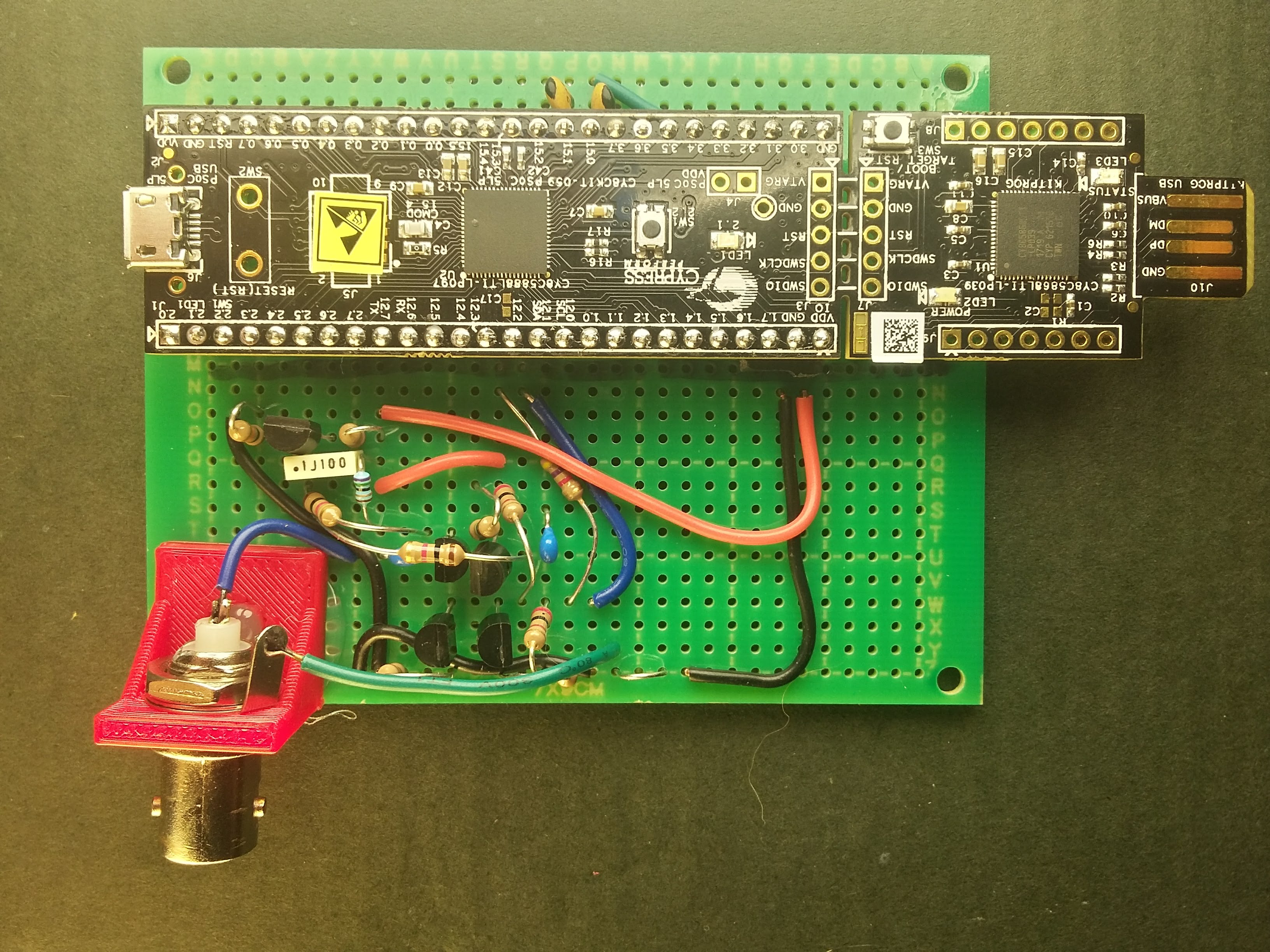

Amp/Decoder:
I used BNC connector for amp to decoder connection. I already had some BNC jacks and cable(RG-59/U) around
Attached Thumbnails Click image for larger version Name: transponder_top.jpg Views: 1816 Size: 194.7 KB ID: 1457660   Click image for larger version Name: transponder_bottom.jpg Views: 1514 Size: 294.9 KB ID: 1457661   Click image for larger version Name: rc_hourglass_decoder(cano).jpg Views: 1908 Size: 1.39 MB ID: 1457662   Click image for larger version Name: rc_hourglass_amp(cano).jpg Views: 1947 Size: 1.57 MB ID: 1457663
