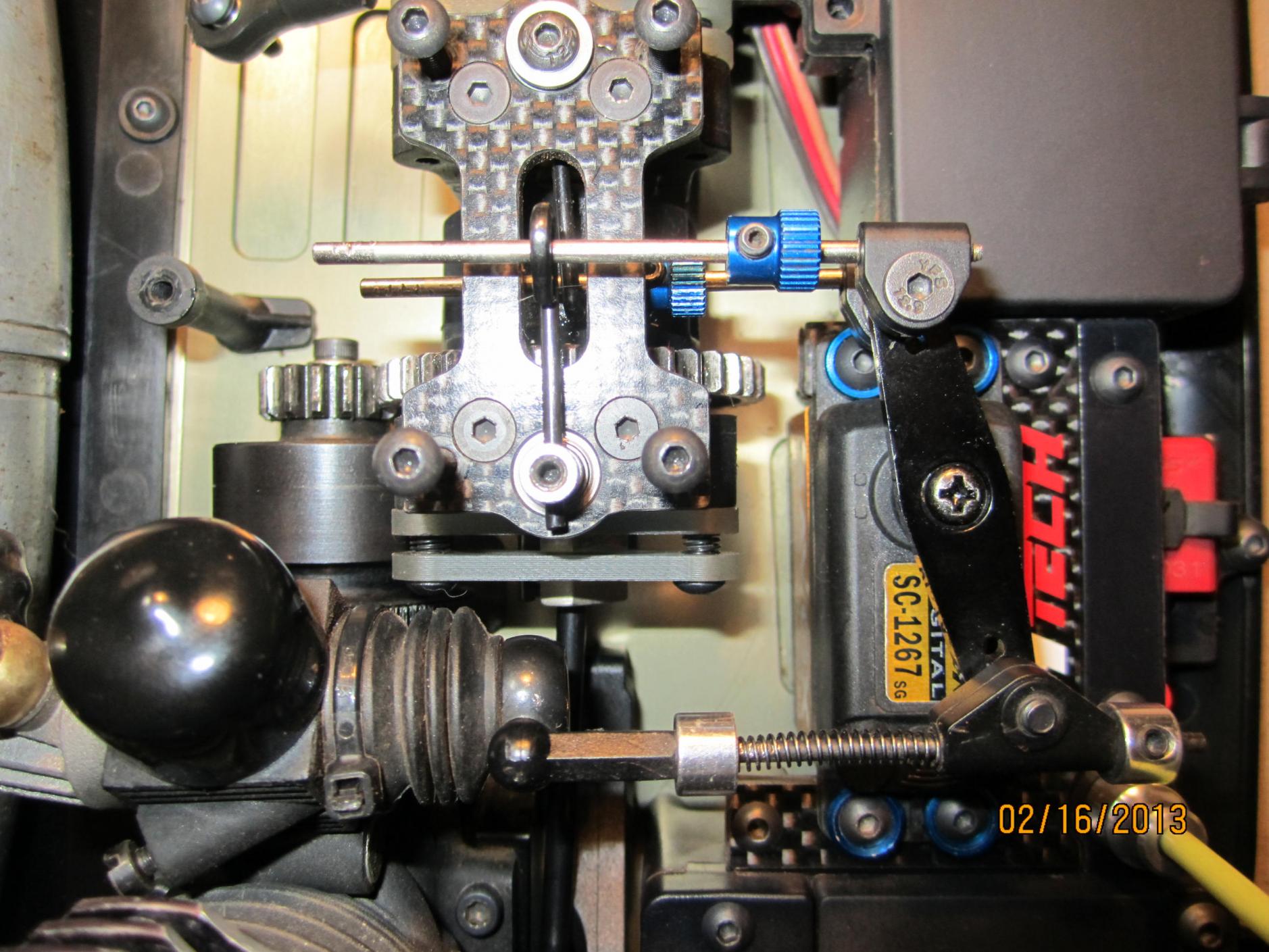

The first pic is at full throw to the right. You somehow are getting more travel. I dont think you are going to be able to fix the throttle angle. I have a cheap racer edge that lines up perfect to the carb. It fits nice and low onto the servo gear. But like in my previous pic you have to line up the brake with washers.
