Default Hobbywing Xerun 4274SD G2 Sensored Brushless Motor (2250kV)

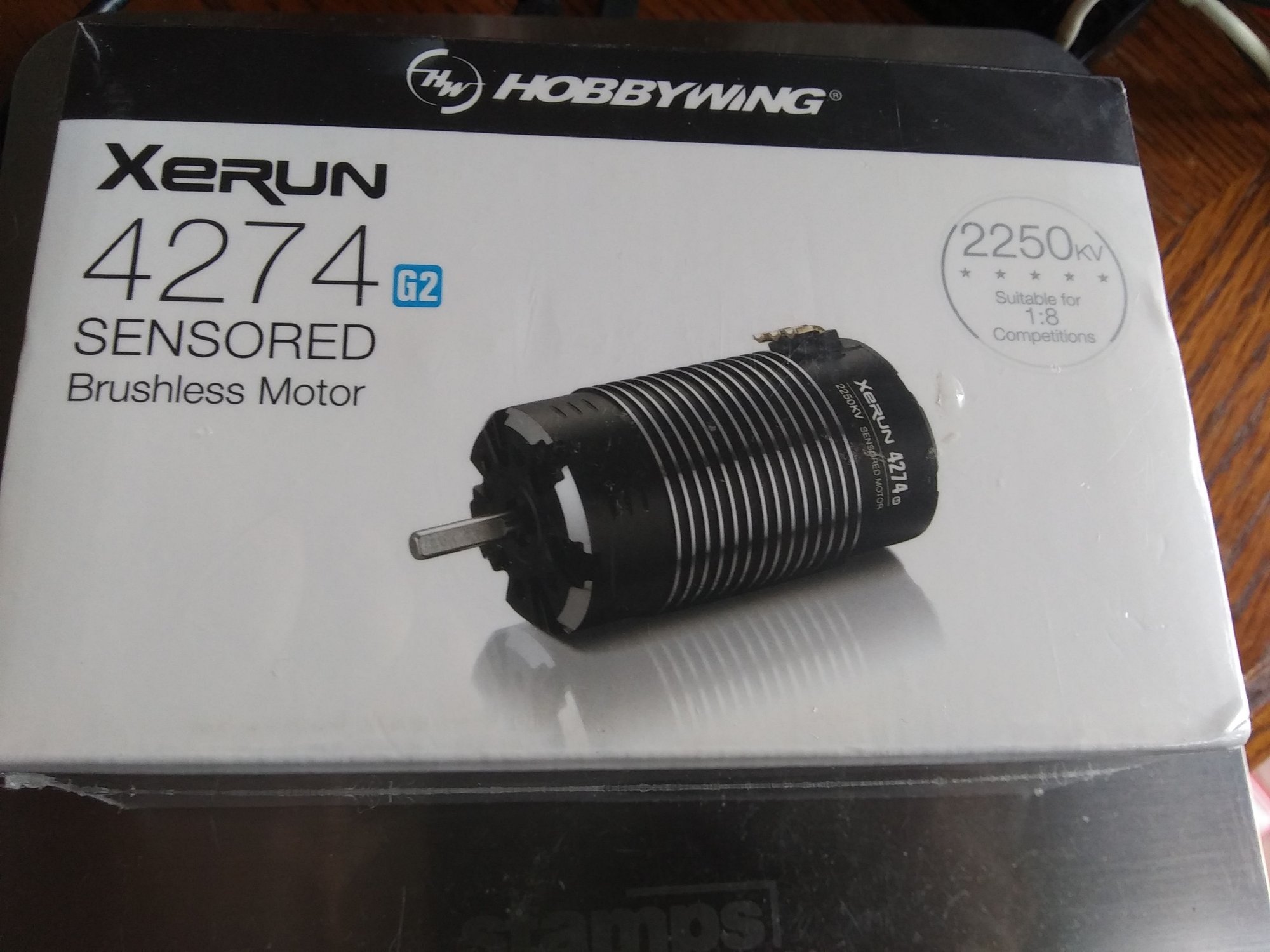

New in sealed box Hobbywing Xerun 4274SD G2 Sensored Brushless Motor (2250kV) $135 shipped, 2 available.


This is the Hobbywing 4274SD G2 Sensored Brushless Motor from Hobbywing, suited for us with most 1/8 Off-Road Buggy and Truggy options.

Full-Sensored Mode
The first motor (in the world) with a built-in chip which helps the ESC identify it's a Hobbywing motor (when pairing with XERUN XR8/XR8 Plus) and form a power system which can work in the "Full-Sensored" mode to provide users with improved performance and smoother control.

Note: this motor is also applicable to other ESCs, but it cannot work in the Sensored mode at all times.

Turbo Timing Technology
When pairing this motor with HW XERUN XR8 series of ESCs, the Turbo Timing, which is widely adopted in 1/10th scale on-road racing, can be enabled and unleash the utmost power of the motor.

Bi-Directional Adjustable Timing
The bi-directional adjustable mechanical timing, can meet the different power demands of various applications. Bi-Direction refers to CW and CCW operation of the motor.

Advanced Hall Sensing System
The first "error-free" Hall sensing system adopted by this motor guarantees users the steady operation in the "Full-Sensored" mode. A separate high-speed high precision encoder always output the clean signals (indicate the rotor) and not be affected by other signal interference.

Low Cogging Torque
The first motor adopted the innovative 4-pole 8-magnet "staggered pole" rotor has extremely low cogging effect and low torque pulsation (it's reduced by 85% when comparing with traditional 1/8th scale motors).

Features:
  • CNC-machined aluminum ribbed heatsink case with the sensor port covered by silicon O-ring seal guarantees users the effective heat dissipation and dust prevention
  • 4 M3 mounting holes and 2 M4 mounting holes on the front case are applicable to various motor mounts
  • New-style U gold-plated tabs with extremely-low internal resistance allows users to solder output wires easily and firmly on
  • The use of double insulated windings (240C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340C) guarantees users the outstanding performance and super durability
Specifications:
KV (No-load):
2250
Current No-load(A): 5.4
Motor Diameter x Length (mm): 42x68
Shaft Diameter x Length (mm): 5x18.5
LiPo (S): 2-6
W (g): 396g
Application: 1/8th Monster Truck, Short Course Truck, Buggy, & Truggy
Sensored: Yes
