CLUTCH BELL RETAINING WASHER

Reply

Old 05-02-2012, 01:35 PM
  #1
Tech Addict
Thread Starter

Join Date: Dec 2008
Posts: 621
Default CLUTCH BELL RETAINING WASHER



How many times have you been taken out of a race when the front clutch bell
bearing goes out? I know this has happened to almost everyone at one time or
another.
Some of the time it will kill the clutch bell $20.00
Some of the time it will kill the clutch bell and the spur gear $70.00
And there have been times when it killed the clutch bell, spur gear, and the
gas tank $90.00

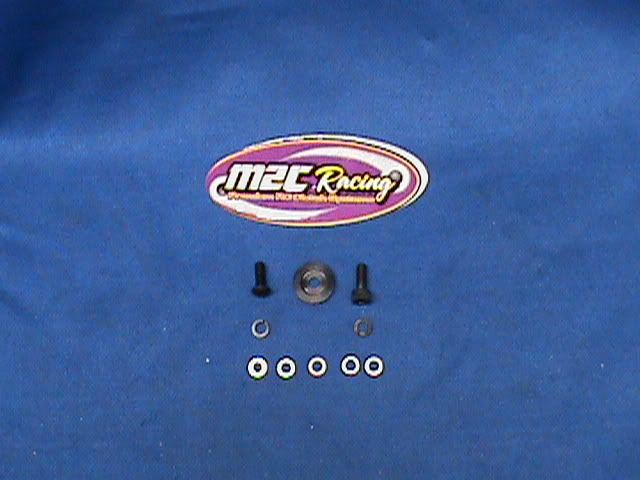

this washer captures the od of the clutchbell to prevent it from being able to
come foward. there is also a small .1mm step on the face of the washer to keep
the clutchbell from hitting the od of the washer.
With this design the clutchbell bearings and shield are trapped and can't move foward. this keeps the the ball bearings in place.
I also used the best screws I could buy to help keep from stripping out the hexes, but if you do , it will be
very easy to slot the screw and not damage anything.
the small spacers are used to adjust clutch bell end play.
We really can't say what is going to happen when the bearings fail because
ever since we started using them, we haven't had a bearing failure and I have
ran a gallon of fuel on my ($1.00)bearings.
they really feel crunchy but I am going to run them untill they fail.
I will come back and update this thread when I know what happens.
part no.m2c6099
www.m2cracing.com

Last edited by m2cracing; 05-02-2012 at 02:52 PM.
m2cracing is offline
Reply With Quote
Old 05-02-2012, 02:18 PM
  #2
Tech Regular

gdux's Avatar

Join Date: May 2007
Location: Pittsburgh, Pa
Posts: 400
Default

That's race security right there. Another brilliant idea from the genius, mechanical minds at M2C!!
gdux is offline
Reply With Quote
Old 05-02-2012, 02:22 PM
  #3
Tech Lord
iTrader: (52)

Jaz240's Avatar

Join Date: Aug 2008
Location: Dwindle city
Posts: 12,494
Trader Rating: 52 (100%+)
Default

Thats good stuff you sneaky bastage!!
Jaz240 is offline
Reply With Quote
Old 05-02-2012, 06:29 PM
  #4
Tech Elite
iTrader: (3)

MadRussian's Avatar

Join Date: Dec 2007
Location: SE USA
Posts: 2,378
Trader Rating: 3 (100%+)
Default

Originally Posted by gdux View Post
That's race security right there. Another brilliant idea from the genius, mechanical minds at M2C!!
Agreed!! I will be testing them soon and stocking them too
MadRussian is offline
Reply With Quote
Old 05-02-2012, 07:00 PM
  #5
Tech Elite
iTrader: (7)

Limywidget's Avatar

Join Date: Aug 2010
Location: Tennessee
Posts: 2,492
Trader Rating: 7 (100%+)
Default

Hey Mitch, you gonna be at Lugoff, SC for the RcPro Race this weekend? I will arrange for a couple of these to be picked up. I will give em a whirl...
Limywidget is offline
Reply With Quote
Old 05-02-2012, 07:41 PM
  #6
Tech Elite
iTrader: (7)

jmaxey51's Avatar

Join Date: Dec 2009
Location: Athens, GA
Posts: 3,917
Trader Rating: 7 (100%+)
Default

Originally Posted by Limywidget View Post
Hey Mitch, you gonna be at Lugoff, SC for the RcPro Race this weekend? I will arrange for a couple of these to be picked up. I will give em a whirl...
he will be there.
jmaxey51 is offline
Reply With Quote
Old 05-03-2012, 05:53 AM
  #7
Tech Addict
Thread Starter

Join Date: Dec 2008
Posts: 621
Default

Originally Posted by jmaxey51 View Post
he will be there.
I will be there.
you might want to check out my latest creation also.
A 3 shoe quick change variable wt. flywheel kit.
I wonder what excuse the guys will use now. I have talked to a lot that say
"I like the feel of a 3 shoe better"
m2cracing is offline
Reply With Quote
Old 05-09-2012, 03:02 PM
  #8
Tech Fanatic
iTrader: (51)

Join Date: Aug 2006
Posts: 903
Trader Rating: 51 (100%+)
Default

I recieved mine in the mail a few days ago. I was kinda skeptical about the design at first, but after installing it on my motor, I'm wondering how no one ever thought to do this before. It really is an ingenious product. I use really good clutch bearings that would last for more than a gallon easily, but I am curious to see how long they will go now. Just the added security of know that if the bearing fails it wont take out the spur and the tank makes them worth it. Being able to finish a heat/main is just an added bonus.
Cyberacer is offline
Reply With Quote
Old 05-09-2012, 03:36 PM
  #9
Tech Champion
iTrader: (88)

BMenard17's Avatar

Join Date: Jul 2010
Location: North Port, FL
Posts: 6,705
Trader Rating: 88 (99%+)
Default

Is this kinda like the losi or am I guessing wrong?
BMenard17 is offline
Reply With Quote
Old 05-09-2012, 04:02 PM
  #10
Tech Elite
iTrader: (7)

Limywidget's Avatar

Join Date: Aug 2010
Location: Tennessee
Posts: 2,492
Trader Rating: 7 (100%+)
Default

Originally Posted by BMenard17 View Post
Is this kinda like the losi or am I guessing wrong?
This is a washer for a clutch bell. Not a buggy....geez.
Limywidget is offline
Reply With Quote
Old 05-09-2012, 04:04 PM
  #11
Tech Champion
iTrader: (88)

BMenard17's Avatar

Join Date: Jul 2010
Location: North Port, FL
Posts: 6,705
Trader Rating: 88 (99%+)
Default

Originally Posted by Limywidget View Post
This is a washer for a clutch bell. Not a buggy....geez.
Yeah, the losi clutch bell uses a washer just like it
BMenard17 is offline
Reply With Quote
Old 05-09-2012, 06:53 PM
  #12
Tech Elite
iTrader: (7)

jmaxey51's Avatar

Join Date: Dec 2009
Location: Athens, GA
Posts: 3,917
Trader Rating: 7 (100%+)
Default

Originally Posted by BMenard17 View Post
Is this kinda like the losi or am I guessing wrong?
its simular but really different at the same time. works very well.

Originally Posted by m2cracing View Post
I will be there.
you might want to check out my latest creation also.
A 3 shoe quick change variable wt. flywheel kit.
I wonder what excuse the guys will use now. I have talked to a lot that say
"I like the feel of a 3 shoe better"
i know this is off the topic of this thread, but this past weekend i was able to test this new 3 shoe system for mitch. i was really sold on it but i was like ill try it and it was perfect! i put it on in practice and instantly liked it, drove more consistant and turned faster laps. still a good bit of testing needed for this system but right now im very happy. ill be doing alot more testing with Mitch next weekend and will report back Mitch puts out the best upgrade products out
jmaxey51 is offline
Reply With Quote
Old 05-10-2012, 05:23 AM
  #13
Tech Apprentice

Join Date: Sep 2011
Posts: 74
Default

Haven't Kyosho had this on their cars since the 777?

Or am I missing the point here...
kingcoltzan1 is offline
Reply With Quote
Old 05-10-2012, 05:45 AM
  #14
Tech Addict
Thread Starter

Join Date: Dec 2008
Posts: 621
Default

I am not really sure if the Kyosho has this or not. I don't have any kyosho products to compare it with. but I still haven't had a bearing failure as yet. As a matter of fact my bearings feel like crap when I check them but when I reinstall them on the motor, It still
spins freely and will spin for over 30 seconds. Perhaps now that all the grease it gone,
it seems like they work better.
m2cracing is offline
Reply With Quote
Old 05-10-2012, 05:55 AM
  #15
Tech Addict
Thread Starter

Join Date: Dec 2008
Posts: 621
Default like the Losi?

Originally Posted by BMenard17 View Post
Is this kinda like the losi or am I guessing wrong?
the Losi does capture all of the bearing I think and should perform about the same as Mine on the losi. But, as far as the other vehicles go, the step on the
losi puts the flange out too far and cannot retain the shield and bearings
if the bearing fails I would think. I have tried this in the past.
m2cracing is offline
Reply With Quote
