Default 1/8Th (Blue) Mad Code Short Course Racing Edition RTR Ready to Run Rally Car w/ Brush







https://www.nitrorcx.com/52c78-re-ma...brushless.html

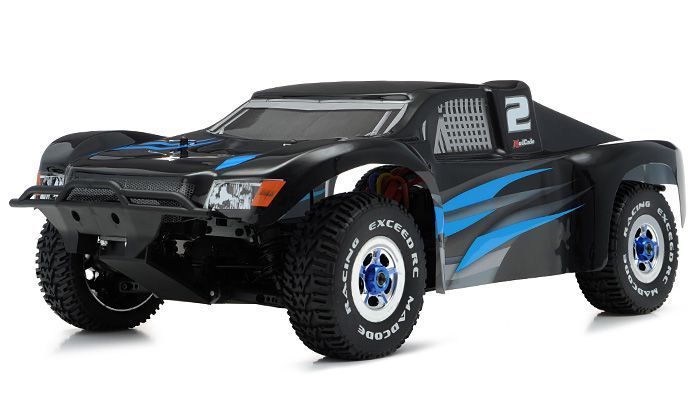

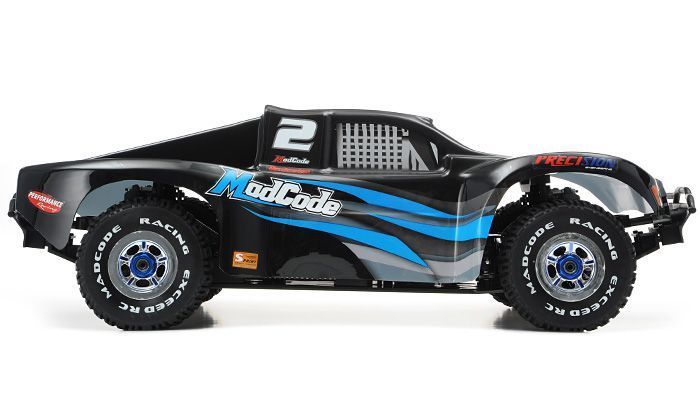

Designed to look just like the full-size Rally Cars, 4WD Racing Edition that runs in short course off-road series like the other brand models. Team Exceed RC is proud to announce the Mad Code as the latest edition to our line of 1:8 scale, brushless 4WD race truck rally car.




Each Mad Code comes decked out with one of three fully racing style truck bodies, wheels and tires. This is the high-performance R/C Rally car in its' class built with 540L Brushless Motor, Dual Lipo 7.4V 3300mAh Battery, and 80A ESC.




The Exceed RC Mad Code was designed to meet other racing rally cars around the world. It's all here, from the suspension travel, to painted body. The result is the Exceed RC Mad Code, a creation of an unparalleled experience at a level of performance that has never been seen.




Underneath the beautifully finished body, and wheels, beats the heart of a Mad Code. The Mad Code comes fully assembled and ready to go. Team Exceed RC 2.4Ghz Radio system are factory installed. The differentials and shocks come filled with the proper silicone fluids, making it faster and easier than ever to get Exceed RC Mad Code performance out of the box and into the dirt! When we created the Mad Code, we knew we had made something very special.




Features: Mad Code RTR




Molded battery tray supports two ROAR-approved 1:8 scale size 7.4v LiPo battery, servo, and battery tray are removable in one piece for easy maintenance and cleaning

Factory painted and finished short course truck body.

Mounted and assembled scale wheels & tires with foam inserts and bead guards.

Factory-painted and finished short-course truck body

2.4Ghz Pistol Sport Radio Transmitter

Convenient wire routing keeps critical electronic wires out of drive-train components and simplifies disassembly

Alloy steel Turnbuckles for quick adjustability and tuning

Dual Bell-crank steering for more consistent steering and reduced bump-steer on rough surfaces

540L Brushless Motor and HobbyWing 80A-R Brushless ESC (Electric)

Carefully placed battery compartments and center mounted ESC platform and for balance (Electric)

Durable and thick hardened plastic suspension arms

Anodized 6061 3MM aluminum chassis plate

Anodized 4MM Front and Rear aluminum shock tower

Massive pre-glued 4.75" Tires mounted on hardened chrome wheels with 17mm hex hub

Silicon Fluid sealed Front, Center, and Rear hardened and coated steel gear differentials

Heavy duty metal geared steering servo

Adjustable 16MM Big Bore threaded aluminum shocks

Anodized Aluminum Chassis plate stiffeners

Anodized Aluminum differential plates

Anodized Aluminum Steering arm

Multi-piece adjustable anti roll bar front and rear

Full Sealed Ball Bearing Set

Front Constant Velocity Driveshaft (CVD)

Adjustable Front and Rear Roll Center




Motor: 540L Brushless Motor

Bearing: Ball Bearing

Length: 25 inches (635mm)

Width: 11.81 inches (300mm)

Height: 7.68 inches (195mm)

Wheelbase: 14.37 inches (365mm)

Gear Ratio: 1:11:7

Batteries: 2 x Li-po 7.4V 3300mAh Cont. 20C/ Burst 40C Batteries

ESC: 80A Brushless ESC

Radio: 2.4Ghz Pistol Remote Control
