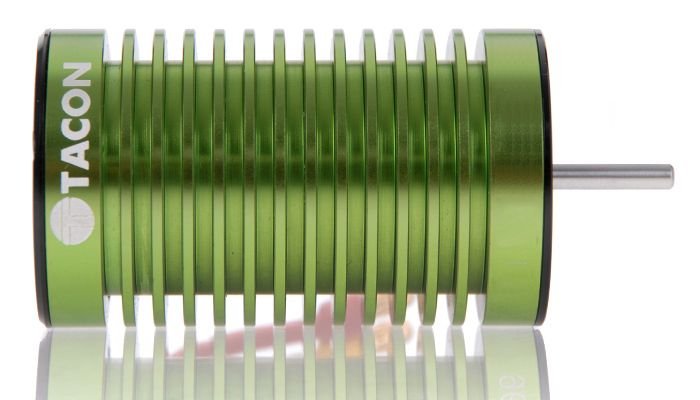

Default Tacon 540XXL 2858 Brushless Motor 1200KV for 1/10 Remote Control Rock Crawler




https://www.nitrorcx.com/96m12-car-2858-1200.html

Net Weight (g): 213.8
Watts: 480
Outer Diameter (mm): 35.8
Length (mm): 60
Stator: 35MM
No of cells (lipo): 3
max efficiency (%): 85%-89%
max efficiency current : 20
no load current (A)/7.4V: 0.3
Internal Resistance (mohm): 0.0902
Shaft Diameter (mm): 3.175
Shaft Length (mm): 15
KV (RPM/VOLT): 1200
Turns (for cars)Poles: 23T/2POLES
Max Voltage: 12.6
Wire Size: 0.34
Bullet Connectors: YES
Bullet Connector Size: 3.5MM
design for: FSD
