Tacon 2040-17T Brushless Motor 3400KV for 1/16 1/18 Car Trucks

Tacon 2040-17T Brushless Motor 3400KV for 1/16 1/18 Car Trucks

Reply

Old 07-12-2018, 10:41 AM
  #1
Tech Regular
Thread Starter

Join Date: Feb 2016
Posts: 387

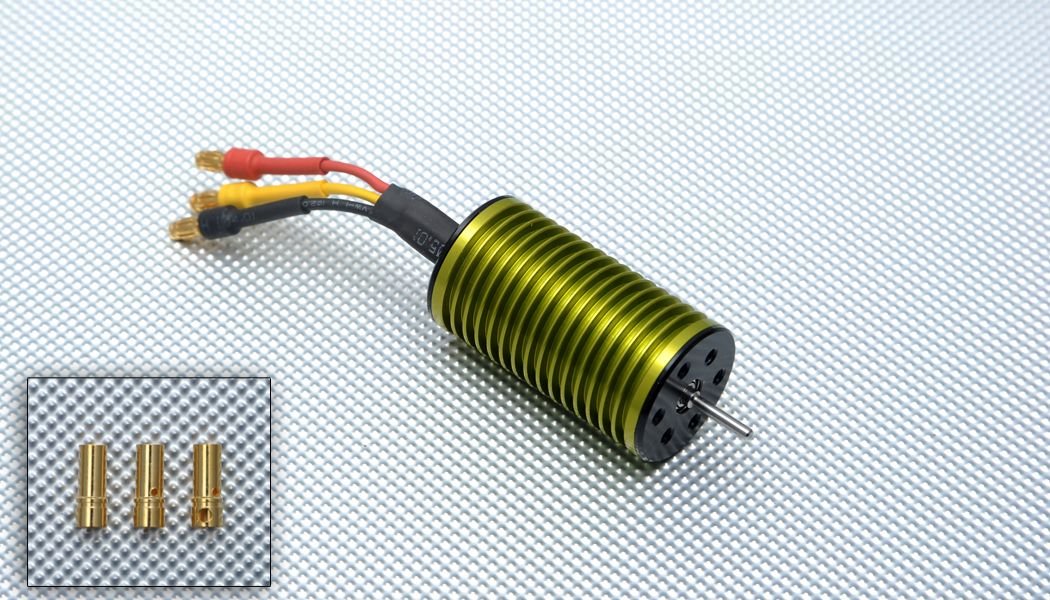

Default Tacon 2040-17T Brushless Motor 3400KV for 1/16 1/18 Car Trucks




https://www.nitrorcx.com/96m263-2040-3400kv-17t.html

Net Weight (g): 73.6
Watts: 220
Outer Diameter (mm): 24
Length (mm): 43.5
Stator: 25MM
No of cells (lipo): 2
max efficiency (%): 85%-89%
max efficiency current : 14
no load current (A)/7.4V: 0.7
Internal Resistance (mohm): 0.0794
Shaft Diameter (mm): 2.00
Shaft Length (mm): 10
KV (RPM/VOLT): 3400
Turns (for cars)Poles: 17T/2POLES
Max Voltage: 8.4
Wire Size: 0.34
Bullet Connectors: YES
Bullet Connector Size: 3.5MM
design for: FSD
