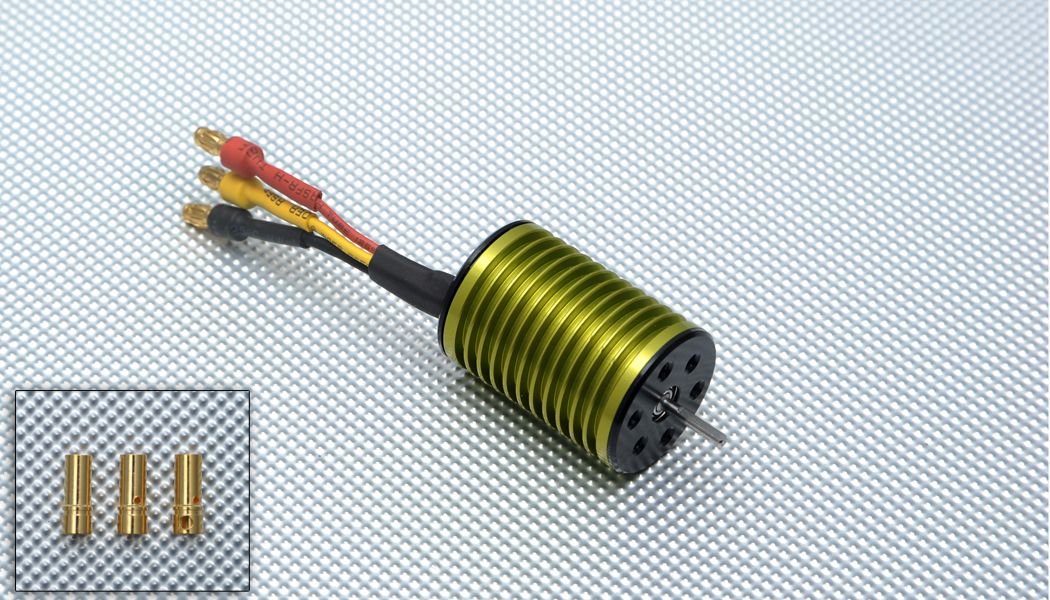

Default Tacon 2030-26T Brushless Motor 3500KV for 1/16 1/18 Car Trucks




https://www.nitrorcx.com/96m251-2030-3500kv-26t.html

Net Weight (g): 52.6
Watts: 130
Outer Diameter (mm): 24
Length (mm): 33.5
Stator: 15MM
No of cells (lipo): 2
max efficiency (%): 85%-89%
max efficiency current: 8
no load current (A)/7.4V: 0.6
Internal Resistance (mohm): 0.1535
Shaft Diameter (mm): 2.00
Shaft Length (mm): 10
KV (RPM/VOLT): 3500
Turns (for cars)Poles: 26T/2POLES
Max Voltage: 8.4
Wire Size: 0.34
Bullet Connectors: YES
Bullet Connector Size: 3.5MM
design for: FSD
