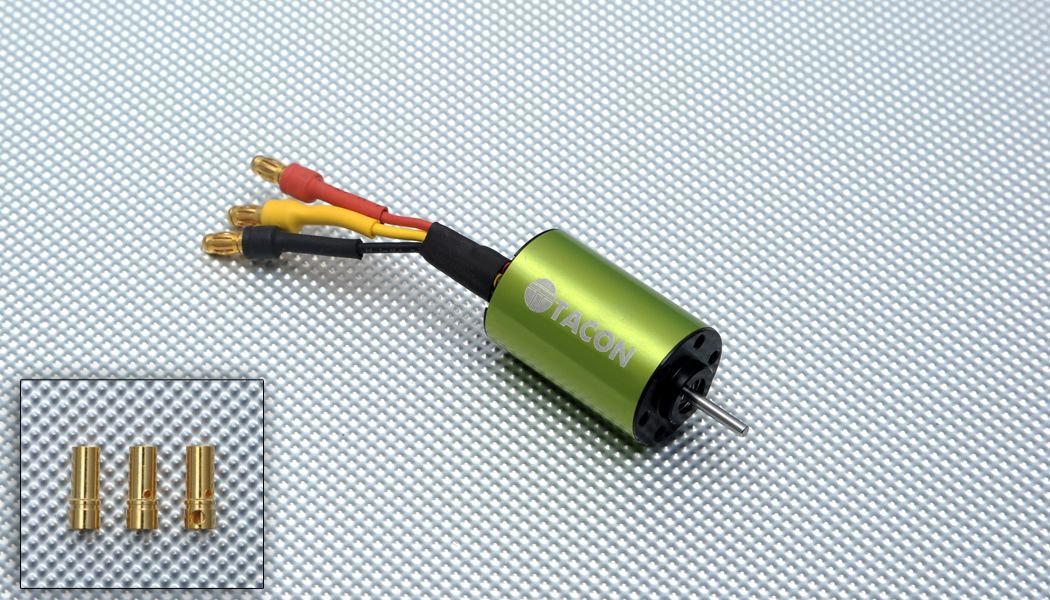

Default Tacon 2030-19T Brushless Motor 4900KV for 1/16 1/18 Car Trucks




https://www.nitrorcx.com/96m258-2030-4900kv-19t.html

Net Weight (g): 50

Watts: 130

Outer Diameter (mm): 20

Length (mm): 30

Stator: 15MM

No of cells (lipo): 2

max efficiency (%): 85%-89%

max efficiency current : 11

no load current (A)/7.4V: 1.2

Internal Resistance (mohm): 0.0841

Shaft Diameter (mm): 2.00

Shaft Length (mm): 10

KV (RPM/VOLT): 4900

Turns (for cars)Poles: 19T/2POLES

Max Voltage: 8.4

Wire Size: 0.28

Bullet Connectors: YES

Bullet Connector Size: 3.5MM

design for: FSD
