Default HobbyWing BL Justock Brushless System Combo ESC Motor XERUN-8.5T 4000 kv for Racing/




https://www.nitrorcx.com/07e-combo-js1.html

The combo has the following advantages:
a) It is a budget-friendly sensored brushless system with the best control feelings.
b) Timing is permanently set to zero degree (unchangeable) for fair racing.
c) Very suitable for Rock Crawler when the ESC work with 21.5T sensored motor (that is: Combo-JS6).

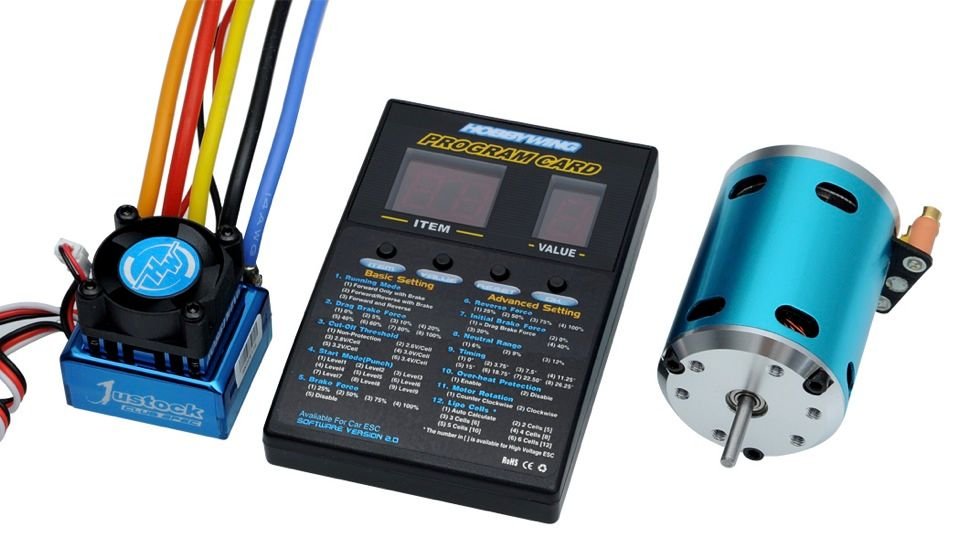

The combo includes the following items:
a) JUSTOCK brushless ESC: 1pcs
b) 8.5T, 10.5T, 11.5T, 13.5T, 17.5T or 21.5T sensored brushless motor : 1pcs
c) Digital LED Program Card : 1pcs

1 ESC Specification

1.1 Output: Continuous current 45A, burst current 260A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo. Note1
1.3 BEC Output: [email protected] linear mode built-in BEC.
1.4 Resistance: 0.0006 Ohm.
1.5 Motor Supported: Sensored brushless / Sensorless Brushless.
1.6 Suitable Brushless Motor:
With 2 cells Lipo or 4-6 cells NiMH, 1/10 on-road: >=8.5T, 1/10 off-road: >=11.5T
With 3 cells Lipo or 7-9 cells NiMH, 1/10 on-road: >=13.5T, 1/10 off-road: >=17.5T
1.7 Suitable Car:
1/10, 1/12 on-road or off-road cars / trucks.
1/10, 1/8 rock crawler.
1.8 Size: 33mm(L) * 28mm(W) * 31.5mm(H) (Cooling fan height included)
1.9 Weight: 59g (The weight of cooling fan not included)
Note1:
The cooling fan gets its power supply from built-in BEC.
2 ESC Features
2.1 Smart and small.
2.2 Sensored brushless ESC with the best control feelings, drives sensored and sensorless brushless motors.
2.3 Timing is permanently set to zero degree (unchangeable). With the identical racing motor, each driver has the same power system to have a real fair racing.
2.4 Firmware updatable, but always with zero timing. Compliant with ROAR SPORTMAN rules.
2.5 Very suitable for Rock Crawler when combined with a 21.5T sensored motor.
2.6 User programmable.
2.7 Easily programmed with the ?SET? button on the ESC, and also compatible with the Digital LED Program Cardand the Advanced Professional LCD Program Box.
2.8 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
2.9 Budget friendly. The cheap price makes a CLUB racing more popular and easier.

For detail information, please read the user manual for reference.
