Default Thunder AC6 Smart LiPo Balance Charger/Discharger w/ AC Adapter for 1-6 Lipo/ 1-15 Ni







https://www.nitrorcx.com/thunder-ac6-charger-power.html

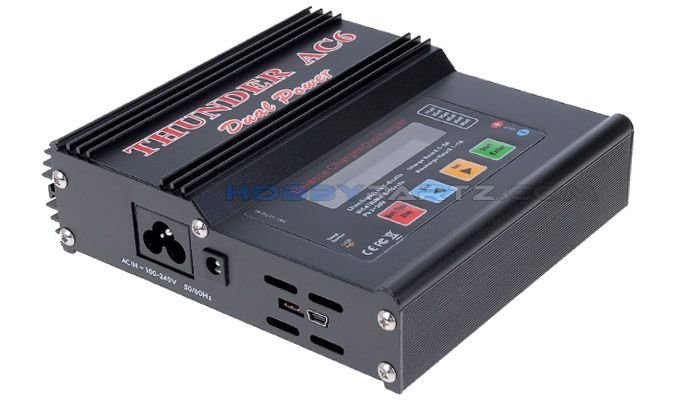

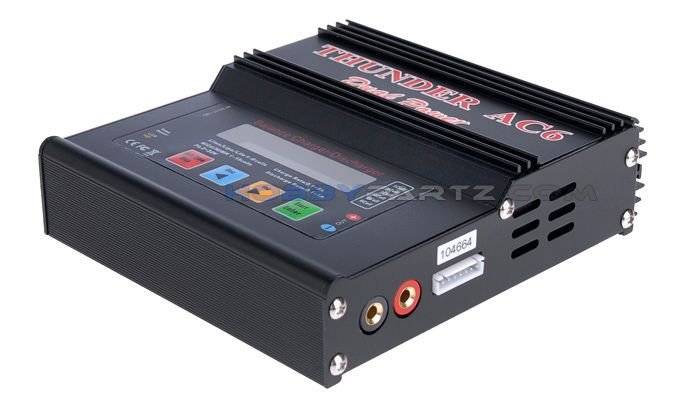

The AC6 Smart Charger (included AC Adaptor) is one of today's most advanced type of smart charger. The AC6 can accept three types of Lithium batteries - LiIo, LiPo and LiFe. It offers additional Lithium programming. Fast charge reduces the charging time of the Lithium battery and the Storage mode controls the final voltage of the battery to be suit for long time storage. For the advanced user, the smart charger INCLUDES a PC based program that can analyze the characteristic of the battery through the computers USB port. The software will graph voltage, current, capacity and temperature curves. It also shows the individual voltages of each cell in the Lithium battery pack. Also feature LCD display and High-quality aluminum case is durable and very efficient to cool out the internal heat.

The AC6 package does not include the DEANS connector.

Specification
Operating voltage: DC 11~18 volts
Charge/discharge power: max. 50/5 Watts
NiCd/MH: 1~15 cells
LiIo/LiPo/LiFe: 1~6 series
Pb: 2~20V
Charge current: 0.1 to 5A
Discharge current: 0.1 to 1.0A
No. of cycle: 1 to 5 times
Battery data memory: up to 5 data
Weight: 260g
Dimension: 140*95*28mm
Computer USB port
Temperature sensor port
Built in AC adapter



Optimized operating software
When charging or discharging, the smart charger offers an AUTO function that sets the feeding current or the cell count of the Lithium battery automatically. For Lithium batteries, this can prevent an over-charging situation which can lead to an explosion should the user not set the program correctly. Every program in the unit is programmed with safety monitoring to validate the user information to ensure maximum safety. These parameters can be set by the user.

High-power and high-performance circuit
The smart charger employs a circuit that has maximum output power of 50W. As a result, the smart charger can charge or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium batteries with maximum current of 5A.

Individual voltage balancer for Lithium batteries inside
Built into the smart charger is an individual-cell-voltage balancer. No external balancer is needed when charging Lithium batteries (LiIo/LiPo/LiFe) for balance charging.

Balance individual cells on discharge
The smart charger also can monitor and balance individual cells of the Lithium battery pack during the discharge process, as well as the charge process. If the voltage of any one cell varies abnormally, the process will be stopped with the error message.

Accept various types of Lithium battery
The smart charger can accept three types of Lithium batteries - LiIo, LiPo and LiFe. They have different characteristics by their chemistry, such as minimum, maximum, and charge termination voltages.

Lithium battery Fast and Storage mode
The smart charger offers additional Lithium programming. Fast charge reduces the charging time of the Lithium battery and the Storage mode controls the final voltage of the battery to be suit for long time storage.

Data store/load
5 data of different batteries programs can be stored and retrieved. These data files can be recetrived at any time you need them without reprogramming.

Cyclic charging/discharging
The smart charger can perform 1 to 5 cycles of charge>discharge or discharge>charge for battery break in/refreshing and balancing.

PC based analysis using USB communication
For the advanced user, the smart charger INCLUDES a PC based program that can analyze the characteristic of the battery through the computers USB port. The software will graph voltage, current, capacity and temperature curves. It also shows the individual voltages of each cell in the Lithium battery pack.

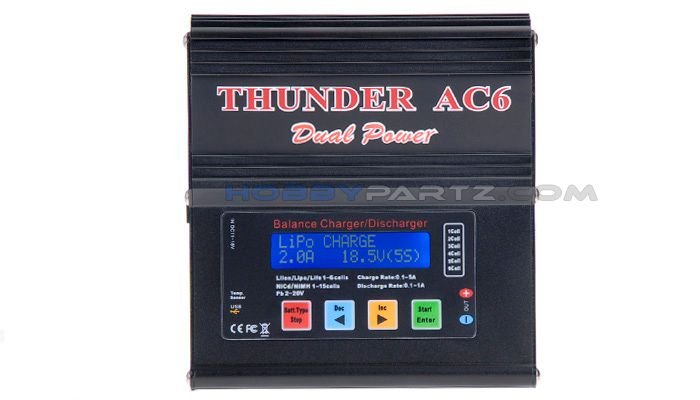

Back-light LCD screen
Include LCD display

Robust outer aluminum case
High-quality aluminum case is durable and very efficient to cool out the internal heat

Advanced temperature sensor cable port (sensor cable not included)
An optional temperature probe contacting the surface of the battery to monitor the battery temperature during charging can be used.
