Default Dynam 6 Channel Carbon Fiber Quadcopter 550 Kit RC Remote Control Radio







https://www.nitrorcx.com/60h-dy8896-quad-550-kit.html

A quadcopter is a machine that is lifted and propelled by four rotors. Unlike most helicopters, a quadcopter use symmetrically pitched blades mounted on four motors to produce lift. Controlling the speed of these individual motors allows the machine to move forward and backward, up and down, strafe left and right, and rotate clockwise and counterclockwise.

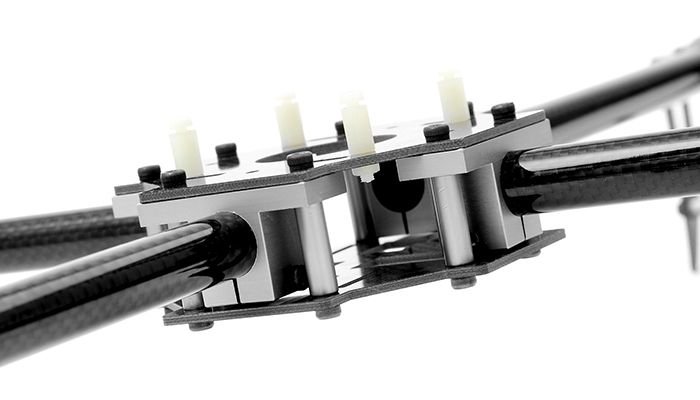

Dynam has entered the quad market industry and has produced a rather unique machine dubbed the Quadcopter 550. The center frame is constructed with carbon fiber sheets and hollow carbon rods act as the support booms. This provides strength while keeping the overall weight low. The carbon fiber support booms lead to the robust cnc aluminum motor housings that house four brushless motors. Dynam recommends 720KV motors with four 18 amp electronic speed controllers for sufficient power to weight ratio. However the chassis can accept larger motors for builders that want higher performance out of this machine. A flight control board is also necessary. An MWC board will allow fine tuning of the machines capabilities and flying characteristics while a KK board will make installation and setup easier. Either flight control boards are recommended for this type of build.

Specifications:
Carbon fiber chassis with carbon fiber support booms
CNC Aluminum Motor Mounts
Size: 550mm quad copter
Weight: 860g

Required to Fly:
Assembly of Props
Flight Control Board

Required Electronics to Complete Build:
6 Channel Transmitter
6 Channel Receiver
Battery 11.1v 2200mah 20C
3cell Balance Charger
Motor: Four BM2810M-720KV Brushless Motors
ESC: Four 18 Amp Brushless Speed Controllers
Propeller: 10x4.5 Propellers
