R/C Tech ForumsThread Wiki: Inferno MP9 thread
Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: tobamiester
Another TKI thread, more TKI4 Specific http://www.rctech.net/forum/nitro-of...buggy-kit.html

TKI4 Replacement Parts (Good for upgrading from TKI3) http://www.kyoshoamerica.com/Replace...ts_c_1505.html

TKI4 Optional Parts http://www.kyoshoamerica.com/Option-Parts_c_1506.html

Some notes on the new Towers/Long shocks here

Picked up a TKI3 and want to upgrade to TKI4 ? Here are all the updated parts:

Shocks

IF347-155 1.5X5 Pistons
IF471-01 Front Shock Body
IF470-01 Rear Shock Body
IF470-03BK Shock Adjust Dial
IFW154 Boots
IF346-05C Shock End Set

Wing

IF491BK Wing
IFW460B Wing Mount/Stay

Rear End

IFH006W Wheel
IF490 HUB
IF490-01 Hub Insert
IF492 Shock Pin
IF423HB Rear Arm
IF287 Hard Upper Rod Rear

Front End

IF489 Steering Rod Set
IF488 Knuckles
IF487H Front Arm
IFW458 Hard Lower Pin
IFW425 93MM CVD
IF286 Hard Upper Rod
IF486 Lower Susp Holder
IFW459 Servo Saver (Hard)
IF446B Ackerman Arm
IF426-64.5 Susp Shaft

Other

IF469B Filter
97035LW-13 Clutch Bell
IF453B Body Mount
IFW107GM Hexes
W300910 Washer
IF443B Center Diff Plate
IF444C Tank
IF479B Radio Box
96772 13x16x0.15mm Shim
IF481B Fuel Tank Stay
IFW336GM Wheelnut
IFB008 TKI4 Body
IFD403W TKI4 Decal

Print Wikipost

Old 12-19-2009, 05:49 PM
  #2851
Key
Tech Addict
iTrader: (1)

Key's Avatar

Join Date: Sep 2004
Location: Toronto
Posts: 629
Trader Rating: 1 (100%+)
Default

Originally Posted by willienaylor
sonic,

i have both cars and the mp9 body does not fit well on the 777. The original kyosho body fits better than the j concepts body, but you are wasting your time and money with the kyosho body. It is just to thin and does not last. I suppose with some major trimming it might work but it will never fit right. You might be better off just to order a 777 body on line somewhere.
I can also attest to that. The MP9 shell will look bent-out-of-shape if you force it on the MP777 chassis.

Also, if they were interchangeable Kyosho would not make two separate bodies for the electric infernos MP777e/7.5VE's and MP9e:

MP9e
http://www.kyosho.fr/index.php?optio...res&Itemid=111

VE (aka inferno mp 7.5 & 777)
http://www.kyoshoamerica.com/cars/in...part_num=30875
Key is offline
Old 12-20-2009, 04:05 PM
  #2852
Tech Addict
iTrader: (29)

Join Date: Nov 2008
Location: tallahassee, FL
Posts: 695
Trader Rating: 29 (100%+)
Default

whats the baseline setup for the front droop with the shock set to the hole farthest from the tire on the mp9. thanks.
slayyer is offline
Old 12-20-2009, 04:23 PM
  #2853
Tech Initiate

Join Date: Mar 2007
Location: The North Pole
Posts: 41
Default

100mm, with the shock in the middle hole on the tower
steved is offline
Old 12-20-2009, 04:31 PM
  #2854
Tech Addict
iTrader: (29)

Join Date: Nov 2008
Location: tallahassee, FL
Posts: 695
Trader Rating: 29 (100%+)
Default

thanks.
slayyer is offline
Old 12-20-2009, 06:55 PM
  #2855
Tech Elite
iTrader: (17)

W.E.D.Jim's Avatar

Join Date: Oct 2001
Location: Kissimmee,Fl.
Posts: 4,948
Trader Rating: 17 (95%+)
Default

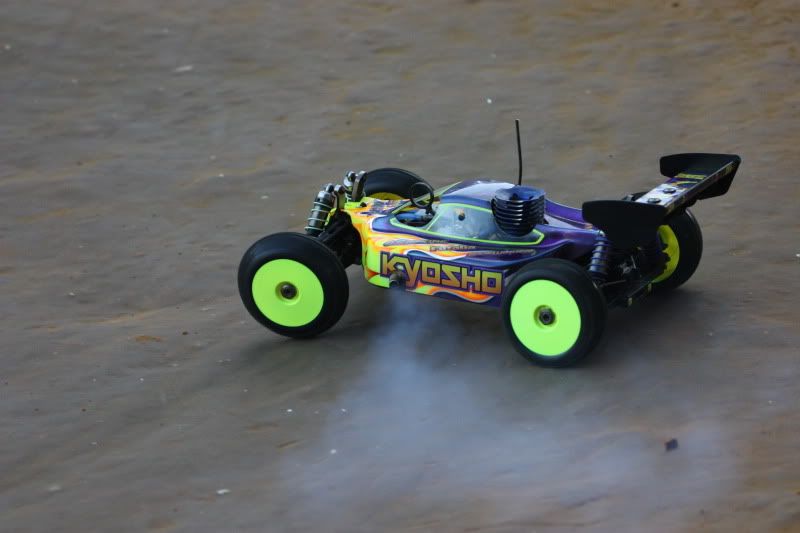

Here is Ryan Eckerts MP9, running W.E.D. paint, ! As you can see from the pic he is obviously saving the tires for later in the A main run at the Clash race, where he finished 4th!





...Jim
W.E.D.
Get Faster Gear
www.wedjim.com

Last edited by W.E.D.Jim; 12-20-2009 at 06:56 PM. Reason: spelling
W.E.D.Jim is offline
Old 12-20-2009, 08:14 PM
  #2856
Tech Master

pitpop's Avatar

Join Date: Mar 2006
Posts: 1,445
Default

nice
pitpop is offline
Old 12-20-2009, 08:21 PM
  #2857
Tech Master

pitpop's Avatar

Join Date: Mar 2006
Posts: 1,445
Default

Originally Posted by bigBoyBigToy
Hey paul i also race with nigel and were trying to get a few more guys onboard now that the se is out and the price is right.. So the rear toe block the toe is determinded by the bushing correct? I ran the stock settings last year what does the equal to? I also ran the stock springs last year
any suggestion on shock springs?
yes, the rear toe-in is determined by the number on the bushing 2, 2.5, 3 degrees. I really like the stock black springs that come in the SE kit, but we also run the new light blue front, and green rear...
pitpop is offline
Old 12-21-2009, 12:09 AM
  #2858
Tech Elite

porkchop's Avatar

Join Date: May 2004
Location: o-h-i-o
Posts: 2,830
Default

pk ic you have cody eletric car done i am in the middle of working on mine!
i was just wondering what batt are you runing?
and what other parts should i order for the car?

Last edited by porkchop; 12-21-2009 at 12:37 AM.
porkchop is offline
Old 12-22-2009, 04:50 PM
  #2859
Tech Master

pitpop's Avatar

Join Date: Mar 2006
Posts: 1,445
Default

Originally Posted by porkchop
pk ic you have cody eletric car done i am in the middle of working on mine!
i was just wondering what batt are you runing?
and what other parts should i order for the car?
hey charles, we are running the orion molecular 5400 45c, they're da bomb stupid power and great run time.... we went 14+ minutes with them. as far as parts, nothing really, just a different body
pitpop is offline
Old 12-22-2009, 05:05 PM
  #2860
Tech Initiate

Join Date: Mar 2007
Location: The North Pole
Posts: 41
Default

What motor and speed control are you using with that?
steved is offline
Old 12-23-2009, 03:53 PM
  #2861
Key
Tech Addict
iTrader: (1)

Key's Avatar

Join Date: Sep 2004
Location: Toronto
Posts: 629
Trader Rating: 1 (100%+)
Default

Originally Posted by pitpop
hey charles, we are running the orion molecular 5400 45c, they're da bomb stupid power and great run time.... we went 14+ minutes with them. as far as parts, nothing really, just a different body
Any chance you can post the dimensions and weight for these orions? I'm assuming they are 4s (14.8v) and if so are they in 2x2s or 1x4s format?

-key
Key is offline
Old 12-23-2009, 04:51 PM
  #2862
Tech Elite

porkchop's Avatar

Join Date: May 2004
Location: o-h-i-o
Posts: 2,830
Default

Originally Posted by pitpop
hey charles, we are running the orion molecular 5400 45c, they're da bomb stupid power and great run time.... we went 14+ minutes with them. as far as parts, nothing really, just a different body
thanks allot paul.
would you guys by chance be happing to bring the car with you to crcrc. i really like to look at it i know it the car i should be run but can i affored to run it is the real problem lol.

i was wondering what springs are the same as the stock black ones i was told they dont have the coating and there scrating the body really bad.

also what gearing would you be runing and what base set up should i start with

i know i gone get the car but i am still going back and 4th about eletric or nitro lol

Last edited by porkchop; 12-23-2009 at 05:10 PM.
porkchop is offline
Old 12-24-2009, 11:27 AM
  #2863
Tech Elite
iTrader: (23)

bigBoyBigToy's Avatar

Join Date: Dec 2007
Location: STL
Posts: 2,926
Trader Rating: 23 (100%+)
Default Bodies

what bodies is everyone using? last year i used Jconcepts!!

what body do all of you like and use?
bigBoyBigToy is offline
Old 12-24-2009, 04:24 PM
  #2864
Tech Elite
iTrader: (17)

W.E.D.Jim's Avatar

Join Date: Oct 2001
Location: Kissimmee,Fl.
Posts: 4,948
Trader Rating: 17 (95%+)
Default

I don't run the MP9, but I have painted A LOT of the bodies for them. Most I paint seem to prefer the JConcepts bodies over the Kyosho brand. Since the JC bodies are quite a bit thicker and last easily twice as long.
I have also painted some thicker Kysoho bodies, but I don't think they are readily available yet.


This is a stock MP9 body I recently painted for Team Driver Ryan Eckert.


This is a recent JConcepts body



...Jim
W.E.D.
Get Faster Gear
www.wedjim.com
W.E.D.Jim is offline
Old 12-24-2009, 07:03 PM
  #2865
R/C Tech Elite Member
iTrader: (207)

Trevor Williams's Avatar

Join Date: Feb 2009
Location: Illinois
Posts: 8,382
Trader Rating: 207 (100%+)
Default

Originally Posted by bigBoyBigToy
what bodies is everyone using? last year i used Jconcepts!!

what body do all of you like and use?
John, I may be joining the Red Army..........it looks like a mp9 is in the very near future
Trevor Williams is offline
