SKYRC RS16 180W/16A BALANCE CHARGER/DISCHARGER

SKYRC RS16 180W/16A BALANCE CHARGER/DISCHARGER

Reply

Old 04-03-2014, 10:32 PM
  #1
Tech Fanatic
Thread Starter
iTrader: (32)

Join Date: Mar 2007
Posts: 883
Trader Rating: 32 (100%+)
Default SKYRC RS16 180W/16A BALANCE CHARGER/DISCHARGER

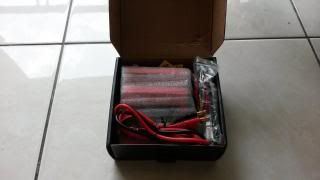

Item: SKYRC RS16 180W/16A BALANCE CHARGER/DISCHARGER, comes with its original packaging, manual & cables

Specification:
DC Input Voltage: 11-18V
Controls: Joystick
Display Type: 2x16 LCD
Display Backlight: Blue
Case Material: Metal
Cooling System: Built-in fan x1pc
Case Size: 92x111.4x50mm
Weight: 405g
PC Communications: USB Port for PC Control & Firmware Upgrade
External Port: Balance Socket-XH, Temperature Probe Socket, Battery Socket, DC Input, Micro USB Port for PC.
Delta Peak Detection: NiMH/NiCad: 3-15mV/cell
Charge Cutoff Temperature: 20-80șC(adjustable)
Charge Voltage: NiMH/NiCad (Delta peak detection), LiPo(4.18-4.3V/cell), LiIon(4.08-4.2V/cell), LiFe(3.58-3.7V/cell)
Balance Current: 200mA/cell
Reading Voltage Range: 0.1-25.8V/cell
Battery Types/Cells: LiPo/LiIon/LiFe(1-6cells), MH/NiCad(1-15cells), Pb92-20V)
Battery Capacity Range: NiMH/NiCad(100-50000mAh), LiPo/LiIon/LiFe(100-50000mAh), Pb(100-50000mAh)
Charge Current: 0.1A-1A (±0.3A) 1A-16A (±10%)
Safety Timer: 1-720minutes off
Charge Wattage: 180W
Discharge Current: 0.1A-8A (±10%)
Discharge Cut-off Voltage: NiMH/NiCad(0.1-1.1V/cell), LiPo(3.0-3.3V/cell), LiIon(2.9—3.2V/cell), LiFe(2.6-2.9V/cell), Pb(1.8V)
Discharge Wattage: 30W
Balance Cells: 6 cells
Memory: 10 different charge/discharge profiles
Charge Method: CC/CV for lithium types and lead (Pb) batteries, Delta-peak Sensitivity for NiMH/NiCad

http://www.skyrc.com/index.php?route...product_id=185


Condition: 100% brand new, just opened box

Price: SOLD

Location: Klang Valley

If interested, please pm

Thanks


]

Last edited by hobbs; 05-08-2015 at 05:25 AM.
hobbs is offline
Reply With Quote
Old 04-14-2014, 11:44 PM
  #2
Tech Fanatic
Thread Starter
iTrader: (32)

Join Date: Mar 2007
Posts: 883
Trader Rating: 32 (100%+)
Default

TTT...
hobbs is offline
Reply With Quote
Old 04-09-2015, 07:15 AM
  #3
Tech Fanatic
Thread Starter
iTrader: (32)

Join Date: Mar 2007
Posts: 883
Trader Rating: 32 (100%+)
Default

TTT
hobbs is offline
Reply With Quote
Old 04-20-2015, 06:03 AM
  #4
Tech Apprentice

baah1940's Avatar

Join Date: Jan 2013
Location: klang
Posts: 55
Default

Originally Posted by hobbs View Post
TTT
Hello, can this charger used for the latest HV battery
baah1940 is offline
Reply With Quote
Old 04-20-2015, 08:17 AM
  #5
Tech Fanatic
Thread Starter
iTrader: (32)

Join Date: Mar 2007
Posts: 883
Trader Rating: 32 (100%+)
Default

According to manual, you are allowed to charge upto 4.30V per cell (8.60V for 2s lipo)
hobbs is offline
Reply With Quote
Old 04-21-2015, 03:36 AM
  #6
Tech Apprentice

baah1940's Avatar

Join Date: Jan 2013
Location: klang
Posts: 55
Default

PM best price bos...
baah1940 is offline
Reply With Quote
