Tamiya TB Evo 7

Old 03-27-2018, 07:22 AM
  #391
Tech Fanatic
iTrader: (9)

rc_square24's Avatar

Join Date: Jan 2004
Posts: 926
Trader Rating: 9 (100%+)
Default

New parts available from PSM, shock towers and 2.0mm upper decks for all 3 layouts!

https://www.psmfactory.com/products/.../tb-evo7/#shop
rc_square24 is offline
Old 03-27-2018, 09:22 AM
  #392
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

Originally Posted by rc_square24 View Post
New parts available from PSM, shock towers and 2.0mm upper decks for all 3 layouts!

https://www.psmfactory.com/products/.../tb-evo7/#shop
Nice. Will probably order the new upper deck for layout 3/C.

But the thickness of the graphite is a little bit irritating.

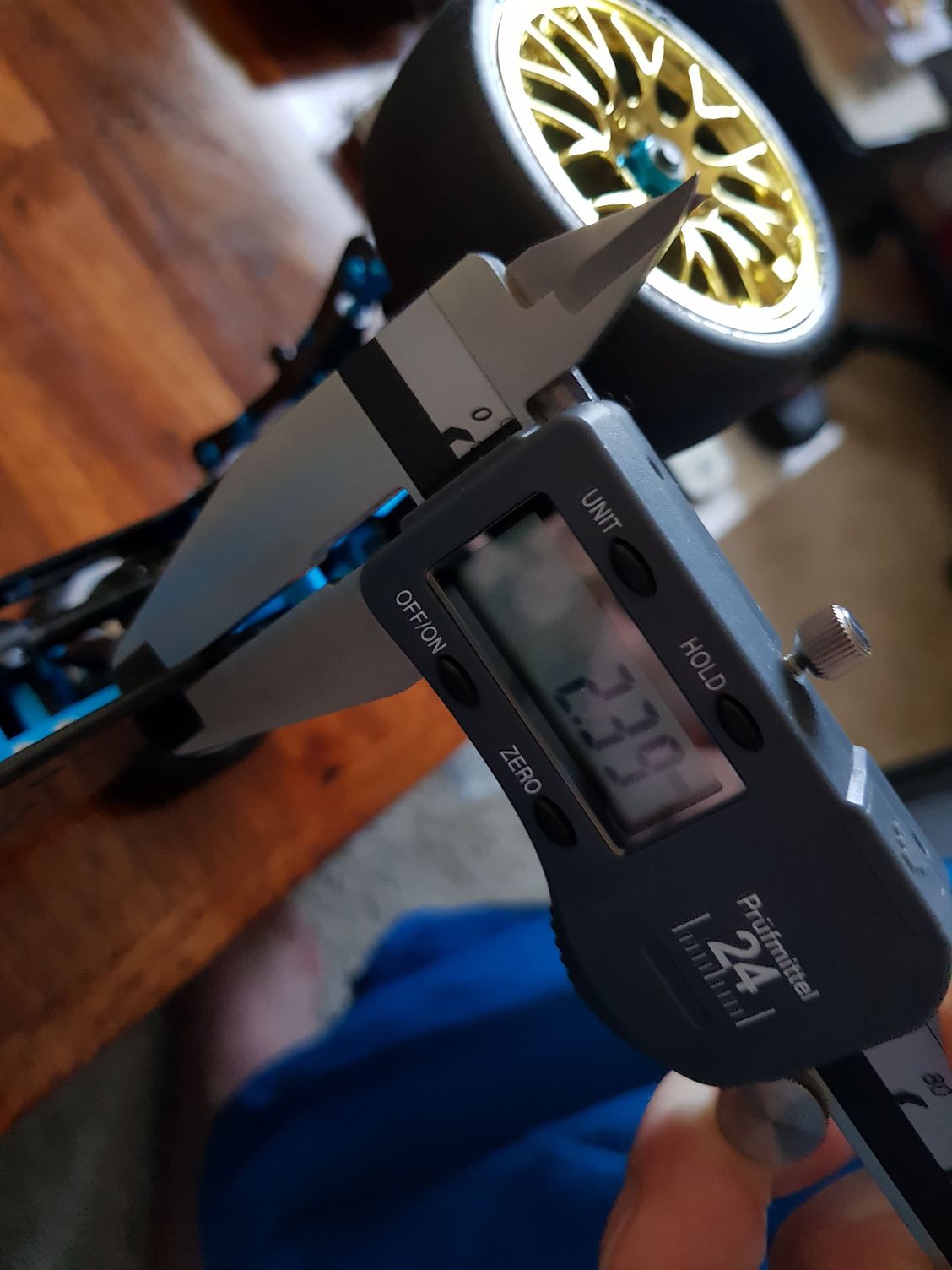

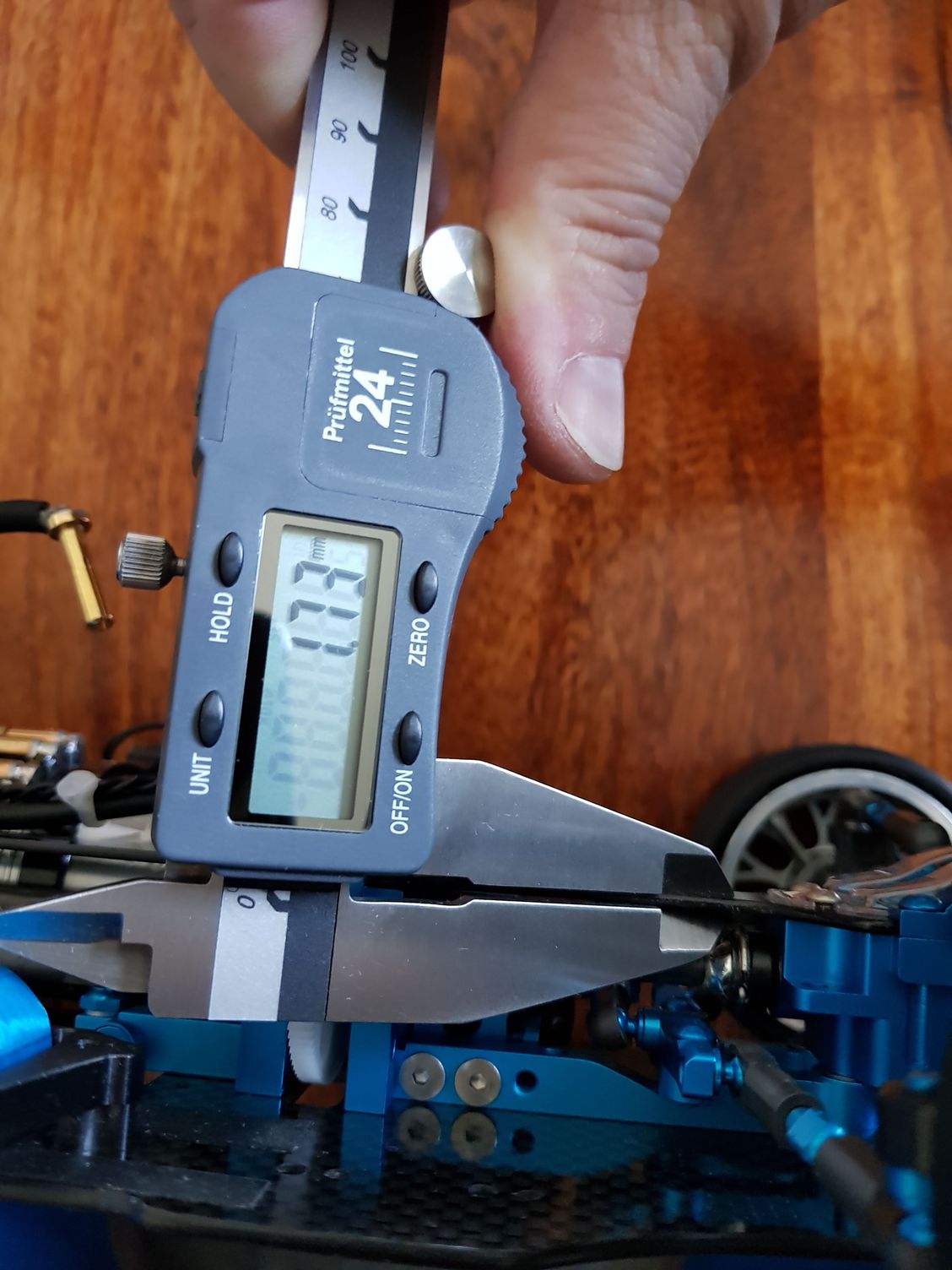

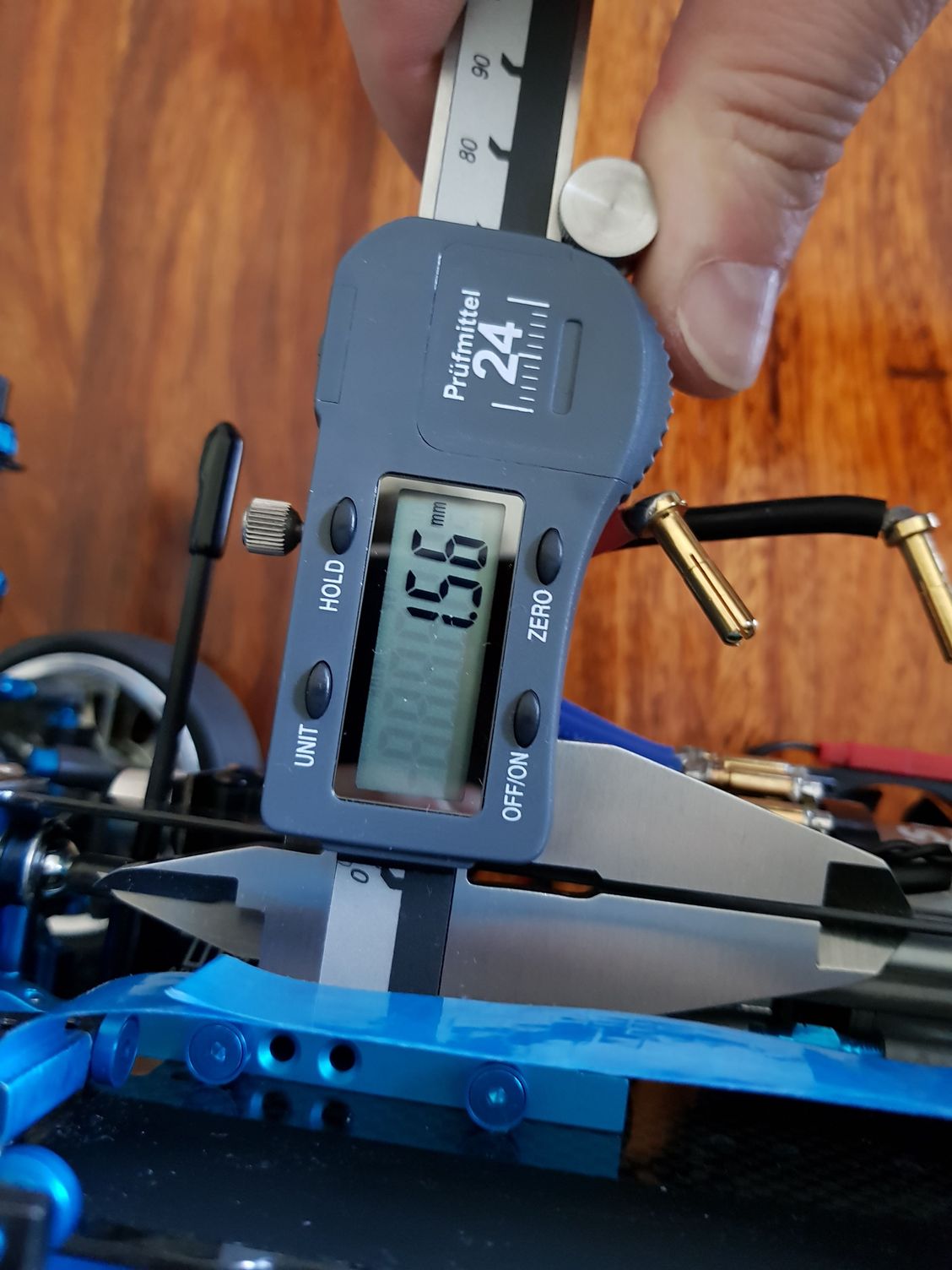

My chassis lower deck has 2.00mm (measured with caliper/minus thickness of protection foil of 0.3mm). The upper decks are 1.5mm (rear) and 1.7mm (front). The package label stated 2.0mm. It was the first batch, i bought.

Why the hell the new batch of lower deck has now 2.25mm???

Wondering which thickness the new layout 3/C upper deck has and if it works properly with the old 2.0mm lower deck...

@rc_square24: Whats your actual thickness of the graphite parts? Do you have the first batch, too?







Last edited by Tom1977; 03-27-2018 at 09:41 AM.
Tom1977 is offline
Old 03-27-2018, 11:09 AM
  #393
Tech Fanatic
iTrader: (9)

rc_square24's Avatar

Join Date: Jan 2004
Posts: 926
Trader Rating: 9 (100%+)
Default

Originally Posted by Tom1977 View Post
@rc_square24: Whats your actual thickness of the graphite parts? Do you have the first batch, too?
I think I have the second batch? When I backordered it was expected for March 16.

The tag on my packaging says 2.0mm but the lower deck is actually 2.25mm on my caliper.

Both sets of the upper decks measured at 1.5mm front and rear as labeled.

Weird that you have a thicker front deck??

The thickness of the lower deck shouldn't affect the installation of the upper ones though, right?
rc_square24 is offline
Old 03-27-2018, 11:55 AM
  #394
Tech Addict
iTrader: (1)

mutley001's Avatar

Join Date: Oct 2004
Location: Kent, UK
Posts: 672
Trader Rating: 1 (100%+)
Default

Hi everyone
Sorry it's a bit off topic at the moment but I've just bought one of these kits and plan on racing it indoors and outdoors and need to get a supply of spares that would be needed as I'll be the only one racing it at club level near me. What breaks? And what tuning hop ups will I likely need - I have springs but will need to order everything else!
Thanks for any advice/help in advance
mutley001 is offline
Old 03-27-2018, 03:00 PM
  #395
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

Originally Posted by mutley001 View Post
Hi everyone
Sorry it's a bit off topic at the moment but I've just bought one of these kits and plan on racing it indoors and outdoors and need to get a supply of spares that would be needed as I'll be the only one racing it at club level near me. What breaks? And what tuning hop ups will I likely need - I have springs but will need to order everything else!
Thanks for any advice/help in advance
Ring and bevel gear set (#54593). Gearbox internals are the same as TB04/Evo 6 and this parts will wear first. Next are probably c-hubs. They break often when contact with walls. #54580 - 4 degree or #54546 - 6 degree. All parts are carbon reinforced version.
Tom1977 is offline
Old 03-28-2018, 02:45 PM
  #396
Tech Addict
iTrader: (1)

mutley001's Avatar

Join Date: Oct 2004
Location: Kent, UK
Posts: 672
Trader Rating: 1 (100%+)
Default

Thanks! How do the front and rear drive shafts hold up???
mutley001 is offline
Old 03-28-2018, 10:11 PM
  #397
Tech Master

Join Date: Dec 2004
Posts: 1,259
Default

Originally Posted by mutley001 View Post
Hi everyone
Sorry it's a bit off topic at the moment but I've just bought one of these kits and plan on racing it indoors and outdoors and need to get a supply of spares that would be needed as I'll be the only one racing it at club level near me. What breaks? And what tuning hop ups will I likely need - I have springs but will need to order everything else!
Thanks for any advice/help in advance
Buy the exotek 4 degree caster blocks. They’re aluminum. And way more precise over the Tamiya plastics. If you know how to shim the drivetrain properly. It shouldn’t fail on you. You literally have to start at one gear box until it’s perfect. And work your way down the line. You don’t want any backlash in it. And the spool and diffs shouldn’t move side to side at all. Shim it until it binds up. Then back off one or 2 shims
Juan Aveytia is offline
Old 03-29-2018, 11:28 AM
  #398
Tech Rookie

Join Date: Feb 2018
Location: Lower Saxony/Germany
Posts: 14
Default

Hm bad Quality of the first Batch?
rckleinkram.de as a Reseller of psm didn't sell it until now
Alfa1989 is offline
Old 04-01-2018, 07:22 AM
  #399
Tech Initiate

Join Date: Nov 2015
Posts: 23
Default

Thanks dude.

Originally Posted by Aitutaki View Post
hi, as posted just ago, i used more or less kit setup C
Shorty Setup
AE 37,5 (=463CST) Damper oil
SMJ Springs red & Blue
3mm rebound within dampers
kit damper positions
5mm ride height
used Tamiya 42307 (0,8mm) to get more steering
FDR is limited to regulations : 4.5 (90/50 64dp)
17,5T Blinky racing
5 & 6mm rebound stroke

i think thats it

black high grip carpet surface
LetGo is offline
Old 04-01-2018, 08:37 PM
  #400
Tech Rookie

Join Date: Apr 2018
Posts: 2
Default

Hello! Bought a Evo 7 recently since I have always wanted to build one. I have a question for folks who have built the kit using stock kits. I am finishing up the oil-filled diff and am having issues screwing the 'top' of the diff housing after I filled the lower with oil. It does not appear to be threaded. Is this normal?
Thelira is offline
Old 04-01-2018, 09:18 PM
  #401
Tech Elite
iTrader: (2)

gigaplex's Avatar

Join Date: Dec 2015
Location: Melbourne, VIC
Posts: 4,990
Trader Rating: 2 (100%+)
Default

Originally Posted by Thelira View Post
Hello! Bought a Evo 7 recently since I have always wanted to build one. I have a question for folks who have built the kit using stock kits. I am finishing up the oil-filled diff and am having issues screwing the 'top' of the diff housing after I filled the lower with oil. It does not appear to be threaded. Is this normal?
The plastic parts aren't pre threaded. You'll cut the thread the first time you put the screw in.
Thelira likes this.
gigaplex is offline
Old 04-02-2018, 03:14 AM
  #402
Tech Fanatic
iTrader: (9)

rc_square24's Avatar

Join Date: Jan 2004
Posts: 926
Trader Rating: 9 (100%+)
Default

Originally Posted by Thelira View Post
Hello! Bought a Evo 7 recently since I have always wanted to build one. I have a question for folks who have built the kit using stock kits. I am finishing up the oil-filled diff and am having issues screwing the 'top' of the diff housing after I filled the lower with oil. It does not appear to be threaded. Is this normal?
The screw holes on the TB diff cases are not threaded. Before assembling the diff and filling oil, it is recommended that you pre-thread them to make it easier to tighten and ensuring that the screw will go in straight during actual assembly.

However, I have noticed that even after pre-threading the diff cases with the kit supplied M2 screws, during actual assembly the plastic still grips quite strongly onto the screw when I tighten it (it makes a clicking/squeaking sound). I also found that the plastic material around the screw holes (the side facing the internals of the diff) has cracked. This happened in nearly all the holes on 3 of my diffs that I have disassembled to inspect, the diffs have no apparent leakage but I can see a very thin crack when a screw is inserted with the diff case open.

I think this is caused by the small hole from the molding and relatively thinner wall material around the interior side of the screw hole, and when the screw is threaded in it forces the material outwards and cracks at the thinnest part of the wall, which is the part that faces the inside of the case.

I believe drilling the holes out to slightly over the kit diameter will help to relieve the stress that causes the cracking. The recommended drill size for a M2x0.4 screw in plastic is 1.55mm but I have yet to confirm the best bit size for the TB cases as I’m still waiting to get a set of micro drill bits (1.5~2.0 in increments of 0.05mm or less) to test it out. This should also allow a better feel for the tightness of the screw to prevent over tightening and stripping.


Edit: I tried screwing into a new diff case and it still cracks the inside wall, this is even before tightening with the gasket and diff cover so I'm pretty sure it's not an issue of over tightening.
Tom1977 and Thelira like this.
rc_square24 is offline
Old 04-02-2018, 03:28 AM
  #403
Tech Addict

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 569
Default

Have the same issue with the cracked diff housing. Had the same already with my TB04 and Evo6. Does drilling out the holes really help? This will weaken the sidewalls even more...
Tom1977 is offline
Old 04-02-2018, 04:34 AM
  #404
Tech Fanatic
iTrader: (9)

rc_square24's Avatar

Join Date: Jan 2004
Posts: 926
Trader Rating: 9 (100%+)
Default

Originally Posted by Tom1977 View Post
Have the same issue with the cracked diff housing. Had the same already with my TB04 and Evo6. Does drilling out the holes really help? This will weaken the sidewalls even more...
I have yet to try it, but what I mean is that it's not the thickness of the walls are that are causing the cracks, it's cracking there because it's the weakest area (relative to the outside edge). I believe there's enough material to hold the screw once it's tapped on a hole with the right size. The holes need to be slightly larger maybe 0.1mm or 0.15mm max just to relief the tension caused by the bolt. Will report back once I get around doing it, I stalled my build because of this.
Tom1977 likes this.
rc_square24 is offline
Old 04-02-2018, 11:50 AM
  #405
Tech Rookie

Join Date: Apr 2018
Posts: 2
Default

@rc_square24 / Gigaplex - Thank you so much for your quick replies! Will apply a bit more elbow grease when I get off work!
