Old 07-10-2018, 09:45 AM
  #526
Tech Master
iTrader: (20)

Join Date: Sep 2014
Posts: 1,150
Trader Rating: 20 (100%+)
Default

which is what i need. just hoping the car doesnt become too lazy
phatboislim is offline
Reply With Quote
Old 07-17-2018, 07:50 PM
  #527
Regional Moderator
iTrader: (1)

disaster999's Avatar

Join Date: Aug 2001
Location: Hong Kong
Posts: 3,282
Trader Rating: 1 (100%+)
Default

I just got the JP8 and was test fitting it on the car. I had to do a triple take on the label to make sure its 190mm and checked the width with the ruler to make sure it is in fact 190mm. The body looks so much wider than others. Theres a good 1cm gap between the front wheel and the body. I dont remember bodies for other manufactures being this wide for a 190mm car.
disaster999 is offline
Reply With Quote
Old 07-18-2018, 05:06 AM
  #528
Tech Legend
iTrader: (194)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 28,406
Trader Rating: 194 (100%+)
Default

Originally Posted by disaster999 View Post
I just got the JP8 and was test fitting it on the car. I had to do a triple take on the label to make sure its 190mm and checked the width with the ruler to make sure it is in fact 190mm. The body looks so much wider than others. Theres a good 1cm gap between the front wheel and the body. I dont remember bodies for other manufactures being this wide for a 190mm car.

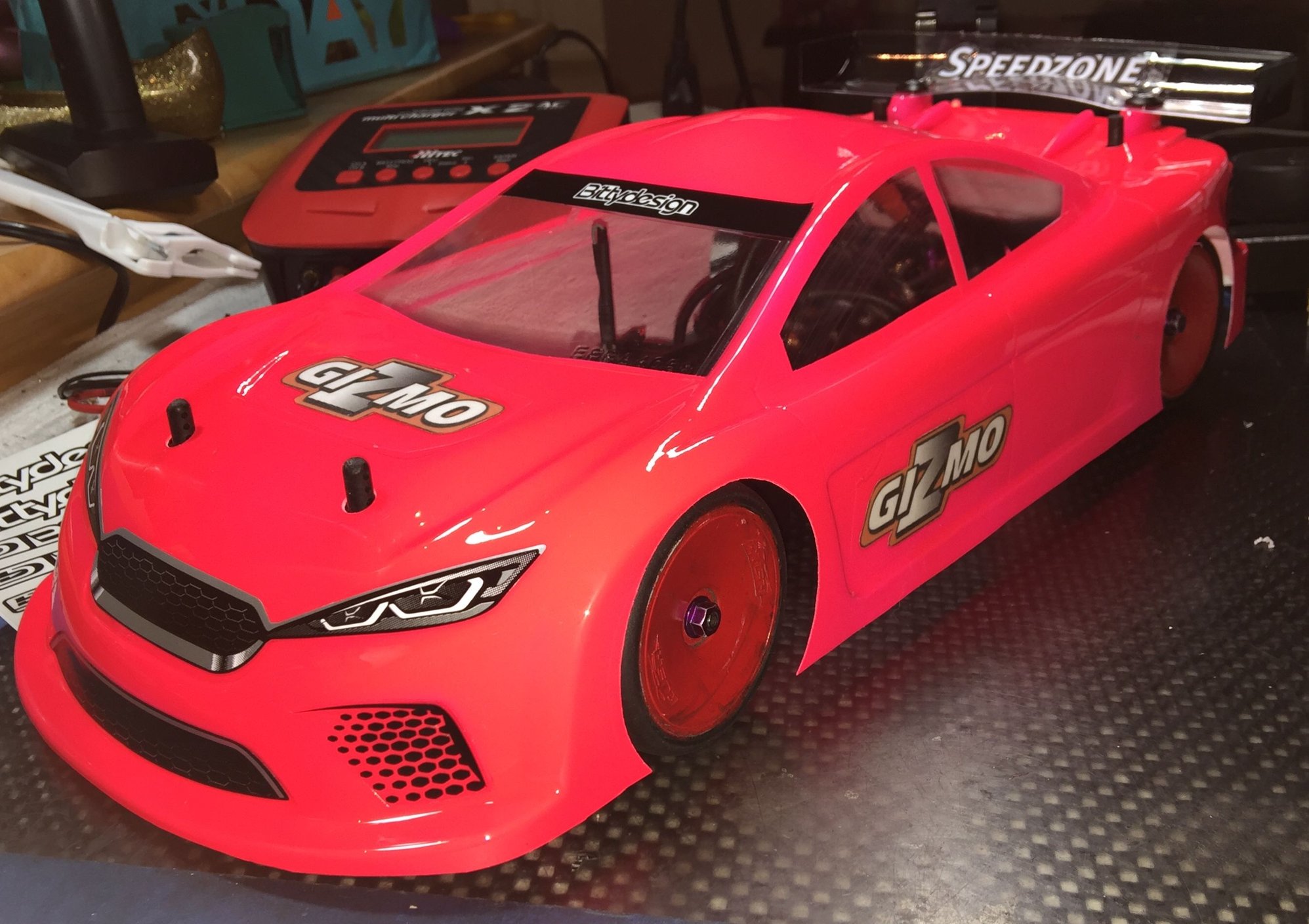

mine looked wide also on my Gizmo but it handles very well
disaster999 likes this.
Marcos.J is offline
Reply With Quote
Old 07-18-2018, 07:42 PM
  #529
Tech Regular
iTrader: (4)

Join Date: Jul 2013
Location: Brisbane
Posts: 485
Trader Rating: 4 (100%+)
Default

Originally Posted by disaster999 View Post
I just got the JP8 and was test fitting it on the car. I had to do a triple take on the label to make sure its 190mm and checked the width with the ruler to make sure it is in fact 190mm. The body looks so much wider than others. Theres a good 1cm gap between the front wheel and the body. I dont remember bodies for other manufactures being this wide for a 190mm car.
The rear wing is very wide too - right on the limit here in Australia. The M410 wing is a bit narrower (6mm from memory). Tuning options if you have one of each!

Scott_T is offline
Reply With Quote
Old 07-18-2018, 07:46 PM
  #530
Regional Moderator
iTrader: (1)

disaster999's Avatar

Join Date: Aug 2001
Location: Hong Kong
Posts: 3,282
Trader Rating: 1 (100%+)
Default

Originally Posted by Marcos.J View Post

mine looked wide also on my Gizmo but it handles very well
Yeah Im planning on running this body on the Gizmo Beta, cant wait to test it out.

Which line do you trim the body to? Im guessing everyone will slam the body as close to the ground as possible right?

Originally Posted by Scott_T View Post
The rear wing is very wide too - right on the limit here in Australia. The M410 wing is a bit narrower (6mm from memory). Tuning options if you have one of each!
I didnt notice the wing difference, but with such a wide car it should have a wider wing as well.
Marcos.J likes this.
disaster999 is offline
Reply With Quote
Old Yesterday, 05:28 AM
  #531
Tech Adept

Bittydesign's Avatar

Join Date: Sep 2008
Location: Italy
Posts: 194
Default

Originally Posted by disaster999 View Post
Yeah Im planning on running this body on the Gizmo Beta, cant wait to test it out.

Which line do you trim the body to? Im guessing everyone will slam the body as close to the ground as possible right?


I didnt notice the wing difference, but with such a wide car it should have a wider wing as well.
Our JP8 body shell measure 194mm wide so it's in line with others manufactures who make bodies at 192-193mm wide; the correct trim is the upper line marked on the front splitter and side skirts, follow this line and after cutting place the body at about 8-9mm height from the ground, this is the perfect setting of the body. We recommend to mount the body forwarded about 8mm, use the lines reported in the centre of the front wheel arch, the longer line is "neutral" position. The JP8 it comes with max whidth wing, if you need more rotation because you feel it's to planted on the back, reduce the wing to 18mm height and mount it more forward on the body.
Bittydesign is offline
Reply With Quote
Old Yesterday, 06:11 AM
  #532
Tech Legend
iTrader: (194)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 28,406
Trader Rating: 194 (100%+)
Default


Originally Posted by disaster999 View Post
Yeah Im planning on running this body on the Gizmo Beta, cant wait to test it out.

Which line do you trim the body to? Im guessing everyone will slam the body as close to the ground as possible right?


I didnt notice the wing difference, but with such a wide car it should have a wider wing as well.
Marcos.J is offline
Reply With Quote
Old Yesterday, 08:55 AM
  #533
Tech Adept
iTrader: (1)

Join Date: Feb 2013
Posts: 176
Trader Rating: 1 (100%+)
Default

Originally Posted by Bittydesign View Post
Our JP8 body shell measure 194mm wide so it's in line with others manufactures who make bodies at 192-193mm wide; the correct trim is the upper line marked on the front splitter and side skirts, follow this line and after cutting place the body at about 8-9mm height from the ground, this is the perfect setting of the body. We recommend to mount the body forwarded about 8mm, use the lines reported in the centre of the front wheel arch, the longer line is "neutral" position. The JP8 it comes with max whidth wing, if you need more rotation because you feel it's to planted on the back, reduce the wing to 18mm height and mount it more forward on the body.
How many mm are each line in the front wheel arch? Would you recommend this same mounting both forward and height for the m410.
fanfor18 is offline
Reply With Quote
Old Yesterday, 10:29 AM
  #534
Tech Adept

Bittydesign's Avatar

Join Date: Sep 2008
Location: Italy
Posts: 194
Default

Originally Posted by fanfor18 View Post
How many mm are each line in the front wheel arch? Would you recommend this same mounting both forward and height for the m410.
Each line is 2mm distance so move the body forward 4 lines to meet the 8mm overall misalignment.

Yes also the M410 need a forward placement to reach the best performance, also in this case use the lines reported in the front whell arch.
Bittydesign is offline
