Awesomatix A800/A800R

03-29-2023, 11:28 AM - Wikipost

R/C Tech ForumsThread Wiki: Awesomatix A800/A800R

Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: hanulec

A800R Released March 23, 2023 with two kit versions, A800RA (alloy) and A800RC (carbon)

Mid Motor Content ---

New Part Releases

January 2020 - A800-AM24-20 Servo Holder - combine servo holder and steering holder to one single part.
February 2020 - A800-ADC Advanced Damper Cup Set - Reduces the amount of rebuild routines. It offers the possibility to A) remove air and B) add oil into the damper without the need of full disassembling
January 2021 - A800-BDL - Body Downtravel Limiter, replaces SPR08
March 2021 - A800-P138LFA - 38T Pully Low Friction - For Gear Diff
March 2021 - A800-P138S-LFA 38T Spool Pulley Low Friction - For Spool
April 2021 - A800-C27MMX - Full Length Top Deck for A800MMX
May 2021 - A800-C01MMA Alloy Chassis - Battery position is shifted to the front to achieve a better overall weight distribution. Removes short arm holes. New narrower shape
September 2021 - A800-C04M1+7.0 Arm - narrows the track width for lower grip levels
October 2021 - AM180EVO Single Bellcrank Steering Update - AM180EVO is a direct replacement for AM180M5

A800MMX and A800MMXA Kit Updates

AM152/AM24-8 is replaced by AM24-20 in this kit (UPDATE 08.03.2021)
P138/P138S is replaced by P138-1/P138S-1 in this kit (UPDATE 25.03.2021)
C01B-X-MMA is replaced by C01MMA in MMXA kit (UPDATE 26.05.2021)
AM180M5 is replaced by AM180EVO in this kit (UPDATE 21.09.2021)

Below OLD Rear Motor Content ---
Welcome - please help to make this Awesomatix A800 wiki useful!

A800 Information

New Parts

June 2016: A800-SPR01-98 - The version of SPR01 springs with reduced angle of the tips bending. Recommended for using with new SPR02H3 Shock Rod Guides.
June 2016: A800-SPR01S-98 - The version of SPR01S springs with reduced angle of the tips bending. Recommended for using with new SPR02H3 Shock Rod Guides.
May / June 2016: A800-AM14A - includes new optional "longer" hole on steering arm
May / June 2016: A700-AM14-3 - removes the prior "longer" hole on steering arm
May / June 2016: A800-C04AL+0.5 - 0.5mm wider alloy suspension arm
May / June 2016: A800-C01B-2.25 - 2.25mm carbon main plate (best suited for asphalt racing)
May / June 2016: A800-D2.2 - Dampers that support a thicker SPR02H3
May / June 2016: A800-SPR02H3 - Thicker Shock Rod Guides for the D2.2 damper
May / June 2016: A800-AT41-2 - Damper vane for the D2.2 damper designed to work w/ SPR02H3
May / June 2016: A800-SPR02H - Stronger Shock Rod Guides for the D2.0 and D2.1 damper versions
May 2016: A800-AM19-4 - Currently used in the rear of a kit. With AM19-4 the top link effective length is 0,7mm shorter compare to AM19-2. Also with AM19-4 the flex of suspension is smaller ( similar to more stiffer arm and c-hub of normal cars). The screws on dampers are more accessible for adjustment.
January 2017 - SPRO2X - new for dampers and do not require a 98 degree bent spring.
January 2017 - New A800X and A800XA kits now available featuring 0.3mm longer front and rear wheelbase.

Kit Updates

May - Current: Kits now including DT10-2-1 bearing holders for increased side play and durability of the differential and spool.
May - July 2016: bearings within kits require oil before use
May / June 2016: C01B-AL (Khaki) Chassis with 0.5mm/side wider front arm mounts
May / June 2016: 2x ST17-1-S replace ST17 - See page 21 of manual
May / June 2016: Updated damper, D2.2, introduced
May / June 2016: Thicker Shock Rod Guides for the D2.2 damper included with kits, A800-SPR02H3
Jan 2016: GD2 Output Axle (ST31-1) update to use blue foam (P46) instead of set screw (used on each side of Axle after assembly)

Setups

Major Race Wins

2016 Reedy Race of Champions - Modified - Julian Wong
2016 Mile High Championship - 17.5 - Kyle Klingforth
2016 Mile High Championship - 13.5 - Kyle Klingforth
2016 ROAR On-Road Carpet Nationals - 17.5 - Mike Gee
2016 ROAR On-Road Carpet Nationals - 13.5 - Mike Gee
2015/6 ETS Season 9 Round 3 - Xray Pro Stock Division - Tony Streit
2015 US Indoor Champs - 13.5 - Mike Gee
2016 Roar On-Road Asphalt Nationals - 13.5 - Mike Gee
2016 Roar On-Road Asphalt Nationals - 17.5 - Sam Isaacs
2016 International Indoor Championships (IIC) - 17.5 - Mike Gee
2016 Halloween Classic at the Gate - 17.5 - Brad Johnson
2016 US Indoor Champs - 17.5 - Sam Isaacs
2016 US Indoor Champs - 13.5 -Matt Lyons
2016 Stock Wars - 17.5 - Mike Gee
2016 Hudy Indoor Championship - 17.5 - Brad Johnson

Reply Subscribe

Thread Tools

Search this Thread

10-01-2015, 03:22 AM

josecarlo1129

Tech Regular

Thread Starter

iTrader: (1)

Join Date: Feb 2012

Location: Las Vegas/ Bahrain

Posts: 437

Trader Rating: 1 (100%+)

Awesomatix A800/A800R

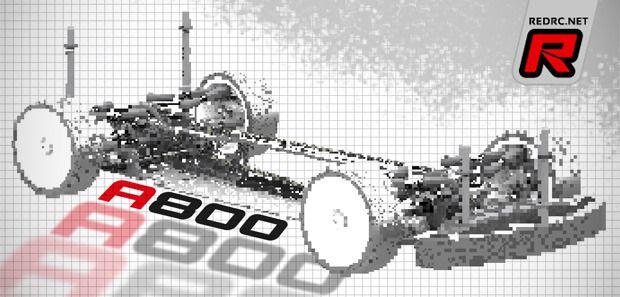

Russian company Awesomatix have released a first teaser for their forthcoming A800 electric touring car. No details on the features or specifications are known yet but the car is meant to perform (even) better while having a lower price tag. It is understood that the kit will hit the stores this October. We bring you more information as we get them.

from Red RC

Lonestar and Merminator like this.

Last edited by josecarlo1129; 10-01-2015 at 03:57 AM.

10-01-2015, 03:28 AM

Gtr r34 m-spec

Tech Regular

iTrader: (29)

Join Date: Mar 2012

Posts: 259

Trader Rating: 29 (100%+)

My guess - belt drive A700 without the floating diffs

10-01-2015, 04:00 AM

josecarlo1129

Tech Regular

Thread Starter

iTrader: (1)

Join Date: Feb 2012

Location: Las Vegas/ Bahrain

Posts: 437

Trader Rating: 1 (100%+)

Ditto.

I think it will belt-driven car, retaining it's AWESOME features. This will surely lead to world domination. Good move, Oleg and to the rest of Awesomatix Team.

I'll gladly grab this on day 1.

10-01-2015, 04:22 AM

XCELL

Tech Regular

iTrader: (10)

Join Date: Jul 2003

Location: Wyoming

Posts: 464

Trader Rating: 10 (100%+)

Finally! Now I just need to get one here before the AOC final.

Patrick

10-01-2015, 04:35 AM

Bar

Tech Addict

iTrader: (1)

Join Date: Aug 2005

Location: UK

Posts: 626

Trader Rating: 1 (100%+)

Are we sure it is going to be a belt car, that's like admitting we got it wrong going shaft drive when all our competitors top spec cars are belt driven!

10-01-2015, 04:38 AM

josecarlo1129

Tech Regular

Thread Starter

iTrader: (1)

Join Date: Feb 2012

Location: Las Vegas/ Bahrain

Posts: 437

Trader Rating: 1 (100%+)

Quote:

Originally Posted by Bar

Are we sure it is going to be a belt car, that's like admitting we got it wrong going shaft drive when all our competitors top spec cars are belt driven!

Not really. Variety is the key here.

10-01-2015, 04:56 AM

2uzferunner03

Tech Regular

Join Date: Jul 2014

Posts: 497

Trader Rating: 0

Looks like maybe a single belt drive. You can certainly see the teeth on the rear gear diff. You can see they're keeping the double wishbone suspension too. They really need to get this thing in the $500 range to compete.

10-01-2015, 05:02 AM

heretic

Tech Master

Join Date: Aug 2006

Location: europe

Posts: 1,110

Trader Rating: 0

10-01-2015, 05:28 AM

daveaustin5

Tech Regular

iTrader: (1)

Join Date: Feb 2007

Location: UK

Posts: 482

Trader Rating: 1 (100%+)

The picture shows a belt drive car. Whether this is done to mislead or not I don't know but there's no way the car in the picture is shaft driven.

10-01-2015, 05:32 AM

#10

howardcano

Tech Elite

iTrader: (37)

Join Date: Jan 2012

Location: Olathe, KS

Posts: 3,784

Trader Rating: 37 (100%+)

Maybe it's a hydraulic drive with accumulator, so the motor can store energy when coasting, to be used for extra oomph under acceleration!

10-01-2015, 05:40 AM

#11

Stogie

Tech Addict

iTrader: (2)

Join Date: Nov 2001

Location: Biggie Shorty style

Posts: 716

Trader Rating: 2 (100%+)

Seems like they should have retained that slick shaft drive system and gearboxes, but simply switched to a typical shock-tower system for suspension. Guess we'll see soon.

10-01-2015, 06:05 AM

#12

Dan

Tech Champion

iTrader: (74)

Join Date: Oct 2001

Posts: 6,134

Trader Rating: 74 (100%+)

Hmm....if belt might be better for mod. Hoping it is still shaft though.

10-01-2015, 06:27 AM

#13

OVA

Tech Lord

iTrader: (86)

Join Date: Dec 2002

Location: WASHINGTON

Posts: 10,160

Trader Rating: 86 (100%+)

Quote:

Originally Posted by Dan

Hmm....if belt might be better for mod. Hoping it is still shaft though.

Yes , it could be for the mod.. Back then I almost brought the Belt drive A700 first generation 600.00..but didnt
I am sure they are going to keep the shaft drive for spec class.
