Awesomatix A800

    Hide Wikipost
Old 12-13-2018, 01:48 PM   -   Wikipost
R/C Tech ForumsThread Wiki: Awesomatix A800
Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: IBxAnders
Welcome - please help to make this Awesomatix A800 wiki useful!

A800 Information
New Parts
  • June 2016: A800-SPR01-98 - The version of SPR01 springs with reduced angle of the tips bending. Recommended for using with new SPR02H3 Shock Rod Guides.
  • June 2016: A800-SPR01S-98 - The version of SPR01S springs with reduced angle of the tips bending. Recommended for using with new SPR02H3 Shock Rod Guides.
  • May / June 2016: A800-AM14A - includes new optional "longer" hole on steering arm
  • May / June 2016: A700-AM14-3 - removes the prior "longer" hole on steering arm
  • May / June 2016: A800-C04AL+0.5 - 0.5mm wider alloy suspension arm
  • May / June 2016: A800-C01B-2.25 - 2.25mm carbon main plate (best suited for asphalt racing)
  • May / June 2016: A800-D2.2 - Dampers that support a thicker SPR02H3
  • May / June 2016: A800-SPR02H3 - Thicker Shock Rod Guides for the D2.2 damper
  • May / June 2016: A800-AT41-2 - Damper vane for the D2.2 damper designed to work w/ SPR02H3
  • May / June 2016: A800-SPR02H - Stronger Shock Rod Guides for the D2.0 and D2.1 damper versions
  • May 2016: A800-AM19-4 - Currently used in the rear of a kit. With AM19-4 the top link effective length is 0,7mm shorter compare to AM19-2. Also with AM19-4 the flex of suspension is smaller ( similar to more stiffer arm and c-hub of normal cars). The screws on dampers are more accessible for adjustment.
  • January 2017 - SPRO2X - new for dampers and do not require a 98 degree bent spring.
  • January 2017 - New A800X and A800XA kits now available featuring 0.3mm longer front and rear wheelbase.
Kit Updates
  • May - Current: Kits now including DT10-2-1 bearing holders for increased side play and durability of the differential and spool.
  • May - July 2016: bearings within kits require oil before use
  • May / June 2016: C01B-AL (Khaki) Chassis with 0.5mm/side wider front arm mounts
  • May / June 2016: 2x ST17-1-S replace ST17 - See page 21 of manual
  • May / June 2016: Updated damper, D2.2, introduced
  • May / June 2016: Thicker Shock Rod Guides for the D2.2 damper included with kits, A800-SPR02H3
  • Jan 2016: GD2 Output Axle (ST31-1) update to use blue foam (P46) instead of set screw (used on each side of Axle after assembly)


Setups
Major Race Wins
  • 2016 Reedy Race of Champions - Modified - Julian Wong
  • 2016 Mile High Championship - 17.5 - Kyle Klingforth
  • 2016 Mile High Championship - 13.5 - Kyle Klingforth
  • 2016 ROAR On-Road Carpet Nationals - 17.5 - Mike Gee
  • 2016 ROAR On-Road Carpet Nationals - 13.5 - Mike Gee
  • 2015/6 ETS Season 9 Round 3 - Xray Pro Stock Division - Tony Streit
  • 2015 US Indoor Champs - 13.5 - Mike Gee
  • 2016 Roar On-Road Asphalt Nationals - 13.5 - Mike Gee
  • 2016 Roar On-Road Asphalt Nationals - 17.5 - Sam Isaacs
  • 2016 International Indoor Championships (IIC) - 17.5 - Mike Gee
  • 2016 Halloween Classic at the Gate - 17.5 - Brad Johnson
  • 2016 US Indoor Champs - 17.5 - Sam Isaacs
  • 2016 US Indoor Champs - 13.5 -Matt Lyons
  • 2016 Stock Wars - 17.5 - Mike Gee
  • 2016 Hudy Indoor Championship - 17.5 - Brad Johnson

Print Wikipost

Reply

Old 10-25-2018, 04:18 PM
  #3451
Super Moderator
iTrader: (201)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 29,169
Trader Rating: 201 (100%+)
Default

Originally Posted by rccartips View Post

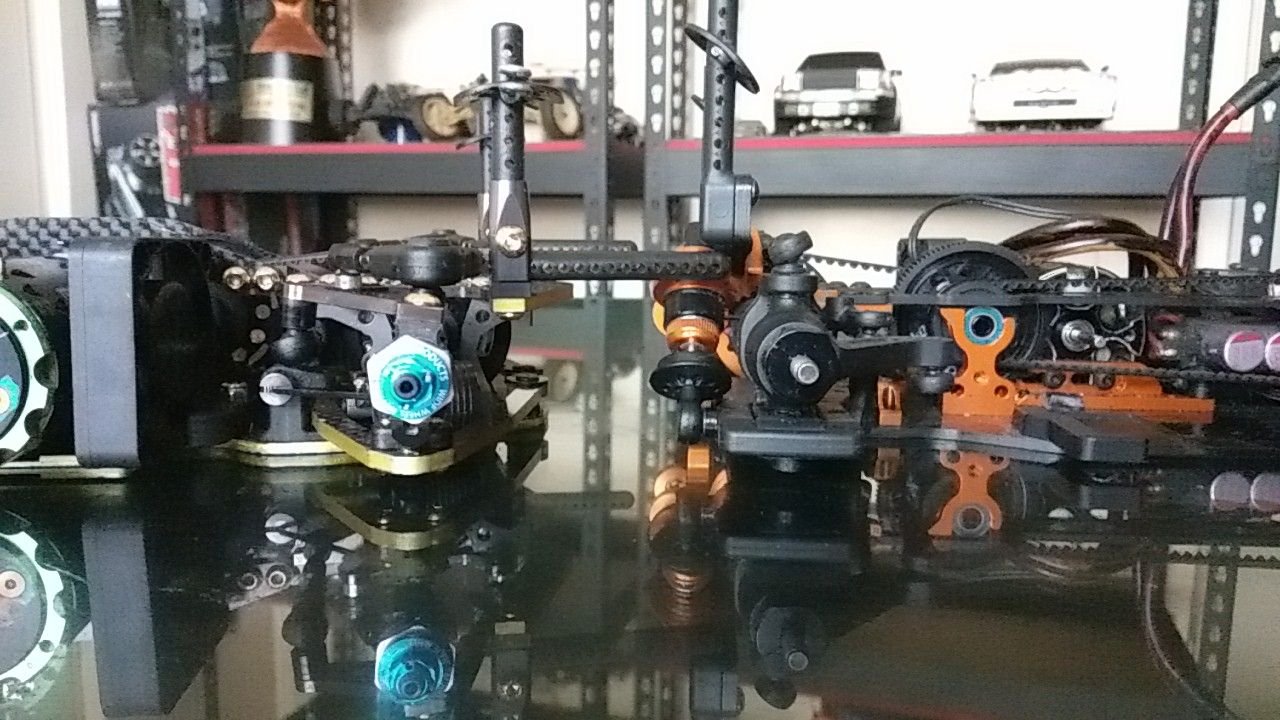

Thanks for the link. Looking at the geometry was thinking positive (lean back) caster introduces non-linear rear toe-in and non-linear camber curves.

1. Will + caster (lean back similar to front) under compression introduce linear or non-linear toe in as spindle moves upward and backward(?) simultaneously and what is the effect?

2. If toe-in rear under compression, will have camber curves similar to steering? If we turn right, the left rear will compress (initiate toe in), but same time the caster will introduce a negative camber to the tire as well while being compressed. Hence ability keep the tire camber relatively flat/stable?

While these may be small, on the track it might be significant tuning aid especially when tire is approaching limit (traction roll or slide)?

Thoughts or on-track experience?



P.S. Someone lent me an Awesomatix. Want to be clear in my mind how to tune rear caster before hitting the track. Thanks.
the toe change under compression is set by the shims on the ARS link
rccartips likes this.
Marcos.J is offline
Reply With Quote
Old 10-25-2018, 04:59 PM
  #3452
Tech Elite
iTrader: (3)

Join Date: Jun 2003
Posts: 4,210
Trader Rating: 3 (100%+)
Default

Originally Posted by Marcos.J View Post
the toe change under compression is set by the shims on the ARS link
Thanks. I'm ok with how to physically set links for toe in/out and adjust wheelbase. Trying to understand the tuning possibilities of rear caster.
With rear caster two planes of tire movement is introduced allowing more tuning possibilities:
1. Camber curve ( with no toe movement)
2. Toe (and scrub)
3. Camber curve (as with toe movement and caster effect)
4. Front to back movement
Surprised the manual only talks about using rear caster for wheelbase adjustment when the tire can move in more planes (and be tuned accordingly).

Last edited by rccartips; 10-25-2018 at 07:29 PM. Reason: spelling
rccartips is offline
Reply With Quote
Old 10-25-2018, 06:16 PM
  #3453
Tech Champion
iTrader: (12)

geeunit1014's Avatar

Join Date: Sep 2005
Location: The dirty burnie
Posts: 5,565
Trader Rating: 12 (100%+)
Default

[QUOTE=rccartips;15323535]Thanks. I'm ok with how to physically set links for toe in/out and adjust wheelbase. Trying to understand the tuning possibilities of rear caster.
With rear caster two planes of tire movement is introduced allowing more tuning possibilities:
1. Camber curve ( with no toe movement)
2. Toe (and scrub)
3. Camber curve (as with toe movement and caster effect)
4. Front to back movement
Surprised the manual only talks about using rear caster for wheelbase adjustment when the tire can move in more planes (an be tuned accordingly).

The main effect felt by the change is wheelbase. The toe is set by the toe link. You need to change the bump toe shims with the caster to hold the same bump toe setting but other than this there is no effect from the caster. There may be other changes but they are negligible compared to wheelbase and the effect is has on the car.

4*of caster is 1mm if wheelbase, and you need 1.75mm of toe shims every 4* to hold the same bump toe setting
rccartips likes this.
geeunit1014 is offline
Reply With Quote
Old 10-25-2018, 06:45 PM
  #3454
Tech Master
iTrader: (4)

Mr. Bubby's Avatar

Join Date: Feb 2005
Posts: 1,134
Trader Rating: 4 (100%+)
Default

[QUOTE=geeunit1014;15323585]
Originally Posted by rccartips View Post
Thanks. I'm ok with how to physically set links for toe in/out and adjust wheelbase. Trying to understand the tuning possibilities of rear caster.
With rear caster two planes of tire movement is introduced allowing more tuning possibilities:
1. Camber curve ( with no toe movement)
2. Toe (and scrub)
3. Camber curve (as with toe movement and caster effect)
4. Front to back movement
Surprised the manual only talks about using rear caster for wheelbase adjustment when the tire can move in more planes (an be tuned accordingly).

The main effect felt by the change is wheelbase. The toe is set by the toe link. You need to change the bump toe shims with the caster to hold the same bump toe setting but other than this there is no effect from the caster. There may be other changes but they are negligible compared to wheelbase and the effect is has on the car.

4*of caster is 1mm if wheelbase, and you need 1.75mm of toe shims every 4* to hold the same bump toe setting
Yup, What he said.
Mr. Bubby is offline
Reply With Quote
Old 10-25-2018, 07:25 PM
  #3455
Tech Elite
iTrader: (3)

Join Date: Jun 2003
Posts: 4,210
Trader Rating: 3 (100%+)
Default

Thanks for the inputs, will keep in mind.

Will just continue to think about it as I remember the Trinity Reflex front suspension (whose benefit was active camber, not wheelbase change). Now that front suspension is on the rear as well, I am exploring possibility that effect is more on camber curves, tire inclination due to caster as it toes in and how it puts pressure on the road, rather than 1mm wheelbase difference.

Again thanks for the inputs. Being RCTECH, just wanted to discuss the technical possibilities of rear caster apart from wheelbase.

Mr. Oleg, hope to hear your thoughts
rccartips is offline
Reply With Quote
Old 10-25-2018, 07:56 PM
  #3456
Tech Initiate
iTrader: (3)

Join Date: Jun 2011
Posts: 34
Trader Rating: 3 (100%+)
Default

How compare with the Xray T4?
fergraz is offline
Reply With Quote
Old 10-25-2018, 08:12 PM
  #3457
OVA
Tech Champion
iTrader: (80)

OVA's Avatar

Join Date: Dec 2002
Location: WASHINGTON
Posts: 9,050
Trader Rating: 80 (100%+)
Default

Originally Posted by fergraz View Post
How compare with the Xray T4?
To comparing TC isn't important , you can take ten person to drive the same car and not everyone going to agree the same answer.. everybody drive different But you have to learn to set up the TC just the way you like or feel perfect for your driving skill
the key is to get your TC adapt to you driving styles
yes some TC can feel different than other...

Last edited by OVA; 10-25-2018 at 08:52 PM.
OVA is offline
Reply With Quote
Old 10-25-2018, 08:54 PM
  #3458
Tech Elite
iTrader: (3)

Join Date: Jun 2003
Posts: 4,210
Trader Rating: 3 (100%+)
Default

Originally Posted by fergraz View Post
How compare with the Xray T4?
For me both are good, but durability (in terms of maintenance) the Awesomatix is better. Xray develops lots of slop after a few races, and with Xray flex chassis (lower cf chassis) as main tuning design, will probably need to replace chassis often or keep changing setup to compensate for the ever degrading Xray chassis. I recall Xray drivers saying they replace chassis every 3 races (but probably every race).

Setup option, Awesomatix also has advantage of triangular upper links. Plus a shock/spring that you can move back/forth to change stiffness rather than replace/test lots of coil springs.
rccartips is offline
Reply With Quote
Old 10-25-2018, 10:14 PM
  #3459
Super Moderator
iTrader: (309)

nexxus's Avatar

Join Date: Dec 2005
Location: Perth, Australia
Posts: 8,449
Trader Rating: 309 (100%+)
Default

The T4 is a great car you can just pick up and run and be competitive, it's tough and parts are everywhere and there is a massive knowledge base for it. The A800X is probably a bit more advanced, needs more work continually and while some say it's more durable, I beg to differ on that, parts are harder to find and far more expensive as well. Noted weak points I have found are carbon arms in general, and the bottom chassis plate is fragile on the back where the AT21 ball stud bolts on for the rear arms, a glancing blow on the back of the chassis and it's not uncommon to just kill a bottom deck as the whole back corner tweaks. (Leverage of the arms on a single point would contribute to this as well)
nexxus is offline
Reply With Quote
Old 10-25-2018, 10:23 PM
  #3460
Tech Initiate
iTrader: (3)

Join Date: Jun 2011
Posts: 34
Trader Rating: 3 (100%+)
Default

Thanks for the answers.
fergraz is offline
Reply With Quote
Old 10-26-2018, 03:49 PM
  #3461
Tech Addict
iTrader: (4)

Blue Sky's Avatar

Join Date: Nov 2002
Location: Bothell, WA
Posts: 683
Trader Rating: 4 (100%+)
Default

All,
I have currently running the A008A and wondering if I can upgrade with the MMCX easily? Thanks.
Blue Sky is offline
Reply With Quote
Old 10-26-2018, 03:54 PM
  #3462
Tech Fanatic
iTrader: (9)

Join Date: Feb 2009
Location: Lynnwood, Washington
Posts: 889
Trader Rating: 9 (100%+)
Default

When will AT55M be available? Seems to be sold out everywhere.
malkiy is offline
Reply With Quote
Old 10-26-2018, 04:19 PM
  #3463
Tech Adept
iTrader: (29)

Zer03's Avatar

Join Date: Jan 2016
Posts: 231
Trader Rating: 29 (100%+)
Default

Originally Posted by EAMotorsports View Post
TWorks makes a titanium set for the A800X that works awesome. They make the 5mm balls in titanium too. I'll have more next week.

EA
ive had two cars both with tworks titanium balls. The 4.8mm ones are great. The 5mm bind the arms up so bad you canít use them. Donít know if I got two bad batches or what. Mike H. said heís aware of it.
Zer03 is offline
Reply With Quote
Old 10-26-2018, 04:44 PM
  #3464
Tech Champion
iTrader: (27)

hanulec's Avatar

Join Date: Sep 2007
Location: @ the post office
Posts: 8,941
Trader Rating: 27 (100%+)
Default

Originally Posted by Blue Sky View Post
All,
I have currently running the A008A and wondering if I can upgrade with the MMCX easily? Thanks.
Easy to do
hanulec is offline
Reply With Quote
Old 10-26-2018, 04:46 PM
  #3465
Tech Champion
iTrader: (27)

hanulec's Avatar

Join Date: Sep 2007
Location: @ the post office
Posts: 8,941
Trader Rating: 27 (100%+)
Default

Originally Posted by Zer03 View Post


ive had two cars both with tworks titanium balls. The 4.8mm ones are great. The 5mm bind the arms up so bad you canít use them. Donít know if I got two bad batches or what. Mike H. said heís aware of it.
Somewhat fake news... I don't know about any twork issue

It's always smart to compare/check ball sizes when changing them. I usually have Bill Sydor verify my balls for me
hanulec is offline
Reply With Quote
