Awesomatix A800

    Hide Wikipost
Old 12-13-2018, 01:48 PM   -   Wikipost
R/C Tech ForumsThread Wiki: Awesomatix A800
Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: IBxAnders
Welcome - please help to make this Awesomatix A800 wiki useful!

A800 Information
New Parts
  • June 2016: A800-SPR01-98 - The version of SPR01 springs with reduced angle of the tips bending. Recommended for using with new SPR02H3 Shock Rod Guides.
  • June 2016: A800-SPR01S-98 - The version of SPR01S springs with reduced angle of the tips bending. Recommended for using with new SPR02H3 Shock Rod Guides.
  • May / June 2016: A800-AM14A - includes new optional "longer" hole on steering arm
  • May / June 2016: A700-AM14-3 - removes the prior "longer" hole on steering arm
  • May / June 2016: A800-C04AL+0.5 - 0.5mm wider alloy suspension arm
  • May / June 2016: A800-C01B-2.25 - 2.25mm carbon main plate (best suited for asphalt racing)
  • May / June 2016: A800-D2.2 - Dampers that support a thicker SPR02H3
  • May / June 2016: A800-SPR02H3 - Thicker Shock Rod Guides for the D2.2 damper
  • May / June 2016: A800-AT41-2 - Damper vane for the D2.2 damper designed to work w/ SPR02H3
  • May / June 2016: A800-SPR02H - Stronger Shock Rod Guides for the D2.0 and D2.1 damper versions
  • May 2016: A800-AM19-4 - Currently used in the rear of a kit. With AM19-4 the top link effective length is 0,7mm shorter compare to AM19-2. Also with AM19-4 the flex of suspension is smaller ( similar to more stiffer arm and c-hub of normal cars). The screws on dampers are more accessible for adjustment.
  • January 2017 - SPRO2X - new for dampers and do not require a 98 degree bent spring.
  • January 2017 - New A800X and A800XA kits now available featuring 0.3mm longer front and rear wheelbase.
Kit Updates
  • May - Current: Kits now including DT10-2-1 bearing holders for increased side play and durability of the differential and spool.
  • May - July 2016: bearings within kits require oil before use
  • May / June 2016: C01B-AL (Khaki) Chassis with 0.5mm/side wider front arm mounts
  • May / June 2016: 2x ST17-1-S replace ST17 - See page 21 of manual
  • May / June 2016: Updated damper, D2.2, introduced
  • May / June 2016: Thicker Shock Rod Guides for the D2.2 damper included with kits, A800-SPR02H3
  • Jan 2016: GD2 Output Axle (ST31-1) update to use blue foam (P46) instead of set screw (used on each side of Axle after assembly)


Setups
Major Race Wins
  • 2016 Reedy Race of Champions - Modified - Julian Wong
  • 2016 Mile High Championship - 17.5 - Kyle Klingforth
  • 2016 Mile High Championship - 13.5 - Kyle Klingforth
  • 2016 ROAR On-Road Carpet Nationals - 17.5 - Mike Gee
  • 2016 ROAR On-Road Carpet Nationals - 13.5 - Mike Gee
  • 2015/6 ETS Season 9 Round 3 - Xray Pro Stock Division - Tony Streit
  • 2015 US Indoor Champs - 13.5 - Mike Gee
  • 2016 Roar On-Road Asphalt Nationals - 13.5 - Mike Gee
  • 2016 Roar On-Road Asphalt Nationals - 17.5 - Sam Isaacs
  • 2016 International Indoor Championships (IIC) - 17.5 - Mike Gee
  • 2016 Halloween Classic at the Gate - 17.5 - Brad Johnson
  • 2016 US Indoor Champs - 17.5 - Sam Isaacs
  • 2016 US Indoor Champs - 13.5 -Matt Lyons
  • 2016 Stock Wars - 17.5 - Mike Gee
  • 2016 Hudy Indoor Championship - 17.5 - Brad Johnson

Print Wikipost

Reply

Old 08-17-2018, 06:03 PM
  #3256
Super Moderator
iTrader: (205)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 29,897
Trader Rating: 205 (100%+)
Default

Originally Posted by bertrandsv87 View Post
Nice......Battery wires could have been much shorter by turning the battery around the other way...Good luck...
the + and - side is the lighter side of the battery
Marcos.J is offline
Reply With Quote
Old 08-17-2018, 06:48 PM
  #3257
Tech Champion
iTrader: (1)

Join Date: Feb 2011
Posts: 6,859
Trader Rating: 1 (100%+)
Default

That's the side you want facing the rear of the car to move the weight forward. That would have saved a good 20 grams of wires high on top of the battery that can be moved down to chassis level to lower the CG...That's about 0.2sec per lap right there on top of the other 0.4sec per lap he could have gained by running a 2.5t , 3.5t or brushed Fantom motor.....lol...
bertrandsv87 is online now
Reply With Quote
Old 08-17-2018, 06:54 PM
  #3258
Tech Elite
iTrader: (2)

gigaplex's Avatar

Join Date: Dec 2015
Location: Melbourne, VIC
Posts: 2,537
Trader Rating: 2 (100%+)
Default

Originally Posted by bertrandsv87 View Post
That's the side you want facing the rear of the car to move the weight forward. That would have saved a good 20 grams of wires high on top of the battery that can be moved down to chassis level to lower the CG...That's about 0.2sec per lap right there on top of the other 0.4sec per lap he could have gained by running a 2.5t , 3.5t or brushed Fantom motor.....lol...
I don't know if you've noticed, but the motor is quite a bit further forward than normal. And that length of wire is not an additional 20g, more like 5g.
Marcos.J likes this.
gigaplex is offline
Reply With Quote
Old 08-17-2018, 10:18 PM
  #3259
Tech Champion
iTrader: (1)

Join Date: Feb 2011
Posts: 6,859
Trader Rating: 1 (100%+)
Default

I really doubt that two 137mm long pieces of 12gauge wire only weigh 5grams....
bertrandsv87 is online now
Reply With Quote
Old 08-17-2018, 11:45 PM
  #3260
OVA
Tech Champion
iTrader: (80)

OVA's Avatar

Join Date: Dec 2002
Location: WASHINGTON
Posts: 9,182
Trader Rating: 80 (100%+)
Default

Originally Posted by bertrandsv87 View Post
That's the side you want facing the rear of the car to move the weight forward. That would have saved a good 20 grams of wires high on top of the battery that can be moved down to chassis level to lower the CG...That's about 0.2sec per lap right there on top of the other 0.4sec per lap he could have gained by running a 2.5t , 3.5t or brushed Fantom motor.....lol...
it is pass your bed time Bert...
Marcos.J likes this.
OVA is offline
Reply With Quote
Old 08-18-2018, 05:53 AM
  #3261
Tech Fanatic

Join Date: Sep 2006
Posts: 807
Default

Originally Posted by hanulec View Post
I suspect more people will want MMCX conversions Oleg
Round 1 went amazingly well!
On the way.
iTz Nicholas72 and skyball like this.
Oleg Babich is offline
Reply With Quote
Old 08-19-2018, 11:47 PM
  #3262
Tech Rookie

Join Date: Mar 2012
Location: Cologne
Posts: 13
Default

Originally Posted by Oleg Babich View Post
On the way.
Oleg,are there Plans to make complete MMCX Mid Motor Car Kit?
So,a complete Car?

I ask beacause i would like to buy a second car next to our A800X.
tbrymer likes this.
MKAH is offline
Reply With Quote
Old 08-21-2018, 01:48 PM
  #3263
Tech Initiate
iTrader: (2)

Join Date: May 2011
Posts: 29
Trader Rating: 2 (100%+)
Default

I recently got two A800X cars for asphalt 17.5 and 21.5. I need help on understanding the effect of different settings other than the standard camber, caster, toe, height, droop, damper and spring rate. There are a bunch of shim settings on the setup sheets that I need to understand it’s effect. Can someone help with a brief explanation or point me in the right direction. I’m currently copying the settings from someone else but it doesn’t really help since We all drive differently.
ears4fear is offline
Reply With Quote
Old 08-21-2018, 01:59 PM
  #3264
Super Moderator
iTrader: (205)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 29,897
Trader Rating: 205 (100%+)
Default

Originally Posted by ears4fear View Post
I recently got two A800X cars for asphalt 17.5 and 21.5. I need help on understanding the effect of different settings other than the standard camber, caster, toe, height, droop, damper and spring rate. There are a bunch of shim settings on the setup sheets that I need to understand itís effect. Can someone help with a brief explanation or point me in the right direction. Iím currently copying the settings from someone else but it doesnít really help since We all drive differently.
look here there is a ton of information under "tips and tricks"

Awesomatix A800 & A800X Setup Sheets
Marcos.J is offline
Reply With Quote
Old 08-22-2018, 05:22 AM
  #3265
Tech Master
iTrader: (19)

Join Date: Apr 2010
Posts: 1,975
Trader Rating: 19 (100%+)
Default



My year and a half old XA chassis is slightly tweaked. Was going to get an XAH because I just run 17.5TC on black carpet. Debating getting the XA-LA now...
iTz Nicholas72 is offline
Reply With Quote
Old 08-22-2018, 07:03 AM
  #3266
Tech Initiate
iTrader: (1)

Join Date: Jul 2011
Posts: 23
Trader Rating: 1 (100%+)
Default

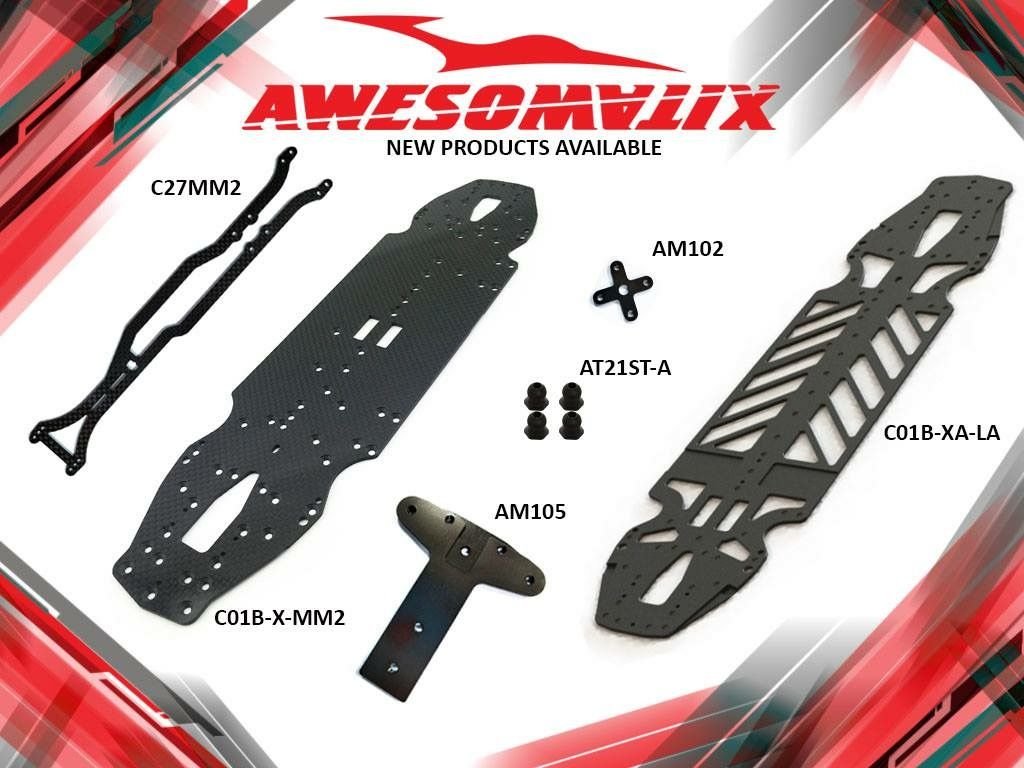

Hi guys, where did this picture of new upcoming parts come from ?
I don't really know where to find the officiel information (news) about the car, the website is almost dead since 5 years, awesomatix usa look like a shop / forum but do not publish all the news...

any idea ?
antho2b is offline
Reply With Quote
Old 08-22-2018, 07:04 AM
  #3267
Tech Initiate
iTrader: (1)

Join Date: Jul 2011
Posts: 23
Trader Rating: 1 (100%+)
Default

by the way, any idea where I can find a mid motor upgrade kit ?
antho2b is offline
Reply With Quote
Old 08-22-2018, 07:24 AM
  #3268
Tech Champion
iTrader: (12)

geeunit1014's Avatar

Join Date: Sep 2005
Location: The dirty burnie
Posts: 5,583
Trader Rating: 12 (100%+)
Default


Originally Posted by antho2b View Post
Hi guys, where did this picture of new upcoming parts come from ?
I don't really know where to find the officiel information (news) about the car, the website is almost dead since 5 years, awesomatix usa look like a shop / forum but do not publish all the news...

any idea ?
Most news is coming from the Awesomatix Facebook page now
geeunit1014 is offline
Reply With Quote
Old 08-22-2018, 01:23 PM
  #3269
Tech Elite
iTrader: (8)

dawgmeat's Avatar

Join Date: Apr 2004
Location: Jacksonville, FL
Posts: 2,589
Trader Rating: 8 (100%+)
Default

Any plans to update the setup sheets with all these new changes
dawgmeat is offline
Reply With Quote
Old 08-22-2018, 01:26 PM
  #3270
R/C Tech Elite Member
iTrader: (27)

hanulec's Avatar

Join Date: Sep 2007
Location: @ the post office
Posts: 9,058
Trader Rating: 27 (100%+)
Default

Originally Posted by antho2b View Post
by the way, any idea where I can find a mid motor upgrade kit ?
a second edition of the MMCX has just been released. distributors have ordered... and should be getting them in the next week
iTz Nicholas72 likes this.
hanulec is offline
Reply With Quote
