Old 10-09-2018, 12:38 PM
  #4126
Tech Fanatic
iTrader: (2)

nubs's Avatar

Join Date: Mar 2016
Location: Tracy, CA
Posts: 871
Trader Rating: 2 (100%+)
Default

I know that a lot of people are saying use one size shim versus another. At the end of the day, the correct shim to use is the one that provide the least amount of slop while not creating too much friction. In otherwords, you need to pay attention when you are sliding the pin into the rear of the outdrive. Do you notice any space between the shim and the pin? If so, increase the shim size. With the new shim, does the outdrive and the diff housing spin independently? If so you are good. If not you need to reduce the shim shize and use a larger o ring. Its all about the balance between slop and free action.
airbiscuit likes this.
nubs is offline
Reply With Quote
Old 10-09-2018, 01:17 PM
  #4127
Tech Regular

Tom1977's Avatar

Join Date: Jun 2016
Location: Munich
Posts: 376
Default

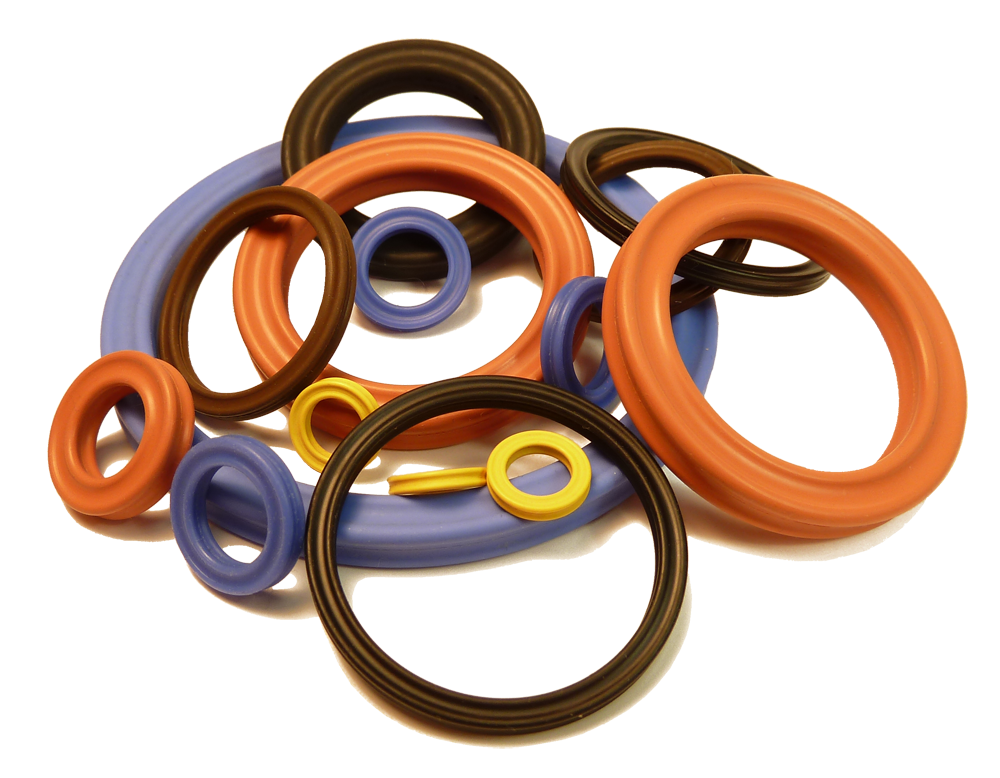

Tamiya should bring out a blue X-ring for the diffs. Like the blue TRF X-rings for dampers. The sealing area with those rings is bigger than with conventional o-rings and you can squeeze them with a shim without increasing friction.

And X-rings are definitely better for rotating parts, like in real cars.

Last edited by Tom1977; 10-09-2018 at 01:38 PM.
Tom1977 is online now
Reply With Quote
Old 10-10-2018, 06:25 AM
  #4128
Tech Adept

Join Date: Nov 2017
Posts: 103
Default

Setup question :

My car seems to push during corner entry then it will turn into the corner.

Advice on how to remedy this?
airbiscuit is offline
Reply With Quote
Old 10-10-2018, 06:01 PM
  #4129
Tech Elite
iTrader: (60)

Raman's Avatar

Join Date: Aug 2007
Location: Las Vegas
Posts: 3,479
Trader Rating: 60 (100%+)
Default

Originally Posted by airbiscuit View Post
Setup question :

My car seems to push during corner entry then it will turn into the corner.

Advice on how to remedy this?
hard to say without knowing your set up.

any of the following could help..
1. Increase droop in front
2. Stand up shocks in front
3. Increase steering dual rate.. 2 points at a time
4. Increase front camber 0.5į
5. Lower front roll centre by using shorter camber link spacer
airbiscuit likes this.
Raman is offline
Reply With Quote
Old 10-10-2018, 10:40 PM
  #4130
Tech Adept

Join Date: Nov 2017
Posts: 103
Default

Originally Posted by Raman View Post


hard to say without knowing your set up.

any of the following could help..
1. Increase droop in front
2. Stand up shocks in front
3. Increase steering dual rate.. 2 points at a time
4. Increase front camber 0.5į
5. Lower front roll centre by using shorter camber link spacer
Just what I need. Things that can be done quickly while out on the track.

Thanks!
airbiscuit is offline
Reply With Quote
Old 10-11-2018, 07:14 PM
  #4131
Tech Elite
iTrader: (60)

Raman's Avatar

Join Date: Aug 2007
Location: Las Vegas
Posts: 3,479
Trader Rating: 60 (100%+)
Default

the new BD9 now has roll bars with bearing support.. so Tamiya wasnít the last one to join the party! TC 7 still doesnít have it
Raman is offline
Reply With Quote
Old 10-14-2018, 08:39 AM
  #4132
OSS
Tech Initiate

Join Date: Oct 2016
Posts: 23
Default

How much difference is there in the new steer rack? Is the amount of play reduced enough to make it worth the upgrade?
OSS is offline
Reply With Quote
Old 10-14-2018, 12:27 PM
  #4133
Tech Master

Join Date: Jun 2008
Location: santa monica / manchester
Posts: 1,316
Default

Iím not aware of any new steering rack. Itís been the same since the 419
Qatmix is offline
Reply With Quote
Old 10-14-2018, 12:37 PM
  #4134
Tech Adept

Marcika's Avatar

Join Date: Sep 2013
Location: Hungary
Posts: 172
Default

Hi all, in case you are interested contact me. Cheers, Marton

https://www.rctech.net/forum/r-c-ite...l#post15316830
Marcika is offline
Reply With Quote
Old 10-16-2018, 11:48 AM
  #4135
Tech Apprentice

sakaguchinet's Avatar

Join Date: Sep 2005
Location: Gruendau, Germany
Posts: 85
Default

Hi Folks,

long time no see in this Forum...

I finally made it to prepare a video, which I have shared on Youtube related to Tamiya Suspension Mounts. Despite the voice is in german I have added some english subtitles. Depending on the feedback, I am also thinking about to make more videos in english with german subtitles, as this would reach much more TRF racers around the globe.

rccartips, Qatmix, elbicho and 3 others like this.
sakaguchinet is offline
Reply With Quote
Old 10-18-2018, 10:45 AM
  #4136
Tech Adept

Join Date: Feb 2017
Location: Kirkland, WA
Posts: 103
Default

I just switched to the aluminum diff cover and got the diff shims.....NO MORE LEAKING DIFF! Oh happy day!!!! I was having to rebuild my car after each race before
airbiscuit likes this.
Nortran11 is offline
Reply With Quote
Old 10-18-2018, 11:44 AM
  #4137
Tech Fanatic
iTrader: (2)

nubs's Avatar

Join Date: Mar 2016
Location: Tracy, CA
Posts: 871
Trader Rating: 2 (100%+)
Default

Originally Posted by Nortran11 View Post
I just switched to the aluminum diff cover and got the diff shims.....NO MORE LEAKING DIFF! Oh happy day!!!! I was having to rebuild my car after each race before
Glad to hear that!
nubs is offline
Reply With Quote
Old 10-18-2018, 06:19 PM
  #4138
Regional Moderator
iTrader: (1)

disaster999's Avatar

Join Date: Aug 2001
Location: Hong Kong
Posts: 3,350
Trader Rating: 1 (100%+)
Default

I was only able to get 1 run before the rain came in, but Im happy to say there wasnt any leaks from the aluminum diff as well
disaster999 is offline
Reply With Quote
Old 10-19-2018, 08:54 AM
  #4139
Tech Master
iTrader: (31)

Join Date: Jul 2006
Location: La Mirada, CA
Posts: 1,073
Trader Rating: 31 (100%+)
Default

I finally ordered a couple aluminum diff halves from overseas. I was waiting for Tamiya America, but who knows when they will stock them. I'll be on the stock plastic another weekend until they come in, but can't wait to try them and see if I notice any on-track difference.
- Jose
ittjv is offline
Reply With Quote
Old 10-19-2018, 06:27 PM
  #4140
Tech Adept

Join Date: Nov 2017
Posts: 103
Default

Originally Posted by ittjv View Post
I finally ordered a couple aluminum diff halves from overseas. I was waiting for Tamiya America, but who knows when they will stock them. I'll be on the stock plastic another weekend until they come in, but can't wait to try them and see if I notice any on-track difference.
- Jose
Which website did you ordered yours from?
airbiscuit is offline
Reply With Quote
