Speed Passion F1 car - The SP1

Like Tree4Likes

Speed Passion F1 car - The SP1

Reply

Old 03-13-2013, 10:03 AM
  #1
Tech Champion
Thread Starter
iTrader: (16)

Join Date: Sep 2002
Location: Chicago Illinois USA
Posts: 9,134
Trader Rating: 16 (100%+)
Default Speed Passion F1 car - The SP1

Speed Passion brand new F1 car - The SP1

1/10 SP1 F1 chassis specification

Overall Length: 328mm
Overall Width: Front width 185-200mm (190mm US spec)
Rear width 185-200mm (190mm US spec)
Wheelbase length: 270mm
Weigh(fully equipped): 1165g





























Solara is offline
Reply With Quote
Old 03-13-2013, 10:12 AM
  #2
Tech Adept

Join Date: May 2010
Posts: 121
Default

Looks like a sweet kit! Unfortunately F1 isn't that big in Sweden ATM.. But it would look nice on my shelf....
Gillblade is offline
Reply With Quote
Old 03-13-2013, 10:12 AM
  #3
Tech Master

Join Date: Jul 2011
Location: Kaohsiung City, Taiwan
Posts: 1,571
Default

Nice!
JiuHaWong is offline
Reply With Quote
Old 03-13-2013, 10:20 AM
  #4
Tech Champion
Thread Starter
iTrader: (16)

Join Date: Sep 2002
Location: Chicago Illinois USA
Posts: 9,134
Trader Rating: 16 (100%+)
Default

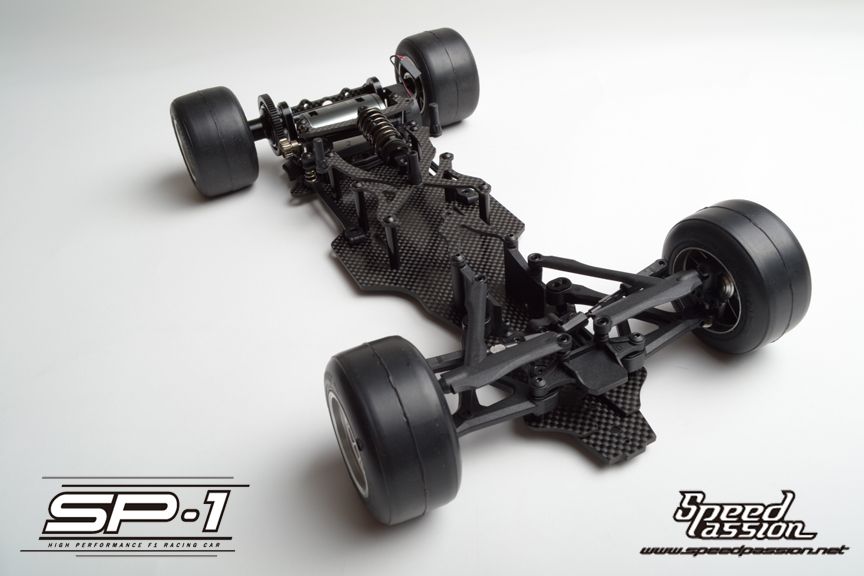

Speed Passion Brand new F1 chassis - The SP-1 F1 1/10 F1 Pro Kit

Speed Passion introduces the SP-1 F1 1/10th scale chassis, an innovative and unique F1 chassis that is the result of creative design and development.

Similar to full size F1 cars, the SP-1 F1 1/10th scale chassis utilizes a high quality 3mm streamlined carbon fiber lower chassis, a 2mm upper deck, and lightweight 7075 aircraft grade aluminum. Chassis stiffness can also be fine tuned using 6 chassis spacers depending on track conditions. Aluminum components, such as the rear pod and center shock are anodized with a stealth black finish. The SP-1 F1 1/10th scale chassis also allows different lipo battery positions and configurations. The SP-1 can fit regular size 2 cells lipo battery or the shorty 2 cell lipo packs. The SP-1 F1 1/10th scale chassis represents Speed Passion’s high quality standards on and off the track as racers can put the chassis’ craftsmanship and attention to detail on display.

The SP-1 F1 1/10th scale chassis was designed with a precision balanced rear motor pod. The rear motor pod design ensures allow precise control and balance when entering and exiting corners which allows drivers to easily carve the fastest line around the track. The rear differential utilizes high quality pressure plates along with 12 carbide differential balls for smooth differential action.

The SP-1 F1 1/10th scale chassis suspension is designed with an innovative dual bellcrank steering system that allows the Ackerman to be fine tuned for precision control. The suspension also allows for infinite camber adjustment and 5° and 10° caster blocks for any type of track condition, indoor or outdoor, carpet or asphalt. Optional front springs can be quickly changed as track conditions change. The adjustable track width (front and rear) allows the SP-1 F1 1/10th scale chassis to adapt to the various F1 racing specification throughout the world. The track width can be adjusted to 190mm and lower with rubber tires and can be adjusted to 200mm when using foam tires. With optional parts, the track width can be adjusted the F1 world spec of 185mm. The SP-1 F1 1/10th scale chassis can adapt to various aftermarket foam or rubber tires.

The SP-1 F1 1/10th scale chassis is designed with a centrally located, large volume shock that is attached to a carbon fiber mounting plate. The result of is stability and traction on high speed track sections and total control in small, tight, sections. These characteristics are not easily found on today’s crop of F1 chassis’.

The SP-1 F1 1/10th scale chassis includes multiple medium and high downforce front and rear wings, made from high quality lexan. The structure for the wings are made from durable FRP material to prevent any sort of tweaking which would affect the downforce.
The adjustable rear wing has been designed to provide balanced and stable high and low speed cornering.

High quality option parts for the SP-1 F1 1/10th scale chassis include a full aluminum motor pod, various shores of foam and rubber tires, aluminum preset camber blocks ranging from 0° to -2.5°, and aluminum caster blocks in multiple angles.

Debuting @ Thailand TITC last month....along with the upcoming Speed Passion LM-F Prototype....







Solara is offline
Reply With Quote
Old 03-13-2013, 10:24 AM
  #5
Tech Champion
Thread Starter
iTrader: (16)

Join Date: Sep 2002
Location: Chicago Illinois USA
Posts: 9,134
Trader Rating: 16 (100%+)
Default

Prototype testing and racing by Futaba's own Hideo Kitazawa, TQ & Win the UF1 Round 6 by Speed Passion SP-1 F1 prototype chassis.



Video provided by TQ RC RACING....(Thank you...)

+ YouTube Video
ERROR: If you can see this, then YouTube is down or you don't have Flash installed.


Cover on the Japan RC Magazine last month with the Speed Pasion P68 body....



Solara is offline
Reply With Quote
Old 03-13-2013, 10:29 AM
  #6
Tech Master

Join Date: Jul 2011
Location: Kaohsiung City, Taiwan
Posts: 1,571
Default

Hey Solara,

Any way to see how the servo is mounted in the front to the bellcrank?
JiuHaWong is offline
Reply With Quote
Old 03-13-2013, 10:29 AM
  #7
Tech Champion
Thread Starter
iTrader: (16)

Join Date: Sep 2002
Location: Chicago Illinois USA
Posts: 9,134
Trader Rating: 16 (100%+)
Default

Speed Passion brand new F1 kit - THE SP 1 (pre-order special link below)...ETA delivery early April 2013.

http://www.speedpassion.net/us/sp1f1.asp

Solara is offline
Reply With Quote
Old 03-13-2013, 10:33 AM
  #8
Tech Champion
Thread Starter
iTrader: (16)

Join Date: Sep 2002
Location: Chicago Illinois USA
Posts: 9,134
Trader Rating: 16 (100%+)
Default

Originally Posted by JiuHaWong View Post
Hey Solara,

Any way to see how the servo is mounted in the front to the bellcrank?
There you go...and you can do the servo horn on TOP mounting without using the bell crank like the F104 does...

Solara is offline
Reply With Quote
Old 03-13-2013, 10:58 AM
  #9
Tech Addict
iTrader: (68)

Jim Frahm's Avatar

Join Date: Oct 2007
Location: Spokane, WA
Posts: 545
Trader Rating: 68 (100%+)
Default

I want one and we don't even run F1 at our club.

Nice looking ride.

JSF
Jim Frahm is offline
Reply With Quote
Old 03-13-2013, 11:25 AM
  #10
Tech Fanatic
iTrader: (29)

Join Date: Aug 2011
Location: Bourbonnais, IL
Posts: 760
Trader Rating: 29 (100%+)
Default

Just put my pre-order in. I can't wait this thing looks ridiculous!
Walkman is offline
Reply With Quote
Old 03-13-2013, 12:41 PM
  #11
Tech Elite
iTrader: (9)

Rick Vessell's Avatar

Join Date: Jan 2002
Location: Mars
Posts: 2,319
Trader Rating: 9 (100%+)
Default

Howard,

You have my address. I expect one in my mailbox when they land.

Rick Vessell is offline
Reply With Quote
Old 03-13-2013, 12:46 PM
  #12
Tech Master
iTrader: (9)

IndyRC_Racer's Avatar

Join Date: Jul 2006
Location: Indianapolis
Posts: 1,831
Trader Rating: 9 (100%+)
Default

Ahh, a proper way to let the world know about a new product. I do have a few questions.

- Is Speed Passion offering their own body shell for their F1 car?

- Does Speed Passion have their own wheels for their F1 car?
IndyRC_Racer is offline
Reply With Quote
Old 03-13-2013, 01:04 PM
  #13
Tech Champion
iTrader: (22)

robk's Avatar

Join Date: Aug 2001
Location: Macho Business Donkey Wrestler
Posts: 7,677
Trader Rating: 22 (100%+)
Default

Speed Passion does offer a body shell, with four different noses to replicate your favorite car...
robk is offline
Reply With Quote
Old 03-13-2013, 01:20 PM
  #14
Tech Champion
Thread Starter
iTrader: (16)

Join Date: Sep 2002
Location: Chicago Illinois USA
Posts: 9,134
Trader Rating: 16 (100%+)
Default

Originally Posted by IndyRC_Racer View Post
Ahh, a proper way to let the world know about a new product. I do have a few questions.

- Is Speed Passion offering their own body shell for their F1 car?

- Does Speed Passion have their own wheels for their F1 car?
Yes...it is called F68. And the old school SP-Mark 1

http://www.speedpassion.net/us/produ...79&c=BODYSHELL

http://www.speedpassion.net/us/produ...73&c=BODYSHELL

And also yes, Speed Passion will release the RTR version of this F1 and it will came with its own tires.....but meanwhile for the PRO kit, this chassis will fit all the major brand of F1 tires...I strongly prefer the PARDUS tires that used on UF1 and IIC. TQ RC Racing and F1Paintlab webshop

http://f1paintlab.mybigcommerce.com/...g-fgx-hpi-f10/

http://www.tqrcracing.com/shop/product_view.asp
Solara is offline
Reply With Quote
Old 03-13-2013, 01:22 PM
  #15
Tech Champion
Thread Starter
iTrader: (16)

Join Date: Sep 2002
Location: Chicago Illinois USA
Posts: 9,134
Trader Rating: 16 (100%+)
Default

Originally Posted by Rick Vessell View Post
Howard,

You have my address. I expect one in my mailbox when they land.

You hold on....or take a number. LeMan is what you need to get, to match your avator...
Solara is offline
Reply With Quote
