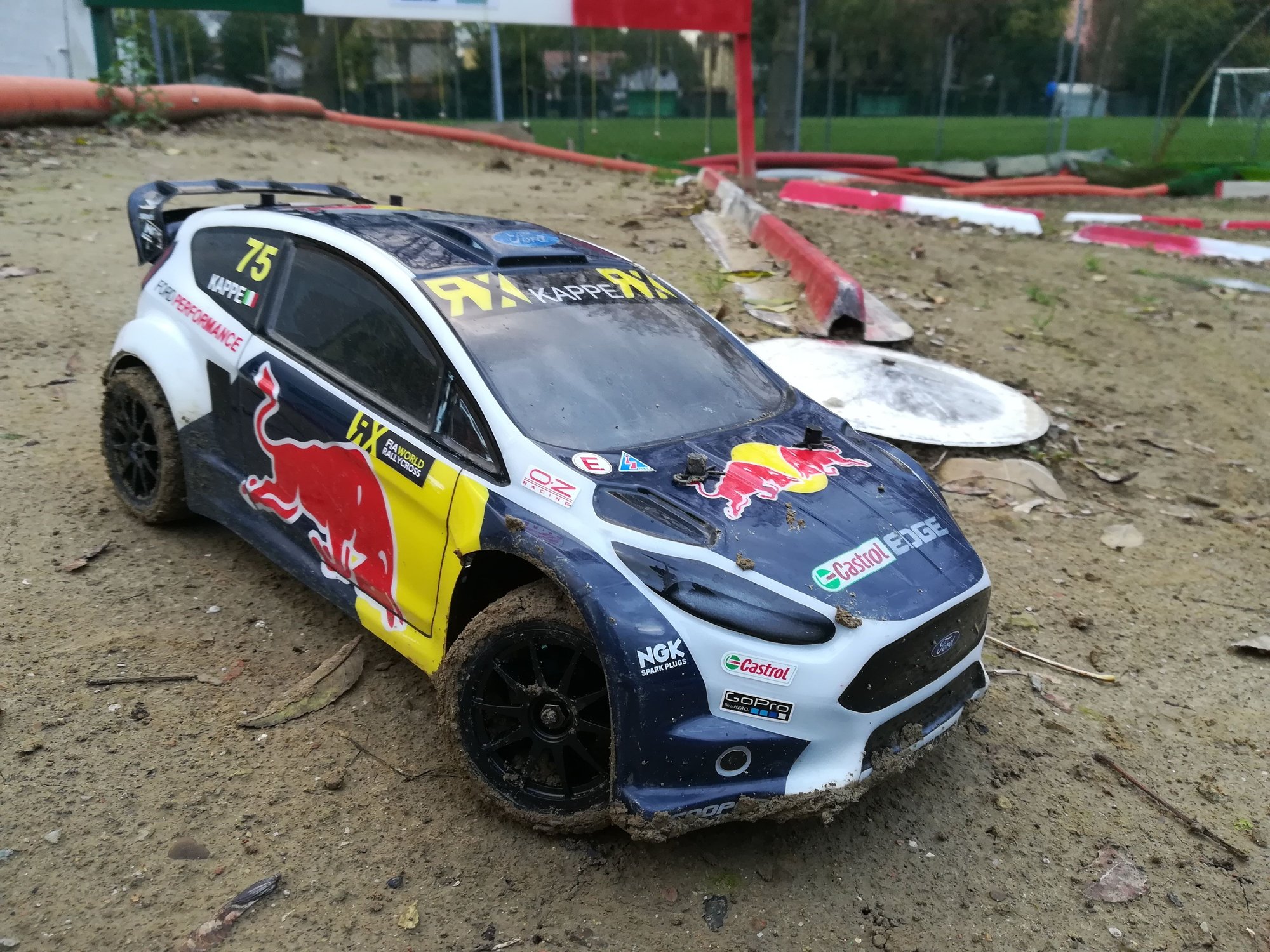

My XV01 "Evo"



lagcisco and Nicadrauspro4 like this.

Last edited by Kappe; 02-10-2019 at 07:55 AM. Reason: My XV01 "Evo"
Kappe is offline
Reply With Quote
Old 02-11-2019, 04:49 AM
  #1892
Tech Regular

Join Date: Nov 2017
Location: Berlin, Germany
Posts: 375
Default

Originally Posted by Kappe View Post
Hi everybody,

I have my XV01 (heavy upped) since one year and until yesterday i've driven it ON and OFFroad with an 17.5T sensored (2S LiPo - original spur gear 0.6 ).without the slipper clutch..

Now i bought and mount an Hobbywing sensored 10.5T (2S LiPo) and my question is if it's necessary mount this HopUp and why..

Some friends that have experience with the XV01 (they drive and race since at the beginning of XV01) told me that they've mounted but at the end of the story REMOVE the slipper clucth...

Please, can you give me your experience/point of view ?

Thanks in advance,

Marco
It really depends on the surfaces you run. If they are very mixed, meaning going from low to high traction, it can come in handy. What it helps with is protecting some of the gear from getting worn too quickly. A particular weak point is the idle gear in the front gearbox (part BG1 /51506).
ejtnt is offline
Reply With Quote
Old 02-12-2019, 04:31 PM
  #1893
Tech Elite
iTrader: (60)

Raman's Avatar

Join Date: Aug 2007
Location: Las Vegas
Posts: 3,552
Trader Rating: 60 (100%+)
Default

Originally Posted by Kappe View Post
Hi everybody,

I have my XV01 (heavy upped) since one year and until yesterday i've driven it ON and OFFroad with an 17.5T sensored (2S LiPo - original spur gear 0.6 ).without the slipper clutch..

Now i bought and mount an Hobbywing sensored 10.5T (2S LiPo) and my question is if it's necessary mount this HopUp and why..

Some friends that have experience with the XV01 (they drive and race since at the beginning of XV01) told me that they've mounted but at the end of the story REMOVE the slipper clucth...

Please, can you give me your experience/point of view ?

Thanks in advance,

Marco
In my opinion and experience the slipper is a waste for this chassis.

I have had my XV-01 for as long as this thread has been open. Iím still running it with the original gears. I have ran it with 8.5, 13.5, 17.5 boosted for the past 6 years on tarmac, dirt, mud, snow and not once have I detonated a single gear in the drive line or even diff internals. Since itís a rallye chassis, I like to launch it with full wheel spin.. which is harder on drive line and and still there gears are in good shape

At present my car is is full tear down sitting on my work table, awaiting sealed bearings. All gears are still in great shape and show no wear.

So it comes down to sense of security. Get it if you feel you need it.

Last edited by Raman; 02-12-2019 at 05:43 PM.
Raman is offline
Reply With Quote
Old 02-14-2019, 11:11 PM
  #1894
Tech Elite

fyrstormer's Avatar

Join Date: Mar 2014
Location: Maryland, Near DC, USA
Posts: 4,017
Default

I always use slipper clutches if they are available. I don't care about the minor weight penalty, but I do care about being able to mechanically limit the maximum torque sent to the wheels. This chassis doesn't have the same problems of breaking drivetrain parts like a monster truck has, but nonetheless, in low traction conditions I want the slipper clutch to slip instead of the wheels, because that way the wheels can still steer the car. If the wheels are spinning wildly, steering is compromised.
fyrstormer is offline
Reply With Quote
Old 02-15-2019, 03:31 PM
  #1895
Tech Elite
iTrader: (60)

Raman's Avatar

Join Date: Aug 2007
Location: Las Vegas
Posts: 3,552
Trader Rating: 60 (100%+)
Default

Youíre describing traction control, which is not a slipper clutch.

A slipper clutch will slip on high traction, not low traction. It will also slip on high or hard impact, eg after a jump, when the tyre that is spinning in the air, hits the tarmac and the wheels velocity is changed in an instant due to traction from tarmac.. thereby the slip in the clutch pad absorbs these forces.

In order for it to slip on low traction, you would need to have it so loose.. that itís continously slipping which would result in burning of the slipper pad and lots of heat.
Raman is offline
Reply With Quote
Old 02-16-2019, 09:28 PM
  #1896
Tech Elite

fyrstormer's Avatar

Join Date: Mar 2014
Location: Maryland, Near DC, USA
Posts: 4,017
Default

I know what I'm describing, thanks. It works just fine on low traction surfaces, and you are incorrect about the slipper clutch overheating. If I were suggesting running the slipper clutch loose on a high traction surface, then you would be correct that the frequent slipping would overheat the pads. But when the slipper clutch is loose enough to slip on a low traction surface, the amount of pressure on the pads is minimal and the pads don't heat-up very much.

The amount of heat buildup is not actually related to the amount of slip, it's related to the amount of power being transferred through the clutch while it slips. I'm sure you've had the experience of skidding on carpet when you were a kid -- even if you only skidded a couple feet, you still got rug-burn, because the amount of power being transferred from your moving body to the stationary carpet while you were skidding was very high. Whereas you can slide on a wet tarp (i.e. a "Slip 'n Slide" toy) for hundreds of feet, and you'll never get a burn from it, because the amount of power transferred from your moving body to the stationary tarp is very low.

Likewise, when the slipper clutch is loose enough to slip on a low-traction surface, the amount of power transferred through the slipper clutch is small, so most of the motor's excess power is dissipated as electromagnetic drag inside the motor itself, rather than as heat in the slipper pads.

Here is the slipper clutch I run on my FWD XV-01 rally car. It has never even needed adjustment, much less pad replacement. I did eventually fill the rest of the holes in the gear with friction pegs, though.



I agree that real traction-control would be a very cool feature. I shudder to think of the cost, though. Even if the traction-control functioned by detecting a runaway acceleration of the motor, so it could work with just the existing motor sensor and without requiring any extra wheel-speed sensors, RC companies would still charge us an extra $100 for that feature -- and someone would be dumb enough to pay them for it.
