Old 02-26-2009, 04:05 PM
  #271
Tech Champion
iTrader: (9)

Join Date: Sep 2001
Location: Mongville
Posts: 6,990
Trader Rating: 9 (100%+)
Default

Originally Posted by srw_g View Post
This is mine. XRAY T2 with Dualsky 10.5R.

Interesting looking motor, any more details about it?
Besercoe is offline
Old 02-27-2009, 04:56 AM
  #272
Tech Initiate

Join Date: Feb 2006
Posts: 45
Default

Originally Posted by Besercoe View Post
Interesting looking motor, any more details about it?
Yes, here is it. Dualsky brushless motor.
Attached Thumbnails Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-1.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-2.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-3.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-4.jpg
srw_g is offline
Old 02-27-2009, 05:30 AM
  #273
Tech Master
iTrader: (1)

Join Date: Jul 2004
Location: MI
Posts: 1,544
Trader Rating: 1 (100%+)
Default

Originally Posted by srw_g View Post
Yes, here is it. Dualsky brushless motor.
where can i get one ? looks nice ..
John St.Amant is offline
Old 02-27-2009, 06:37 AM
  #274
Tech Initiate

Join Date: Feb 2006
Posts: 45
Default

Originally Posted by John St.Amant View Post
where can i get one ? looks nice ..
If you want to get one, please see here:

http://www.rctech.net/forum/singapor...ld-series.html
srw_g is offline
Old 02-27-2009, 08:02 AM
  #275
Tech Master
iTrader: (1)

Join Date: Jul 2004
Location: MI
Posts: 1,544
Trader Rating: 1 (100%+)
Default

Originally Posted by srw_g View Post
If you want to get one, please see here:

http://www.rctech.net/forum/singapor...ld-series.html
TYVM!

cant find any other ones .. like 10.5 wazzup wit dat !?

Last edited by John St.Amant; 02-27-2009 at 11:00 AM.
John St.Amant is offline
Old 02-27-2009, 02:30 PM
  #276
Tech Adept
iTrader: (2)

MiCk B's Avatar

Join Date: Dec 2007
Location: Ireland
Posts: 196
Trader Rating: 2 (100%+)
Default

Hey,

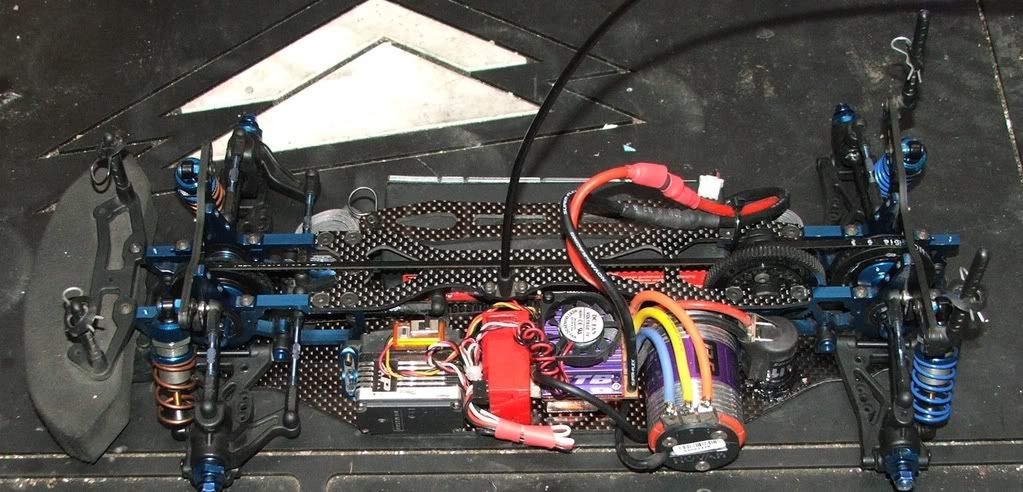

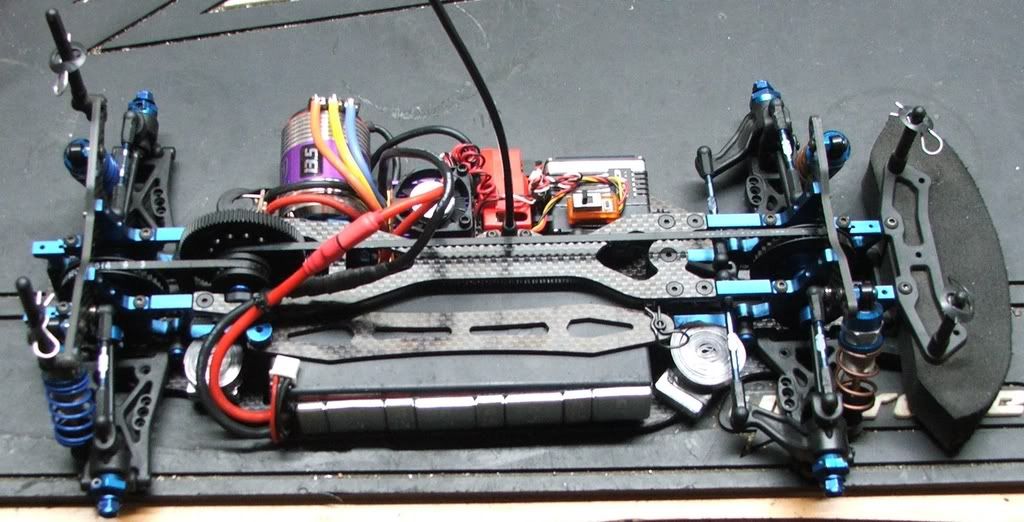

This isn't mine, but a car I wired up for a club member:






MiCk B. :-)
MiCk B is offline
Old 02-28-2009, 03:49 AM
  #277
Tech Initiate

Join Date: Feb 2006
Posts: 45
Default

Originally Posted by John St.Amant View Post
TYVM!

cant find any other ones .. like 10.5 wazzup wit dat !?
Dualsky~TRACK&FIELD Brushless Motor List:
3.5
4.5
5.5
10.5 (3300kv, TF 12.5 rotor without rotor fan)

Option rotor list:
TF12.2
TF12.5
TF12.8
TF13.0

I'm using 10.5R now. If installing the TF13.0 rotor, the KV will down to 3000kv, but you can use much lower gear ratio.

Last edited by srw_g; 03-01-2009 at 12:51 AM.
srw_g is offline
Old 02-28-2009, 08:20 AM
  #278
Tech Master
iTrader: (1)

Join Date: Jul 2004
Location: MI
Posts: 1,544
Trader Rating: 1 (100%+)
Default

Originally Posted by srw_g View Post
Dualsky~TRACK&FIELD Brushless Motor List:
3.5
4.5
5.5
10.5 (3300kv, TF 12.5 rotor without rotro fan)

Option rotor list:
TF12.2
TF12.5
TF12.8
TF13.0

I'm using 10.5R now. If installing the TF13.0 rotor, the KV will down to 3000kv, but you can use much lower gear ratio.
Whoa ! Okay but ... I spent about 30 minutes looking for one to get a part # so that I might order one. Would you happen to have a link ? All I could find was a 5.5.
John St.Amant is offline
Old 02-28-2009, 08:46 PM
  #279
Tech Initiate

Join Date: Feb 2006
Posts: 45
Default

Originally Posted by John St.Amant View Post
Whoa ! Okay but ... I spent about 30 minutes looking for one to get a part # so that I might order one. Would you happen to have a link ? All I could find was a 5.5.
Hi, John

These are new motors, I only have three part No.

Duaksky 5.5 sensor brushless motor:
Name: XM540TF-5.5DF
No. 53348

Duaksky 10.5 sensor brushless motor:
Name: XM540TF-10.5DF
No. 53352

Option rotor: MR13.0TF-F
No. 53343

Modified Link: http://www.dualsky.com/main.asp?mainset=40
Stock Link: http://www.dualsky.com/main.asp?mainset=41
Sensorless Link: http://www.dualsky.com/main.asp?mainset=42

Email: [email protected]
Address: Rm.1016, No.201, XinJinQiao Rd., Shanghai, China. P.C.:201206
Tel: 021-50322162, 50322161 Fax: 021-50322163
Attached Thumbnails Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-5.5.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-10.5.jpg

Last edited by srw_g; 02-28-2009 at 08:58 PM.
srw_g is offline
Old 02-28-2009, 11:18 PM
  #280
R/C Tech Elite Member
iTrader: (93)

BSchorr's Avatar

Join Date: Jun 2004
Location: Superior, WI
Posts: 4,827
Trader Rating: 93 (100%+)
Default

Mine... Need to get a shorter sensor wire though. And get a black little zip tie instead of the bigger white one !



BSchorr is offline
Old 03-01-2009, 08:04 AM
  #281
Tech Master
iTrader: (1)

Join Date: Jul 2004
Location: MI
Posts: 1,544
Trader Rating: 1 (100%+)
Thumbs up

Originally Posted by srw_g View Post
Hi, John

These are new motors, I only have three part No.

Duaksky 5.5 sensor brushless motor:
Name: XM540TF-5.5DF
No. 53348

Duaksky 10.5 sensor brushless motor:
Name: XM540TF-10.5DF
No. 53352

Option rotor: MR13.0TF-F
No. 53343

Modified Link: http://www.dualsky.com/main.asp?mainset=40
Stock Link: http://www.dualsky.com/main.asp?mainset=41
Sensorless Link: http://www.dualsky.com/main.asp?mainset=42

Email: [email protected]
Address: Rm.1016, No.201, XinJinQiao Rd., Shanghai, China. P.C.:201206
Tel: 021-50322162, 50322161 Fax: 021-50322163
ty
John St.Amant is offline
Old 03-03-2009, 11:02 PM
  #282
Tech Addict

3.141592's Avatar

Join Date: Mar 2008
Location: SG-MY
Posts: 658
Default

Always wanted to post these just managed to snap some photos on my
TRF416 and TA05...
Attached Thumbnails Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-trf416-1.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-trf416-2.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-ta05-1.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-ta05-2.jpg
3.141592 is offline
Old 03-03-2009, 11:30 PM
  #283
Regional Moderator
iTrader: (9)

Darkseid's Avatar

Join Date: Aug 2001
Location: Kansas City, KS
Posts: 9,045
Trader Rating: 9 (100%+)
Default

Here's my TCS ready TA05 IFS-R

Only thing I'll probably do is wrap the transponder in some graphite pattern decal like I do on my other car. That red kinda sticks out like sore thumb. LOL
Attached Thumbnails Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-ifs-tcs.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-ifs-tcs_2.jpg
Darkseid is offline
Old 03-04-2009, 01:44 AM
  #284
Tech Fanatic
iTrader: (5)

alecladanga's Avatar

Join Date: Jul 2006
Location: Manila
Posts: 886
Trader Rating: 5 (100%+)
Default

this is the cleanest i could do so far

xray t2 009
Attached Thumbnails Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-xray-t2-09-pic-1.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-xray-t2-09-pic-2.jpg   Inspire us.  Show me your BEST, CLEANEST electronics installation pics.-xray-t2-09-pic-3.jpg
alecladanga is offline
Old 03-04-2009, 05:21 AM
  #285
Tech Apprentice

jonny123's Avatar

Join Date: Feb 2009
Location: UK
Posts: 83
Default

Originally Posted by 3.141592 View Post
Always wanted to post these just managed to snap some photos on my
TRF416 and TA05...
The 416 looks awesome ! You just need to black out that Crazy Orange Novak reciever

That LRP X12 looks the business !
jonny123 is offline
