Originally Posted by vafactor View Post
what does raising the rear pivot that far do to the carís handling? I ask because itís hard to deny the success that the A12s have been exhibiting. Their unusual pivot points are near the bottom of the chassis plateÖ..about as low as physically possible. So whatís the advantage of running the CK25ARís pivot point higher? Not trying to be argumentative, just anxious to understand what makes the cars work.
I have run it that high on a medium/high traction carpet. Had great results as it let the car get up out of the carpet, as Mike H. stated, but didn't loose rear stability or forward bite. One of the fastest runs I have "ever" made with a 1/12 car. I couldn't believe it and wondered after looking at the score sheet if I really drove that car to those numbers. Now this is all relative and doesn't take into consideration the other deviations from most setups I had in the car. But for 8 minutes, I felt like someone more skilled and consistent than in my past.
tdu verney and MC Hamilton like this.
davidl is offline
Old 03-02-2022, 02:07 PM
  #152
Tech Master
iTrader: (5)

Casey's Avatar

Join Date: Aug 2001
Location: Md
Posts: 1,794
Trader Rating: 5 (100%+)
Default

BIG GT 12 race this weekend at 180 Raceway,, come on out and see what my roll center is
vafactor and ptrhahn like this.
Casey is offline
Old 03-02-2022, 03:15 PM
  #153
Tech Regular
iTrader: (3)

Join Date: Dec 2007
Location: Detroit, MI
Posts: 259
Trader Rating: 3 (100%+)
Default

Originally Posted by vafactor View Post
what does raising the rear pivot that far do to the carís handling? I ask because itís hard to deny the success that the A12s have been exhibiting. Their unusual pivot points are near the bottom of the chassis plateÖ..about as low as physically possible. So whatís the advantage of running the CK25ARís pivot point higher? Not trying to be argumentative, just anxious to understand what makes the cars work.
A more technical description - lowering the rear pivot lowers roll center and adds stability to the rear - raising the rear roll center will allow the chassis to roll more and should reduce rear grip and reduce traction roll.
MC Hamilton is offline
Old 03-02-2022, 03:46 PM
  #154
Tech Master
iTrader: (16)

Join Date: Sep 2013
Location: Arizona
Posts: 1,847
Trader Rating: 16 (100%+)
Default

Originally Posted by MC Hamilton View Post
A more technical description - lowering the rear pivot lowers roll center and adds stability to the rear - raising the rear roll center will allow the chassis to roll more and should reduce rear grip and reduce traction roll.
Your first statement is true, however, raising the roll center does not increase chassis roll. When you increase the roll center it gets closer to the car's CG and thus lowers the chassis roll.
glennhl is offline
Old 03-02-2022, 07:42 PM
  #155
Tech Master
iTrader: (26)

Join Date: Mar 2002
Location: Indianapolis, IN
Posts: 1,771
Trader Rating: 26 (100%+)
Default

So, here is a challenging question for the masses. Is there really a roll center for the rear of a pan car. This type chassis has a pivot point between the front chassis and the rear pod. But, how can that be analyzed as a roll center. The rear side springs have a direction that is vertical, but are located half the width of the car away from the pivot. The dampers are the tubes that have a direction that is transverse to the chassis, but high above the pivot. The center shock and spring have a direction that is angled towards the front suspension and crosses the position of the pivot very high up. How does all of this play together? Is the pivot a roll center for all of this? What say you?
davidl is offline
Old 03-03-2022, 07:37 AM
  #156
Tech Master
iTrader: (6)

Join Date: Nov 2006
Location: New Bern, N.C.
Posts: 1,650
Trader Rating: 6 (100%+)
Default

I say 🥴
davidl likes this.
vafactor is offline
Old 03-03-2022, 08:05 AM
  #157
Tech Lord
iTrader: (24)

wingracer's Avatar

Join Date: Nov 2007
Posts: 13,615
Trader Rating: 24 (100%+)
Default

Originally Posted by davidl View Post
So, here is a challenging question for the masses. Is there really a roll center for the rear of a pan car. This type chassis has a pivot point between the front chassis and the rear pod. But, how can that be analyzed as a roll center. The rear side springs have a direction that is vertical, but are located half the width of the car away from the pivot. The dampers are the tubes that have a direction that is transverse to the chassis, but high above the pivot. The center shock and spring have a direction that is angled towards the front suspension and crosses the position of the pivot very high up. How does all of this play together? Is the pivot a roll center for all of this? What say you?
Short answer is yes, the pivot is the roll center. Just like the pivot on a Watts Link style suspension is the roll center.

Spring and damper configurations have zero impact on roll center.

I should note that more recent actual testing of actual cars has shown that geometric roll centers are actually not the point a car rolls around. But for setup purposes, geometric is good enough as it's close and moving it up or down does move the actual roll center up or down in a similar fashion. Also most of that testing involves multi-link suspensions where the geometric roll center is a virtual point in space, not a physical pivot so that might be why there is a discrepancy.
robk, YBSLOW and RacinJ like this.
wingracer is offline
Old 03-03-2022, 10:32 AM
  #158
Tech Master
iTrader: (16)

Join Date: Sep 2013
Location: Arizona
Posts: 1,847
Trader Rating: 16 (100%+)
Default

Originally Posted by davidl View Post
So, here is a challenging question for the masses. Is there really a roll center for the rear of a pan car. This type chassis has a pivot point between the front chassis and the rear pod. But, how can that be analyzed as a roll center. The rear side springs have a direction that is vertical, but are located half the width of the car away from the pivot. The dampers are the tubes that have a direction that is transverse to the chassis, but high above the pivot. The center shock and spring have a direction that is angled towards the front suspension and crosses the position of the pivot very high up. How does all of this play together? Is the pivot a roll center for all of this? What say you?
I know where you are coming from. You are right, it's more of a chassis roll center than a rear axle roll center, but in reality, that's all we have with a pan car. And as far as roll center calculations, a pivot point is the simplest. You always know exactly where the roll center is, it doesn't move around. And to me the only thing that reacts against the roll are the side springs. So for me the main tuning parameters other than tire compounds are the side springs and the front springs. Second tuning parameter is adjusting rear roll center up and down, down to glue the rear and up to unglue it.

And front roll center? I have an X12 that just slides up and down on the king pin. I've always assumed that this puts the roll center at ground level since it's the same as perfectly parallel A arms and since the lines from the a arms never intersect (other than at infinity), then the line back to the outside tire is on the ground (since it came from infinity). And even though I'm not certain, I don't think the front roll center is adjustable on this type of front end.
davidl and LonnyJ1950 like this.
glennhl is offline
Old 03-03-2022, 07:26 PM
  #159
Tech Master
iTrader: (26)

Join Date: Mar 2002
Location: Indianapolis, IN
Posts: 1,771
Trader Rating: 26 (100%+)
Default

Originally Posted by vafactor View Post
I say 🥴
🍦 I wanted to give you two scoops but this is all I could find.
davidl is offline
Old 03-08-2022, 05:39 AM
  #160
Tech Master
iTrader: (1)

Join Date: Aug 2008
Location: Medina, Ohio
Posts: 1,500
Trader Rating: 1 (100%+)
Default

That is a interesting point about the X12 and I believe the A12 also. Old pan car front ends were basically rigid kingpins like those. Then Associated came out with their upper "A" arm and everyone jumped on that. Those definitely had a roll center. The oval guys jumped all over that front end and made upper arm mounts that allowed the roll center and upper arm length to be adjusted. As far as I know only CRC added that capability to their current on road front end. Now we have the manufacturers putting the adjustable rear roll center in the kit design. Just comments.
old_dude is offline
Old 03-28-2022, 06:17 PM
  #161
Tech Adept

AZ Wolfie's Avatar

Join Date: Aug 2013
Location: Mesa, AZ
Posts: 104
Default

In the process of transitioning to the CK25AR from old Associated cars and have a couple questions.
1) Planning to run the Sanwa Servo direct mounted up front. Will the Xray servo saver fit without modification, or should I instead consider a Tamiya or Kimbrough per the manual?
2) When making rear droop adjustments, how do most hold/rotate the shock shaft to change the length? Smooth Needle Nose, Angled Needle Nose, Special Shock Pliers?

Thanks!
AZ Wolfie is offline
Old 03-28-2022, 07:13 PM
  #162
Tech Elite
iTrader: (4)

Join Date: Dec 2002
Location: Florida
Posts: 4,880
Trader Rating: 4 (100%+)
Default

I did try the upfront servo but have switched to the standard servo set-up. I use Kimbrough (always have for years). I either use pliers with a cloth or the shock pliers.
BullFrog is offline
Old 03-28-2022, 09:08 PM
  #163
Tech Adept

Join Date: Feb 2013
Posts: 176
Default

The Xray servo saver fits just fine. I use the same setup on my car.
sweems is offline
Old 03-28-2022, 09:26 PM
  #164
Tech Adept

AZ Wolfie's Avatar

Join Date: Aug 2013
Location: Mesa, AZ
Posts: 104
Default

Thanks for the quick replies, and happy to hear I can stick with the Xray servo saver!

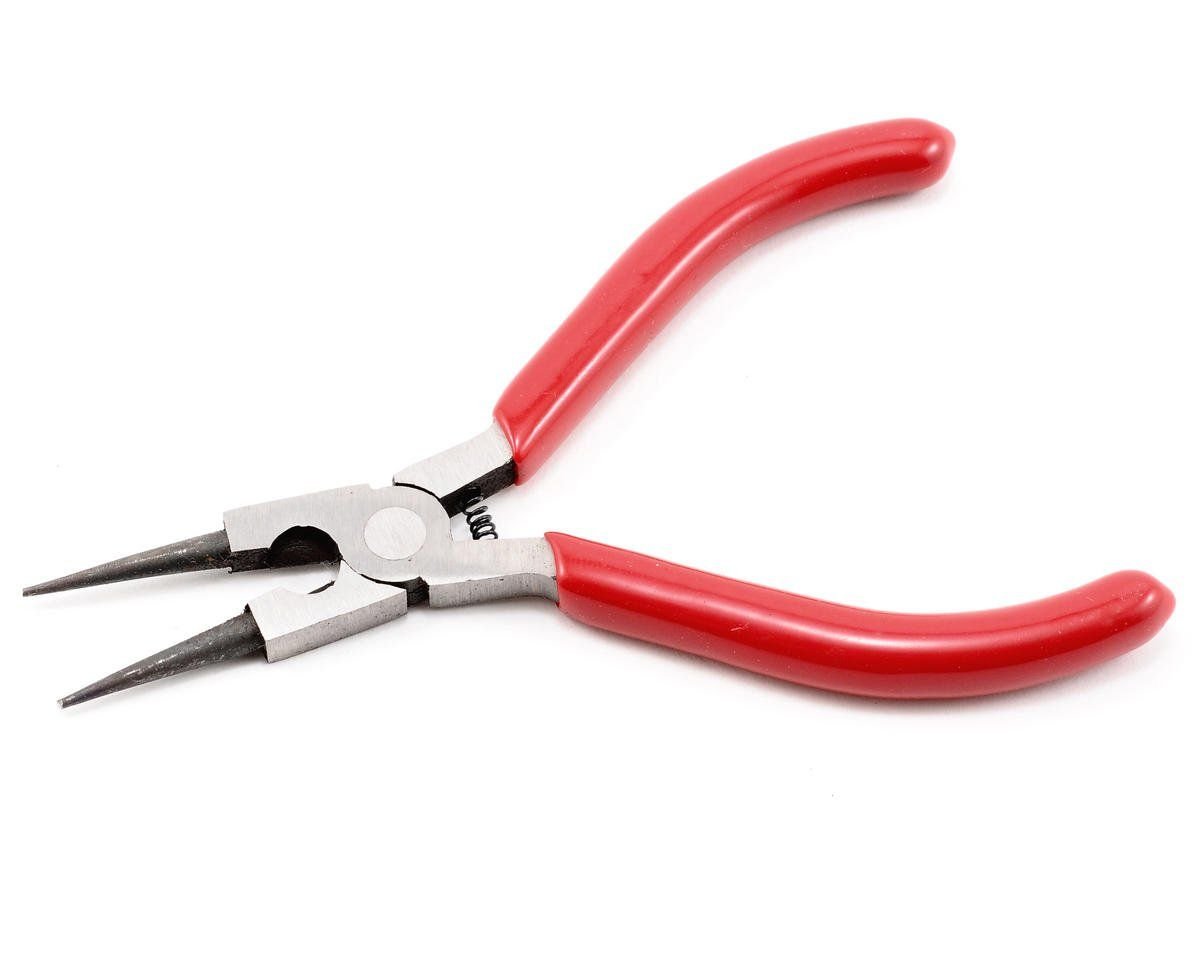

For holding the shock shaft I saw these round tip pliers, and tempted to give them a try since I haven't discovered a "shock shaft" plier yet that seems ideal.


AZ Wolfie is offline
Old 03-29-2022, 06:17 AM
  #165
Tech Elite
iTrader: (4)

Join Date: Dec 2002
Location: Florida
Posts: 4,880
Trader Rating: 4 (100%+)
Default

guess I'm lucky I found mine shock shaft tool at my hobbyshop?
BullFrog is offline
