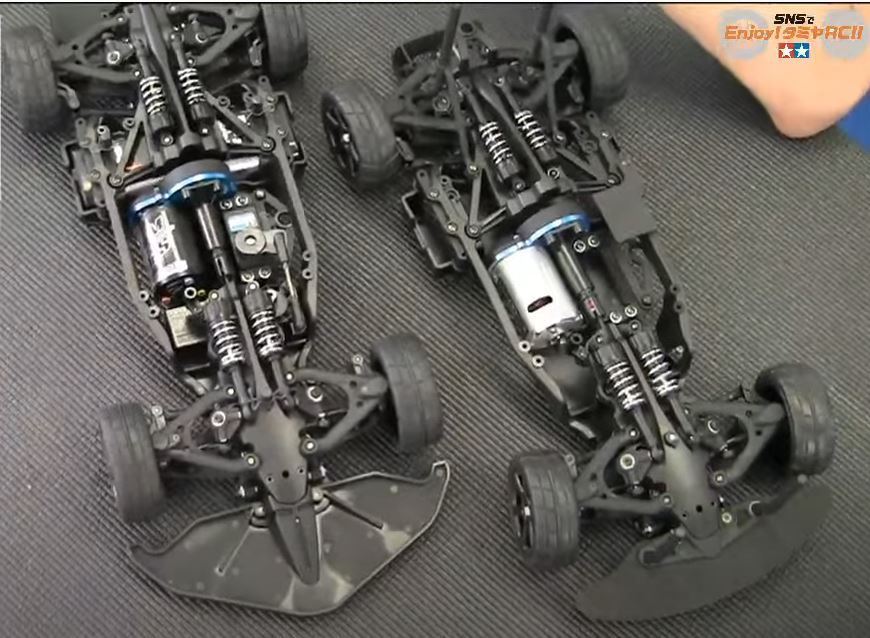

New Tamiya Chassis TC-01

12-05-2020, 09:50 PM - Wikipost

R/C Tech ForumsThread Wiki: New Tamiya Chassis TC-01

Please read: This is a community-maintained wiki post containing the most important information from this thread. You may edit the Wiki once you have been a member for 90 days and have made 90 posts.

Last edit by: RCBuddha

INSTRUCTION MANUALS:
Vehicle instruction manual: https://cdn.simba-dickie-group.de/do...2-car-tc01.pdf
Formula E body instruction manual: https://cdn.simba-dickie-group.de/do...e-gen2-car.pdf

HOPUPS:

DRIVE TRAIN:
• Universal Prop shaft (TC01): #54975
• Double Cardon Prop Shaft (TC01): #54961
• Aluminum spur gear holder: #54903
• Universal shafts: #54515
• Clamp hex hub: #53570 or #53823
• Double cardan shaft: #42360
• Double cardan joints (TRF): #42216 (set) & #42239 (42mm shaft)
• Different Aluminum Drive Cup: #54543
• Steel Bevel Differential Gears: #54540
Aluminum spur gear holder: #54903
• Gear Differential Steel Cross Shaft: #54533

BEARINGS (in MM):
• 3x6x2.5: x2
• 9x5x3: x1
• 9x5 (flanged): x1
• 5x8x2.5: x12
• 5x10x4: x10
• 5x10x3: x2
• 10x15x4: x4

SCREWS:
• 3x5mm Titanium Hex Head Screws x4
• 3x6mm Titanium Hex Head Screws x6
• 3x8mm Titanium Hex Head Screws x18
• 3x10mm Titanium Hex Head Screws x13
• 3x12mm Titanium Hex Head Screws x12
• 3x6mm Titanium Hex Head Countersunk Screws x5
• 3x8mm Titanium Hex Head Countersunk Screws x10
• 3x10mm Titanium Hex Head Countersunk Screws x8

SUSPENSION:
• Suspension arm mounts (rear skid angle): #54787
• Supension arm mounts: #54760
• Stabilizers: #54956
• Aluminum rocker arms: #54955
• TRF big bore shocks: #42354
• TRF works shocks: #84317
• TRF Special shocks: #42102
• Carbon rear crossmember: #54783
• Carbon front crossmember: #54782
• Low friction suspension balls: #54747
• Titanium Coated suspension shaft: #53581
• Flourine supension balls: #53709
• Titanium Coated Shock Shaft: #54043
• Aluminum shock extenders: #54960

WTCC's adjustable suspension Conversion:
Parts needed:
• 3x23mm turnbuckles (x8)
• Yokomo #BM-206
• Awesomatix #P18 AND P19
• TRF 420 front hubs

DIFFERENTIALS:
• One way diff: #54521
• Spool: #54592
• Ball diff: #54522

TURNBUCKLES:
• Front Toe 3x18mm: #54247
• Rear Toe 3x32mm: #54249
• Steering Link 3x42mm:#54250
• Open Face Ball Ends: #54868

MISCELLANEOUS:
• Titanium Screw Set: #47449
• Servo mount screws: #54862
• POM Spacers: #54855
• Carbon front stiffeners: #54962
• Aluminum steering arms: #54958
• Aluminum steering bridge: #54957

Reply Subscribe

Thread Tools

Search this Thread

04-25-2020, 10:48 AM

#76

tamiya4life

Tech Initiate

Join Date: May 2010

Posts: 40

Trader Rating: 0

Quote:

Originally Posted by garnt

I caused this car to phase into existence by buying a TB-05 last week. You're welcome, everybody

No, I met Mr. Tamiya at the Long Beach Grand Prix and showed him pictures of my modernized F201 and begged him to release a new version. His wife and my mother are from the same hometown, so as I kneeled on the floor like a Koga ninja in front of his master as he sat in his designated chair at the Tamiya area, I insisted that they release a new version of an independent suspension Formula car. I have pictures I took with him at that moment too.

Raman and hkbruin like this.

04-25-2020, 11:07 AM

#77

Papi

Tech Regular

Join Date: Sep 2011

Location: Czech republic

Posts: 432

Trader Rating: 0

Quote:

Originally Posted by fat500

Hey Everyone......This is a TOURING car chassis not a F1.......

It is F1 chassis. Look at arms and overall form, it's designed to fit under slim F1 body.

But Tamiya learnt their lesson with F201, so they made the car to fit TC bodies, too.

04-25-2020, 11:35 AM

#78

OPY

Tech Rookie

Join Date: Apr 2020

Posts: 17

Trader Rating: 0

Anyone know the legality of the rocker arms in board suspension in this car in the states since traxxas has a patent for it for their revo?

04-25-2020, 12:11 PM

#79

Woulvesbaine

Tech Master

iTrader: (12)

Join Date: Feb 2012

Location: California

Posts: 1,325

Trader Rating: 12 (100%+)

I wonder if this is Tamiya's successor to the TA05 v.2. / IFS. Tamiya has consistently offered some IFS chassis but the TA05 ifs series must be . . .how old now? 5 years? 8 years? Older?

04-25-2020, 02:14 PM

#80

blewer

Tech Regular

iTrader: (15)

Join Date: Mar 2002

Location: Ohio

Posts: 435

Trader Rating: 15 (100%+)

Motor

Soooooooo, are we thinking Reedy FT 21.5?

04-25-2020, 02:18 PM

#81

Speed Chaser

Tech Elite

iTrader: (4)

Join Date: Sep 2014

Location: Mars sipping a pina colada

Posts: 4,510

Trader Rating: 4 (100%+)

The original plastic IFS TA05 came out in 2007. The TA05 v2 came out in 2009. The TA06 also had an IFS version. As for the Traxxas thing, I don't think they want to poke the bear (Tamiya) with a stick.

Raman, Sir 51D3WAYS and gigaplex like this.

04-25-2020, 03:27 PM

#82

tamiya4life

Tech Initiate

Join Date: May 2010

Posts: 40

Trader Rating: 0

Quote:

Originally Posted by OPY

Anyone know the legality of the rocker arms in board suspension in this car in the states since traxxas has a patent for it for their revo?

They are legal. This is Tamiya, not some shady company. Either the patent usage is covered in the product costs or they have their own design and geometry that they don't need to deal with patent issues outside of Japan.

04-25-2020, 03:41 PM

#83

Phat-Boy

Tech Addict

iTrader: (25)

Join Date: Jul 2007

Location: Gardena , Ca

Posts: 612

Trader Rating: 25 (96%+)

Quote:

Originally Posted by Woulvesbaine

I wonder if this is Tamiya's successor to the TA05 v.2. / IFS. Tamiya has consistently offered some IFS chassis but the TA05 ifs series must be . . .how old now? 5 years? 8 years? Older?

I think more close to TB-03 (IFS, shaft drive) plus F201. TB-03 came out june 2008.

Nicadrauspro4 likes this.

04-25-2020, 03:45 PM

#84

dman18t

Tech Addict

Join Date: Oct 2011

Posts: 506

Trader Rating: 0

The IFS patent Traxxas vs Tamiya is a joke! If anyone has that patent, it's the auto industry or aerospace. That design has been out for decades! Widen your perspective guys.

04-25-2020, 06:44 PM

#85

Nicadrauspro4

Tech Master

Join Date: Oct 2005

Location: Automobili Lamborghini S.p.A., Italy

Posts: 1,134

Trader Rating: 0

Quote:

Originally Posted by dman18t

The IFS patent Traxxas vs Tamiya is a joke! If anyone has that patent, it's the auto industry or aerospace. That design has been out for decades! Widen your perspective guys.

This is true. The IFS or push-rod/pull-rod suspension system has been and still being used for F1 cars since the 90s (developed in the 80s) and started to be used for road car such as the Enzo Ferrari since 2002. Lamborghini, Pagani, Koenigsegg, and other supercar/hypercar manufacturers are also using the same system. So Tamiya or Traxxas can not own a patent to this design because it's already a non-patent system that is already being used commercially.

04-25-2020, 07:05 PM

#86

RCBuddha

R/C Tech Elite Member

iTrader: (40)

Join Date: Mar 2003

Location: SoCal

Posts: 2,085

Trader Rating: 40 (100%+)

https://traxxas.com/pat

If anyone wants to look it up...

Can't wait to see more details on Monday.

Phat-Boy likes this.

Last edited by RCBuddha; 04-25-2020 at 07:18 PM.

04-25-2020, 08:39 PM

#87

hkbruin

Tech Apprentice

iTrader: (1)

Join Date: Sep 2011

Posts: 88

Trader Rating: 1 (100%+)

For sure this is the successor to the F201 concept and Tamiya made a brilliant move to partner with Formula E. While Liberty Media has been very anal and overprotective about their branding rights, FormulaE has seized a great opportunity and I’m sure this new platform will gain a big following. The fact that it piggybacks off of proven and available standard components from other cars like the TB05 and M07 will allow robust support for the platform, something the F201 lacked during its time. Despite the limited stock gearing options of the f201, once you upgraded to an aftermarket 3Racing chassis you were able to utilize the TB-01 .04 option spur gear with larger pinions as well. I’m also interested in borrowing the TC-01 rear diff housing and repurpose for the f201 as the rear gearbox was a pain to service.

I will for sure try to adapt the TC-01 to fit the modern f1 car bodies but it seems like the front diff housing is very low to the chassis, which might skew the suspension angle setups. Nonetheless I’m super excited and can’t wait to build up a new car! It’s been too long!

04-25-2020, 08:44 PM

#88

hkbruin

Tech Apprentice

iTrader: (1)

Join Date: Sep 2011

Posts: 88

Trader Rating: 1 (100%+)

Oh and given the proportions of the TC-01 it looks like it would match the now 2022 aero changes that F1 will undergo, which will allow this platform to remain relevant for us folks who are obsessed with F1.
