INSTRUCTION MANUALS:
Vehicle instruction manual: https://cdn.simba-dickie-group.de/do...2-car-tc01.pdf
Formula E body instruction manual: https://cdn.simba-dickie-group.de/do...e-gen2-car.pdf

HOPUPS:

DRIVE TRAIN:
• Universal Prop shaft (TC01): #54975
• Double Cardon Prop Shaft (TC01): #54961
• Aluminum spur gear holder: #54903
• Universal shafts: #54515
• Clamp hex hub: #53570 or #53823
• Double cardan shaft: #42360
• Double cardan joints (TRF): #42216 (set) & #42239 (42mm shaft)
• Different Aluminum Drive Cup: #54543
• Steel Bevel Differential Gears: #54540
Aluminum spur gear holder: #54903
• Gear Differential Steel Cross Shaft: #54533

BEARINGS (in MM):
• 3x6x2.5: x2
• 9x5x3: x1
• 9x5 (flanged): x1
• 5x8x2.5: x12
• 5x10x4: x10
• 5x10x3: x2
• 10x15x4: x4

SCREWS:
• 3x5mm Titanium Hex Head Screws x4
• 3x6mm Titanium Hex Head Screws x6
• 3x8mm Titanium Hex Head Screws x18
• 3x10mm Titanium Hex Head Screws x13
• 3x12mm Titanium Hex Head Screws x12
• 3x6mm Titanium Hex Head Countersunk Screws x5
• 3x8mm Titanium Hex Head Countersunk Screws x10
• 3x10mm Titanium Hex Head Countersunk Screws x8

SUSPENSION:
• Suspension arm mounts (rear skid angle): #54787
• Supension arm mounts: #54760
• Stabilizers: #54956
• Aluminum rocker arms: #54955
• TRF big bore shocks: #42354
• TRF works shocks: #84317
• TRF Special shocks: #42102
• Carbon rear crossmember: #54783
• Carbon front crossmember: #54782
• Low friction suspension balls: #54747
• Titanium Coated suspension shaft: #53581
• Flourine supension balls: #53709
• Titanium Coated Shock Shaft: #54043
• Aluminum shock extenders: #54960

WTCC's adjustable suspension Conversion:
Parts needed:
• 3x23mm turnbuckles (x8)
• Yokomo #BM-206
• Awesomatix #P18 AND P19
• TRF 420 front hubs

DIFFERENTIALS:
• One way diff: #54521
• Spool: #54592
• Ball diff: #54522

TURNBUCKLES:
• Front Toe 3x18mm: #54247
• Rear Toe 3x32mm: #54249
• Steering Link 3x42mm:#54250
• Open Face Ball Ends: #54868

MISCELLANEOUS:
• Titanium Screw Set: #47449
• Servo mount screws: #54862
• POM Spacers: #54855
• Carbon front stiffeners: #54962
• Aluminum steering arms: #54958
• Aluminum steering bridge: #54957

Reply Subscribe

Thread Tools

Search this Thread

04-24-2020, 01:47 AM

#31

kentech

Tech Fanatic

iTrader: (6)

Join Date: Aug 2001

Posts: 965

Trader Rating: 6 (100%+)

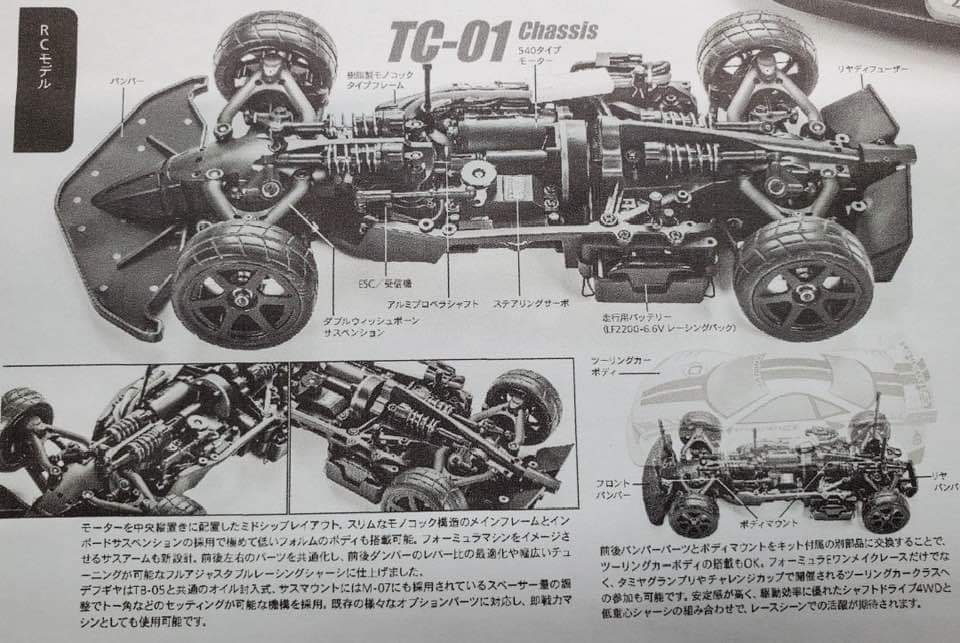

Posted some more details about the TC-01 and Formula E model:
https://kentech.wordpress.com/2020/0...en2-car-tc-01/

Phat-Boy and DavidNERODease like this.

04-24-2020, 03:24 AM

#32

GT CRUSING

Tech Regular

Join Date: Sep 2015

Location: California

Posts: 380

Trader Rating: 0

Oh man, I'm so getting this. Definitely gonna run this in 2wd drive, could be a classic new euro truck style class that takes over by storm. Really do dig the independent cantilever suspension. For sure the F1 class is gonna buy the halo for their bodies (hopefully a decent part)

herrokero likes this.

04-24-2020, 03:31 AM

#33

walrusjon

Tech Adept

iTrader: (1)

Join Date: Feb 2017

Location: Hong Kong

Posts: 188

Trader Rating: 1 (100%+)

Phat-Boy, angrymelon, DavidNERODease and 2 others like this.

04-24-2020, 03:49 AM

#34

herrokero

Tech Adept

Thread Starter

Join Date: May 2019

Posts: 207

Trader Rating: 0

AAAAAAAAAAAAAAAAAHHHHHHHHHHHHHHHHHHH I just bought an R11F recently and then this is announced

04-24-2020, 04:09 AM

#35

zxcvb1t

Tech Addict

Join Date: May 2016

Posts: 556

Trader Rating: 0

it is nice to see we can run this with touring body on. I wonder how it feels like compare to the regular ta and tb series.

jgil089 likes this.

04-24-2020, 04:26 AM

#36

Nicadrauspro4

Tech Master

Join Date: Oct 2005

Location: Automobili Lamborghini S.p.A., Italy

Posts: 1,134

Trader Rating: 0

I like the mid-mid motor layout and the double-wishbone upper suspension arms. IFS all the way!

I'm pretty excited on this one. It'll be a good project to upgrade as well. I can foresee a carbon fiber upper/lower suspension arms and side chassis brace upgrade too.

herrokero likes this.

04-24-2020, 04:47 AM

#37

Lonestar

Tech Elite

iTrader: (14)

Join Date: Oct 2001

Location: Switzerland

Posts: 2,848

Trader Rating: 14 (100%+)

Good ole tamiya is redoing a F201 - unless you pour an extra $200 on it, it won't handle any better than a TT01

Manny and photeckk like this.

04-24-2020, 04:50 AM

#38

simple

Tech Addict

iTrader: (2)

Join Date: Dec 2008

Location: Windsor, Ontario, Canada

Posts: 669

Trader Rating: 2 (100%+)

AWESOME!!.......now will have to wait another year for the "R"

04-24-2020, 05:41 AM

#39

gigaplex

Tech Elite

iTrader: (2)

Join Date: Dec 2015

Location: Melbourne, VIC

Posts: 4,987

Trader Rating: 2 (100%+)

Looks like a pretty funky rear gearbox to redirect the rear shaft over the battery pack. Yet another overengineered Tamiya drivetrain.

04-24-2020, 06:06 AM

#40

JatoTheRipper

Tech Elite

iTrader: (11)

Join Date: Sep 2007

Location: PA

Posts: 3,435

Trader Rating: 11 (100%+)

Chassis is pretty cool, but they can keep the flip flop body.

Quote:

Originally Posted by gigaplex

Looks like a pretty funky rear gearbox to redirect the rear shaft over the battery pack. Yet another overengineered Tamiya drivetrain.

You got all of that out of this grainy photo?

04-24-2020, 06:24 AM

#41

gigaplex

Tech Elite

iTrader: (2)

Join Date: Dec 2015

Location: Melbourne, VIC

Posts: 4,987

Trader Rating: 2 (100%+)

Quote:

Originally Posted by JatoTheRipper

Chassis is pretty cool, but they can keep the flip flop body.

You got all of that out of this grainy photo?

Yeah. It's 4WD and the battery is between the gearbox and the rest of the drivetrain.

04-24-2020, 06:42 AM

#42

Dan the Man

Tech Elite

iTrader: (41)

Join Date: Mar 2003

Location: Perth, W.A

Posts: 2,363

Trader Rating: 41 (100%+)

It looks like the F201 got a younger TA07 girlfriend, knocked her up and this is the result.

Hopefully we won't be also enjoying the F201 egg-arms that loved to shrapnel at a loud fart.

Rick Vessell, Woulvesbaine and gigaplex like this.

04-24-2020, 07:08 AM

#43

JatoTheRipper

Tech Elite

iTrader: (11)

Join Date: Sep 2007

Location: PA

Posts: 3,435

Trader Rating: 11 (100%+)

Quote:

Originally Posted by gigaplex

Yeah. It's 4WD and the battery is between the gearbox and the rest of the drivetrain.

I'm not sure how that makes it over-engineered. It accommodates a full-size battery and you have to get that power to the front and rear wheels somehow.

04-24-2020, 07:08 AM

#44

SteveM

Tech Champion

iTrader: (165)

Join Date: Aug 2001

Location: Ottawa, Ontario, CANADA

Posts: 7,767

Trader Rating: 165 (100%+)

I have never been a fan of Tamiya's exoskeleton style chassis and maintenance is likely a PITA like it is on their other cars using this style chassis. It's not clear how you would change gearing or even set gear mesh. The battery tray shows a 2S LiFe 6.6v battery which seems popular in Japan but not anywhere else, but hopefully it can accommodate a shorty 2S Lipo pack. The ESC sitting under the steering link also makes access difficult and in general it seems overly complicated for no reason.

04-24-2020, 07:17 AM

#45

Speed Chaser

Tech Elite

iTrader: (4)

Join Date: Sep 2014

Location: Mars sipping a pina colada

Posts: 4,461

Trader Rating: 4 (100%+)

Hmm, I am sold on it since you can fit normal touring car body on it but I wonder if they are going to do what they did with the ta07 and come out with an ms or evo version down the road.
