Serpent X20

Old 12-23-2019, 10:11 AM
  #241
Tech Elite
iTrader: (6)

Johnny Wishbone's Avatar

Join Date: Feb 2006
Posts: 3,673
Trader Rating: 6 (100%+)
Default

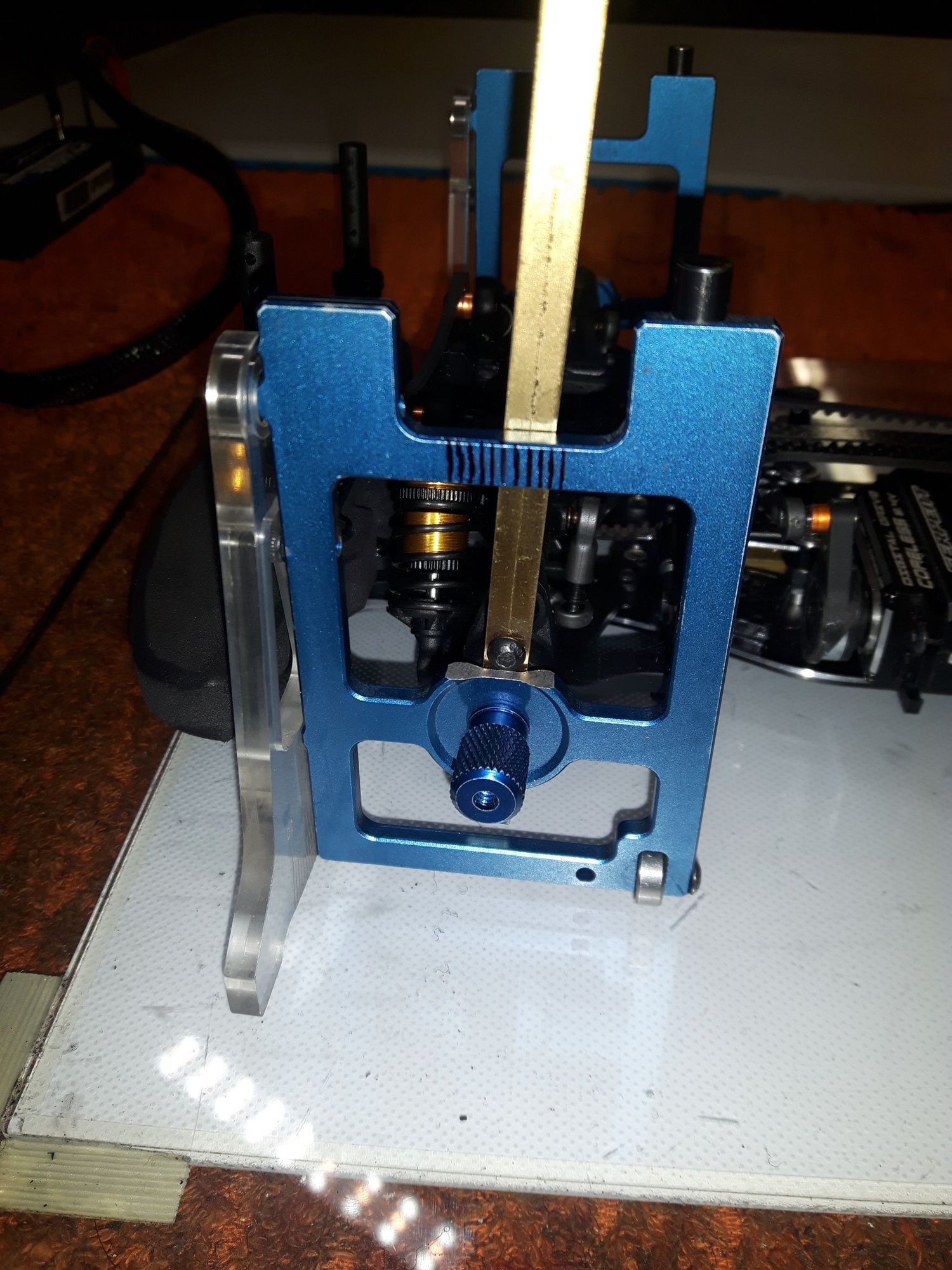

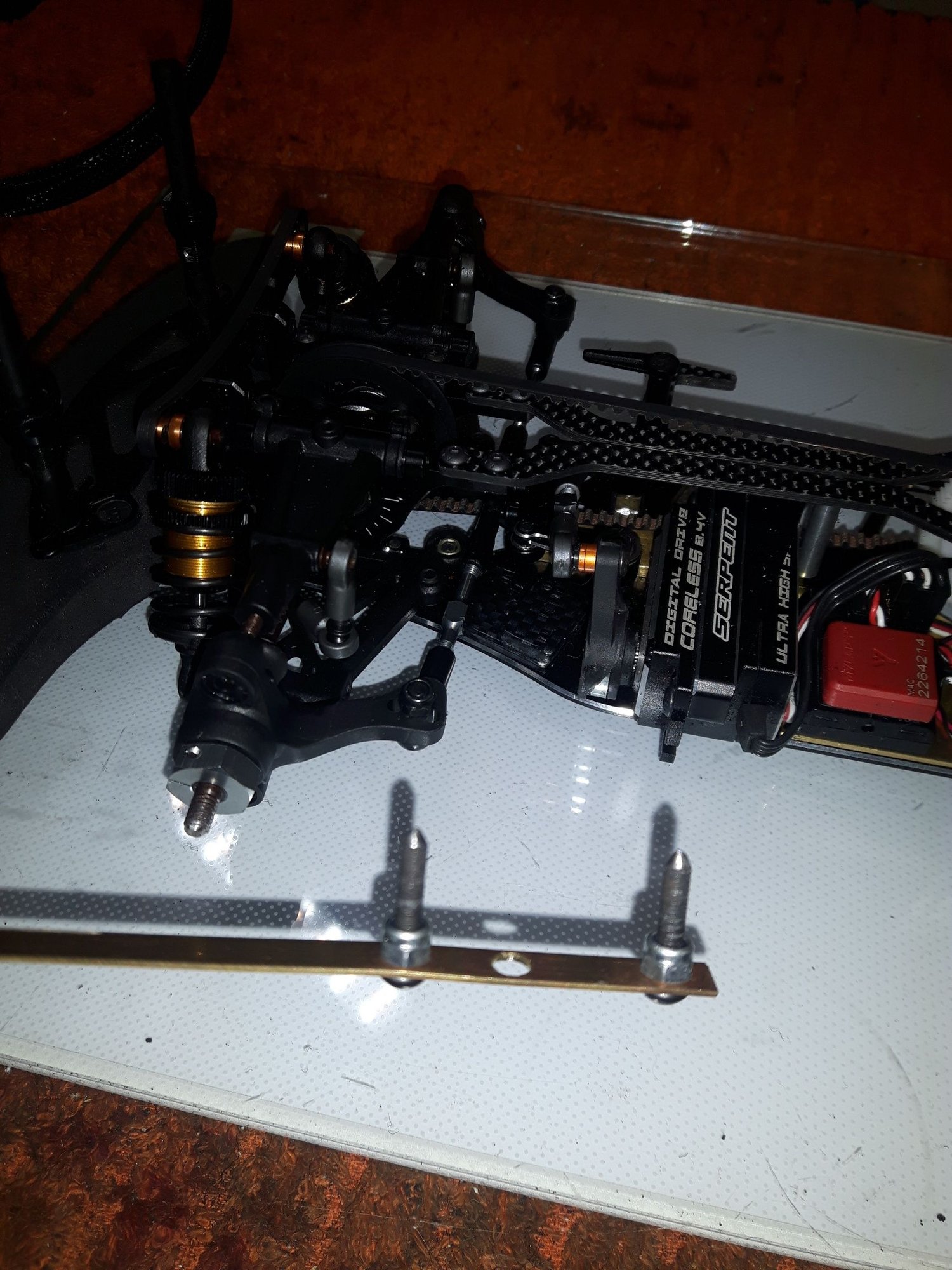

Here is my poor mans caster gauge.

The scale on the setup tool is a rough marking, I use a inclinometer againt the brass edge to get a better reading. The pins are ground to a point so they locate into the ball studs and the 3mm screws are snug in the capture cups. It works pretty good.
Johnny Wishbone is offline
Old 12-23-2019, 10:18 AM
  #242
Tech Elite
iTrader: (6)

Johnny Wishbone's Avatar

Join Date: Feb 2006
Posts: 3,673
Trader Rating: 6 (100%+)
Default

If your in a rush and need to check your rear toe setting, you can set your car upright and use your camber guage for a quick reference. Not as accurate as a setup station but for a quick check it works.
Johnny Wishbone is offline
Old 12-23-2019, 10:22 AM
  #243
Super Moderator
iTrader: (221)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 31,342
Trader Rating: 221 (100%+)
Default


This is my method and a lot more accurate
Johnny Wishbone likes this.
Marcos.J is offline
Old 12-23-2019, 10:29 AM
  #244
Tech Elite
iTrader: (6)

Johnny Wishbone's Avatar

Join Date: Feb 2006
Posts: 3,673
Trader Rating: 6 (100%+)
Default

I ended up changing my weight distribution on the car from my initial setup. I took all the nose weight out of the car and now have it down the middle of the car. With the exception of some weight on the left of the car for balance the car now scales out with a perfect 50/50 l/r and a 51/49 f/r. The car works well on our crc balck carpet. I did have a small two wheel issue in a couple sections of our track, but ended up going to lighter springs all around on the car and that settled it down.I also changed the ackerman on the car but ended up going to the suggested 1mm spacing. One thing I noticed when I did this and is something to look out for.

THE BALL STUDS DO NOT HAVE THREADS ALL THE WAY DOWN TO THE STOP, SO IF YOU TRY TO RUN NO SPACERS YOU CAN RUIN THE THREADS ON THE STEERING RACK.

You can fix this by doing a small back cut into the rack, taking out the first couple threads, or never use less than 1mm of spacing.
Johnny Wishbone is offline
Old 12-23-2019, 10:38 AM
  #245
Tech Elite
iTrader: (6)

Johnny Wishbone's Avatar

Join Date: Feb 2006
Posts: 3,673
Trader Rating: 6 (100%+)
Default

Originally Posted by Marcos.J View Post
This is my method and a lot more accurate
Mine is based on true kingpin inclination and doesn't take into account deflection of the steering arm itself. I use a inclinometer against the brass edge, but I'd need a third hand to take that pic, lol. If your arm is a true 90* to the kingpin then your method would work too.
Johnny Wishbone is offline
Old 12-23-2019, 10:51 AM
  #246
Super Moderator
iTrader: (221)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 31,342
Trader Rating: 221 (100%+)
Default

Originally Posted by Johnny Wishbone View Post
Mine is based on true kingpin inclination and doesn't take into account deflection of the steering arm itself. I use a inclinometer against the brass edge, but I'd need a third hand to take that pic, lol. If your arm is a true 90* to the kingpin then your method would work too.
as long as you have very accurate holes drilled and a accurate sharpie
Marcos.J is offline
Old 12-23-2019, 10:53 AM
  #247
Super Moderator
iTrader: (221)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 31,342
Trader Rating: 221 (100%+)
Default

Originally Posted by Johnny Wishbone View Post
Mine is based on true kingpin inclination and doesn't take into account deflection of the steering arm itself. I use a inclinometer against the brass edge, but I'd need a third hand to take that pic, lol. If your arm is a true 90* to the kingpin then your method would work too.

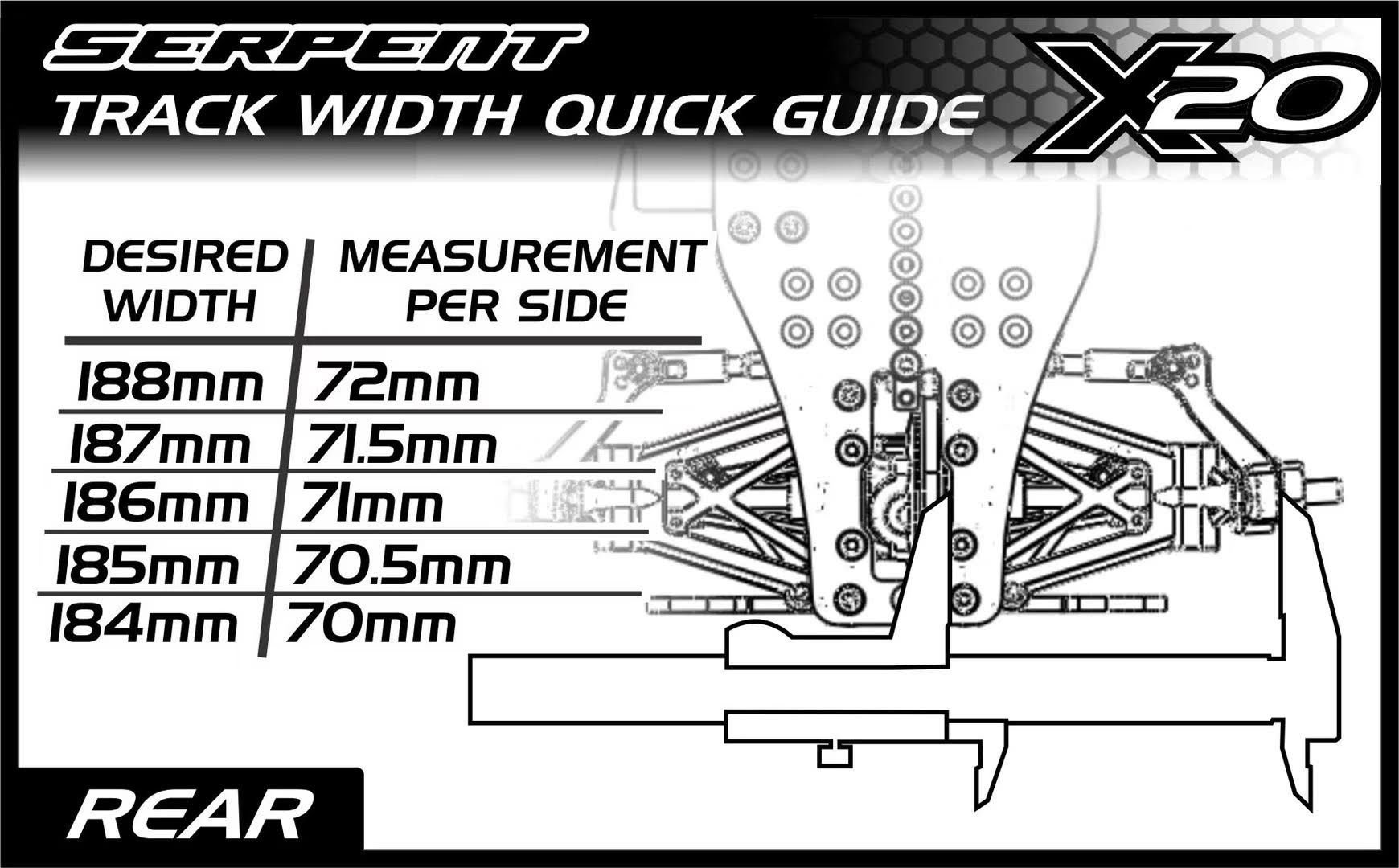

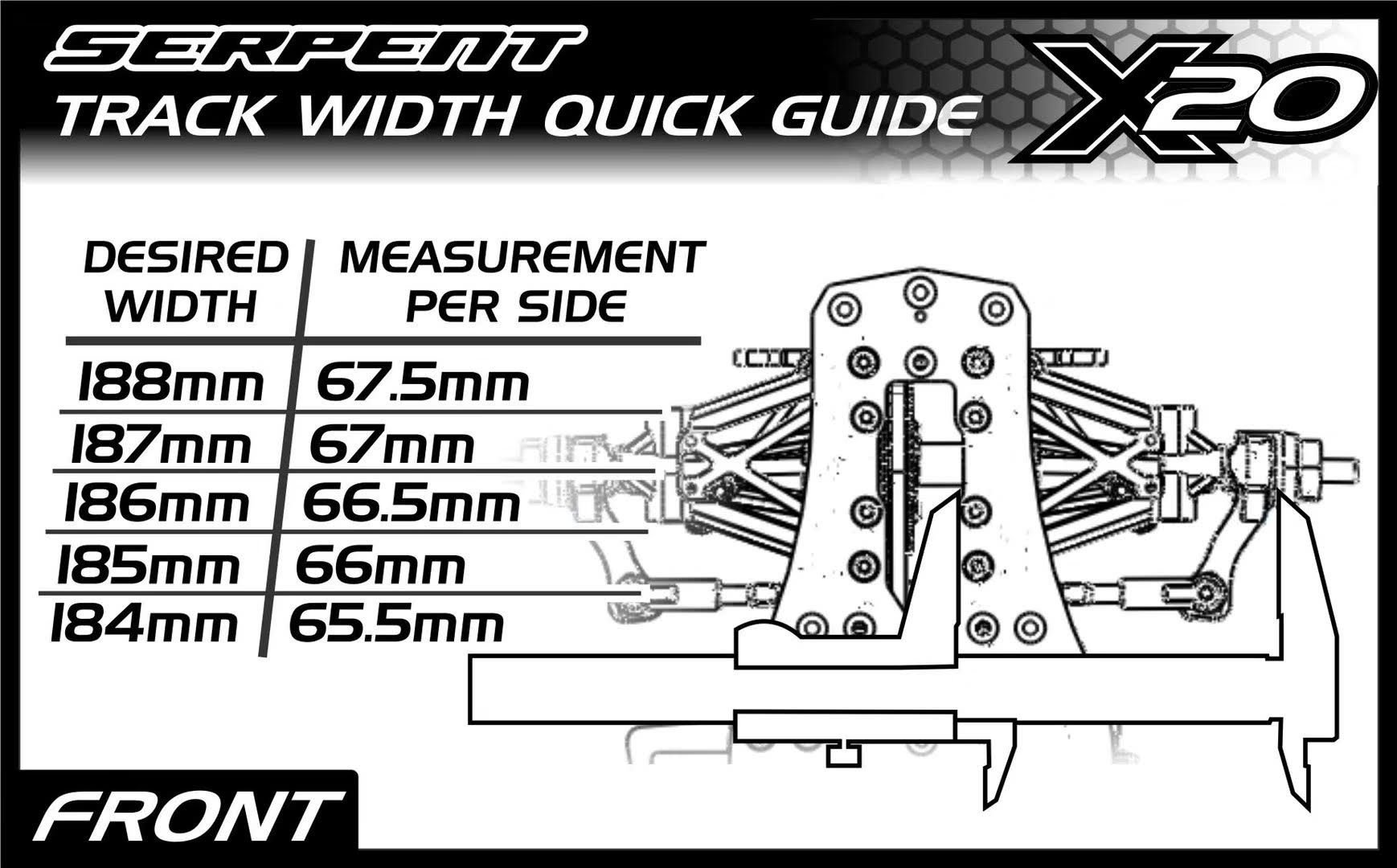

Felix is working an a chart to use with the calipers
Brian10811 likes this.
Marcos.J is offline
Old 12-23-2019, 11:30 AM
  #248
Tech Elite
iTrader: (6)

Johnny Wishbone's Avatar

Join Date: Feb 2006
Posts: 3,673
Trader Rating: 6 (100%+)
Default

Originally Posted by Marcos.J View Post
as long as you have very accurate holes drilled and a accurate sharpie
The sharpie marks are just for quick reference, the inclinometer is the accurate measuring device. The pointed ends on the screws locate to the ball studs and provided they aren't bent they run threw a true center line of all three factors. Mine is as accurate as your assumption that both bases of your standoff are the same diameter, lol. I'm sure we both have +/- tolerances in our systems, LOL.
Johnny Wishbone is offline
Old 12-23-2019, 11:32 AM
  #249
Tech Elite
iTrader: (6)

Johnny Wishbone's Avatar

Join Date: Feb 2006
Posts: 3,673
Trader Rating: 6 (100%+)
Default

Originally Posted by Marcos.J View Post
Felix is working an a chart to use with the calipers
Yes more information is in the chain I'm sure.
Marcos.J likes this.
Johnny Wishbone is offline
Old 12-23-2019, 11:56 AM
  #250
Super Moderator
iTrader: (221)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 31,342
Trader Rating: 221 (100%+)
Default

Originally Posted by Johnny Wishbone View Post
The sharpie marks are just for quick reference, the inclinometer is the accurate measuring device. The pointed ends on the screws locate to the ball studs and provided they aren't bent they run threw a true center line of all three factors. Mine is as accurate as your assumption that both bases of your standoff are the same diameter, lol. I'm sure we both have +/- tolerances in our systems, LOL.
agreed it all goes out the window when you tap at the first turn lol
Johnny Wishbone likes this.
Marcos.J is offline
Old 12-23-2019, 12:58 PM
  #251
Tech Elite
iTrader: (6)

Johnny Wishbone's Avatar

Join Date: Feb 2006
Posts: 3,673
Trader Rating: 6 (100%+)
Default

Originally Posted by Marcos.J View Post
agreed it all goes out the window when you tap at the first turn lol
Taps, LOL. I prefer to show that wall my authority and show it whos' the boss. (Sadly it always wins)
Marcos.J and lorider75 like this.
Johnny Wishbone is offline
Old 12-25-2019, 10:54 PM
  #252
Tech Champion
iTrader: (12)

RC MARKET's Avatar

Join Date: Feb 2007
Location: HK
Posts: 6,289
Trader Rating: 12 (100%+)
Default



RC MARKET is offline
Old 12-28-2019, 08:24 AM
  #253
Tech Master

TurnNBurn's Avatar

Join Date: Aug 2001
Location: Miami, FL
Posts: 1,458
Default

Well, I got all the chassis stiffening parts I ordered in yesterday. Of course, this was BEFORE many of the parts I ordered didnít have pictures, so for the most part, I played it safe and ordered the sets. I did, however, order the hanging steering mount, but low and behold, itís included in the fr chassis stiffening set.

Anyway, I was going to give yíall a heads up, but I see that almost all the pictures are up on the Serpent site now.
Brian10811 likes this.
TurnNBurn is offline
Old 12-28-2019, 01:31 PM
  #254
Tech Regular
iTrader: (1)

Brian10811's Avatar

Join Date: Dec 2017
Location: Tampa Bay, FL
Posts: 292
Trader Rating: 1 (100%+)
Default

Originally Posted by TurnNBurn View Post
Well, I got all the chassis stiffening parts I ordered in yesterday. Of course, this was BEFORE many of the parts I ordered didn’t have pictures, so for the most part, I played it safe and ordered the sets. I did, however, order the hanging steering mount, but low and behold, it’s included in the fr chassis stiffening set.

Anyway, I was going to give y’all a heads up, but I see that almost all the pictures are up on the Serpent site now.
Cool TurnNBurn, I am interested in the outcome once you installed them on the car and tested them. I look forward in hearing about your review after a race day. Based on Felix's review about the center steering linkage sounds interesting. Are you running carbon or graphite chassis?
Just a heads up. I will be receiving a 1.5mm and 2.0 mm upper deck. I am excited to try and post up my reviews. The upper deck is being made by CristianTabush (RSD/ Gizmo developer)
Marcos.J likes this.
Brian10811 is offline
Old 12-28-2019, 04:52 PM
  #255
Tech Master

TurnNBurn's Avatar

Join Date: Aug 2001
Location: Miami, FL
Posts: 1,458
Default

Originally Posted by Brian10811 View Post
Cool TurnNBurn, I am interested in the outcome once you installed them on the car and tested them. I look forward in hearing about your review after a race day. Based on Felix's review about the center steering linkage sounds interesting. Are you running carbon or graphite chassis?
Just a heads up. I will be receiving a 1.5mm and 2.0 mm upper deck. I am excited to try and post up my reviews. The upper deck is being made by CristianTabush (RSD/ Gizmo developer)
Yeah, I purchased the Carbon version of the kit, given that Iíll be running on asphalt. It might be a while before Iím actually able to run the car, as the Tekin gear I backordered, which was originally supposed to be available in early December, has now been pushed back to at least February.
