XRAY T4 anti dive

Reply

Old 09-28-2019, 08:24 PM
  #1
Tech Apprentice
Thread Starter

Join Date: Jan 2010
Location: Orange County, CA
Posts: 50
Default XRAY T4 anti dive



Im tryng to set up the front anti dive on my T4 and I think the X-ray Manual and the set up helper from petitrc are opposite. Based in the XRAY Manual the FF should be higher than the FR so that the arms tilt down towards the rear of the car. The set up helper shows it as opposite... the FF should be lower than the FR. I also looked at several pro set up sheets and those that have anti dive have the FF lower than FR. So which is correct?
ebohon is offline
Reply With Quote
Old 09-28-2019, 08:39 PM
  #2
Tech Initiate
iTrader: (2)

Join Date: Jun 2019
Posts: 30
Trader Rating: 2 (100%+)
Default

FF needs to be lower than FR to achieve anti-dive.
ebohon and Anthony Tziotis like this.
BEMO2019 is offline
Reply With Quote
Old 09-28-2019, 09:27 PM
  #3
OVA
Tech Champion
iTrader: (81)

OVA's Avatar

Join Date: Dec 2002
Location: WASHINGTON
Posts: 9,421
Trader Rating: 81 (100%+)
Default

Originally Posted by BEMO2019 View Post
FF needs to be lower than FR to achieve anti-dive.
Or just add shim under the FR block and non under FF block..
Marcos.J likes this.
OVA is offline
Reply With Quote
Old 09-29-2019, 03:29 AM
  #4
Tech Elite

Zerodefect's Avatar

Join Date: Apr 2008
Location: Columbus, OH
Posts: 4,635
Default

I love how confusing the description is. Sounds like they described it backwards again.

Kick up causes more dive. Leaning the arm forward is anti dive. The opposite of rear antisquat.
Zerodefect is offline
Reply With Quote
Old 09-29-2019, 04:31 AM
  #5
R/C Tech Elite Member
iTrader: (208)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 30,360
Trader Rating: 208 (100%+)
Default


I find the hpi pro4 manual explains it very simple like ova stated just use shims under the blocks

eevul and Brian10811 like this.
Marcos.J is offline
Reply With Quote
Old 10-11-2019, 02:45 AM
  #6
Tech Addict

Join Date: Jul 2006
Location: Brooklyn, New York
Posts: 692
Default

I was going through the threads and this topic caught my attention.

From the Martin Crisp set-up guide; Anti-Dive will have the Front-Rear Suspension Mount [ lower ] than the Front-Front Suspension Mount.

I have the HPI Pro 4 chassis and its Anti-Dive help part had me confused.
GuyIsDamGood is offline
Reply With Quote
Old 10-11-2019, 06:39 AM
  #7
Tech Fanatic
iTrader: (9)

Join Date: Feb 2009
Location: Lynnwood, Washington
Posts: 964
Trader Rating: 9 (100%+)
Default

Originally Posted by GuyIsDamGood View Post
I was going through the threads and this topic caught my attention.

From the Martin Crisp set-up guide; Anti-Dive will have the Front-Rear Suspension Mount [ lower ] than the Front-Front Suspension Mount.

I have the HPI Pro 4 chassis and its Anti-Dive help part had me confused.
That is pro-dive or front kick up. This will quicken the weight transfer to the front.
malkiy is offline
Reply With Quote
Old 10-11-2019, 09:24 AM
  #8
Tech Apprentice
Thread Starter

Join Date: Jan 2010
Location: Orange County, CA
Posts: 50
Default

Originally Posted by malkiy View Post
That is pro-dive or front kick up. This will quicken the weight transfer to the front.
That is also what I thought. I tried it per the instructions thinking I was using Anti-Dive and it made the care very grippy it into corners and traction rolled on sweepers, made the rear end loose.... just screwed up the setup. I went back to level and will try FF higher than FR and test, regardless of what it is actually called... i think there is some inconsistency on the actual 'names'.
GuyIsDamGood likes this.
ebohon is offline
Reply With Quote
Old 10-13-2019, 01:35 AM
  #9
Suspended
iTrader: (13)

Lonestar's Avatar

Join Date: Oct 2001
Location: Switzerland
Posts: 2,547
Trader Rating: 13 (100%+)
Default

Try to think by yourself how the names are related to how the suspension is impacted... and it will become obvious
Slo_E4 likes this.
Lonestar is offline
Reply With Quote
Old 10-13-2019, 12:48 PM
  #10
Tech Master
iTrader: (1)

Airwave's Avatar

Join Date: Jul 2007
Posts: 1,225
Trader Rating: 1 (100%+)
Default

Lonestar likes this.
Airwave is offline
Reply With Quote
Old 10-16-2019, 03:16 AM
  #11
Tech Addict

Join Date: Jul 2006
Location: Brooklyn, New York
Posts: 692
Default

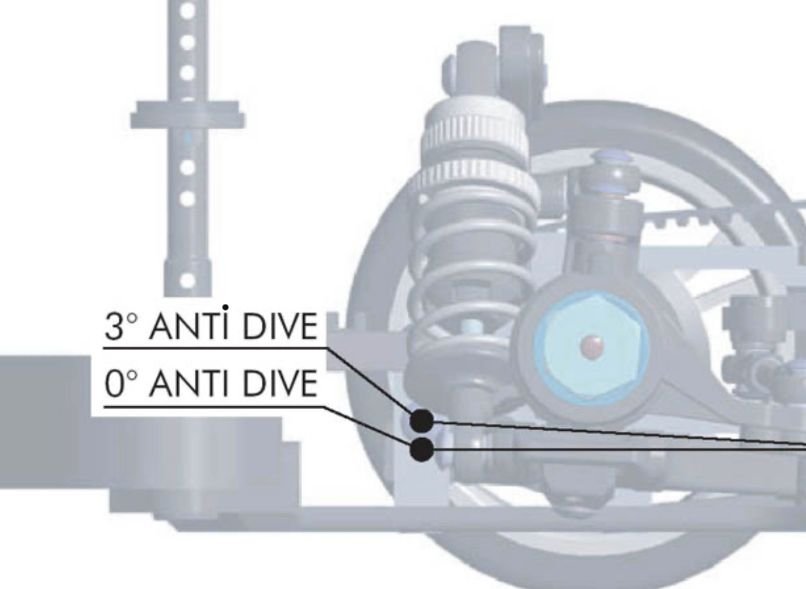

Upper hole (3 anti-dive): Works well in bumpy conditions, due to the constant caster angle when the suspension is compressed. However, steering is not as responsive as the 0 anti-dive setting.
Lower hole (0 anti-dive): Gives more aggressive steering when braking and especially while cornering, due to a decrease in caster when turning off-throttle.
https://www.teamxray.com/teamxray/pr...nt%20Anti-Dive



Last edited by GuyIsDamGood; 10-16-2019 at 04:05 AM.
GuyIsDamGood is offline
Reply With Quote
Old 10-16-2019, 03:21 AM
  #12
Tech Addict

Join Date: Jul 2006
Location: Brooklyn, New York
Posts: 692
Default

. . .We need well explained diagrams - pictures.

Last edited by GuyIsDamGood; 10-16-2019 at 04:30 AM.
GuyIsDamGood is offline
Reply With Quote
Old 10-16-2019, 04:29 AM
  #13
Tech Fanatic

daleburr's Avatar

Join Date: May 2010
Location: Oxfordshire, UK
Posts: 954
Default

Originally Posted by GuyIsDamGood View Post
Upper hole (3 anti-dive): Works well in bumpy conditions, due to the constant caster angle when the suspension is compressed. However, steering is not as responsive as the 0 anti-dive setting.
Lower hole (0 anti-dive): Gives more aggressive steering when braking and especially while cornering, due to a decrease in caster when turning off-throttle.
https://www.teamxray.com/teamxray/pr...nt%20Anti-Dive


That diagram, and the description is wrong. The line shows pro-dive (kick-up) as used on buggies, and that's what the explanation also describes.

Never used on a TC these days.
Lonestar likes this.
daleburr is offline
Reply With Quote
Old Yesterday, 04:16 AM
  #14
Tech Addict

Join Date: Jul 2006
Location: Brooklyn, New York
Posts: 692
Default

I do not own a XRay chassis. (I have a HPI Pro 4 and Tamiya TB Evolution 5) But the Anti-Dive set-up topic is interesting.
I dont run my chassis with Anti-Dive (at the moment). But now Im curious to test it out.


This is a Set-Up Sheet from a pro driver that used Anti-Dive (Front-Rear Suspension Mount [lower] than the Front-Front Suspension Mount)


http://site.petitrc.com/reglages/sch...ts20070715.pdf
GuyIsDamGood is offline
Reply With Quote
Old Yesterday, 04:48 AM
  #15
R/C Tech Elite Member
iTrader: (208)

Marcos.J's Avatar

Join Date: Sep 2003
Location: Semper Fi
Posts: 30,360
Trader Rating: 208 (100%+)
Default

Originally Posted by GuyIsDamGood View Post
I do not own a XRay chassis. (I have a HPI Pro 4 and Tamiya TB Evolution 5) But the Anti-Dive set-up topic is interesting.
I don’t run my chassis with Anti-Dive (at the moment). But now I’m curious to test it out.


This is a Set-Up Sheet from a pro driver that used Anti-Dive (Front-Rear Suspension Mount [lower] than the Front-Front Suspension Mount)


http://site.petitrc.com/reglages/sch...ts20070715.pdf
wow someone had some spare time to research set ups from 12 years ago jk
