Old 01-30-2020, 11:24 AM
  #331
Tech Regular

ruebiracer's Avatar

Join Date: Feb 2011
Location: Southern Germany
Posts: 338
Default

Another detail I forgot in the setupsheet: we all used the front holes in the plastic steering bridge.
ruebiracer is offline
Old 02-01-2020, 04:36 AM
  #332
Tech Initiate
iTrader: (1)

Join Date: Jan 2015
Posts: 31
Trader Rating: 1 (100%+)
Default

Could you explain in more detail the notes on shock rebound length and the dr notes in parentheses?
last5liter is offline
Old 02-01-2020, 08:44 AM
  #333
Tech Regular

ruebiracer's Avatar

Join Date: Feb 2011
Location: Southern Germany
Posts: 338
Default

Originally Posted by last5liter View Post
Could you explain in more detail the notes on shock rebound length and the dr notes in parentheses?
Hi,
I tried to measure the droop roughly after the 3rd A-final, by lifting the chassis until the tires of each axle loose the ground contact, so to say the "negative stroke". In Addition I tried to measure more precisely like on my touring car with removed wheels, with the usual 10mm blocks under the chassis, and the corresponding (Hudy etc.) gauge under the wishbone end directly below the link pin for the f/r knuckle/C-hub. So I think this value is more precise to rebuild my setup. But as we had to run with a quite high ground clearance, these are probably no values where the majority will end up, as they correspond to this ground clearance.

I hope I answered your question precisely enough,
Br,
Matthias
ruebiracer is offline
Old 02-01-2020, 08:59 AM
  #334
Tech Initiate
iTrader: (1)

Join Date: Jan 2015
Posts: 31
Trader Rating: 1 (100%+)
Default

So (dr) is the bottom of the hinge pin area of the arm to the setup board when sitting on 10mm droop blocks?
and rebound stroke is how many mm's the chassis raised up from ride height to just lift the tires?






Originally Posted by ruebiracer View Post
Hi,
I tried to measure the droop roughly after the 3rd A-final, by lifting the chassis until the tires of each axle loose the ground contact, so to say the "negative stroke". In Addition I tried to measure more precisely like on my touring car with removed wheels, with the usual 10mm blocks under the chassis, and the corresponding (Hudy etc.) gauge under the wishbone end directly below the link pin for the f/r knuckle/C-hub. So I think this value is more precise to rebuild my setup. But as we had to run with a quite high ground clearance, these are probably no values where the majority will end up, as they correspond to this ground clearance.

I hope I answered your question precisely enough,
Br,
Matthias
last5liter is offline
Old 02-02-2020, 04:35 AM
  #335
Tech Regular

ruebiracer's Avatar

Join Date: Feb 2011
Location: Southern Germany
Posts: 338
Default

Originally Posted by last5liter View Post
So (dr) is the bottom of the hinge pin area of the arm to the setup board when sitting on 10mm droop blocks?
and rebound stroke is how many mm's the chassis raised up from ride height to just lift the tires?
With "dr." I marked the droop values of 4,5 and 4.
6,5 and 8 are the values displayed on the gauge.

Br,
Matthias
ruebiracer is offline
Old 02-02-2020, 07:02 AM
  #336
Tech Initiate
iTrader: (1)

Join Date: Jan 2015
Posts: 31
Trader Rating: 1 (100%+)
Default

Originally Posted by ruebiracer View Post
With "dr." I marked the droop values of 4,5 and 4.
6,5 and 8 are the values displayed on the gauge.

Br,
Matthias
So on 10mm blocs, you read 6.5mm front and 8mm rear from outer hinge pin to setup board?
​​​​​​
last5liter is offline
Old 02-02-2020, 11:44 AM
  #337
Tech Regular

ruebiracer's Avatar

Join Date: Feb 2011
Location: Southern Germany
Posts: 338
Default

Originally Posted by last5liter View Post
So on 10mm blocs, you read 6.5mm front and 8mm rear from outer hinge pin to setup board?
​​​​​​
Hmm, now you got me. Before I tell something wrong, let me check my gauges. Ive 2 from Hudy, but I never really checked how they refer to the chassis height on the 10mm blocks.

ruebiracer is offline
Old 02-02-2020, 12:02 PM
  #338
Tech Regular

ruebiracer's Avatar

Join Date: Feb 2011
Location: Southern Germany
Posts: 338
Default

Originally Posted by last5liter View Post
So on 10mm blocs, you read 6.5mm front and 8mm rear from outer hinge pin to setup board?
​​​​​​
Checked: yes, its the distance in mm from the lower side of the wishbone at the hingepin area. Measured on the front end and back end side of the car.(On the back side of the front wishbones the distance is different due to the 5 caster lower mount).

ruebiracer is offline
Old 02-06-2020, 09:24 PM
  #339
Tech Initiate
iTrader: (1)

Join Date: Jan 2015
Posts: 31
Trader Rating: 1 (100%+)
Default

Originally Posted by ruebiracer View Post
Checked: yes, its the distance in mm from the lower side of the wishbone at the hingepin area. Measured on the front end and back end side of the car.(On the back side of the front wishbones the distance is different due to the 5 caster lower mount).
Thinking about this....does that mean the car is running more droop in the front than the rear?
Or is the 6.5 and 8 the readings on the droop gauge?

​​​​​
last5liter is offline
Old 02-06-2020, 09:25 PM
  #340
Tech Initiate
iTrader: (1)

Join Date: Jan 2015
Posts: 31
Trader Rating: 1 (100%+)
Default

Any people with setup and or tire prep tips for these new prime spec tires?
last5liter is offline
Old 02-07-2020, 10:16 AM
  #341
Tech Regular

ruebiracer's Avatar

Join Date: Feb 2011
Location: Southern Germany
Posts: 338
Default

Originally Posted by last5liter View Post
Thinking about this....does that mean the car is running more droop in the front than the rear?
Or is the 6.5 and 8 the readings on the droop gauge?

​​​​​
Yes, running 4,5mm droop front roughly and 4mm in rear at this day. But after defining some Setup Details now, there can start a loop to refine the droop.
6.5 and 8 were the readings on the droop gauge, too.
ruebiracer is offline
Old 04-06-2020, 08:43 AM
  #342
Tech Adept

ErikJan's Avatar

Join Date: Oct 2013
Location: Eindhoven, the Netherlands
Posts: 132
Default

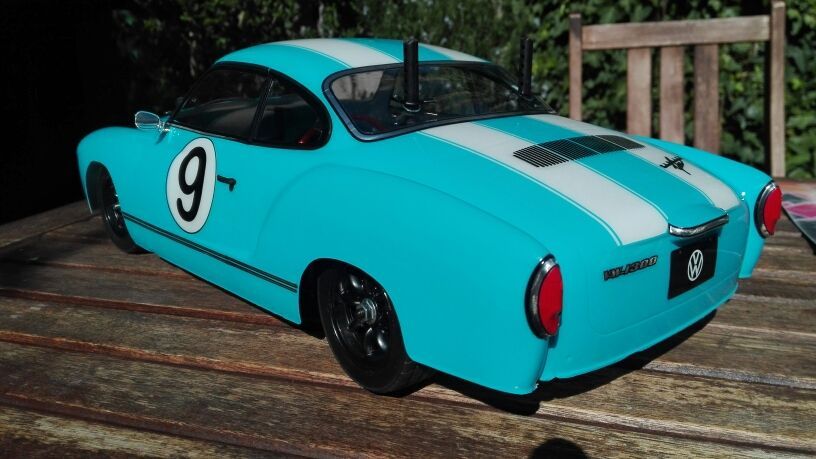

The Karmann Ghia is finally on the M08:

ErikJan is online now
Old 04-08-2020, 11:09 AM
  #343
Tech Regular

ruebiracer's Avatar

Join Date: Feb 2011
Location: Southern Germany
Posts: 338
Default

Very cool Erik Jan!
Guess tomorrow my Karmann Shell will arrive, too.
ruebiracer is offline
Old 06-22-2020, 04:01 PM
  #344
Tech Elite
iTrader: (74)

Raman's Avatar

Join Date: Aug 2007
Location: Las Vegas
Posts: 4,109
Trader Rating: 74 (100%+)
Default

Time to wake up this thread! I am back fresh from TCS with some positive feedback on this little gem of a car. Turn out wasn't that big given the pandemic, 8 entries. 6 M07 and 2 M08. I finished 4th overall behind 3 M08s all driven by individuals with greater driving skills than I. Had one of them driven the car they would have certainly won with it as well.

One thing is for certain, everyone should ditch the M08 C hub and switch over to the M07 4 plate and carbon reinforced C hub. I did not break once, meanwhile my friend in his M08 suffered multiple C hub failures. Here is my set up attached. Forgot to add, rear diff had 30k in it!

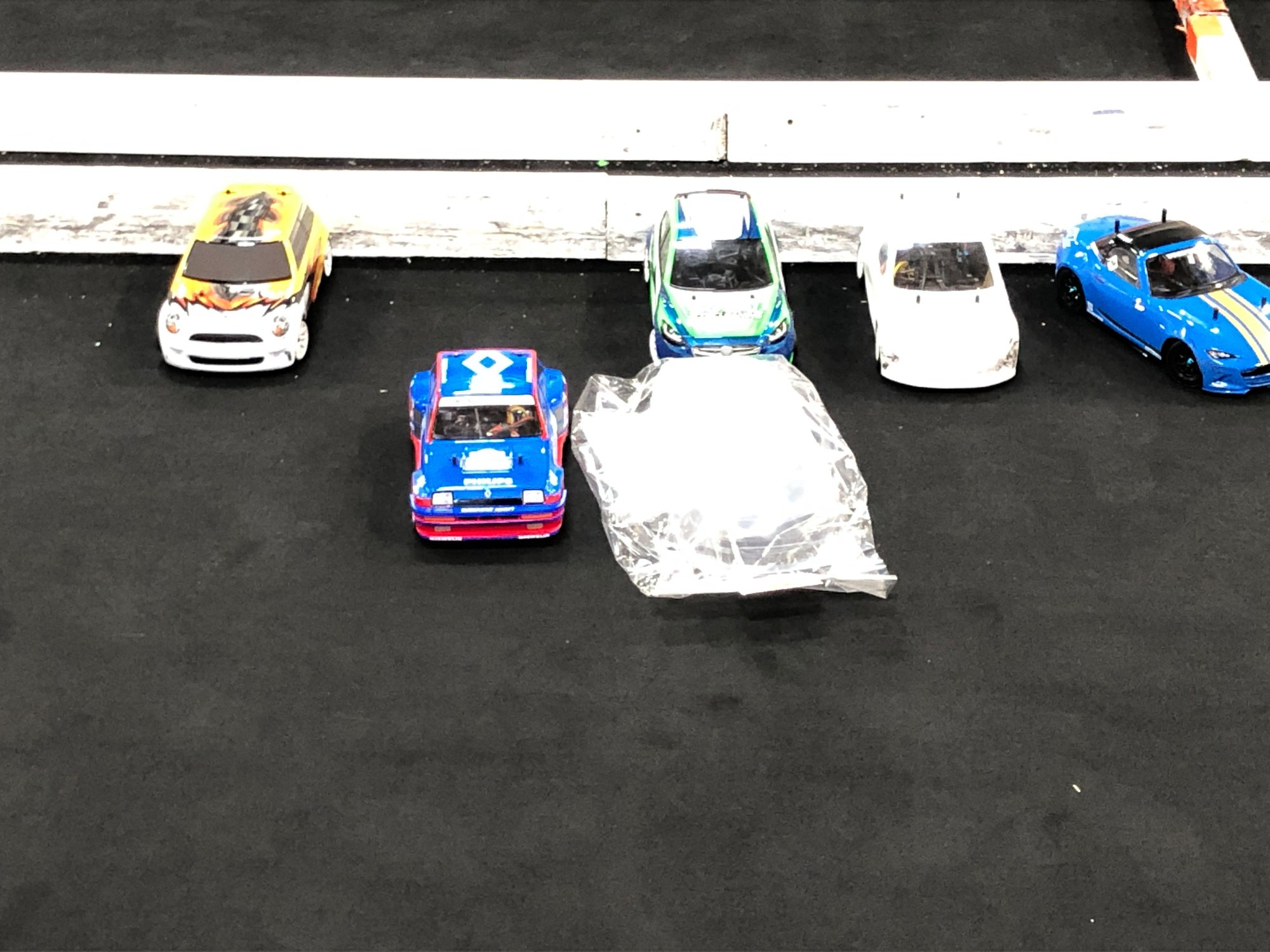

Here is my concourse winning body 👍


Raman is offline
Old 06-22-2020, 08:52 PM
  #345
Tech Champion
iTrader: (105)

Core Creations's Avatar

Join Date: Sep 2001
Location: Back in the booth
Posts: 5,996
Trader Rating: 105 (100%+)
Default

Originally Posted by Raman View Post
Time to wake up this thread! I am back fresh from TCS with some positive feedback on this little gem of a car. Turn out wasn't that big given the pandemic, 8 entries. 6 M07 and 2 M08. I finished 4th overall behind 3 M08s all driven by individuals with greater driving skills than I. Had one of them driven the car they would have certainly won with it as well.

One thing is for certain, everyone should ditch the M08 C hub and switch over to the M07 4 plate and carbon reinforced C hub. I did not break once, meanwhile my friend in his M08 suffered multiple C hub failures. Here is my set up attached. Forgot to add, rear diff had 30k in it!

Here is my concourse winning body 👍


So is TCS running S grips for qualifiers? I thought they had switched to the Rides.
Core Creations is offline
